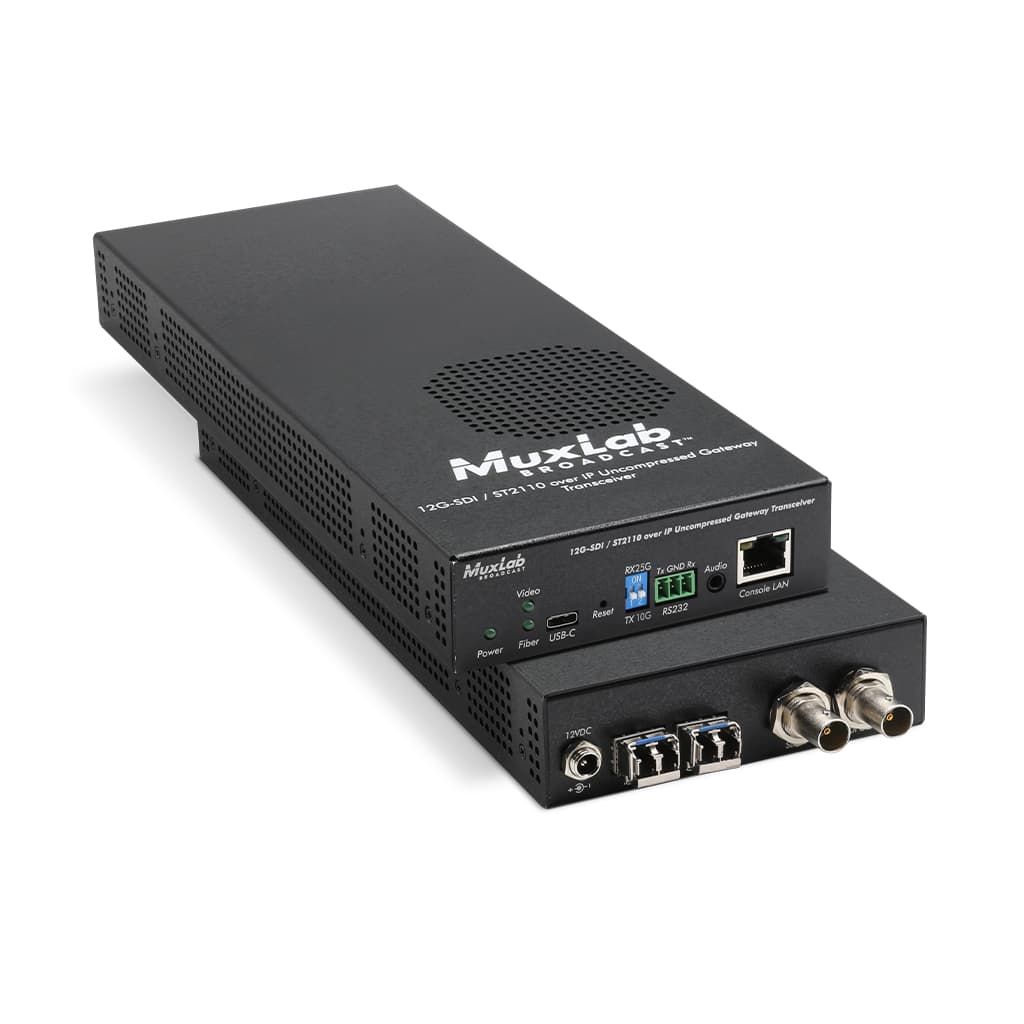

12G-SDI/ST2110 over IP Gateway TRX
The transceiver (500775-2110) unit allows 12G-SDI equipment to be extended up-to many miles over an IP network. This Gateway Converter supports the ST-2110 AV over IP protocol standard for Broadcast applications. It supports audiovisual data up to uncompressed 4K@60Hz resolution video and 16 audio channels (12Gbps bandwidth).
This unit is a transceiver and can be configured as a Transmitter or Receiver for added flexibility and convenience.
The unit converts AV data from 12G-SDI to be utilized in a broadcast environment over a network, while extending end point source and sink devices at up to 6.2mi (10km) via duplex single mode fiber, and up to 320ft(100m) for the multimode model. Point-to-point configuration is supported as well as point-to-multipoint and multipoint-to-multipoint configurations by connecting several units to a 25G Ethernet network. This device is versatile and can also be used over 10G network. In this case, maximum video resolution is uncompressed 4K@30Hz (6Gbps bandwidth).
The device supports ST-2022-7 (Class D) Redundancy for critical fail-safe applications allowing the audio/video signal to run over two independent 25G/10G Ethernet Networks. The unit provides a 1G Ethernet Network port for control via Web interface or 3rd party management platforms supporting a RestAPI, or NMOS (IS-04 for discovery and IS-05 for connectivity management).
- Supports SMPTE ST-2110 uncompressed 12G-SDI video up to 4K@ 60Hz
- Supports SMPTE ST-2022-7 (Class D, supporting up to 150usec delay with no frame lose) AV signal
- Redundancy (Seamless Protection Switching)
- Extend SDI audio/video over an IP network up to 6.2 miles (10km).
- This device is a Transceiver and can be configured as a Transmitter (Encoder), or Receiver (Decoder)
- This device can be used over 25Gbps Network or 10Gbps Network.
- Supports many Transmitters and Receivers depending on network bandwidth

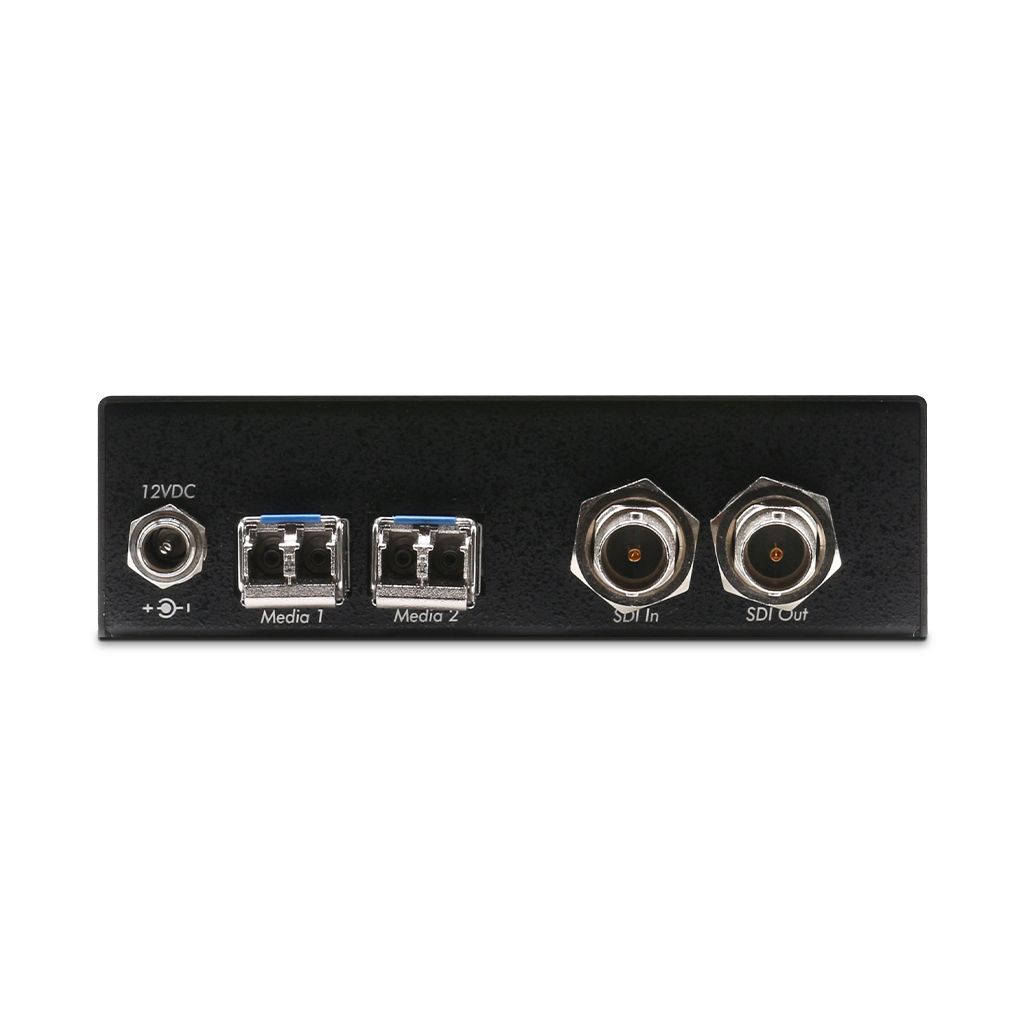

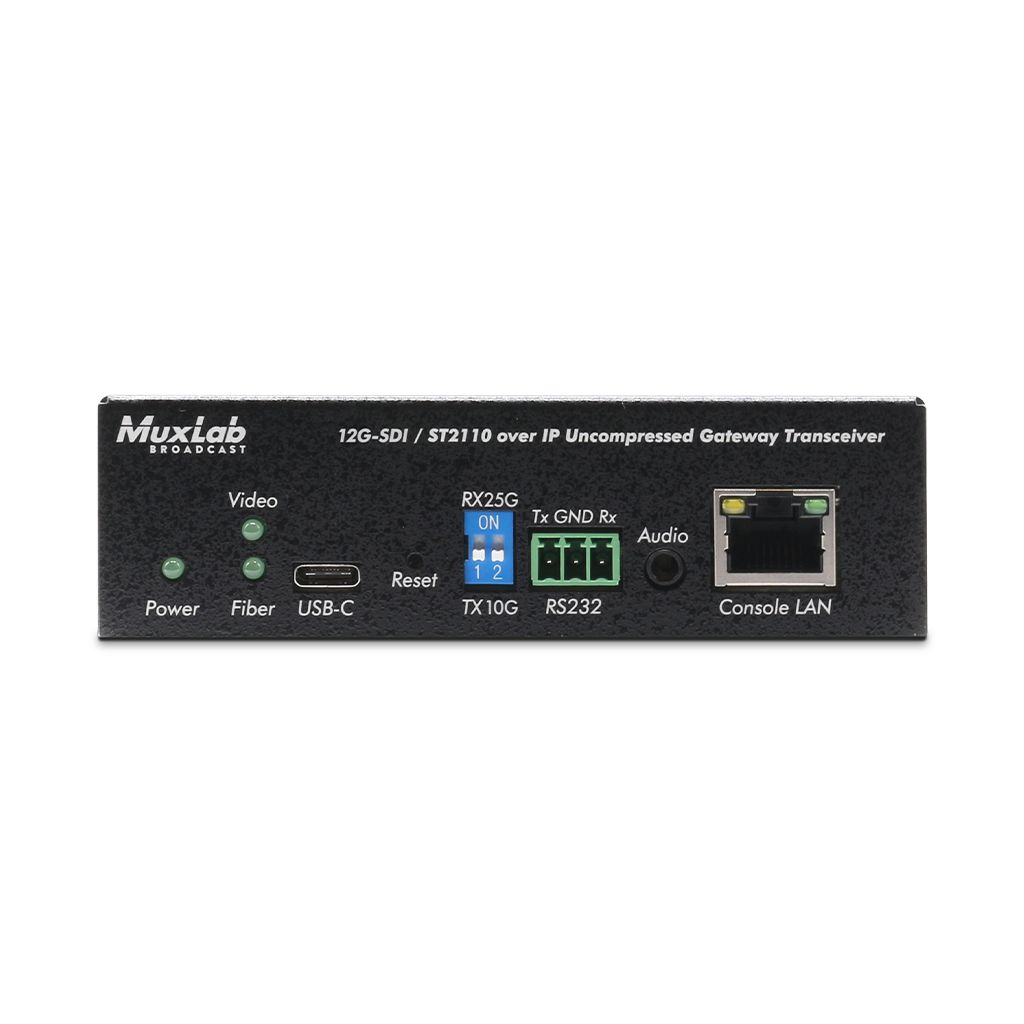

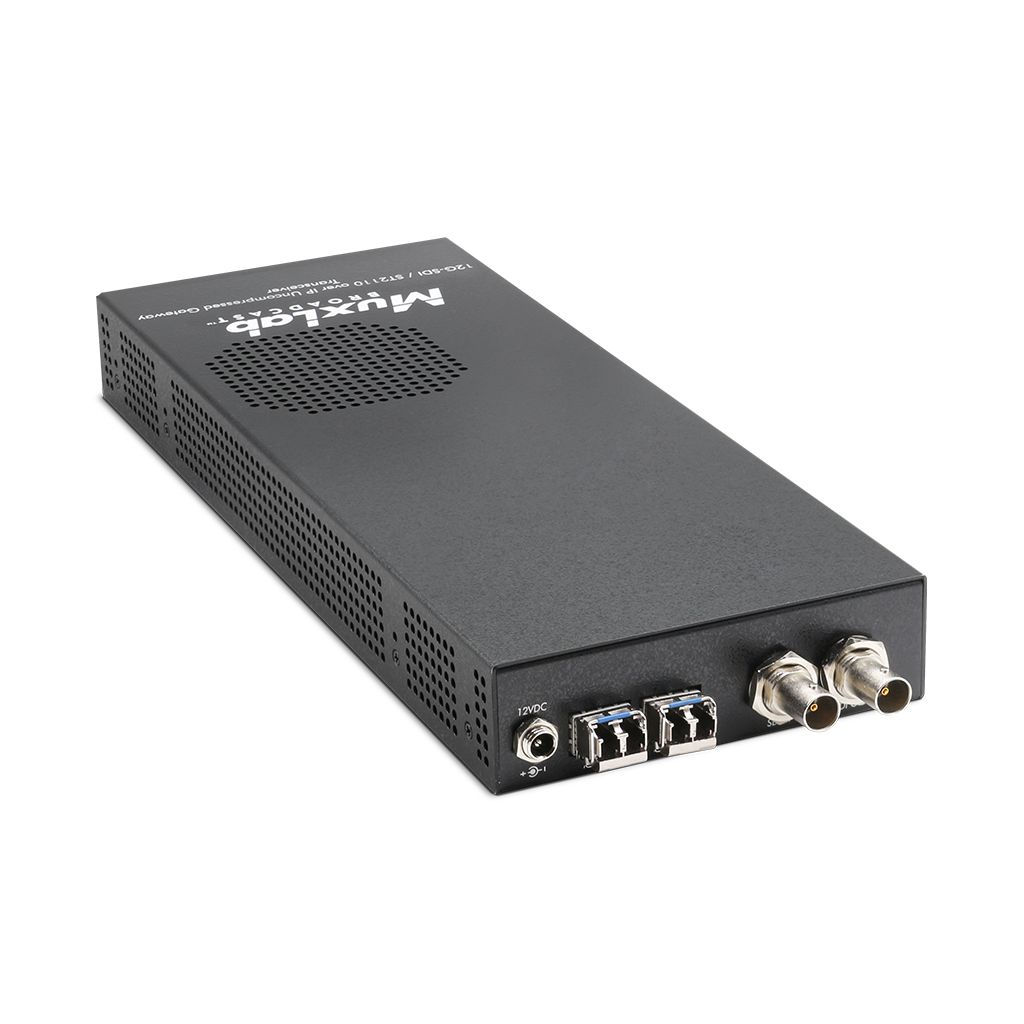

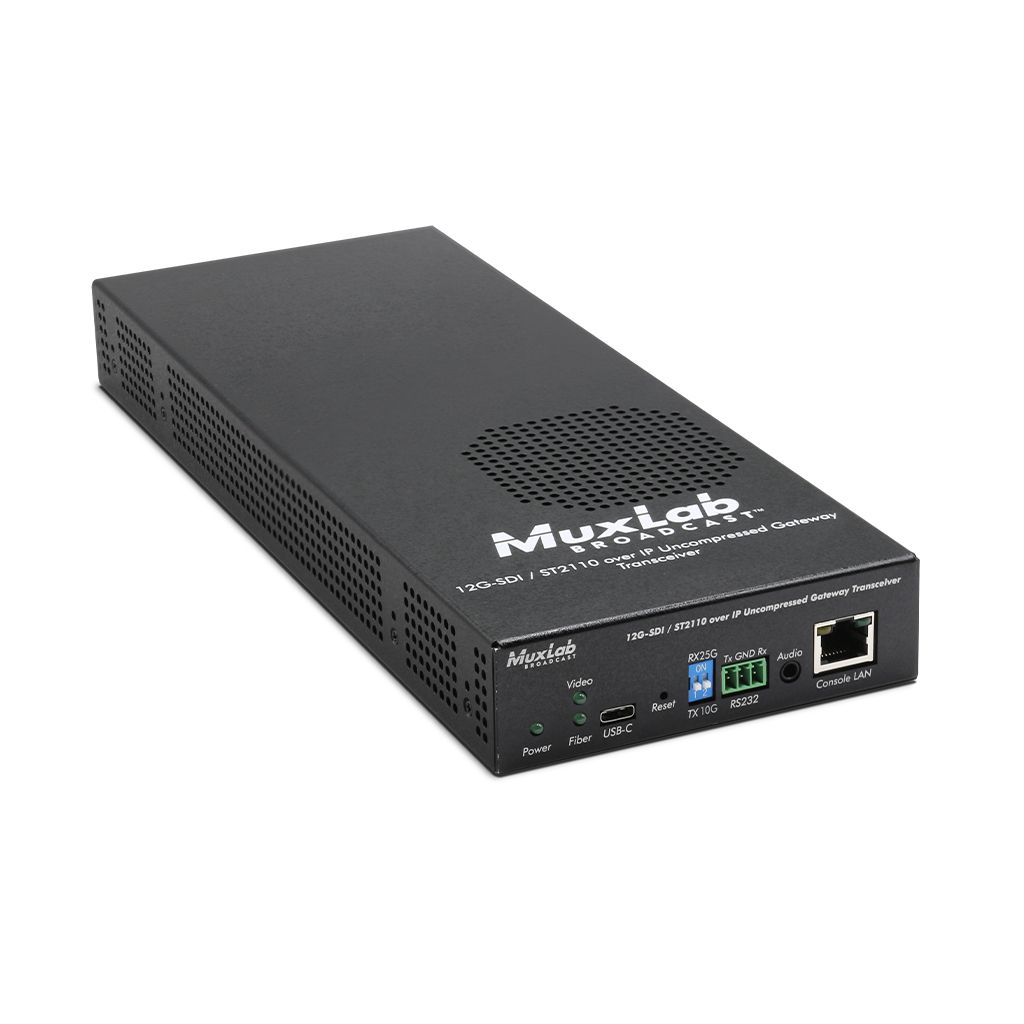

- Supports point-to-point, point-to-multipoint and multipoint-to-multipoint applications Supports two (2) 25G/10G Ethernet ports (labelled as: Media 1 & Media 2) for AV Media/Data transmission, and a 1G Ethernet port (labelled as: Console LAN) for device management & control
- RS232 port is included for future use, to manage end devices
- USB-C port is included for future use, to implement KVM management
- Audio 3.5mm port is included for future use, for audio insert/extract
- May be managed via a Web interface and third-party control software platforms supporting a RestAPI or NMOS based management platform
