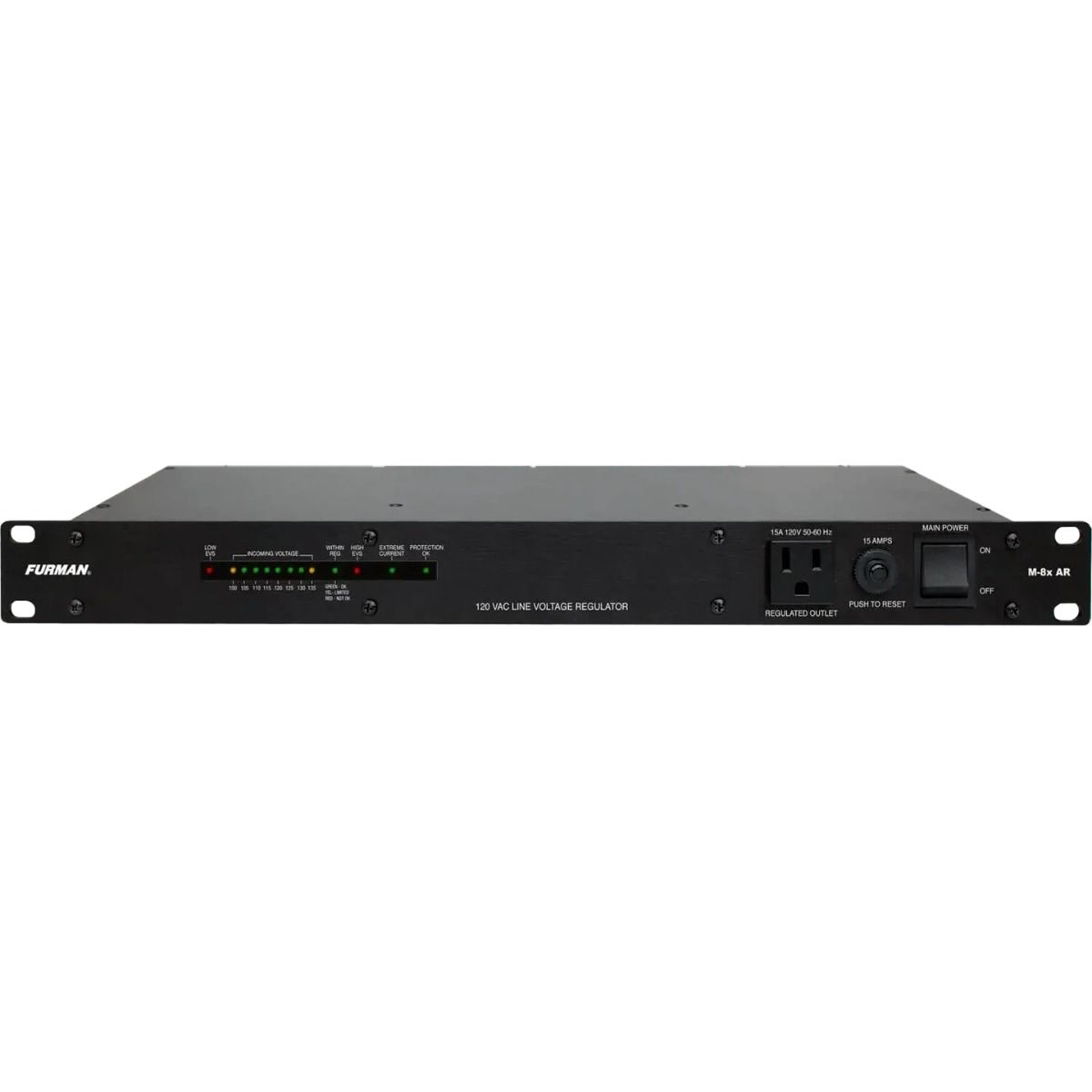

15A 1U Power Conditioner W/Voltage Reg, 9 Outlets, Voltmeter

Description

Merit Series M-8x AR Voltage Regulator for Unstable Power Conditions

15A 1U Power Conditioner W/Voltage Reg, 9 Outlets, Voltmeter

The Furman M-8x AR is designed to protect sensitive electronic equipment from significant AC line voltage irregularities like brownouts, sags, and over-voltage conditions. Through its use of a toroidal autotransformer, it corrects for voltage deviations, ensuring a steady, stable 120VAC output.

It features nine regulated AC outlets, a front-panel bar graph to display input voltage, and a 15-amp input capacity. For maximum protection, the M-8x AR includes Extreme Voltage Shutdown (EVS) and Extreme Current Shutdown (ECS) circuitry, which cuts power during extreme events to safeguard your equipment. It is the ideal choice for professional audio, recording, and instrument rigs where consistent voltage is critical for performance and safety.

• Voltage Regulator Function

  • Uses an autotransformer to correct deviations in line voltage, ensuring the output is close to the nominal level

• Transformer Taps

  • Switched by the voltage regulator to maintain a stable output voltage

• Spike Protection

  • MOVs (Metal Oxide Varistors) in the M-8x AR absorb spikes to safeguard equipment

• RFI/EMI Interference

  • Achieved through low-pass filtering, which targets frequencies higher than the standard AC line frequency (50/60 Hz).

• Extreme Voltage Protection

  • The M-8x AR detects and responds to extreme voltage conditions to prevent equipment damage

• Extreme Current Protection

  • The M-8x AR is equipped with an ECS (Extreme Current Sensing) circuit to detect and react to high-speed, high-level current surges

• Dimensions:

  • 19″ W x 11″ D x 1.75″ H

• Weight:

  • 15.75lbs
