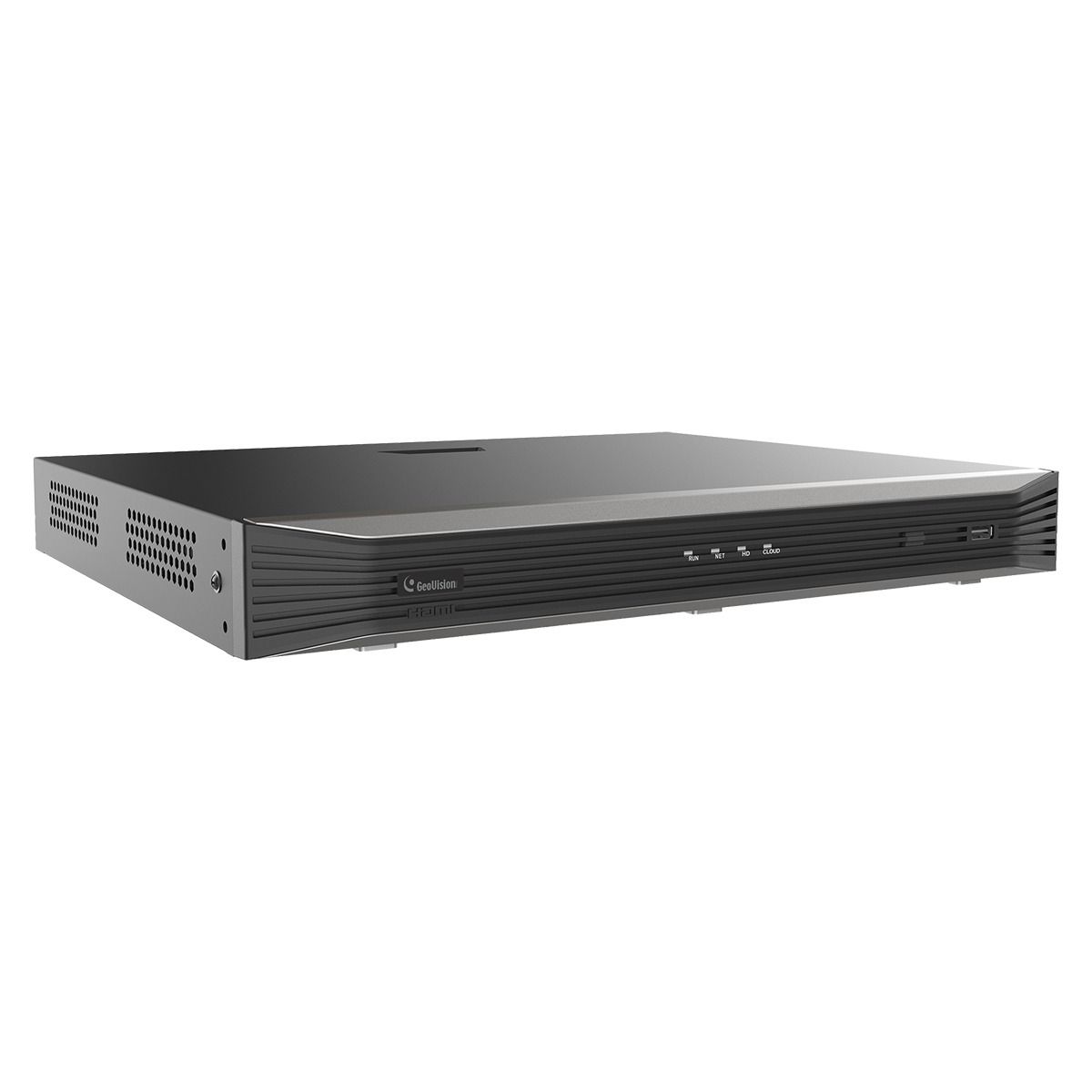

16ch 4K PoE standalone NVR, 2x SATA Ports, 12MB Recording

Description

16ch 4K PoE standalone NVR, 2x SATA Ports, 12MB Recording

GV-TNVR1620-P is a standalone network video recorder with an embedded Linux operating system that records video directly to its internal hard drives. It supports up to 16 IP camera channels for video surveillance and features 16 built-in PoE ports (IEEE 802.3at), providing both power and network connectivity to connected IP cameras. With support for video output up to 4K resolution, GV-TNVR1620-P eliminates the need for a separate PC to view or play back recordings. USB ports are available for importing / exporting system settings, updating firmware, storing snapshots, and backing up video files.

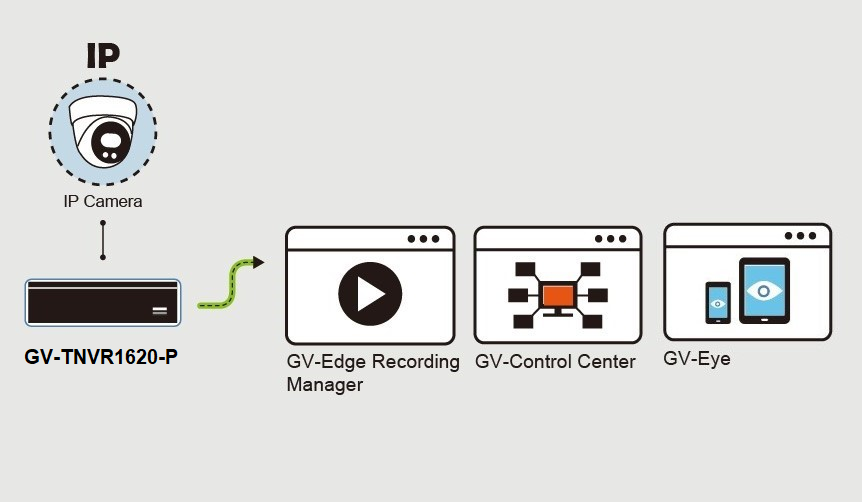

GV-TNVR1620-P also features advanced AI functions, including face recognition, smart intrusion detection, and people and vehicle motion detection. When integrated with AI-capable GV-IP cameras, it provides a wide range of analytics to meet your diverse perimeter protection and surveillance needs.

• 16 channels with two (2) SATA ports
• Up to 12 MP resolution recording
• VGA and HDMI simultaneous output, up to 4K (3840 x 2160)
• 16-port PoE plug-and-play
• Two-way audio
• 8 alarms inputs and 2 alarm outputs
• Realtime face recognition
• Analytics by cameras supported
• AcuSearch to search for vehicle or people by designating an interest of area in the live view or recordings
• Smart device access (iOS and Android)
• ONVIF cameras supported
• GV-VPN supported
• 12 languages supported

Includes:

• GV-TNVR1620-P
• Power Cord
• SATA cable x 2
• Foam foot
• HDD power cable x 2
• Phoenix Terminal x 2
• Screw Kit (for HDD) x 2
• Rack Mount Kit (2 L‐shaped brackets + 4 screws)
• USB Mouse
• Download Guide

Note:

• Fisheye dewarping is only supported by GV-FER5702.
• GV-TMEB5800 is not supported by GV-TNVR1620-P.
• Certain GV-IP cameras are not supported by GV-TNVR1620-P. See the Technical Notice for details.
• Product design and specifications are subject to change without notice.
