Description

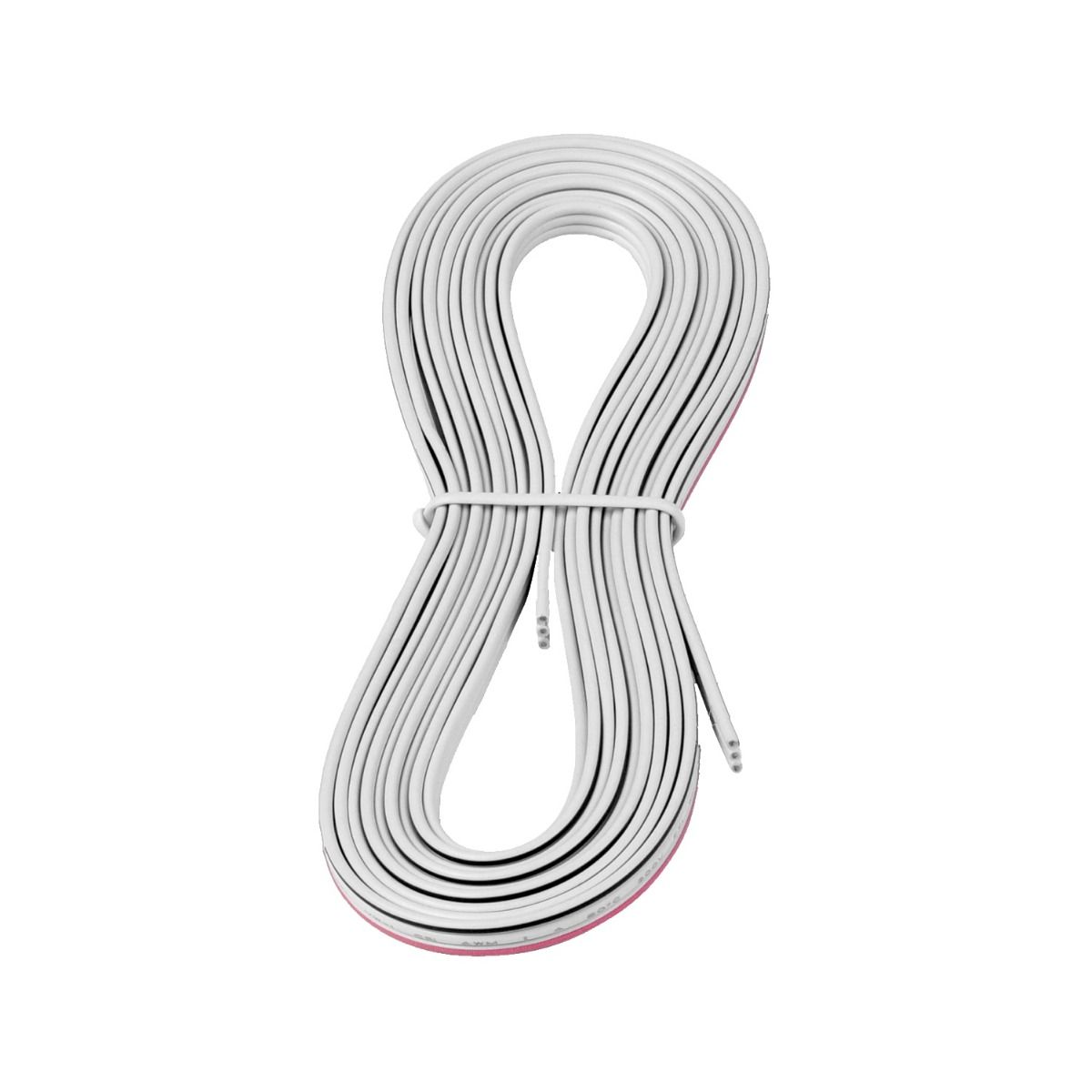

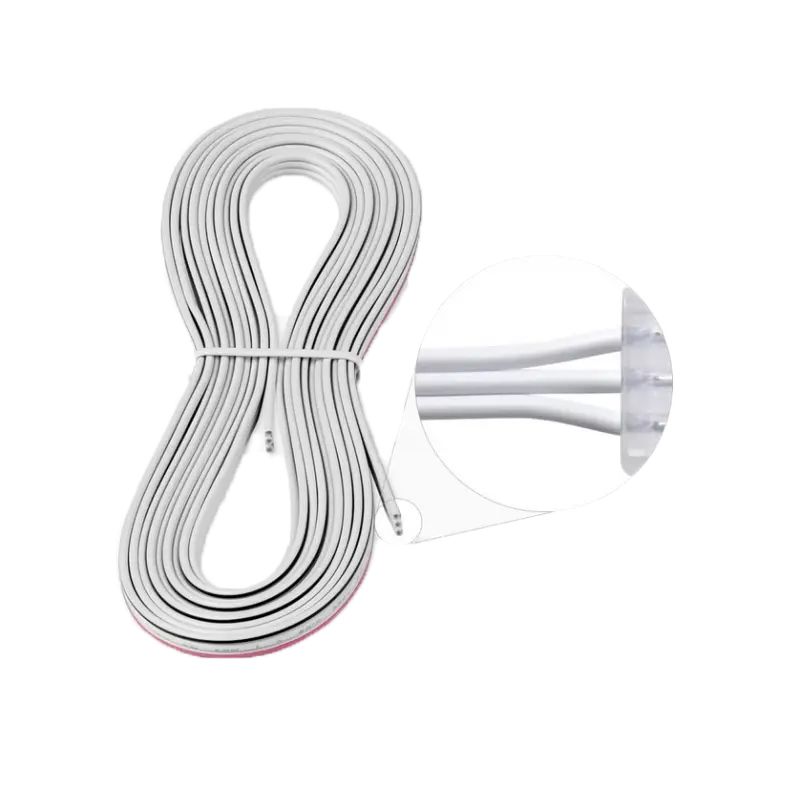

22/3 WIRE FOR LUMARIS TUNABLE WHITE LED TAPELIGHT, 50FT
The Lutron Lumaris 3 x 22AWG wire is a 50' spool of 3-conductor AWG wiring for Lutron Lumaris LED tape lights. 0.50mm2 total wire thickness. Allows users to extend the length of the standard power supply by cutting custom lengths as required. Allows a maximum run of 10' from wireless controllers and up to 16.4' of Lumaris LED tape lights. LED Tape light and accessories sold separately.
Specs and Features
- 50', 3-wire 22AWG wiring for Lutron Lumaris LED tape lights and wireless controllers and power supplies
- Power supply input: 120V (50/60Hz)
- Power supply output: 24V 1500mA, 36W maximum
- Wireless controller input: 24V, output: 24V, 0-1375 mA, 33W maximum (power supply sold separately)
- Maximum run of 10' for wireless controllers, installations with 7+ in-line connectors reduces the overall length to
- 9.5' per cable
- Allows users to extend length of wireless controllers, power supplies, or to break up LED tape lights into multiple runs
Requires:
-
Tunable White LED Tape Light:
-
Soft White (1800K to 3000K)
- LU-LU-T05-SW (5m / 16.4 ft)
- LU-LU-T30-SW (30m / 96.4 ft)
-
Daylight (2500K to 5000K)
- LU-LU-T05-DT (5m / 16.4 ft)
- LU-LU-T30-DT (30m / 98.4 ft)
-
Wireless Controller
-
Power:
- LU-T120-24DC-15 (Plug-in Power Supply for HWL-TWCL-WH controller)
- LU-LU-PH3-A (Power Interface with 3 barrel-to-terminal adapters)
-
Kits
- LU-RRL-TLK-SW (Tunable Soft White)
- LU-RRL-TLK-DL (Tunable Day Light)
-
Wiring and Mounting Hardware
- LU-LU-CK1-TW (3-pin wire-to-tape connectors (qty 10)
- LU-LU-MK1 (0.394 in (10mm) surface mounting clips (qty 20)
-
LED Tape Extrusions
- LU-LU-SR1-K, LU-LU-SR2-K, LU-LU-SR3-K*, LU-LU-45S-K, LU-LU-45T-K, LU-LU-RR1-K*, LU-LU-MI1-K
Starter Kits available
Here is a marketing video on the Lumaris Tape Lighting system on YouTube
Suited for popular tape lighting applications: undercabinet, cove, vanity, and more. Adjustable color temperature and intensity via keypad presets, automations and schedules, app, and voice. "Day Mode" and "Night Mode" features provide for brighter and whiter light during the day, dimmer and warmer in the evening to enhance home ambience and homeowner comfort.
Lutron’s tape light solution enhances scene control, providing a simple and seamless way to integrate accent lighting into connected home projects.
Powered by ultra-reliable Lutron Clear Connect–Type X wireless technology, Lutron tape light controllers seamlessly integrate with the Lutron platform, including controls, apps, programming software, and Lutron Connect cloud services.
A complete Lutron tape light system includes field-cuttable LED tape, a wireless controller with built-in LED drivers, high-reliability punch connectors, dedicated wiring, and a power supply or interface. For optimal performance and aesthetics, install the tape light within Lutron LED tape extrusions.
