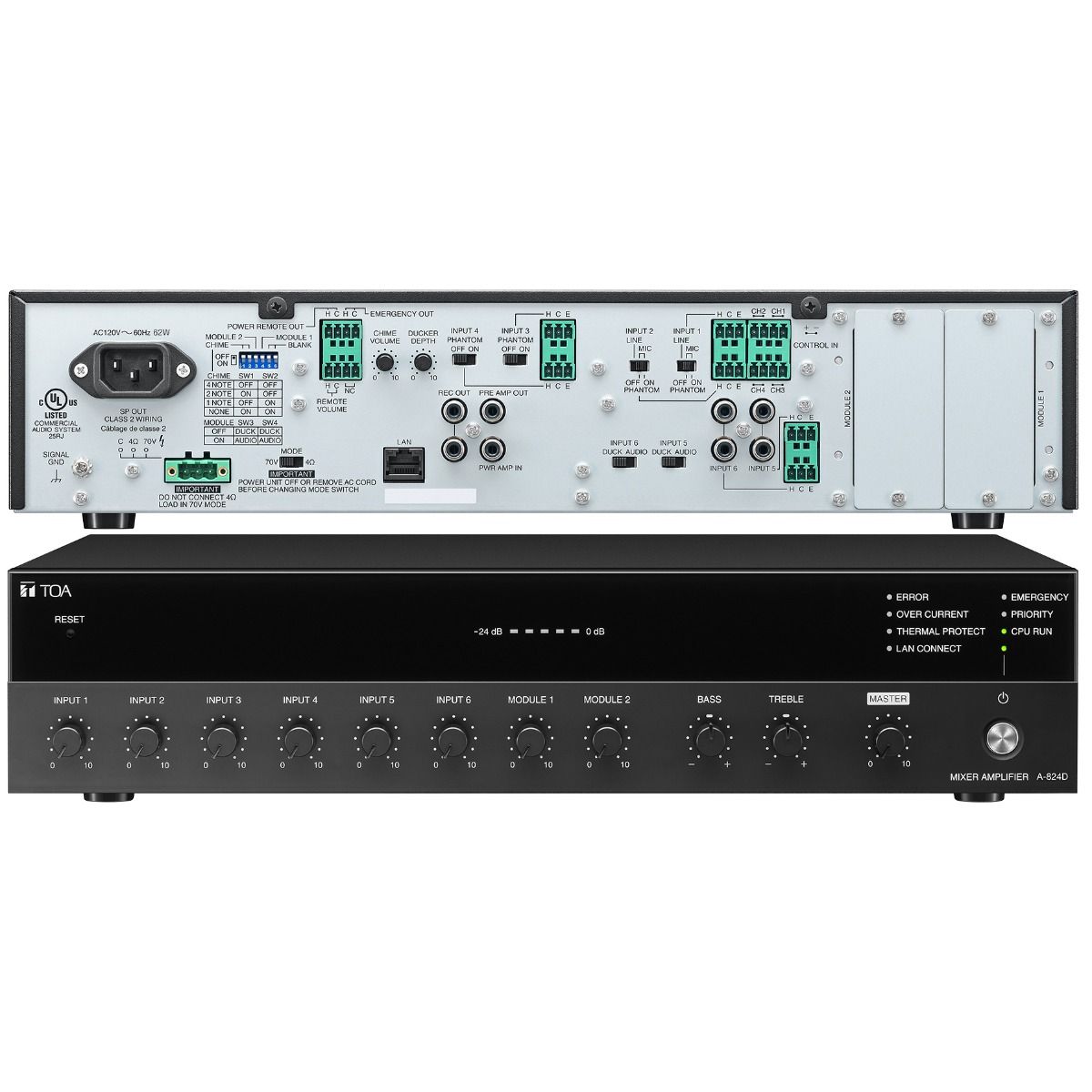

| Power Source |
120 V AC, 60 Hz |
| Rated Output |
240 W |
| Power/Current Consumption |
317 W (rated output), 62 W (based on UL62368) 200 mA or less (when power switch is OFF) |
| Frequency Response |
50 Hz to 20 kHz ±3 dB (1/8 rated output) |
| Distortion |
1 % or less at 1 kHz, rated power (20 kHz LPF (AUX-0025)) |
| Tone Control |
Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10 kHz |
| Signal to Noise Ratio |
88 dB or more (Master volume: min) 76 dB or more (Master volume: max) 55 dB or more (INPUT 1 to 6) (A-weighted) |
|
Audio Input |
|
| INPUT 1, 2 |
-60 dB* (MIC)/-20 dB* (LINE) selectable, 600 Ω, electronically-balanced, removable terminal block (3.81 mm, 3 pins) Note: MIC inputs are equipped with phantom power (24 V DC, ON/OFF switchable). |
| INPUT 3, 4 |
-60 dB*, 600 Ω, electronically-balanced, removable terminal block (3.81 mm, 3 pins) Note: Equipped with phantom power (24 V DC, ON/OFF switchable). |
| INPUT 5, 6 |
MIC/LINE selectable MIC: -60 dB* , 600 Ω, electronically-balanced, removable terminal block (3.81 mm, 3 pins) LINE: -20 dB*, 10 kΩ, unbalanced, RCA pin jack x 2 |
| MODULE 1, 2 |
-20 dB*, 10 kΩ |
| Power Amplifier Input |
0 dB*, 600Ω, unbalanced, RCA pin jack (An equalizer or other signal processor connectable between PRE AMP OUT and PWR AMP IN terminals.) |
|
Input Bus |
|
| INPUT 1 to 4 |
AUDIO |
| INPUT 5, 6 |
AUDIO/DUCK selectable |
| MODULE 1, 2 |
AUDIO/DUCK selectable |
|
Audio Output |
|
| SPEAKER OUT |
High impedance: 70 V line/21 Ω/Low impedance 4 to 16 Ω selectable |
| REC OUT |
0 dB *, 600 Ω, unbalanced, RCA pin jack x 2 |
| PRE AMP OUT |
0 dB *, 600 Ω, unbalanced, RCA pin jack |
| Control Input |
4 channels, no-voltage make contact input, open voltage: 35 V DC or less, Short-circuit current: 10 mA or less, removable terminal block (3.81 mm, 4 pins) REMOTE VOLUME: No-voltage make contact input, open voltage: 35 V DC or less, Short circuit current: 10 mA or less, removable terminal block (3.81 mm, 4 pins) |
| Control Output |
POWER REMOTE: Open collector output, withstand voltage: 30 V DC or less,
control current: 25 mA or less, removable terminal block (3.50 mm, 4 pins)
EMERGENCY OUT: Open collector output, withstand voltage: 30 V DC or less, control current: 25 mA or less, removable terminal block (3.50 mm, 4 pins) |
| Indicators |
LED level meter, Power indicator, Network connection confirmation indicator, Priority broadcast indicator, Emergency broadcast indicator, Thermal protection indicator, Over-current protection indicator, CPU running indicator, Error indicator |
| Operating Temperature |
-10 to +40 ˚C (14 to 104 ˚F) |
| Operating Humidity |
85 % RH or less (no condensation) |
| Finish |
Panel: ABS resign, black
Case: Surface-treated steel plate, black, paint |
| Dimensions |
420 (w) x 96.1 (h) x 313.1 (d) mm or 16,54" x 3.78" x 12.33" |
| Weight |
5.2 kg or 11.46 lb |
| Options |
Input transformer: IT-450, Perforated panel: PF-013B |
|
|
