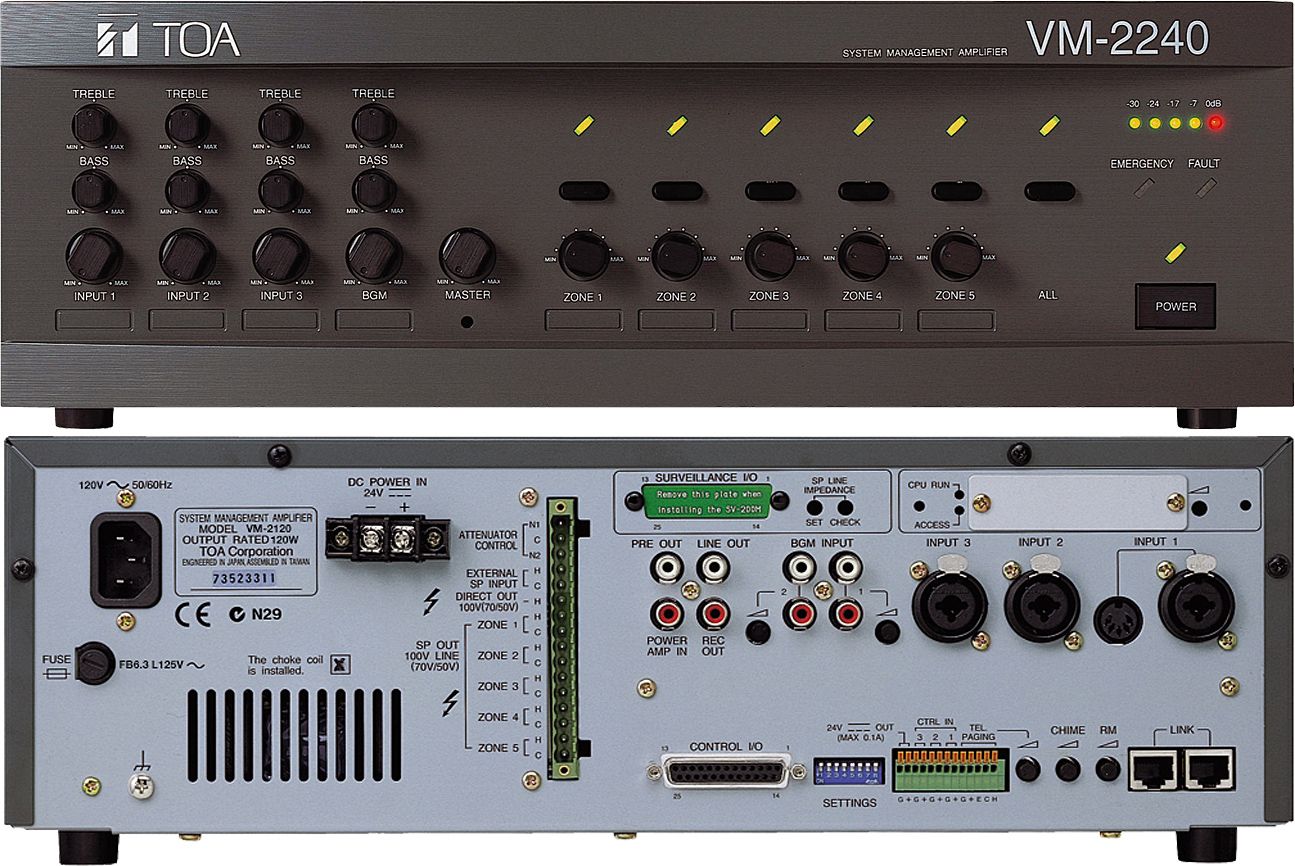

Power Source
|
AC: 120 V AC, 50/60 Hz
DC: 24 V DC/15 A , M3.5 screw terminal, Barrier distance: 8 mm,
Applicable cable diameter: AWG22 - AWG14
|
|
Power Consumption on AC Mains
|
With no signal present: 54 W
Under normal operating conditions according to
EN60065: 1998 sec. 4.2: 255 W
With rated output signal: 549 W
|
|
Current Consumption on 24 V DC Power Input
|
With no signal present: 1 A
Under normal operating conditions according to
EN60065: 1998 sec. 4.2: 5 A
With rated output signal: 14 A
|
|
Rated Output
|
240 W
|
|
Output Voltage /Impedance
|
100 V/42 Ω, 70 V/21 Ω, 50 V/10 Ω
(selectable by the internal wiring change)
|
|
Frequency Response
|
50 Hz - 16 kHz
|
|
Distortion
|
Under 1 %
|
|
Signal-to-Noise Ratio
|
Over 60 dB
|
|
Tone Control
|
Bass: 100 Hz ±10 dB, Treble: 10 kHz ±10 dB
(Inputs 1 - 3 and BGM individually adjustable.)
|
|
Remote Microphone /Expansion Amplifier Connection
|
2 RJ45 female connectors for connecting the RM-200M Remote
Microphone and the VM-2120 or VM-2240 unit used as an
expansion amplifier.
Maximum distance: 800 m in total, Link cable: Category 5 Shielded
Number of connectable RM-200M's: Up to 4
Twisted-Pair straight cable (TIA/EIA-568A standard)
|
|
Input
|
Inputs 1 - 3: -60 dB(*3) (MIC)/-10 dB(*3) (LINE) (changeable),
600 Ω, electronically balanced(*4),
combined XLR connector (female)/phone jack
(Only Input 1 is additionally equipped with DIN
connector(*5).)
Telephone paging input: Push-in terminal block(*6)
Voice sound: -10 dB(*3), 10 kΩ, electronically-
balanced input with shield terminal(*4)
Control: No-voltage make contact input,
open voltage: 3.3 V DC,
short-circuit current: under 1 mA
BGM 1 - 2: -20 dB(*3), 10 kΩ, RCA pin jack,
monaural (internally mixed)
Power amplifier input: 0 dB(*3), 10 kΩ, RCA pin jack
External speaker line input: 100 V line, for All-Zone Broadcast
(This input is selected when the "Unit's
broadcast cutoff" control is activated.)
|
|
Output
|
Speaker output: Plug-in screw connector(*7)
5-zone selector with attenuator (all zones simultaneously
selectable)
Direct speaker line output: Direct output from the power amplifier
output transformer (attenuator bypassed),
Plug-in screw connector(*7)
Line output: 0 dB(*3), 10 kΩ, RCA pin jack
Recording output: 0 dB(*3), 10 kΩ, RCA pin jack
Preamplifier output: 0 dB(*3), 10 kΩ, RCA pin jack
|
|
Control Input
|
For controlling Inputs 1 - 3, Push-in terminal block
No-voltage make contact input, open voltage: 3.3 V DC,
short-circuit current: under 1 mA
|
|
Control Input and Output
|
D-sub connector (25-pin, female)
Input: No-voltage make contact input, open voltage: 3.3 V DC,
short-circuit current: under 1 mA
Output: Open collector output, withstand voltage: 30 V DC,
control current: under 10 mA
(1) External control input
Activation of messages(*8)
Activation of power
Activation and stop of Emergency Broadcast
Unit's broadcast cutoff
(when activated by an external emergency equipment)
(2) Status output
Irregularity of communications with the Remote Microphone and
an expansion amplifier
AC power condition
DC power condition
Irregularity of the sound source of the Voice Announcement Board
Failure (FAULT) indication on
Power switch on
|
|
External Attenuator Control Output
|
Plug-in screw connector(*7), relay, no-voltage make contact output,
transfer type, withstand voltage: 30 V DC, 125 V AC,
contact current: under 7 A (DC), under 7 A (AC)
|
|
Surveillance Input and Output(*9)
|
D-sub connector (25-pin, female)
Input: No-voltage make contact input, open voltage: 3.3 V DC,
Output: Open collector output, withstand voltage: 30 V DC,
|
|
Power Supply
|
24 V DC/0.1 A, for supplying power to an optional Amplifier Control
Unit RU-2001/-2002, push-in terminal block(*6)
|
|
Chime Tone
|
Built-in chime: 2-tone chime/2-tone chime (fast repeat)/4-tone
chime (Up)/Single-tone chime/4-tone chime (Up &
Down)/Gong/off
Voice Announcement Board sound source: Pre-recorded chime(*8)
|
|
Function
|
Two units stacking (VM-2120 or VM-2240)
Emergency broadcast (sequential control)
Broadcast priority control
Surveillance (failure detection) function(*9)
Power supply to only one Remote Microphone (RM-200M)
Line resistance: Under 40 Ω (one way)
|
|
Operating Temperature
|
0 ℃ to +40 ℃
|
|
Finish
|
Panel: ABS resin, dark gray (PANTONE 447C or its equivalent), paint
Case: Steel plate, dark gray (PANTONE 446C or its equivalent), paint
|
|
Dimensions
|
419 (W) × 143.3 (H) × 355.7 (D) mm
|
|
Weight
|
14.5 kg
|
|
Accessory
|
Power cable…1, Miniature type fuse 8 A…1, Name label…1,
Volume cover…4
|
|
Option
|
Rack mounting bracket: MB-36
Input transformer: IT-450
Voice announcement board: EV-200M
Surveillance board: SV-200MA
|
