Description

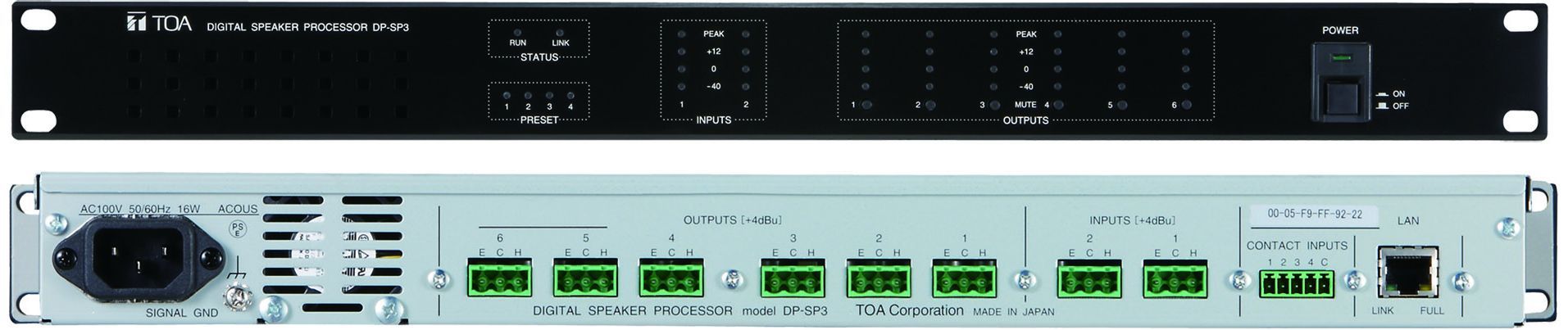

The DP-SP3 is a 1U rack mountable digital speaker processor having 2 inputs and 6 outputs. It features digital signal processing functions such as Equalizer, Crossover, Matrix, Compressor, and Delay. Other functions include input PAD, analog output attenuator, output MUTE, EQ characteristic library for TOA speakers, and contact input terminals. When connected to a LAN, settings and operations of the DP-SP3 can be performed on a PC with the supplied DP-SP3 PC software installed. It can be mounted in an EIA component rack (1U size).
- * 0 dB = 0.775 V
| Power Source |
100 - 120 V AC, 60 Hz |
| Power Consumption |
25 W |
| Frequency Response |
20 Hz - 20 kHz, ±1 dB |
| Sampling Frequency |
96 kHz |
| Dynamic Range |
110 dB or more |
| Distortion |
0.03% or less, 1 kHz, +4 dB*, input/output, 20 Hz - 20 kHz BPF |
| Crosstalk |
-80 dB or less, 1 kHz |
| Input |
2 channels, +4 dB* (max. +24 dB*), 10 kΩ, electronically-balanced, removable terminal block (3P) |
| Output |
6 channels, +4 dB* (max. +24 dB*), applicable load 600Ω or more, electronically-balanced, removable terminal block (3P) |
| AD Converter |
24 bits |
| DA Converter |
24 bits |
| Preset Memory |
16 |
| |
|---|
| Signal Processing Section |
|---|
| Equalizer/Filter |
Parametric equalizer: 20 Hz - 20 kHz, ±15 dB, Q: 0.267 - 69.249
Filter:
High-pass filter 20 Hz - 20 kHz, 6 dB/oct, 12 dB/oct
Low-pass filter 20 Hz - 20 kHz, 6 dB/oct, 12 dB/oct
Notch filter 20 Hz - 20 kHz, Q: 8.651 - 69.249
All-pass filter 20 Hz - 20 kHz, Q: 0.267 - 69.249
High shelving filter 5 - 20 kHz, ±15 dB
Low shelving filter 20 - 500 Hz, ±15 dB
Horn equalizer 20 kHz, 0 to +18 dB (0.5 dB steps) |
| Crossover |
2 ways, 3 ways, 4 ways
Crossover filter: 20 hZ - 20 kHz, 6 dB/oct, 12 dB/oct, 18 dB/oct, 24 dB/oct, -15 to +12 dB, polarity switchable
Delay: 0 - 170.656 ms in 0.01 ms steps
|
| Compressor |
Threshold: -20 to +20 dB* in 1 dB steps
Ratio: 1:1, 1.1:1, 1.2:1, 1.3:1, 1.5:1, 1.7:1, 2:1, 2.3:1, 2.6:1, 3:1, 4:1, 7:1, 8:1, 10:1. 12:1, 20:1, ∞:1
Attack time: 0.2 - 5 s
Release time: 10 ms - 5 s |
| Delay |
Delay time: 0 - 682.656 ms in 0.01 ms steps |
| Matrix |
2 × 6 |
| Crosspoint Gain |
-∞ to 0 dB in 1 DB steps |
| |
|---|
| Function |
Input PAS (-14 dB) control, analog output attenuator (-∞ to 0 dB in 1 dB steps) control, EQ characteristic library for TOA speakers, input/output level indicator (4-point LED indicator), output MUTE switch x6 |
| |
|---|
| Control |
|---|
| Contact Input |
4 channels, open voltage: 5 V DC, short-circuit current: 5 mA, removable terminal block (5P), control function: preset memory selection, volume control, and mute |
| Network |
Network I/F: 1 channel of 10BASE-T/100BASE-TX (auto-negotiation) RJ45 connector, connection via switching hub
Network protocol: TCP/IP
Connection cable: Shielded CAT 5 or higher twisted pair cable for LAN (CAT 5-STP or better)
Maximum cable length: 100 m (109.36 yd) (between DP-SP3 and switching hub) |
| |
|---|
| Operating Temperature |
0°C to +40°C (32 °F to 104°F)
|
| Operating Humidity |
90% RH (no condensation) |
| Finish |
Panel: Aluminum, hairline, black, Case: Surface-treated steel plate |
| Dimensions |
482 (W) x 44 (H) x 289 (D) mm (18.98" x 1.73" x 11.38") |
| Weight |
3.1 kg (6.83 lb) |
| Accessories |
Power supply cord (2 m (6.56ft)) x 1, removable terminal plug (3P) x8, removable terminal plug (5P) x 1, CD-ROM (containing setup software x1 |
| |
|---|
| Personal Computer Requirements |
|---|
| Requirements |
CPU: Pentium 4, 1.0 GHz or faster
Memory: Windows XP/512 MB or more, other OS/1.0 GV or more
Display: 1024 x 768 resolution or higher
Free Hard Disk Space: 16 MB or more, however 600 MB or more is required for the 32-bit version or 1.5 GB or more for the 64-bit version when ".NET Framework" is not yet installed
Optical Drive: CD-ROM drive
Network Adapter: 10BASE-T or faster connection |
| OS |
Windows XP Service Pack 3 or later, Windows Vista (32/64-bit) Service Pack 1 or later, Windows 7 (32/64-bit) |
| Required Component |
.NET Framwork 4 Client Profile |
NOTES: Windows is a trademark or trademark of Microsoft Corporation in the United States and/or other countries., Pentium is a trademark of Intel Corporation, Other company names and products are also trademarks of individual companies.
