3.5 in LUNA Designer,12W, Dim To Warm, White

Description

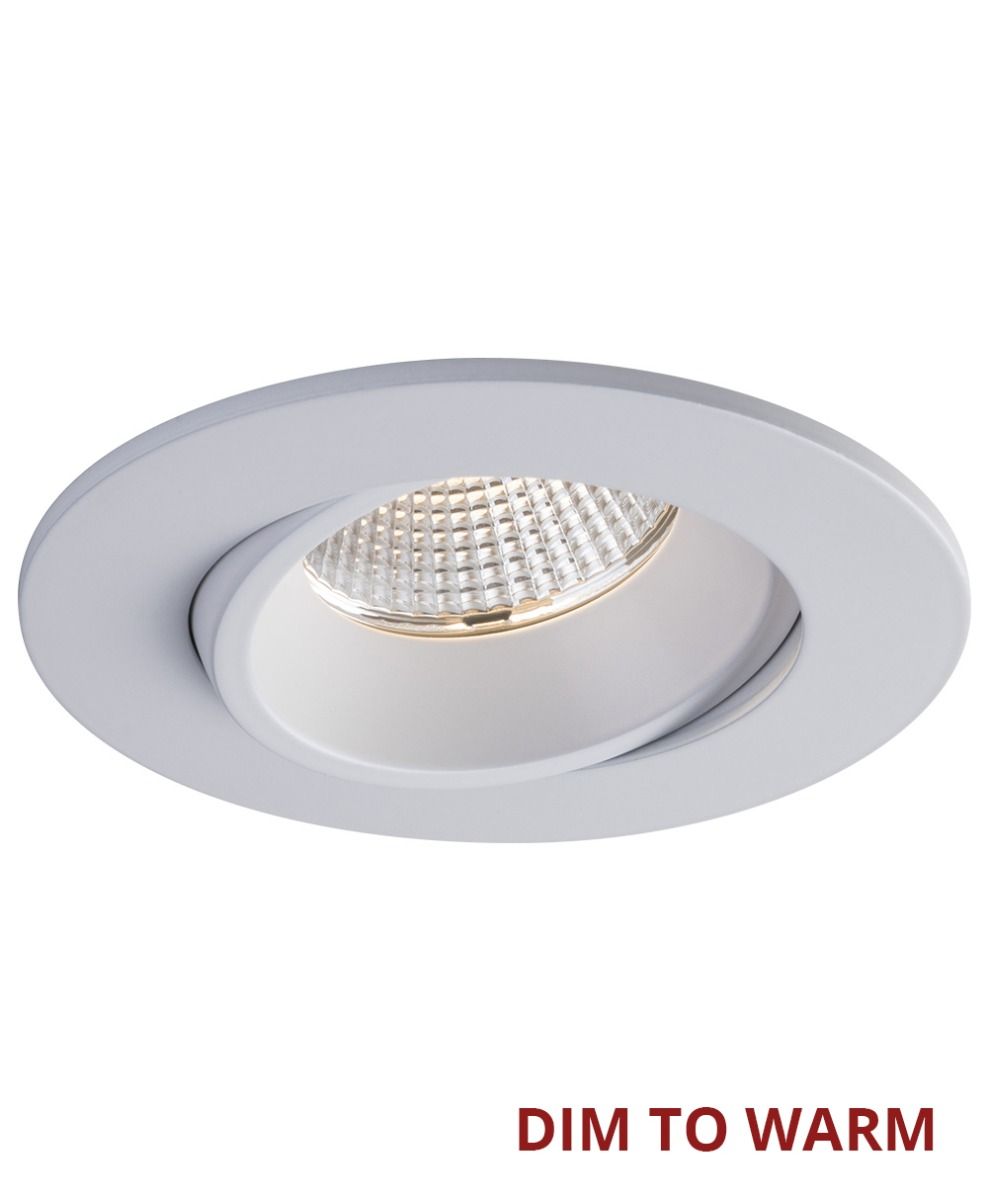

3.5" LUNA LED Round Regressed Gimbal Recessed Fixture, 12w, DIM TO WARM Dimmable Colour Temperature, White Bezel

The RA35-12RG is a 12 watt 3.5" round regressed gimbal recessed light fixture for retrofit application. It is a high-performance, easy to install downlight solution that offers good light output, energy-efficiency and streamlined design. Suitable for damp locations.

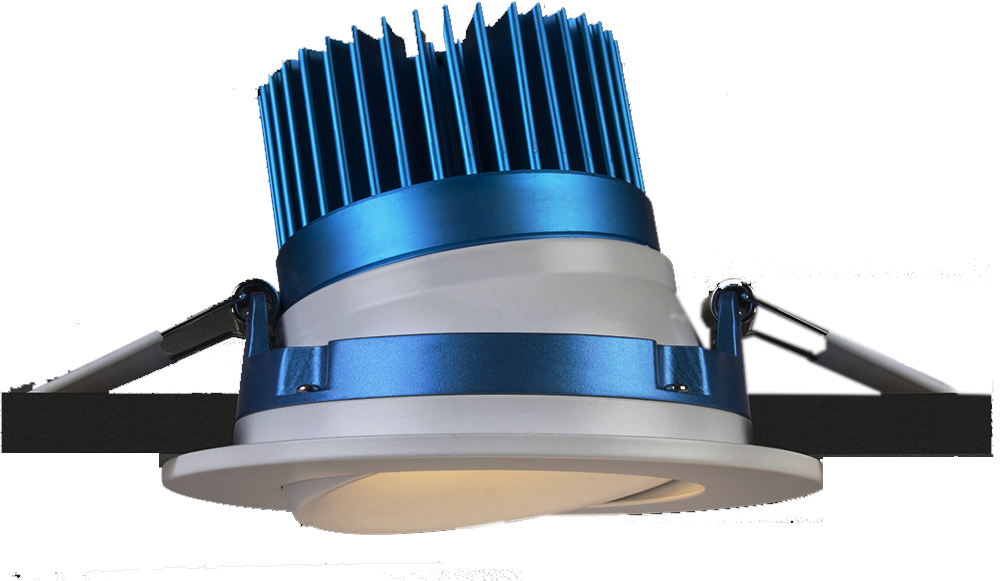

• Body    Durable airtight aluminum body with adjustable regressed gimbal. Includes anodized blue heat sink to provide maximum airfl ow for the LED light source.

• LED Characteristics    This general application light fixture features a 12 watt LED module that maintains uniform intensity producing up to 680 lumens; with a typical CRI of 90. On-fixture color selectable switch allows switching between 2700 K, 3000 K, 3500 K, 4000 K and 5000 K color temperatures.

• Dimming    100%-10% dimming capability. This fixture is compatible with industry standard forward-phase / reverse-phase and TRIAC/ELV dimmers (contact factory for list of compatible dimmers).

• Beam Spread   The fixture lens provides 38° beam spread.

• Mounting    Includes two spring loaded clips to attached to any ceiling material.

• LED Driver    Extruded aluminum hardwire box with 300mA dimmable class II electronic LED driver with 100-135V AC input. Includes an 18" FT6 rated cable with DC 2.1 connector between driver and fixture approved for use in plenums and suspended ceilings.

• Quick Connect Push-In Terminals    Three "Quick connect" push-in terminals for fast and easy wiring.

• Operating Temperature    -20°C~40°C (-4°F~104°F).

• Environment

• Approved for direct contact with insulation.
• Suitable for wet locations.
• Airtight.
