Body

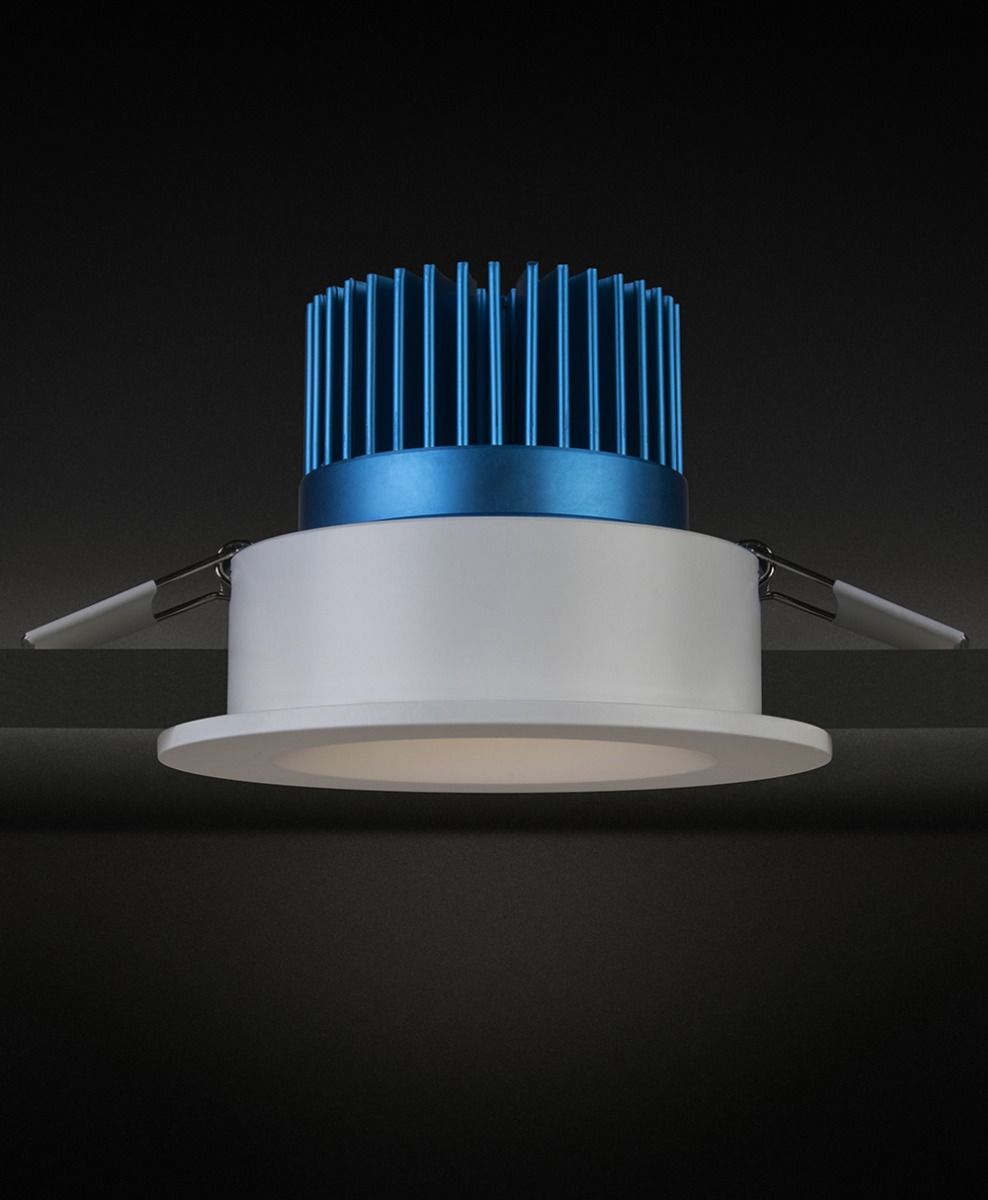

Durable airtight fixed aluminum body. Includes anodized blue heat sink to provide maximum airflow for the LED light source.
-
LED Characteristics
This general application light fixture features a 12 watt LED module that maintains uniform intensity producing up to 885 lumens; with a typical CRI of 90. Available in 2700 K, 3000 K, 3500 K , 4000 K or 5000 K color temperature.
-
Dimming
100%-10% dimming capability. This fixture is compatible with industry standard TRIAC/ELV dimmers. For compatible dimmers, visit www.liteline.com/lunadimmers.
-
Beam Spread
The fixture lens provides 40° beam spread.
-
Mounting
Includes two spring loaded clips to attached to any ceiling material.
-
LED Driver
Extruded aluminum hardwire box with 300mA dimmable class II electronic LED driver with 100-135V AC input. Includes an 18" FT6 rated cable with DC 2.1 connector between driver and fixture approved for use in plenums and suspended ceilings.
-
Quick Connect Push-In Terminals
Three "Quick connect" push-in terminals for fast and easy wiring.
-
Operating Temperature
-20°C~40°C (-4°F~104°F).
-
Environment
Suitable for wet locations.
Approved for direct contact with insulation.
