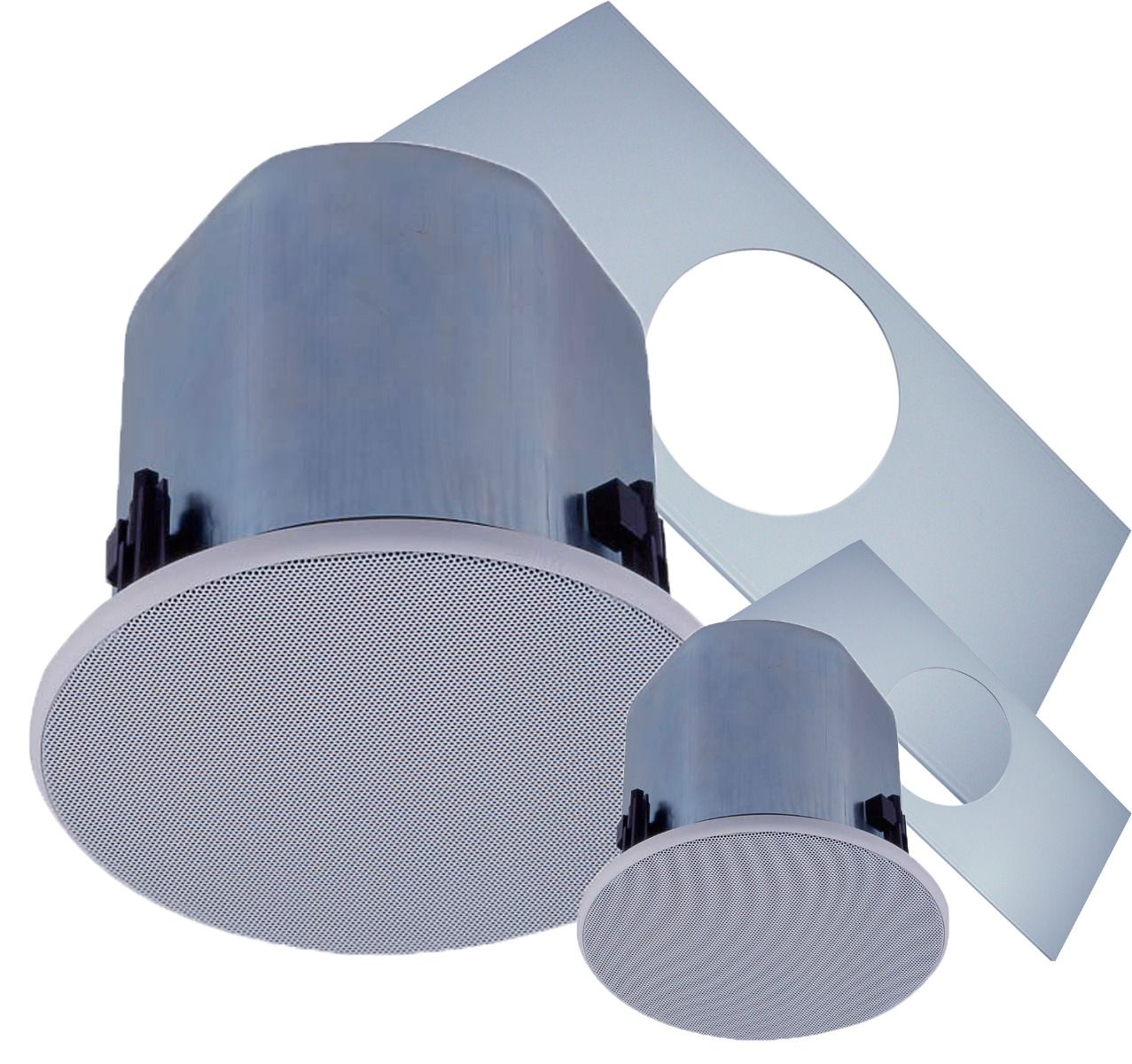

INCLUDES: 2x F-2352C Speakers & 2x Tile Bridges
The F-2352CU2 ceiling and wall-mounted speaker covers an extremely wide area and can be used for 25 and 70 V line applications. Well-balanced sound can be heard uniformly at any location.
| Enclosure | Bass reflex type |
|---|---|
| Rated Input | 30 W (High Impedance) |
| Power Handling Capacity | Continuous pink noise: 60 W (8 Ω), 30 W (16 Ω) Continuous program: 120 W (8 Ω), 60 W (16 Ω) |
| Impedance | 70 V line: 170 Ω (30 W), 330 Ω (15 W), 1 kΩ (5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W) 25 V line: 170 Ω (3.7 W), 330 Ω (1.9 W), 1 kΩ (0.6 W), 3.3 kΩ (0.2 W), 10 kΩ (0.06 W) 16 Ω, 8 Ω |
| Sensitivity | 90 dB (1 W, 1 m) |
| Frequency Response | 70 Hz - 20 kHz at installation in 1/2 free sound field (Measured by installing the unit in the center of a ceiling.) |
| Speaker Component | High frequency: Balanced dome-type Low frequency: 12 cm (5") cone-type |
| UL Code | UL1480 (UEAY), UL2043, CAN/CSA C22.2 No.205 (UEAY7) |
| Mounting Hole | φ200 mm (7.87") (Maximum ceiling thickness: 37 mm (1.46")) |
| Input Terminal | Removable locking connector with screw-down terminals (2 input terminals and 2 bridge terminals) |
| Usable Cable | Solid copper wire: φ1.0 - φ1.6 mm (equivalent to AWG No. 18 - 14) Stranded copper wire: 0.75 - 2.5 m㎡ (equivalent to AWG No. 18 - 14) |
| Finish | Enclosure: Steel plate, plating Baffle: Fire-resistant ABS resin (resin material grade: UL-94 V-0), black Rim: Fire-resistant ABS resin (resin material grade: UL-94 V-0), white, paint Punched net: Steel plate, white, paint |
| Dimensions | φ230 × 238 (D) mm (φ9.06" × 9.37") |
| Weight | 4.3 kg (9.48 lb) (including mounting accessories) |
| Accessory | Front grille …1, Tile bridge …1, Safety wire (approx. 60 cm (23.62")) …1, Paper pattern …1 |
| Option | Back can: HY-BC1, Trim ring: HY-TR1, Q-HY-BC25W Surface Mount White Back Can |
