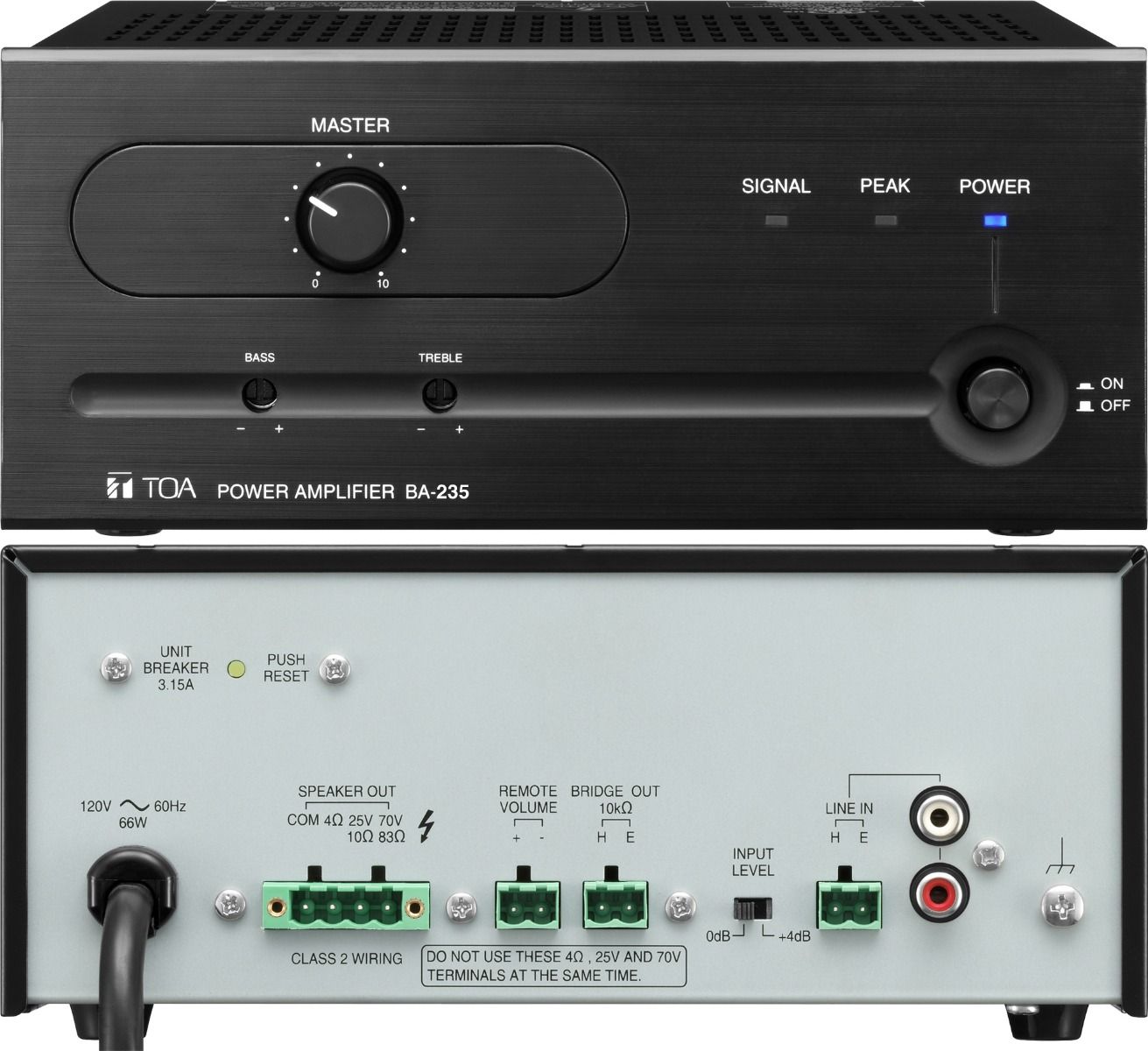

The BA-235 is a 35 W power amplifier for background music and general announcement. It is suited for use in bars, retail stores, and banquet rooms. When used in conjunction with the optional mixer amplifier BG-220 (20 W) or BG-235 (35 W), 2-channel broadcast can be made.
| Power Source | 120 V AC, 60 Hz |
|---|---|
| Rated Output | 35 W |
| Power Consumption | 90 W (rated output), 52 W (based on cULus standards) |
| Frequency Response | 50 Hz - 20 kHz |
| Total Harmonic Distortion | 0.5 % or less, at 1 kHz, rated output |
| Input | Line In: 0 dB*/+4 dB* (selectable), 10 kΩ, unbalanced, removable terminal block or RCA jack |
| Output | Speaker: 4 Ω, 25 V (18 Ω) and 70 V (140 Ω), balanced, removable terminal block Bridge: parallel in Line in, removable terminal block |
| Output Regulation | 2 dB or less, no load to full load (1 kHz) |
| S/N Ratio | 80 dB or more (Band Pass: 20 Hz - 20 kHz, Tone Controls: Centered) |
| Tone Control | Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10 kHz |
| Control | Master gain control, Bass tone control, Treble tone control, Input Level selector switch, Remote Volume control, Power ON/OFF switch |
| Indicator | Power LED, Signal LED, Peak LED |
| Operating temperature | 0 ℃ to +35 ℃ (32 ゜F to 95 ゜F) |
| Operating Humidity | 35 % to 80 %RH (no condensation) |
| Finish | Panel: ABS resin, black Case: Steel plate, black, paint |
| Dimensions | 210 (W) × 94.3 (H) × 265 (D) mm (8.27" × 3.71" ×10.43") |
| Weight | 4 kg (8.82 lb) |
| Accessory | Volume control cover: YA-920 ……1 Removable teminal plug (2 pins) ……3 Removable teminal plug (4 pins) ……1 |
| Option | Rack mounting bracket: MB-25B-BK, MB-25B-J |
