3G-SDI - RS232 over IP Transmitter with PoE

Description

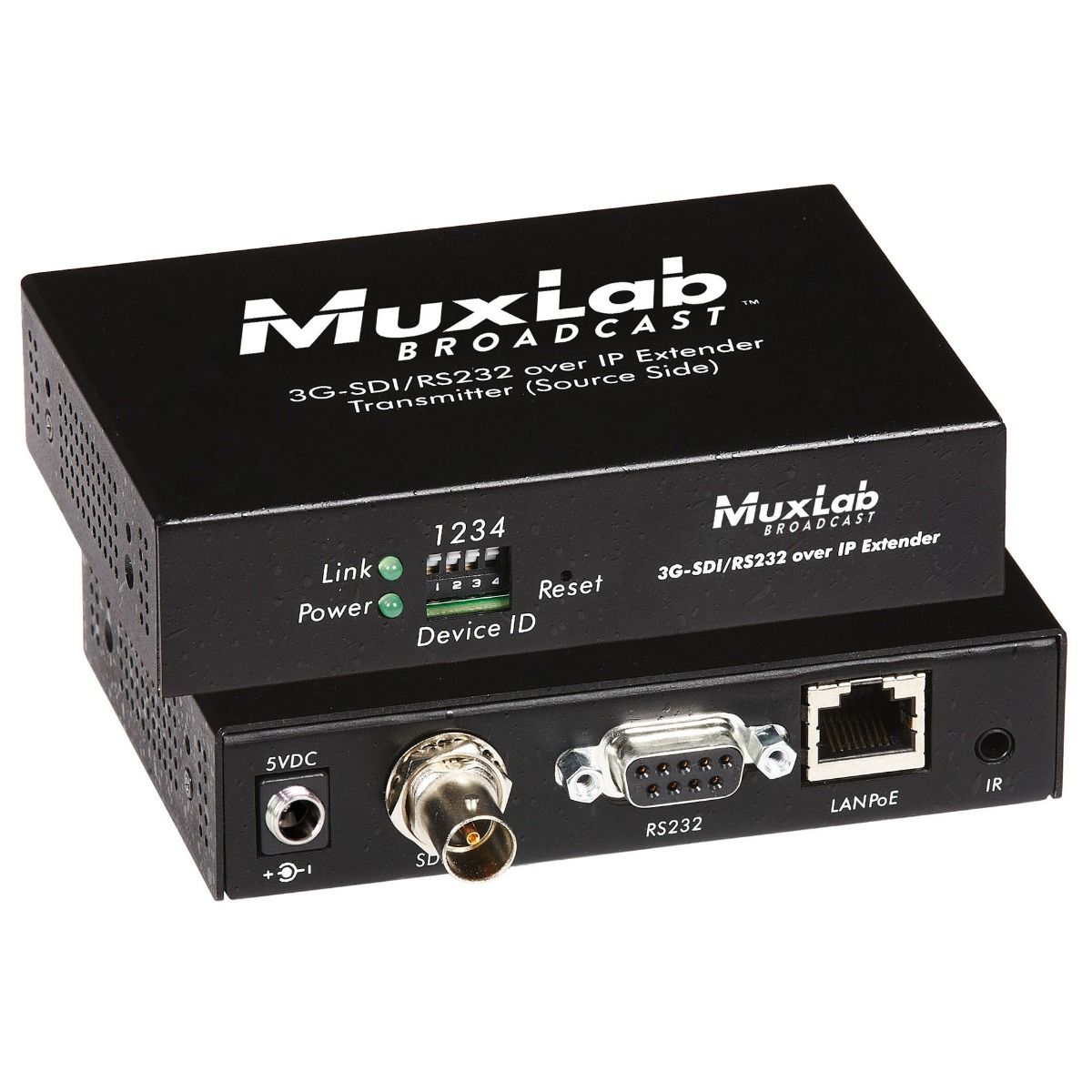

3G-SDI /RS232 over IP Transmitter with PoE

The 3G-SDI /RS232 over IP with PoE allows easy extension and distribution of broadcast quality SDI, HD-SDI or 3G-SDI video with embedded audio over local area networks (LAN).

This low-latency and versatile solutionÿconsists of individual transmitter and receiver units which can be configured in a variety of combinations. It is a cost effective alternative to a dedicated SDI matrix switch. The 3G-SDI over IP extender allows users to send any SDI signals over CAT5/6 cable infrastructure instead of using the traditional SDI coax infrastructure, saving cable cost and making installation easy and fast. This solutionÿis ideal for many quality critical video/audio applications such as original video source contribution, live video delivery around the broadcast facility or running media exchanges between different studios within the facility.

Note: This device supports PoE (PD), and is intended to be powered via a PoE (PSE) Ethernet Switch. If a PoE (PSE) Ethernet Switch is unavailable, then the power supply (500993) may be purchased separately.

DATASHEET    MANUAL

• Supports up to 1080p resolutions
• Motion JPEG compression with very low latency
• Supports 100’s of Transmitters and Receivers, depending on network bandwidth

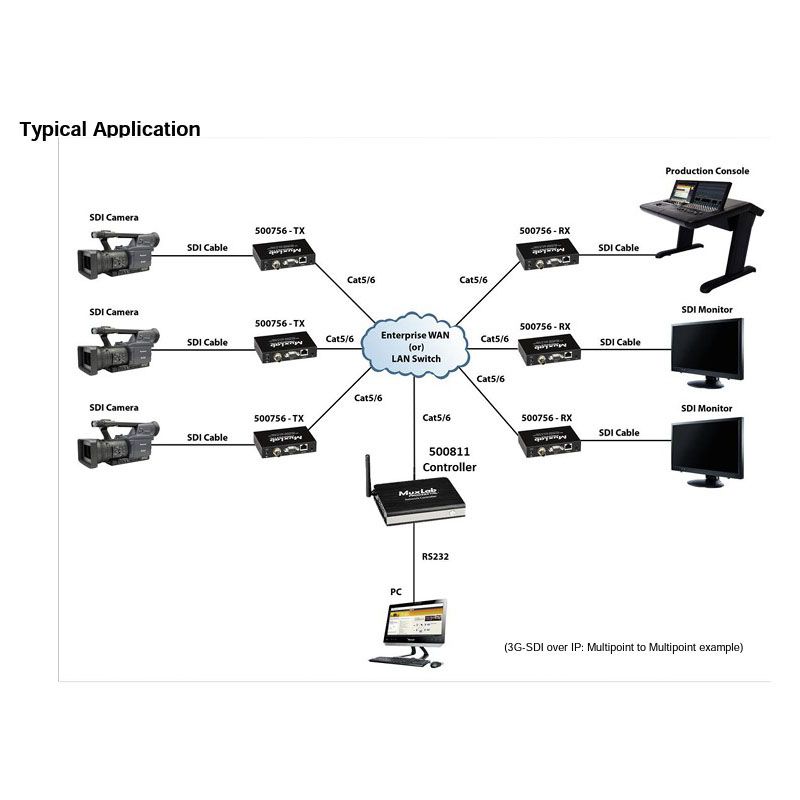

• LAN Switch based configurations support point-to-point, point-to-multipoint, and multipoint-to-multipoint
• Extend transmission up to 330ft (100m) over an IP network (when a LAN Switch is used)
• Extend transmission up to 400ft (120m) in a point-to-point configuration (when a LAN Switch is not used)
• Supports RS232 and one way IR transmission for remote control of end devices
• PoE Powered
• Compatible with the 500811 ProDigital Network Controller for software management
• Compatible with 500752, 500753, and 500754 products
