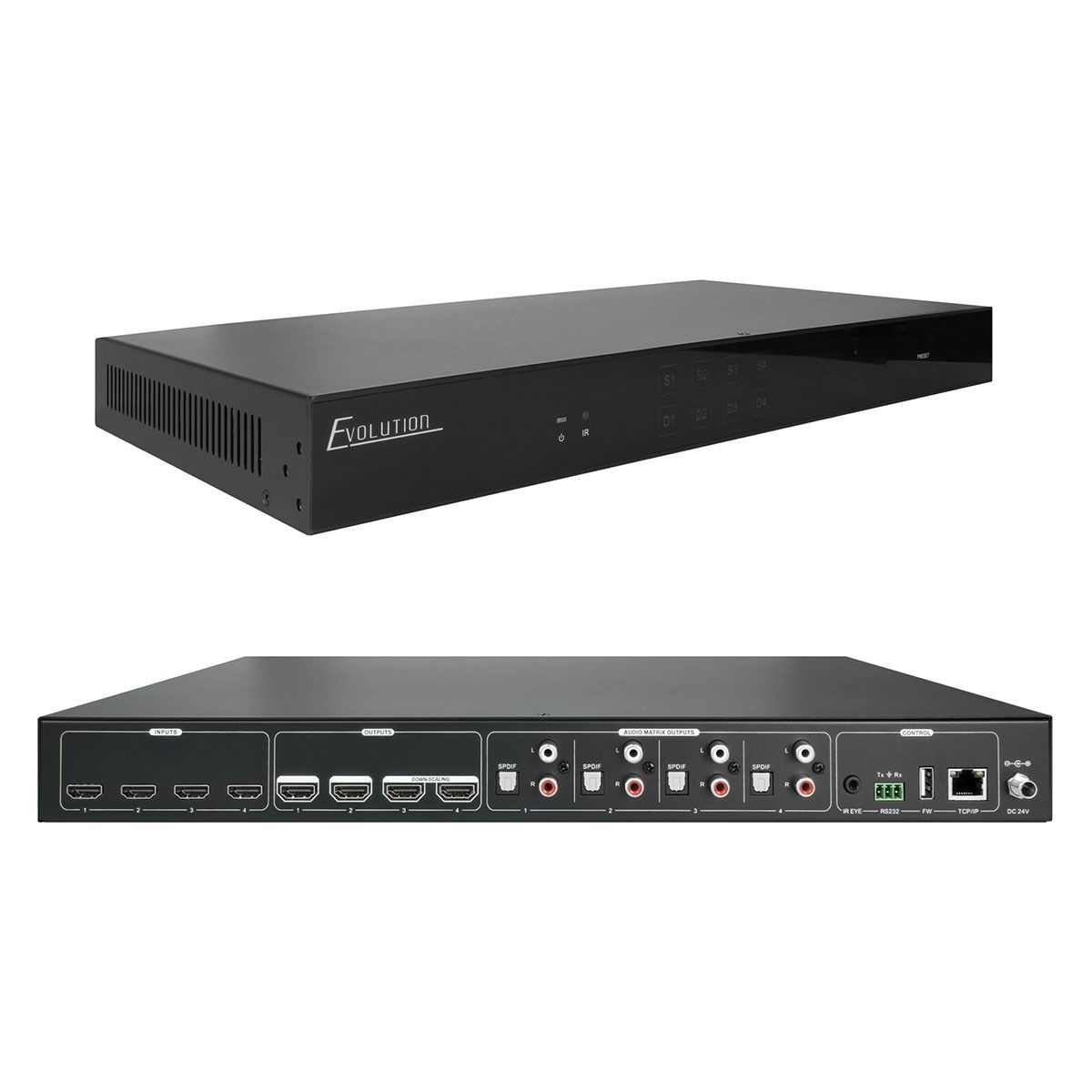

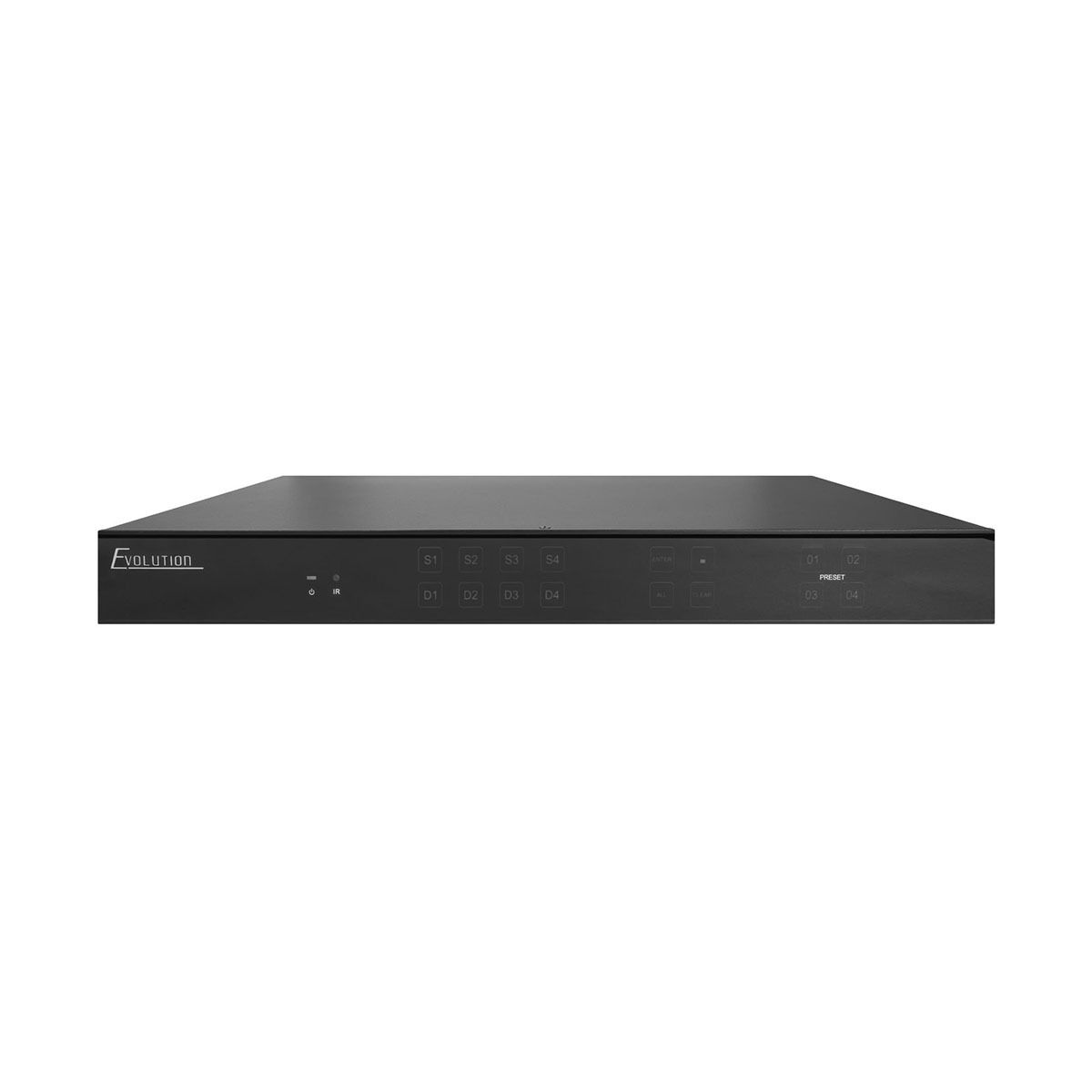

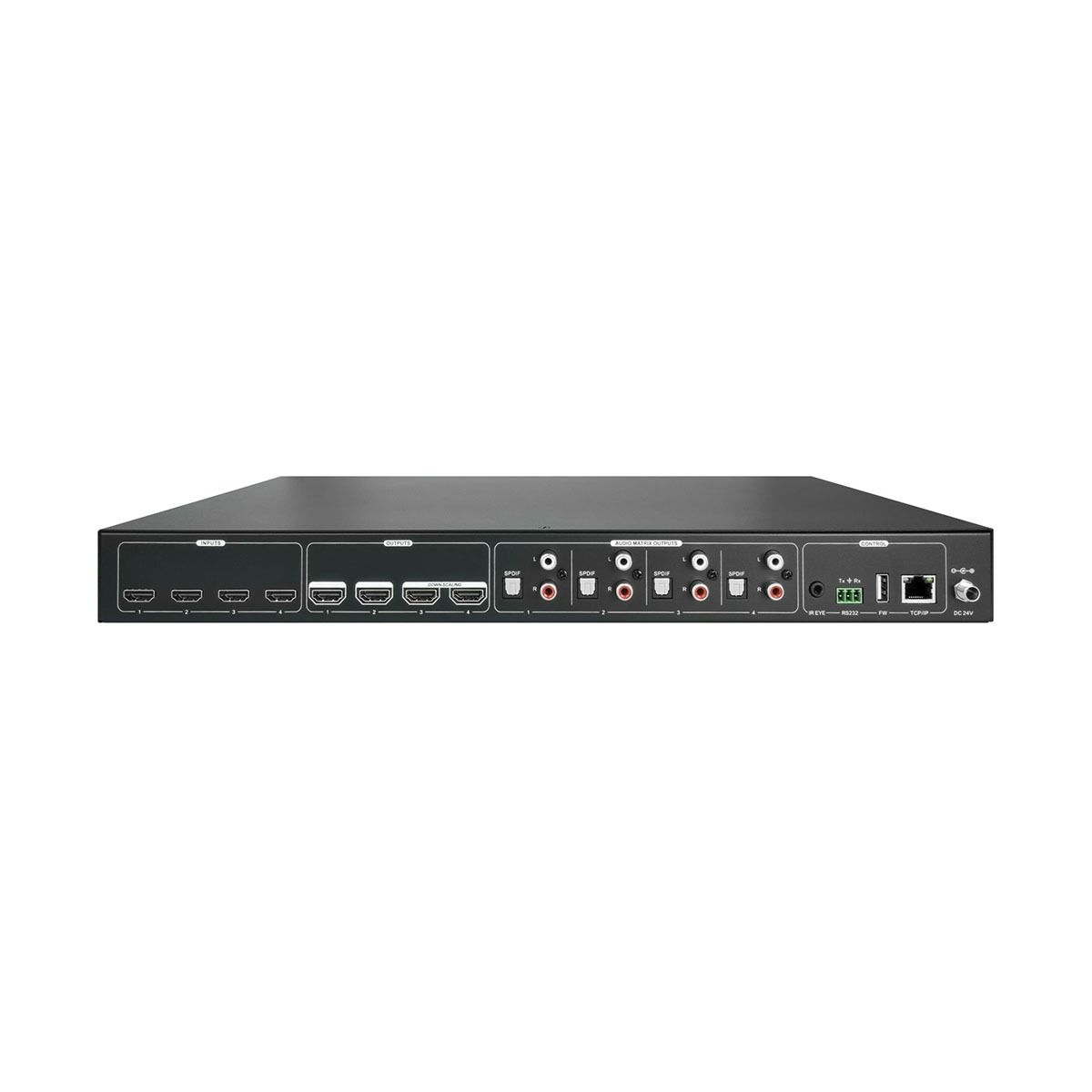

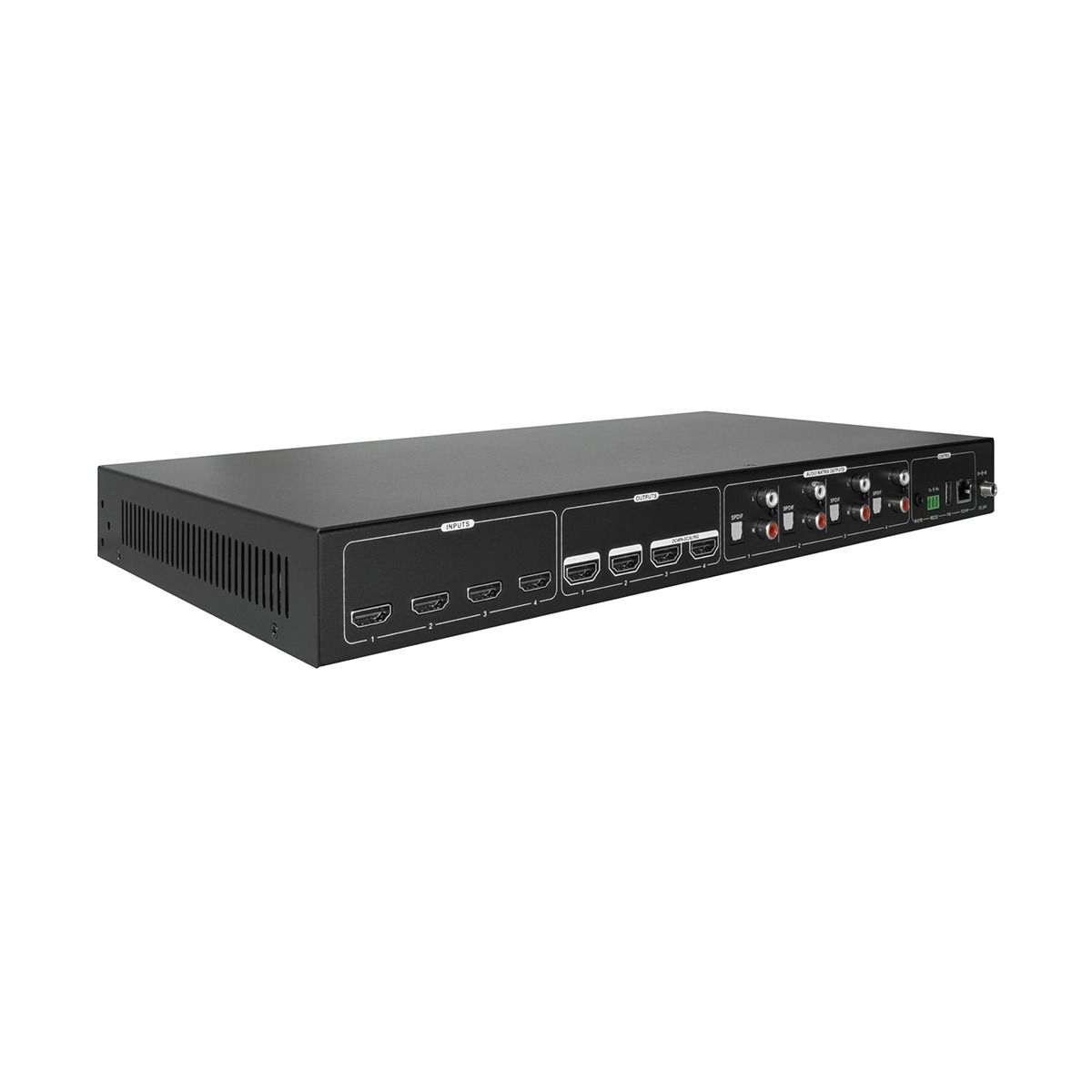

4×4 4K HDMI Matrix with Downscaling and Audio Matrix

Description

4×4 4K HDMI Matrix with Downscaling and Integrated Audio Matrix

The EVMX4K4A is powerful and versatile 4×4 4K HDMI matrix designed for high-performance AV distribution in professional environments. This matrix supports full 4K@60Hz resolution with HDR and features four independently switchable outputs with built-in downscaling, allowing for seamless integration with both 4K and 1080p displays. An integrated audio matrix provides flexible analog and digital audio routing and extraction, enabling independent audio distribution alongside video switching. Control is streamlined with built-in IR, RS-232, and IP options, ensuring compatibility with a wide range of control systems. The matrix also offers enhanced compatibility with active optical HDMI cables, delivering reliable long-distance signal transmission. Ideal for conference rooms, residential AV systems, and digital signage applications, the EVMX4K4A ensures robust performance and flexibility.

Key features:

• Supports 4K@60, 4:4:4, HDR resolutions
• Integrated audio matrix to route and de-embed analog or digital audio
• Variable volume adjustments available on each L+R output.
• Downscales 4K resolutions to 1080p
• Additional 2.5W of power for enhanced Active Optical Cable (AoC) stability
• Controllable by front panel, IR, RS232, and TCP/IP
• HDCP 2.3 compliant


Package contents:

• (1) ​EVMX4K4A​
• (2) Mounting ears
• (6) Screws
• (4) Plastic cushions
• (1) IR remote
• (1) IR receiver
• (1) RS232 cable (3-pin to DB9)
• (1) Power adaptor (DC 24V/1.25A)
• (1) User manual
