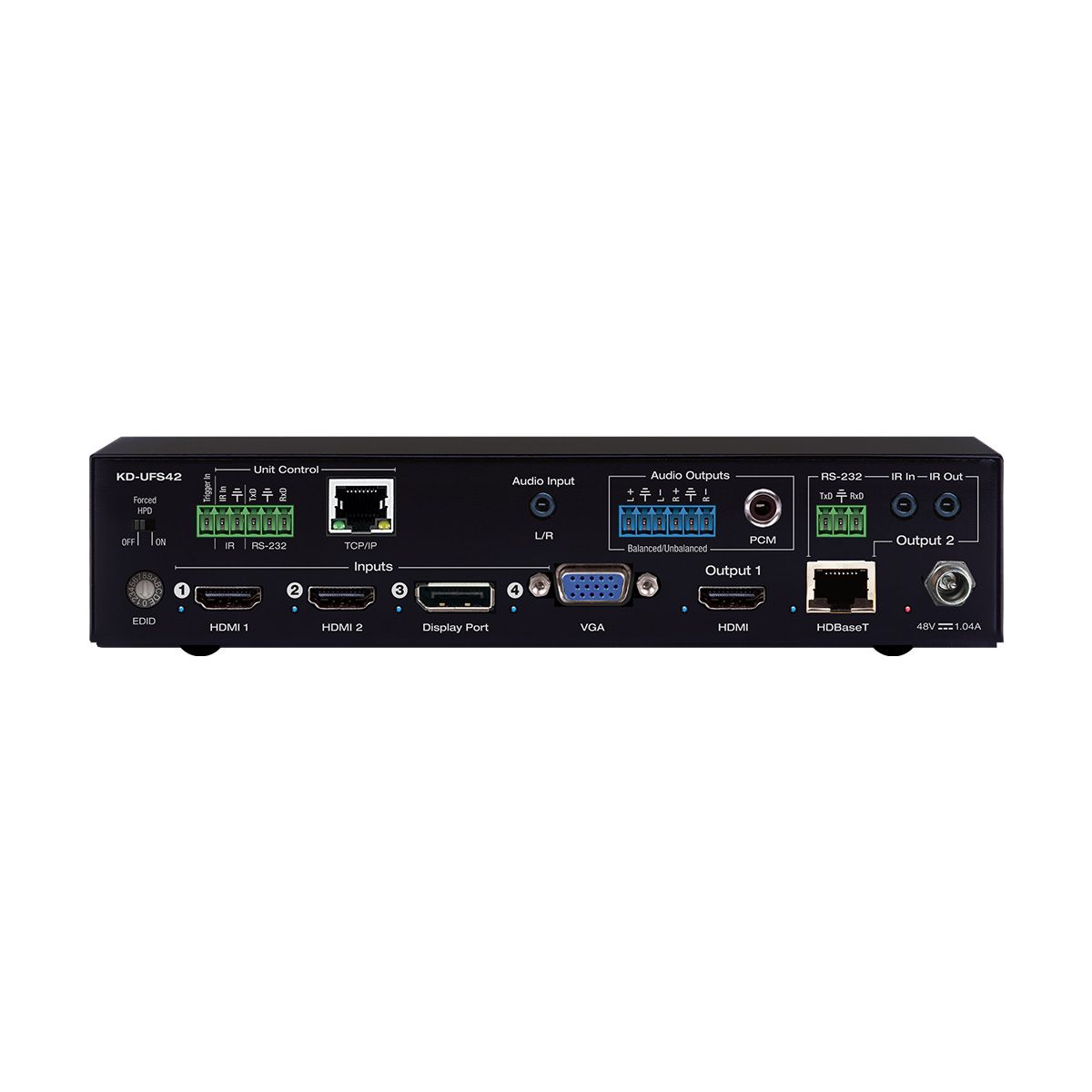

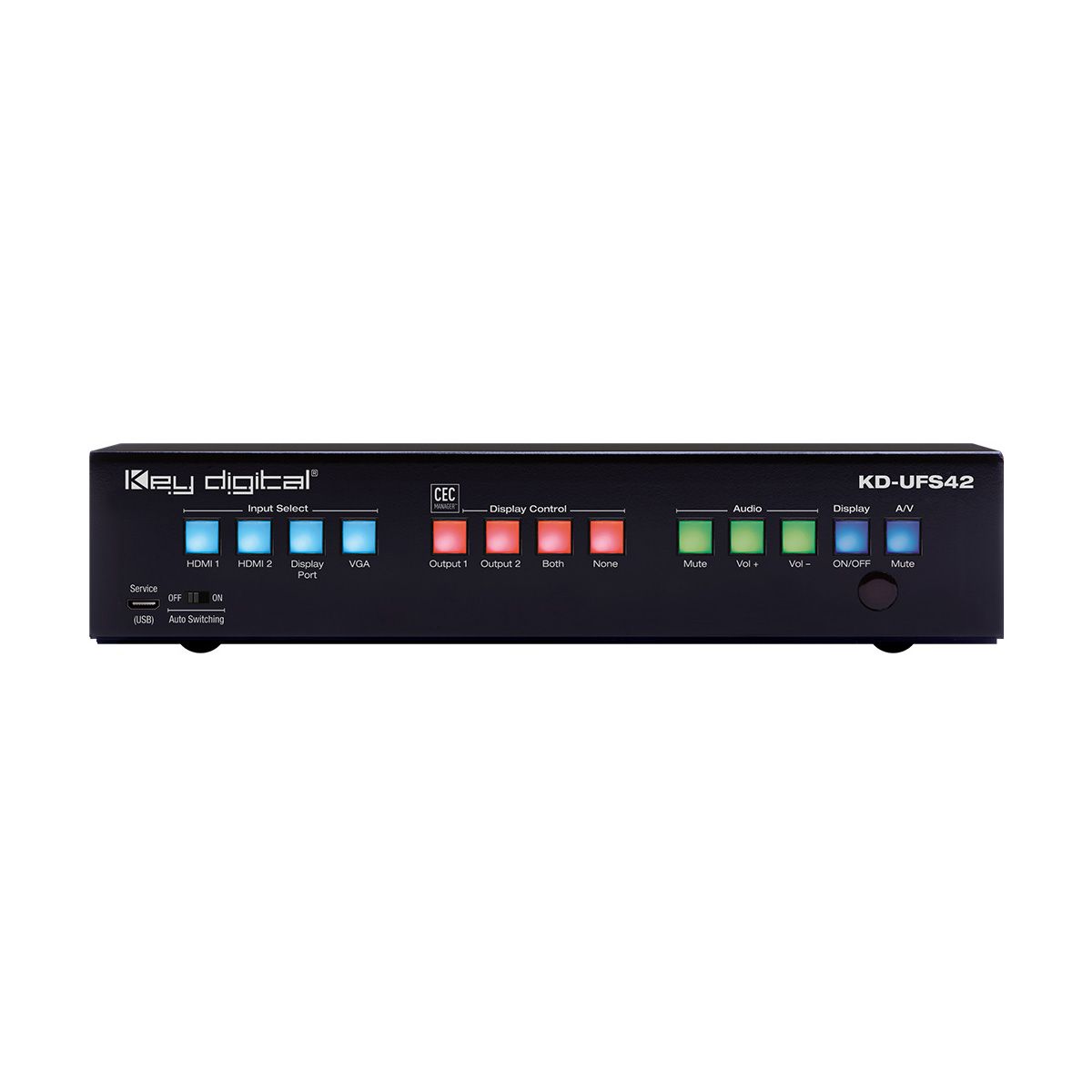

4K 18G (40m) Universal Format Switcher with 4 Inputs (2x HDMI, DP, VGA), HDMI and HDBaseT Mirrored Outputs with Rx Included, Audio De-Embed, CEC Display Control, Auto Switching. KD-App and KDPlug & Present™ Ready.
-

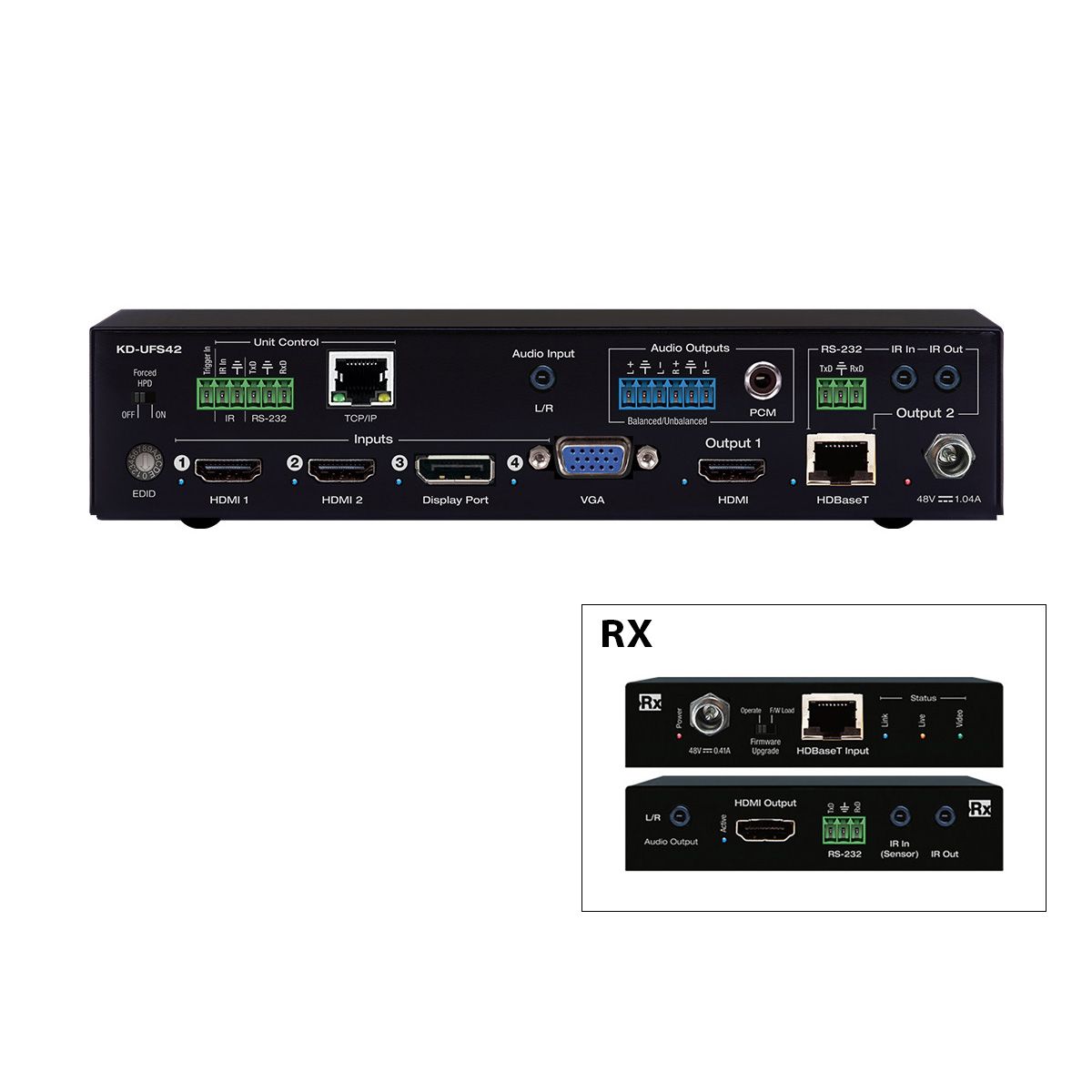

Presentation Switcher Kit: Includes KD-UFS42 and KD-X40MRx.
-
Presentation Switching: 2 HDMI, 1 Display Port, and 1 VGA + L/R audio source selection by push button, IP, RS-232, IR, auto switching, or trigger control.
-
Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
-
Auto-Switching: Automatic selection of newly detected source and switching from newly disconnected source when enabled
-
CEC Manager™: Power, volume, and muting controls of the connected display/projector without any additional control wiring. Selection of desired CEC command recipient.
-
KD-App Ready: Network scan & detect populates pre-built GUI including connected display/projector controls via CEC Manager™
-
KDPlug & Present™ Ready: Add KD-CX800 to build a programming-free automation system
-
Ease of Integration: Complete configuration using Key Digital Management Software™ Pro
-
Audio De-embedding: Audio of the selected source is de-embedded at the unit’s analog L/R balanced/unbalanced and PCM digital audio connectors.
-
KD-AMP220 Control Mode: Command forward to KD-AMP220 for an all-in-one user-friendly control UI of video switching, audio and speech enforcement
-
PTZ USB Camera Integration: Add KD-CAMUSB for full PTZ control via KD-App. Use with KD-XUSB2 extender for USB signal extension over CAT5e/6.
-
HDCP Licensing: Fully licensed and compatible with HDCP 2.2
-
HDR10+ and Dolby Vision: More life-like images through a greater range of luminance levels
-
Power Over HDBaseT: Rx unit (included) and wall plate Tx unit (sold separately) powered by KD-UFS42
-
Installation: Half-rack width with rack and under-table mounting ears included
-
Signal Extension: For resolution and cable quality
-
Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:2:2/12 bit
-
Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, EDID Control handshake, and Hot Plug Detection Voltage
-
EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the Rx display/device
-
RS-232: Bi-Directional control to/from Tx and Rx/Presentation Switch unit
-
Unit Control Mode: Provides TCP/IP and RS-232 control and status of/from Tx unit
-
EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the output/display 1
-
Lossless Compressed Digital Audio: Dolby® TrueHD, Dolby® Digital Plus, DTS-HD Master Audio™, and Dolby® Atmos
-
Control System Support: Key Digital® App ready. Compass Control® Pro ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API.
