Description

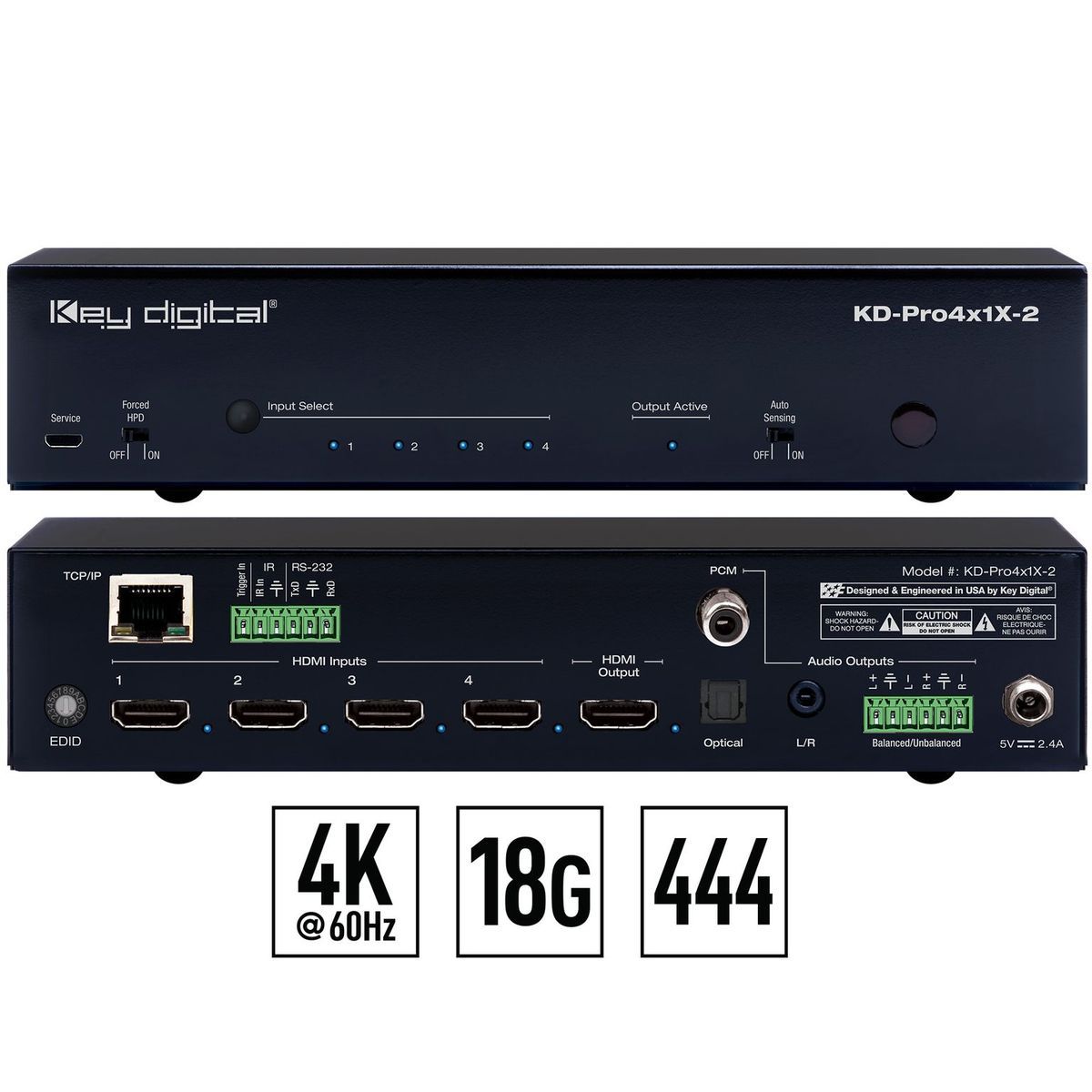

4x1 18G HDMI Pro Series Switch, - with Web UI - v2
- Connect 4 sources into a single HDMI input port on display or projector
- Supports 4K HDMI signals up to 18Gbps with HDR, HDCP 2.2, and surround audio up to Dolby® 7.1, Atmos / DTS-HD
- De-embeds audio for ease of integration with audio systems and soundbars
- Auto switching or control by Web UI, free iOS app, IP, push-button, included IR remote, RS-232, voltage trigger
INTRODUCTION
Key Digital® KD-Pro4x1X-2 is a 4K/18G HDMI switcher with analog and digital audio de-embedding, auto switching, and app-ready controllability. Designed for professional audio video installations in conference rooms, huddle spaces, classrooms, theater and gaming spaces, it enables multiple video sources to connect to a single video display. Analog (3.5mm & balanced/unbalanced) and digital (optical & PCM) audio de-embed ports may feed audio of the selected source into and amplifier, DSP, or sound bar. Integrating KD-Pro4x1X-2 with KD-AMP220 will enable an app-ready all-in-one solution for control of video switching with sound and speech enforcement. KD-Pro4x1X-2 supports all SD, HD, VESA and Ultra HD/4K video standards with HDR header information included in a variety of 4K EDID handshakes. In addition to IR, RS-232, and TCP/IP control, KD-Pro4x1X-2 can also be controlled via trigger voltage and features status-monitoring LEDs.
FEATURES
-
HDMI Switching: 4 HDMI sources to 1 HDMI output/display
-
Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
-

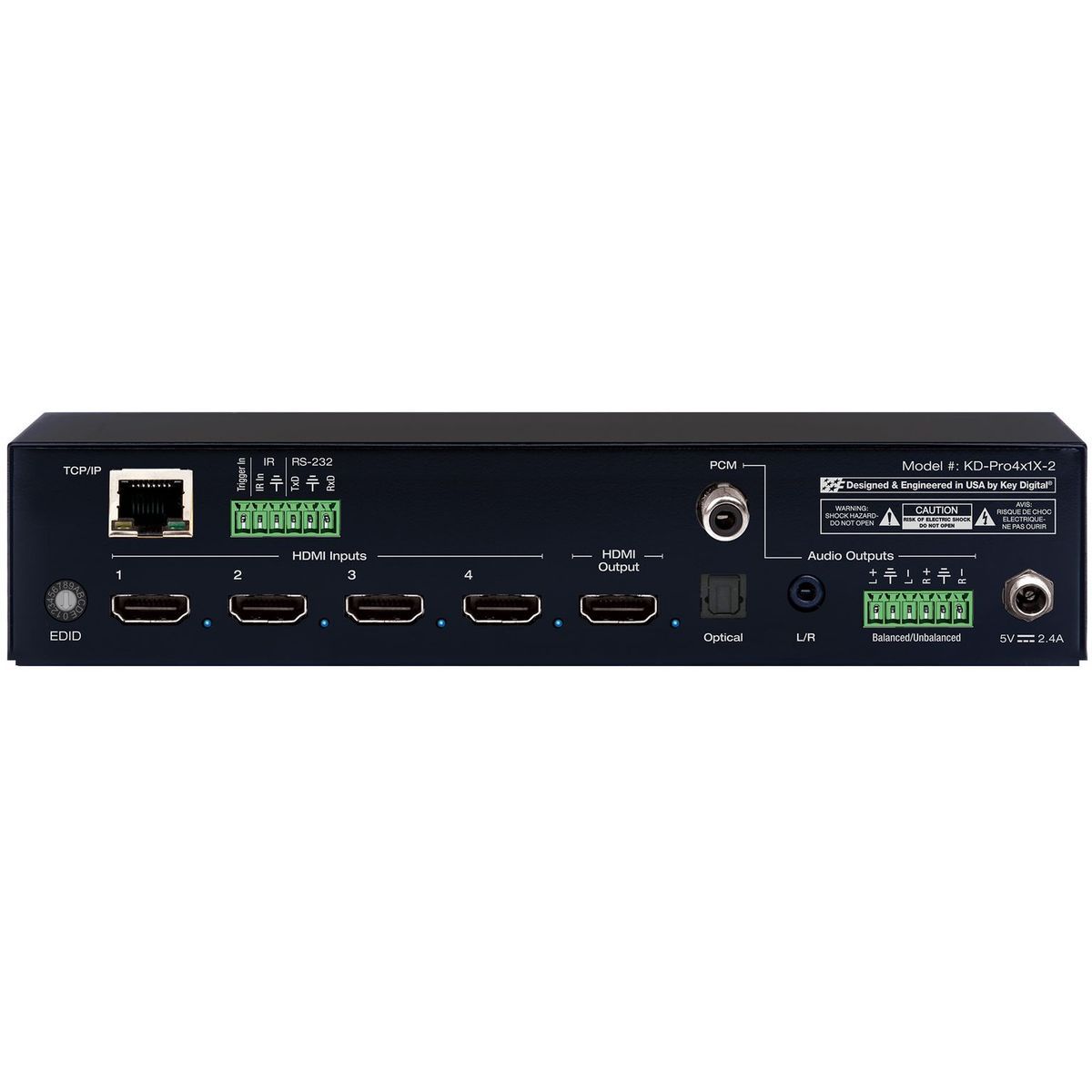

Audio De-embedding®: Audio of the selected HDMI input is de-embedded at the analog (3.5mm stereo & L/R balanced/unbalanced) and digital (optical & PCM) connectors
-
Key Digital® App Ready: Scan & detect population for pre-built GUI and TCP/IP control via Key Digital® App
-

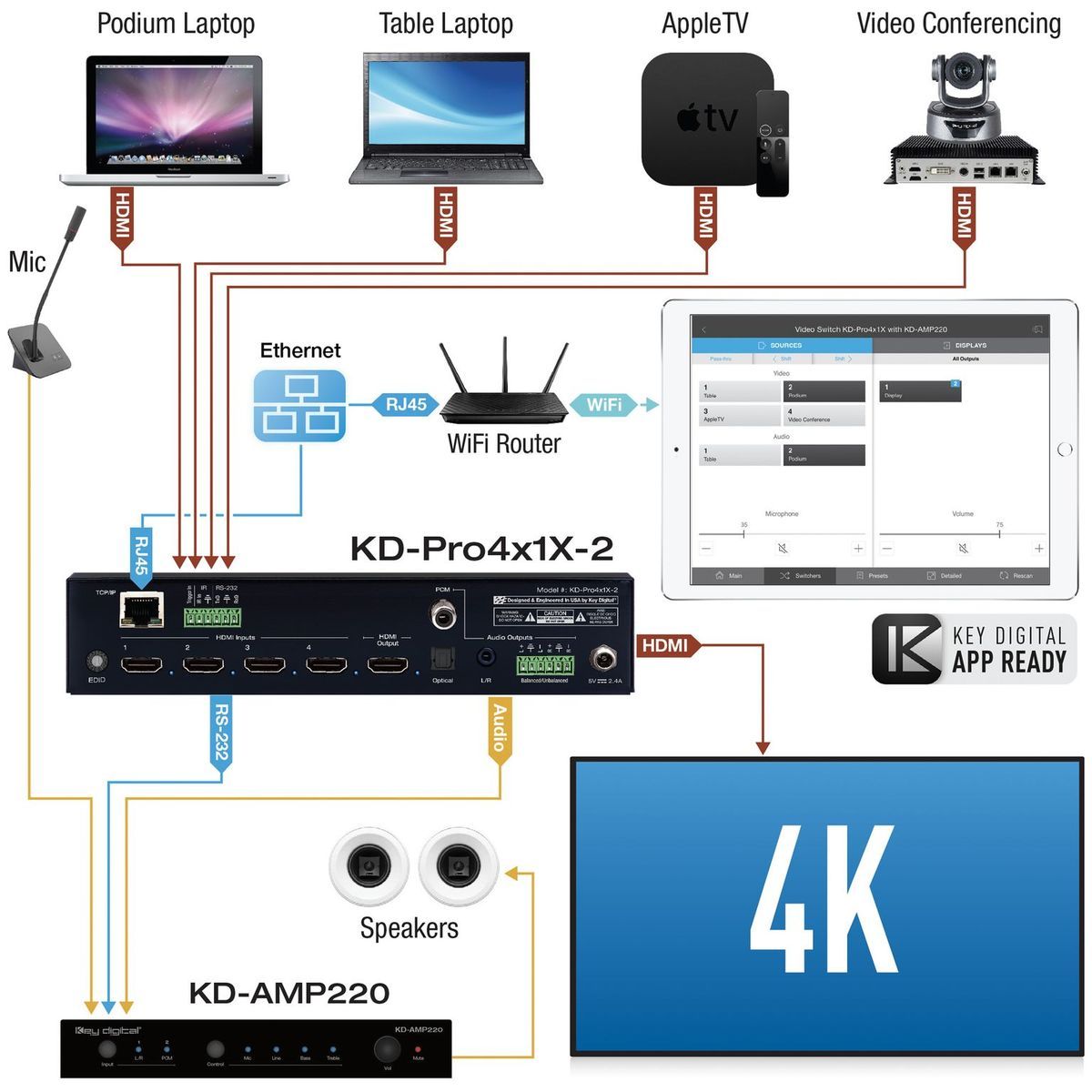

KD-AMP220 Control Mode: Command forward to KD-AMP220 for an all-in-one user-friendly control UI of video switching, audio and speech enforcement
-
PTZ USB Camera Integration: Add KD-CAMUSB for full PTZ control via KD-App. Use with KD-XUSB2 extender for USB signal extension over CAT5e/6
-
Auto-Sensing: Automatic selection of newly detected source and switching from newly disconnected source via hot plug detection voltage when enabled
-
Surround Audio Support: DTS-HD Master Audio™, DTS:X®, Dolby® TrueHD, Dolby Atmos®
-
CEC Pass-thru: From connected display to selected HDMI source
-

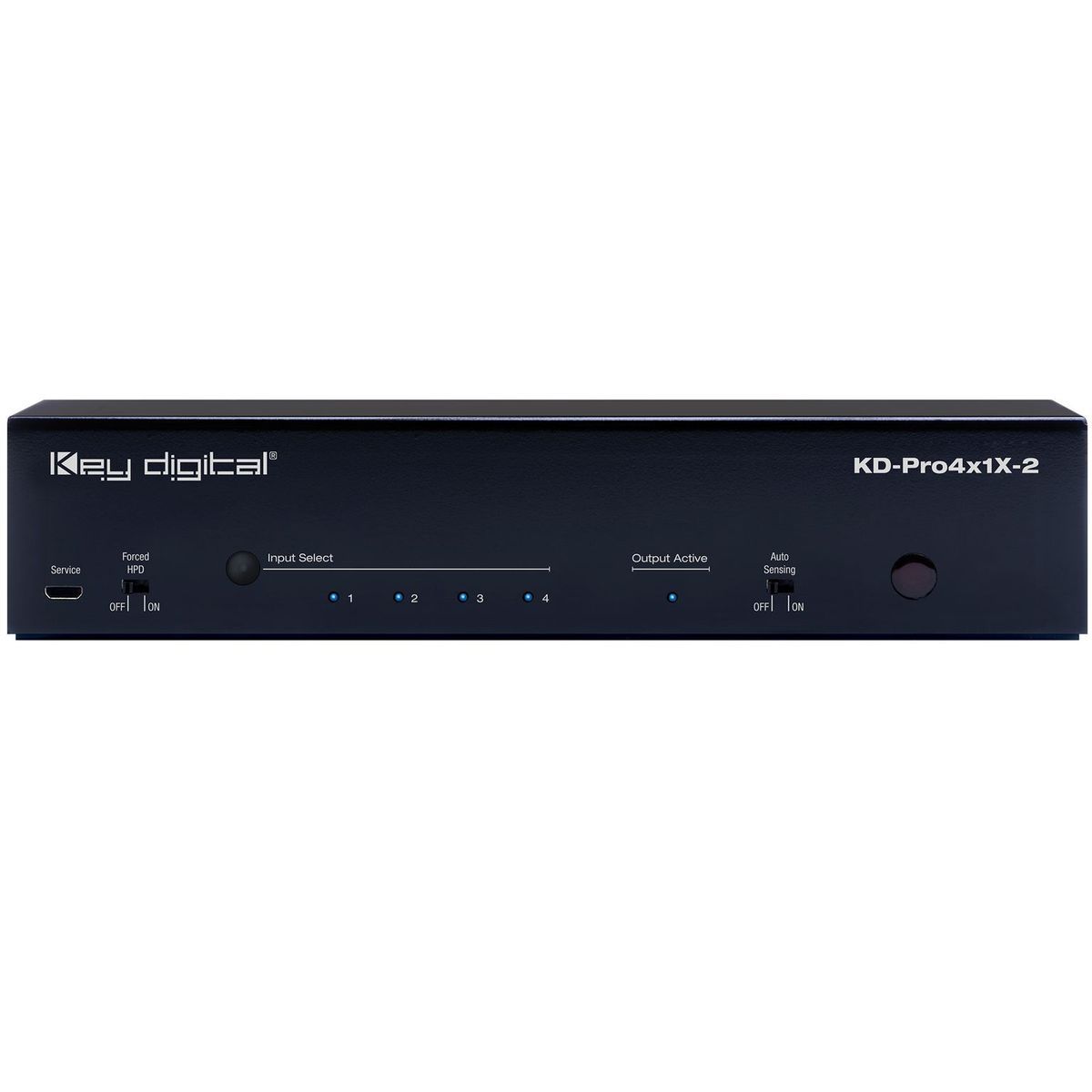

Control: Front panel button, serial IR, optical IR, RS-232, trigger in, and TCP/IP controllable with web UI and KD-App ready
ADDITIONAL FEATURES
-
HDCP Licensing: Fully licensed and compatible with HDCP 2.2
-
HDR10 and Dolby Vision: More life-like images through a greater range of luminance levels
-
Resolution Support: Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA) up to 4096x2160p
-
Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
-
Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, and EDID Control handshake
-
EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the output/display 1
-
TMDS re-clocking: Support for long HDMI connectivity using Key Digital® HDMI cables
-
Control System Support: Web UI, Key Digital® App ready. Compass Control® Pro ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API.
