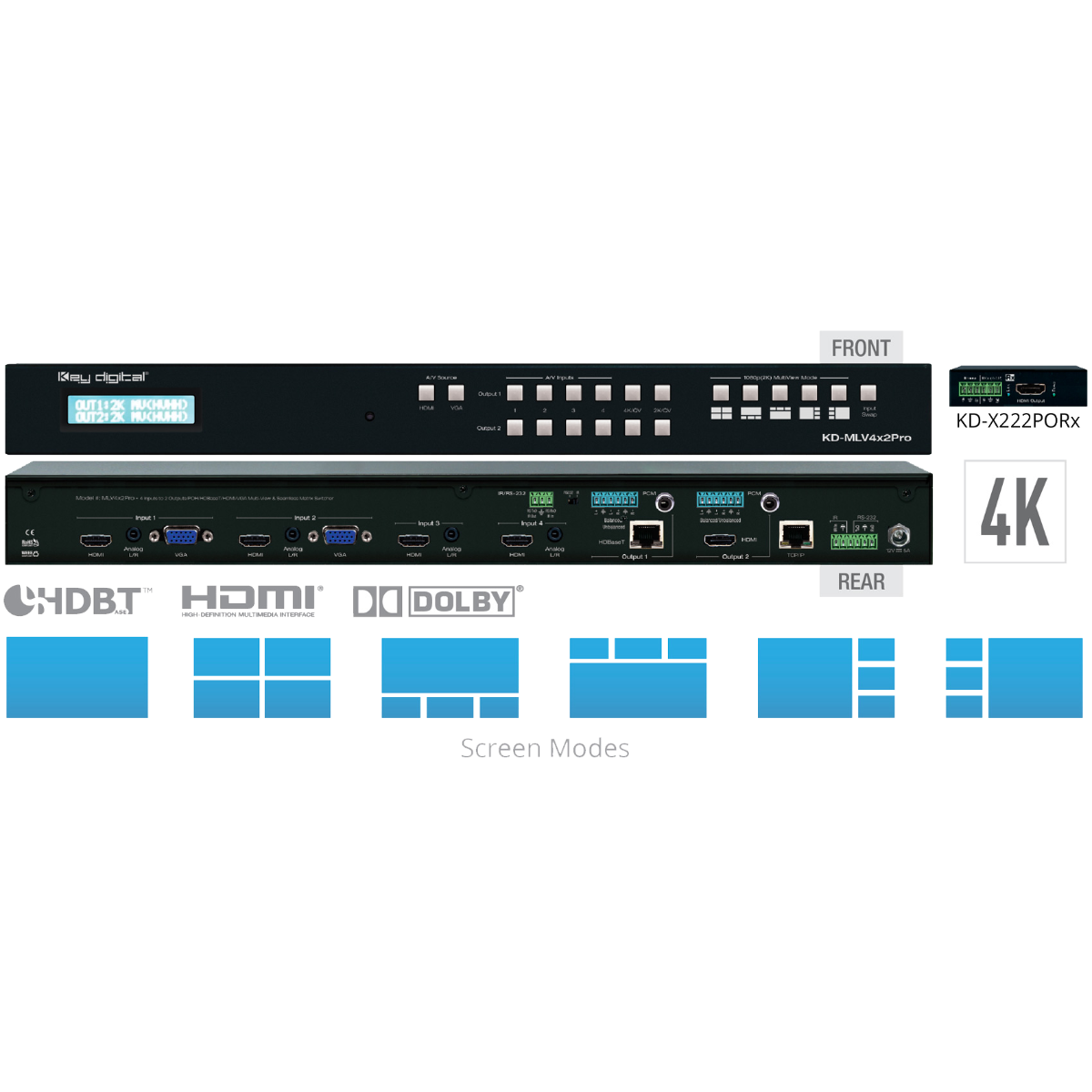

4x2 Multi-View Seamless Presentation

Description

4x2 HDMI VGA HDBaseT Seamless Presentation Matrix Switcher and Multi-View Tiling Processor with Audio De-Embed, POH. Includes 1 Rx Extender. KD-App Ready.

• Multi-view and Tiling Processor: Create & store custom multi-view layouts, recall custom presets in 1080p (2K) Multi-view mode

  • Quadrant Mode (4K or 2K): Independent outputs in four equally-sized windows

  • Multi-view Mode (2K): Linked/mirrored outputs in customized screen layout

• Seamless Switching: Un-interrupted screen transitions during source selections

• Independent matrix switching: In full-screen and quadrant modes, linked/mirrored in multi-view mode

• Image Layering: Stack images with customizable priority settings

• Window Transparency and Border: View content through each other and choose window bezel width and coloring

• Multi-format Switch:

  • Input: 2 HDMI, 2 HDMI or Analog video, all with external audio

  • Output:  1 HDMI and 1 HDBaseT output. Rx unit included

• HDBaseT Built-In: Included KD-X222PORx unit is powered by at KD-MLV4x2Pro

• Signal Extension:

  • Up to 200 feet @ 1080p/60, 1080p/24, 1080i, 720p with third-party CAT5e/6

  • Up to 125 feet @ 4096x2160 30Hz [4:4:4] 8bit with third-party CAT5e/6

• Ultra HD/4K Up-scaling: Outputs independently upscale to 4096x2160 30Hz [4:4:4] 8bit in 4K Quadrant mode

• HDCP 2.2 Licensing: Fully licensed and compatible with HDCP 2.2

• Resolution Support: Supports SD, HD, and VESA input resolutions up to 1080p / 1920x1200 on HDMI and analog video Inputs. Outputs fixed to 1080p or 4K

• Web Control Interface: Reduces installation time and provides basic and advanced video and audio setup

• Audio De-Embed: Audio from the selected input is be de-embedded through the Coax digital (PCM) output in addition to the HDMI output

• Independent Video & Audio: Listen to any audio source while in quadrant or multi-view modes

• Dolby Digital & DTS Audio: Supports 2-channel and multi-channel audio formats up to 5.1 Dolby® / DTS™ lossless compressed digital surround sound

• Analog to Digital Video Conversion: Analog video input ports support VGA / DB15 or Component / YPbPr signal types

• Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, and EDID Control handshake

• EDID: Internal library with 5 default EDID configurations for input, in addition to native EDID data for any Output / Display

• TMDS Re-clocking: Support for long HDMI connectivity using Key Digital® HDMI cables

• Deep Color Support: Up to 12 bits/color

• Control: Front panel buttons, IR, RS-232, TCP-IP and Web Control

• Control System Support: Key Digital® app ready. Key Digital Management Software™ Pro (KDMS™ Pro) ready, Compass Control® Pro ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API.

• Key Digital® App Ready: Can be controlled over TCP/IP via Key Digital® App
