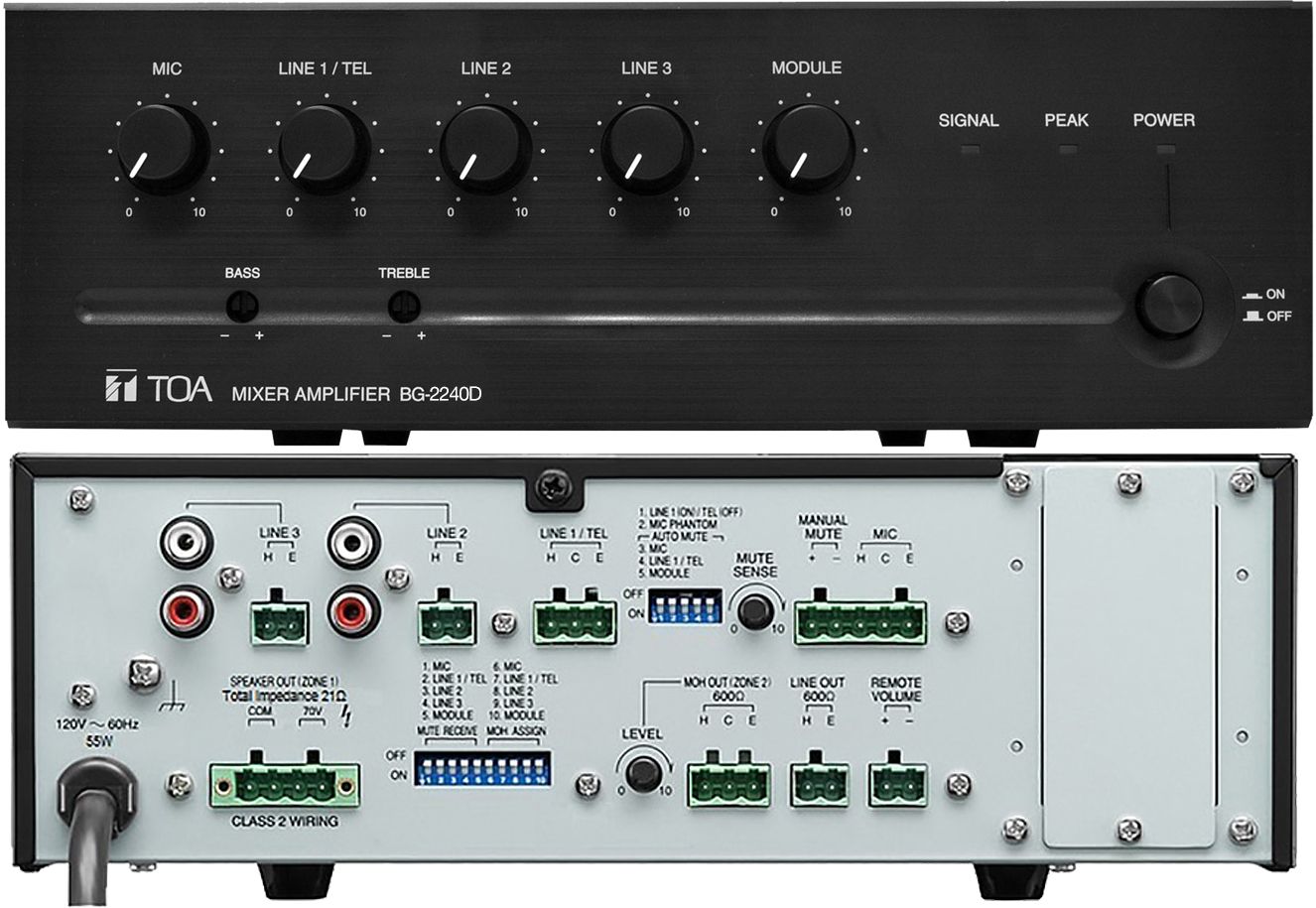

The BG-2240D is a 240W 5-input mixer amplifier for background music (BGM) and general announcements. It is suited for use in bars, retail stores, and banquet rooms. It is equipped with the MOH OUT that permits 2-*channel broadcast when used in conjunction with the optional booster amplifier BA-235 (35W) or BA-260 (60W). This is a Class D 240W @70V amplifier.
Specifications:
| Power Source | 120 V AC, 60 Hz |
| Rated Output | 240 W |
| Power Consumption | 300 W (rated output), 55 W (based on cULus standards) |
| Frequency Response | 50 Hz – 20k Hz |
| Total Harmonic Distortion | 0.8% or less, at 1 kHz, 1/3 rated output, LPF 20KHz |
| Input | Mic: –60dB*, 600Ω, electronically balanced, removable terminal block Line 1: –10 dB*/TEL: –20 dB* Line 1/TEL: selectable, 10kΩ, electronically balanced, removable terminal block Line 2, 3: –10 dB*, 10 kΩ, unbalanced, removable terminal block or RCA jack Module |
| Output | Speaker: 70 V (21Ω) balanced, removable terminal block MOH: 0 dB*, 600 Ω, balanced, removable terminal block Line: 0 dB*, 600 Ω, unbalanced, removable terminal block |
| Output Regulation | 2 dB or less, no load to full load (1k Hz) |
| Phantom Power | On/Off switch for Mic,+24V DC |
| S/N Ratio | Mic: 60 dB or more, Line 1/TEL, Line 2, 3, Module: 73 dB or more (A-weighted, Tone Controls: Centered) |
| Tone Control | Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10k Hz |
| Muting | Manual mute/Automatic mute |
| Control | Mic gain control, Line 1/TEL gain control, Line 2 gain control, Line 3 gain control, Module: gain control, Bass tone control, Treble tone control, MOH out gain control, Mute control (Manual mute), Remote volume control, Mute sense control, Line 1/TEL selector switch, Phantom power switch (Mic), Auto mute switch (Mic, Line 1/TEL, Module), Mute receive switch (Mic, Line 1/TEL, Line 2, 3, Module), MOH assign switch (Mic, Line 1/TEL, Line 2, 3, Module), Power ON/OFF switch |
| Indicator | Power LED, Signal level LED, Peak LED |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Operating Humidity | 35% to 80% RH (no condensation) |
| Finish | Panel: ABS resin, black Case: Steel plate, black, paint |
| Dimensions | 264 (W) × 94.3 (H) × 267.3 (D) mm (10.39" × 3.71" × 10.52") |
| Weight | 3.5 kg (7.72 lb) |
| Accessory | Volume control cover: YA-920 × 5, Removable terminal plug (2 pins) × 4, Removable terminal plug (3 pins) × 2, Removable terminal plug (4 pins) × 1, Removable terminal plug (5 pins) × 1 |
| Option | Rack mounting brackets: MB-1000 |
* 0dB = 1V
