5x1 HDMI - HDBT Multimedia Presentation Switch

Description

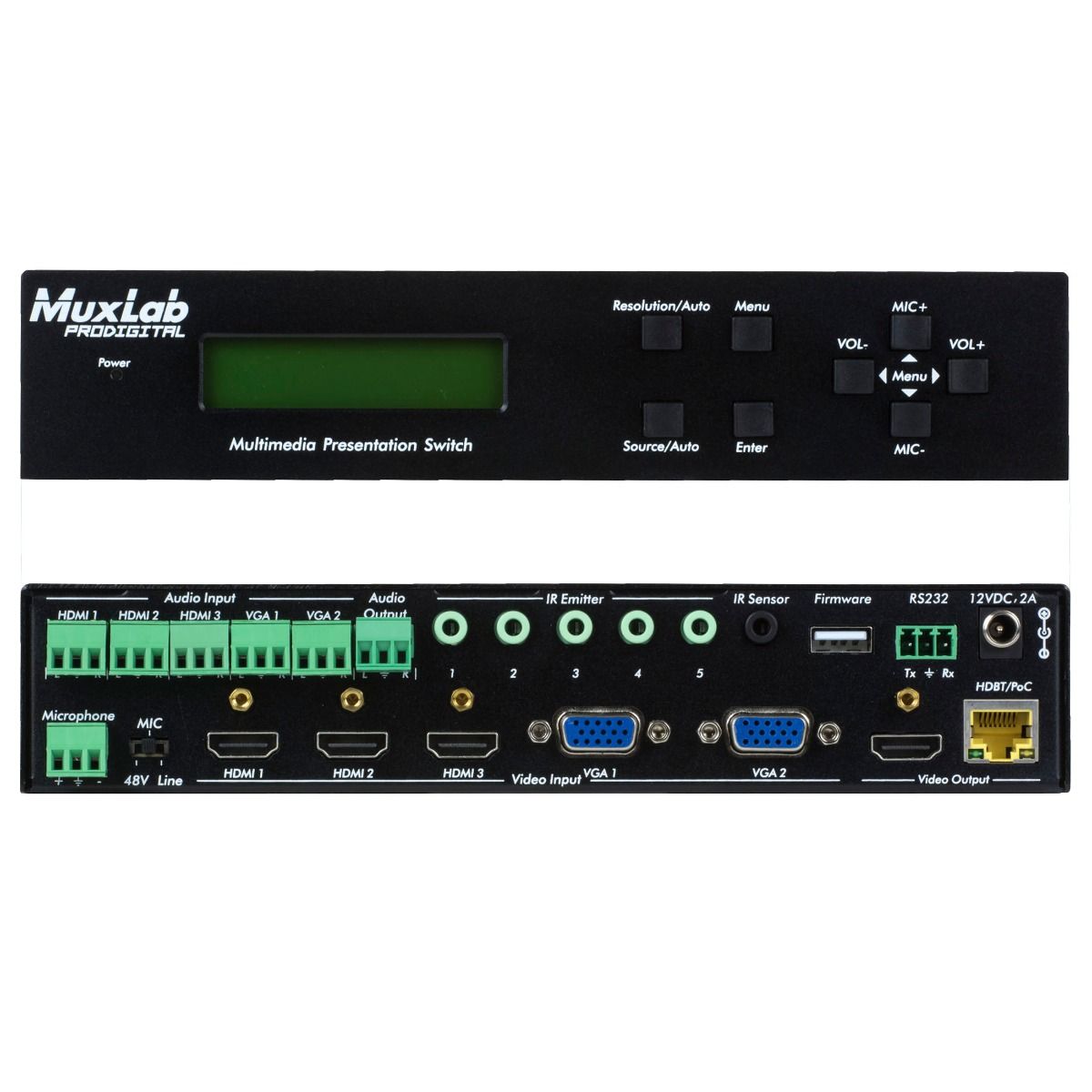

5×1 HDMI / HDBT Multimedia Presentation Switch

The 5×1 HDMI / HDBT Presentation switch is a compact scaler switcher with 5 video inputs (3 HDMI, 2 VGA) and 6 audio inputs (3 HDMI audio & 2 VGA with audio switched following the video; 1 MIC audio input). The VGA input supports VGA, Component Video (YPbPr) and Composite Video.

The 5×1 HDMI / HDBT Presentation switch scales & switches any video signal to HDMI output and HDBaseT output for a transmission over up to 70 m of Cat5e/6 with PoC support.

With 1 IR Sensor, 5 IR Emitters and 1 RS232 port, bidirectional IR & RS232 signals can be transmitted simultaneously between the 5×1 HDMI / HDBT Presentation switch and the HDMI Extender PoC/PoE Receiver.

Applications: computer realm, monitoring, conference room and conference centres, corporate boardrooms, hotels and hospitality rooms, big screen displaying, television education, command & control centres and smart homes

DATASHEET

• Supports video source auto-switching function
• Bi-directional IR & RS232 control
• Supports HDMI, VGA, Composite Video, and Component Video (YPbPr)
• Output resolutions selectable (1920×1200, 1920×1080, 1600×1200, 1360×768, 1280×800, 1280×720, 1024×768)
• Supports CEC, with commands to enable/disable this function
• Compliant with HDCP
• Supports online software upgrading
• MIC port supports balance/unbalance signal, suppress the external noise effectively
• 48V phantom power to support condenser microphone
• 3-level MIC input, supports condenser microphone, dynamic microphone and wireless microphone
• Controllable via button, IR & RS232
• Powerful OSD function
