6 Ch Sequencing Power Distributor, 120A 2U (6) 20A 120V

Description

Six Channel Sequencing Power Distributor, 120A 2U (6) 20A 120V  (ASD-120 2.0)

The Furman ASD-120 2.0 is a professional 6 Channel Sequencing Power Distributor designed for applications requiring orderly power-up and power-down of multiple electrical loads. Ideal for  theaters, stadiums, house of worship, venues, broadcast, recording studios, and on-location film or video shoots.  This 120-amp distro prevents speaker "pop" and nuisance breaker trips from in-rush currents. It features six independent 20-amp circuits, each with a rear-panel NEMA 5-20R duplex outlet, and can accommodate 120/240V single-phase or 120/208-Y three-phase power. Housed in a rugged 2RU rack-mountable chassis, the ASD-120 2.0 offers remote control capability via Phoenix-type connectors, a front panel key switch for security, and a Force Off function for emergency shutdowns.

• 120 amp total load
• Six 20 amp, 120 volt circuits, each with a status indicator
• Oversized buss bars
• Four buss design accommodates 120V or 240V single phase, or 208V three phase power

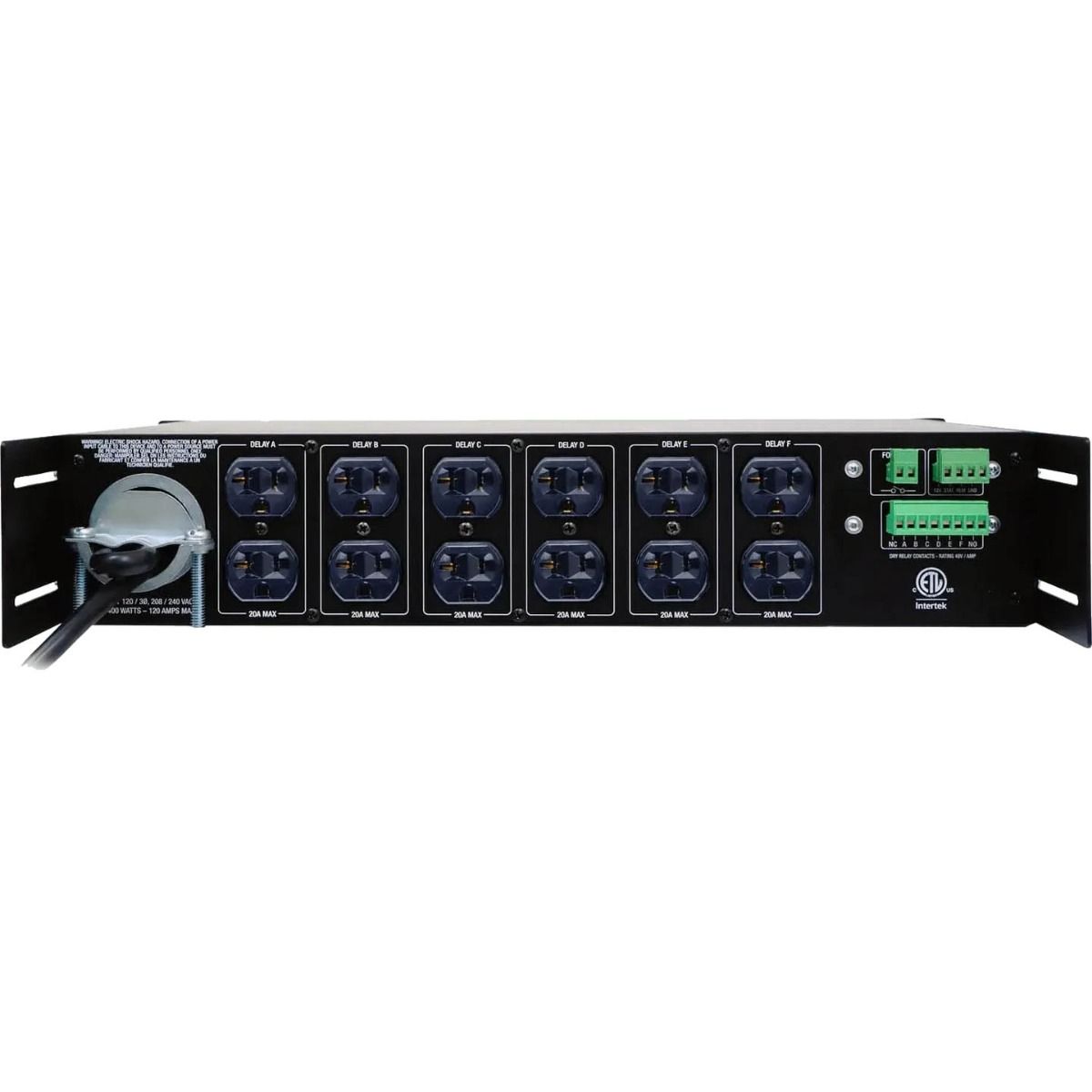

• Six widely spaced duplex outlets on rear panel
• Outlets can be powered up and down in sequence
• Most economical product of its type
• Three position switch allows each circuit to be part of the power sequencing, or to be switched on/off independently
• Sequence timing can be initiated from unit or remotely, using low voltage control wires
• Sequence control signals are available on rear panel to drive additional ASD-120 2.0s or other devices and circuits

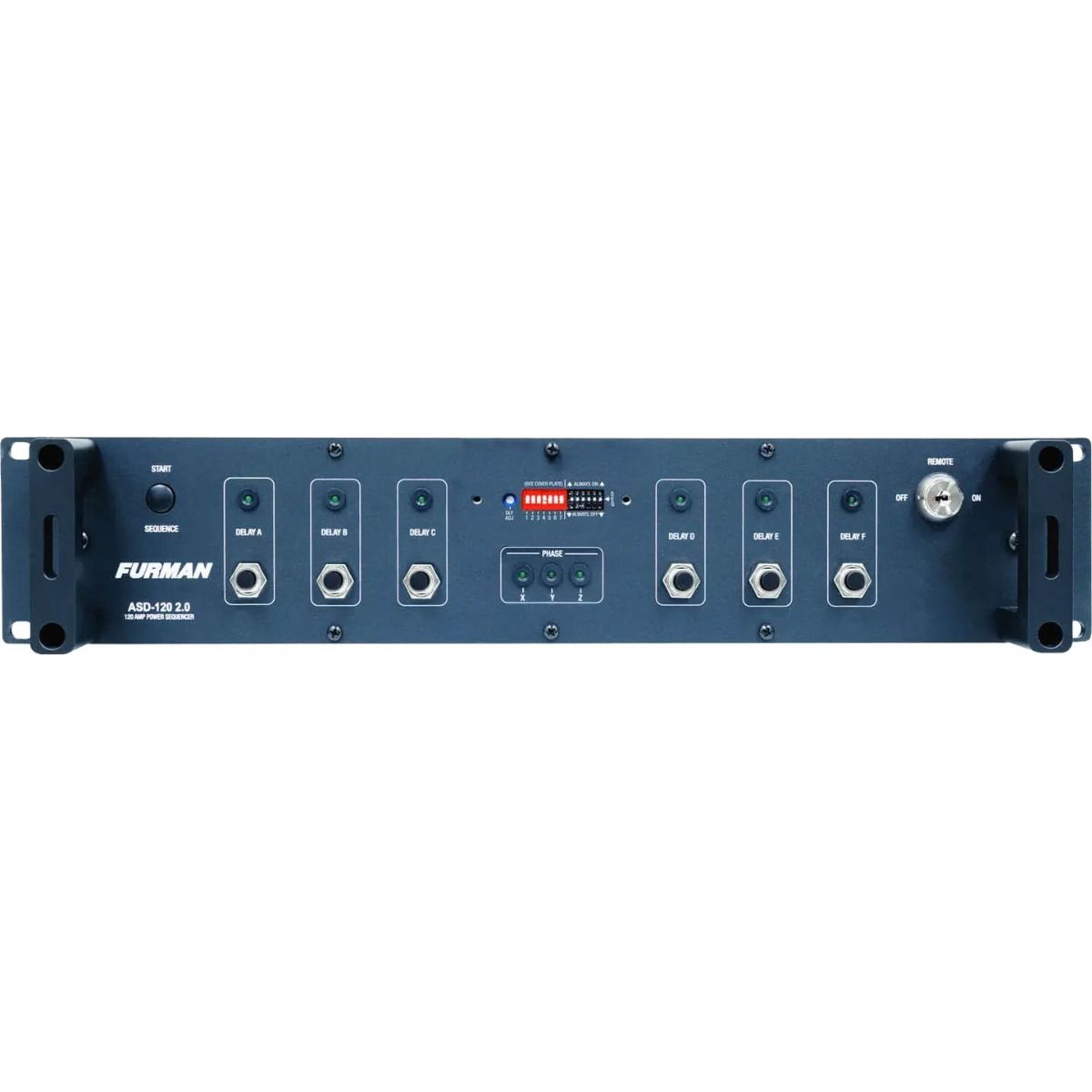

• Front panel key switch for security
• Compact two rack space package
• Dimensions:  3.5″ (8.9 cm) H x 19″ (48.3 cm) W x 10″ (25.4 cm) D
• Weight    16 lbs
