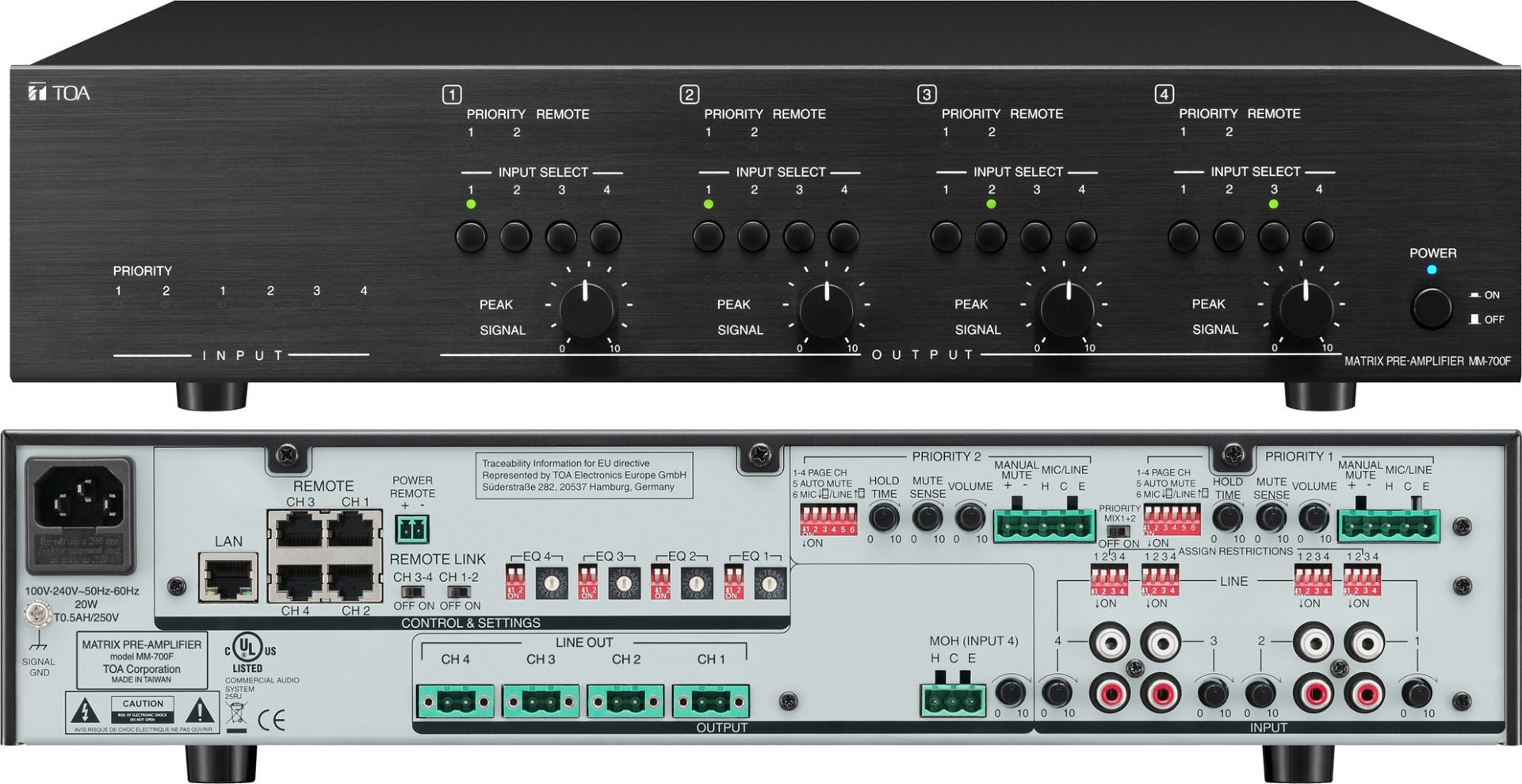

TOA's MA-725F matrix amplifier and MM-700F is all-in-one solution for multi-channel or multi-zone applications combining a 6x4 audio matrix, DSP and 4ch Class-D amplifier(*) into one chassis. It is equipped with 4 independent line inputs, 2 MIC/LINE priority inputs. Each output has independent DSP preset adjustment with input source matrix selection. It features high power (250Wx4 @ 70V/100V)(*) and various inputs capabilities. Its wide range of applications include general or emergency announcement and background music for restaurants, pubs, retail stores, schools, offices, etc.
(*)MA-725F only
Specifications:
| Power Source | 100 - 240V AC, 50/60Hz | |
| Power Consumption | 9 W or less (standby) | |
| Frequency Response | 20Hz - 20 kHz (-3 dB / + 1 dB) | |
| Total Harmonic Distortion | 0.5% or less, at 1kHz, rated output | |
| Certifications | cULus 60065, EN60065, EN55032, EN55020, FCC part15 class A | |
| Input | Priority 1-2: | Mic -60 dB/Line -10 dB selectable, 2.2 kΩ, electronically-balanced, removable terminal block |
| Line In 1-4: | -10 dB, 10 kΩ, unbalanced, 2 RCA jacks (Stereo summing) | |
| Output | Line Out 1-4: | 0 dB*, 600 Ω, unbalanced, removable terminal block |
| MOH: | 0 dB*, 600 Ω, transformer balanced, removable terminal block | |
| DSP Preset | 16 presets in 4 banks at each output channel, selectable | |
| S/N Ratio | Mic: 60 dB* or more, Line: 75 dB* or more (A-weighted) | |
| Muting | Manual mute / Automatic mute | |
| Mute Hold Time | 50ms - 10 seconds, adjustable | |
| Priority Level | PRIORITY 1 > PRIORITY 2 > LINE 1-4 | |
| Control | Power: | ON/OFF switch, Power remote terminal |
| Priority 1-2: | MIC/LINE selector switch, Gain control, Assign switch, Auto mute switch, Mute sense control, Manual mute terminal, Mute hold time control, Priority mix switch | |
| Line In 1-4: | Gain control, Assign restriction switch | |
| Output 1-4: | LINE In 1-4 selector switch, Output gain control, DSP bank selector switch, DSP preset selector switch | |
| Remote 1-4: | Remote control connector (RJ-45), Remote link switch | |
| Indicators | Power: | 1 Power LED |
| Priority 1-2: | 1 Signal LED, 1 Peak LED | |
| Line In 1-4: | 1 Signal LED, 1 Peak LED | |
| Output: | 2 Activated PRIORITY LED, 1 Connected REMOTE LED, 4 Selected LINE LED, 1 Signal LED, 1 Peak LED | |
| Operating Temperature | 0 to 40 °C degree (32 to 104 °F) | |
| Operating Humidity | 35% to 80% RH (no condensation) | |
| Finish | Panel: Aluminum, hair line, black; Case: Steel plate, black, paint | |
| Dimension | 420 (W) x 107.6 (H) x 350 (D) mm (16.54" x 4.24" x 13.78") | |
| Weight | 5.7 kg (12.3 lbs) | |
| Accessories | Power cord (2m (5.65ft)) x1, Removable terminal plug (5 pins x 2, 3 pins x 1, 2 pins x 4); Rack mounting bracket x 2, Bracket mounting screws x 4, User manual x 1 | |
| Option | Remote Control Panel : WP-700-AM | |
