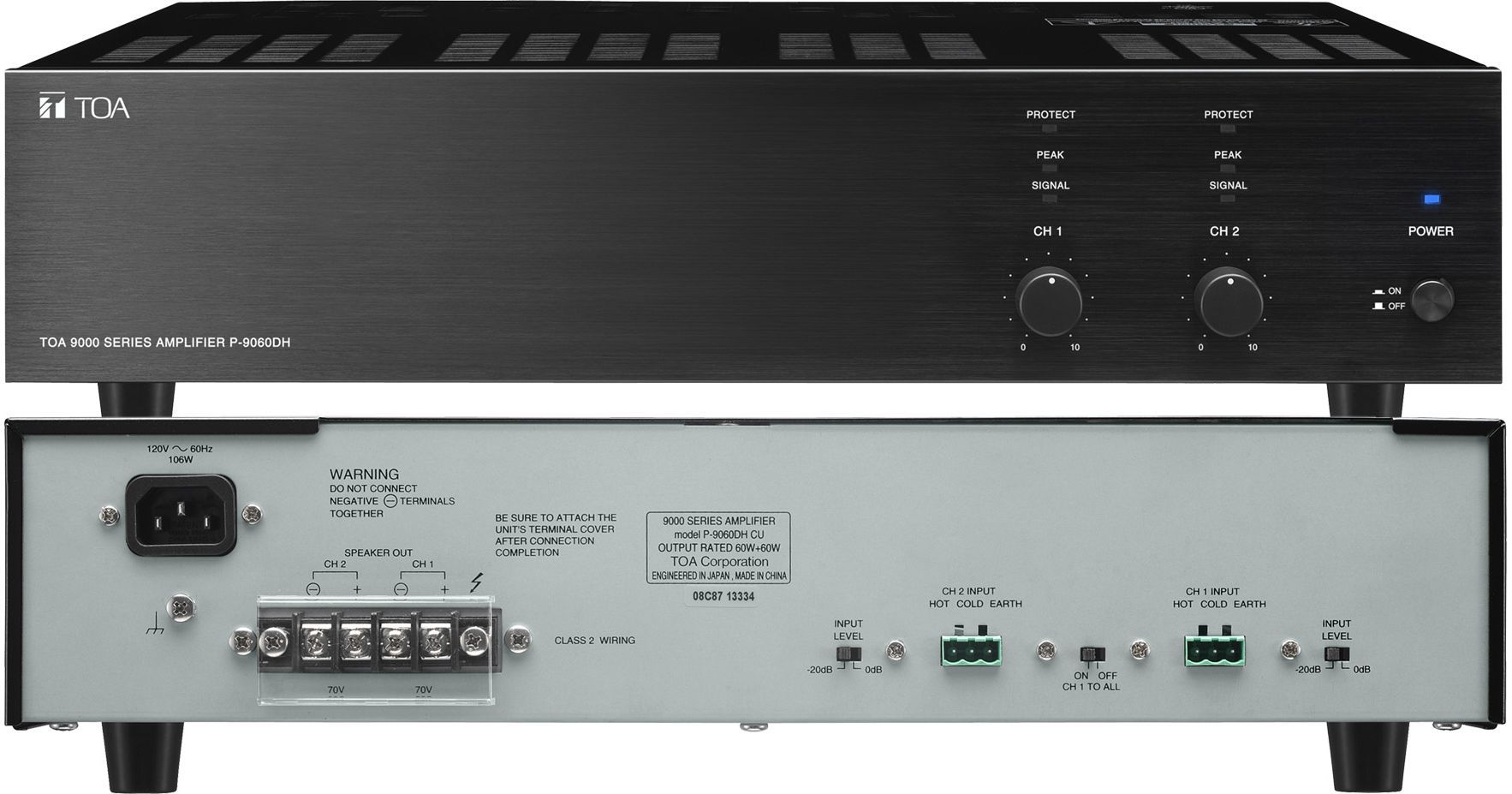

The P-9060DH CU (Version B00) Power Amplifier is a 2-channel amplifier (60 W × 2) providing 70-volt line output. It can be used not only as TOA's 9000 series power amplifier but also as stand-alone amplifier, thus covering wide range of applications.
| Power Source | 120 V AC, 60 Hz |
|---|---|
| Power Consumption | 225 W (rated output), 106 W (UL60065) |
| Output | Speaker output CH 1, CH 2: 60 W, 83 Ω × 2, BTL output (70 V line), M4 screw terminal, distance between barriers: 9 mm (0.35") |
| Input | CH 1, CH 2 input: -20 dB* or 0 dB* (switchable), 10 kΩ, electronically-balanced, removable terminal block CH 1 mode ON/OFF switch (ON: CH 1 to All ch, OFF: Each ch) |
| Power Band Width | 20 - 20k Hz, 0.08% T.H.D. |
| Frequency Response | 20 - 20k Hz (+1, -3 dB) |
| S/N Ratio | At Input short, 20 - 20k Hz, Input level switch in 0 dB* position Output volume min.: 105 dB, Output volume max.: 97 dB |
| Total Harmonic Distortion | 0.008% (22 kHz LPF, 1 kHz, rated output, input level switch in 0 dB* position) |
| Function | Output disconnected for approx. 5 s after switching power on. |
| Air Cooling | Forced air cooling (Fan speed: varies depending on the temperature.) |
| Operating Temperature | -10℃ to +40℃ (14゜F to 104゜F) |
| Operating Humidity | 35% to 80% RH (no condensation) |
| Finish | Front panel: Aluminum, hair-line, black Case: SECC, black, paint |
| Dimensions | 420 (W) × 107.6 (H) × 406 (D) mm (16.54" × 4.24" × 15.98") |
| Weight | 8.2 kg (18.08 lb) |
| Accessory | Power cord (2 m (6.56 ft)) …1, Volume control cover (YA-920) …2, Rack mount bracket …2, Bracket mounting screw (M4 × 16) …4, Removable terminal plug (3 pins) …2, Terminal cover …1, Terminal cover mounting screw (M4 × 8) …2 |
