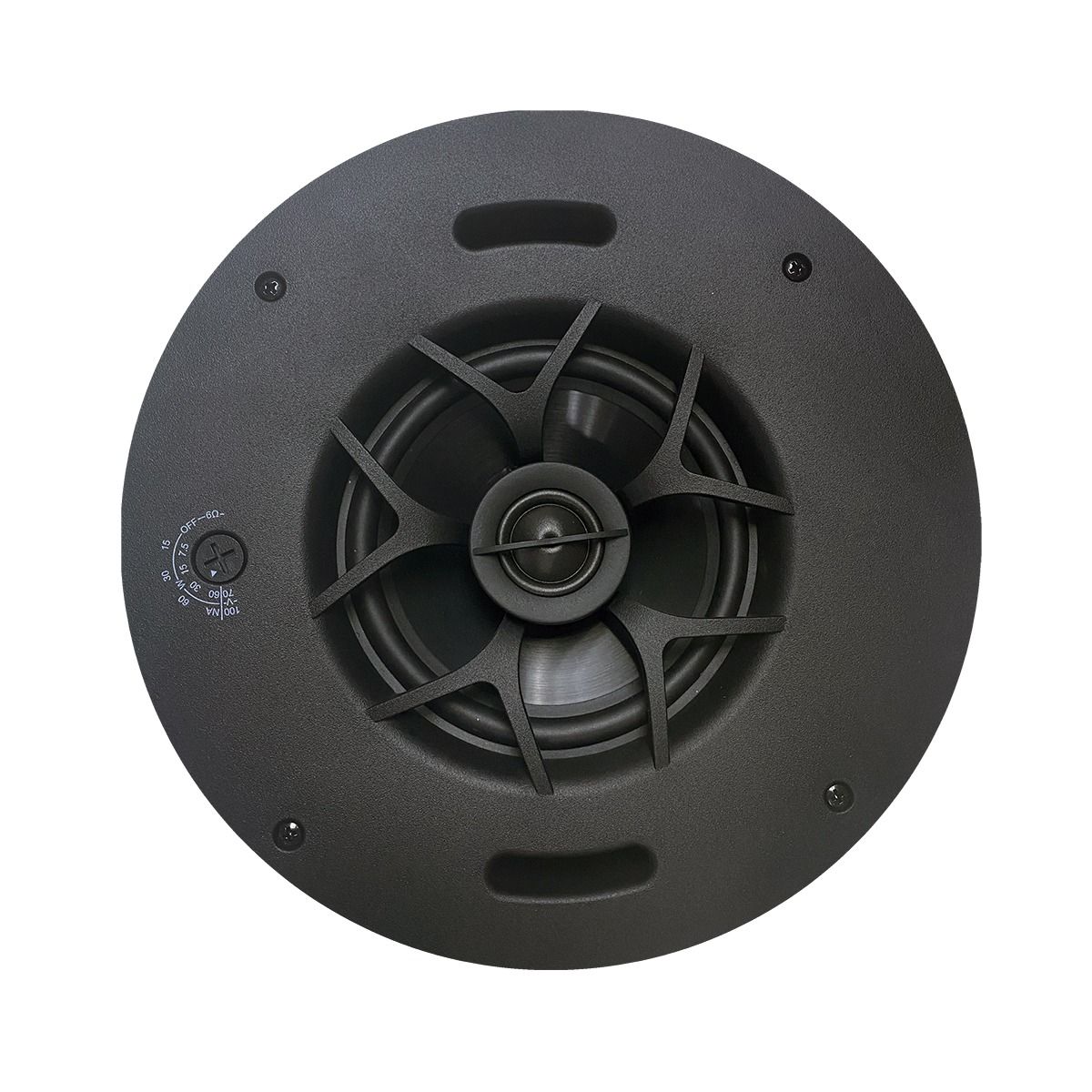

70v 6.5in Slim In-Ceiling, White Grills & TB80 Tile Bridge

Description

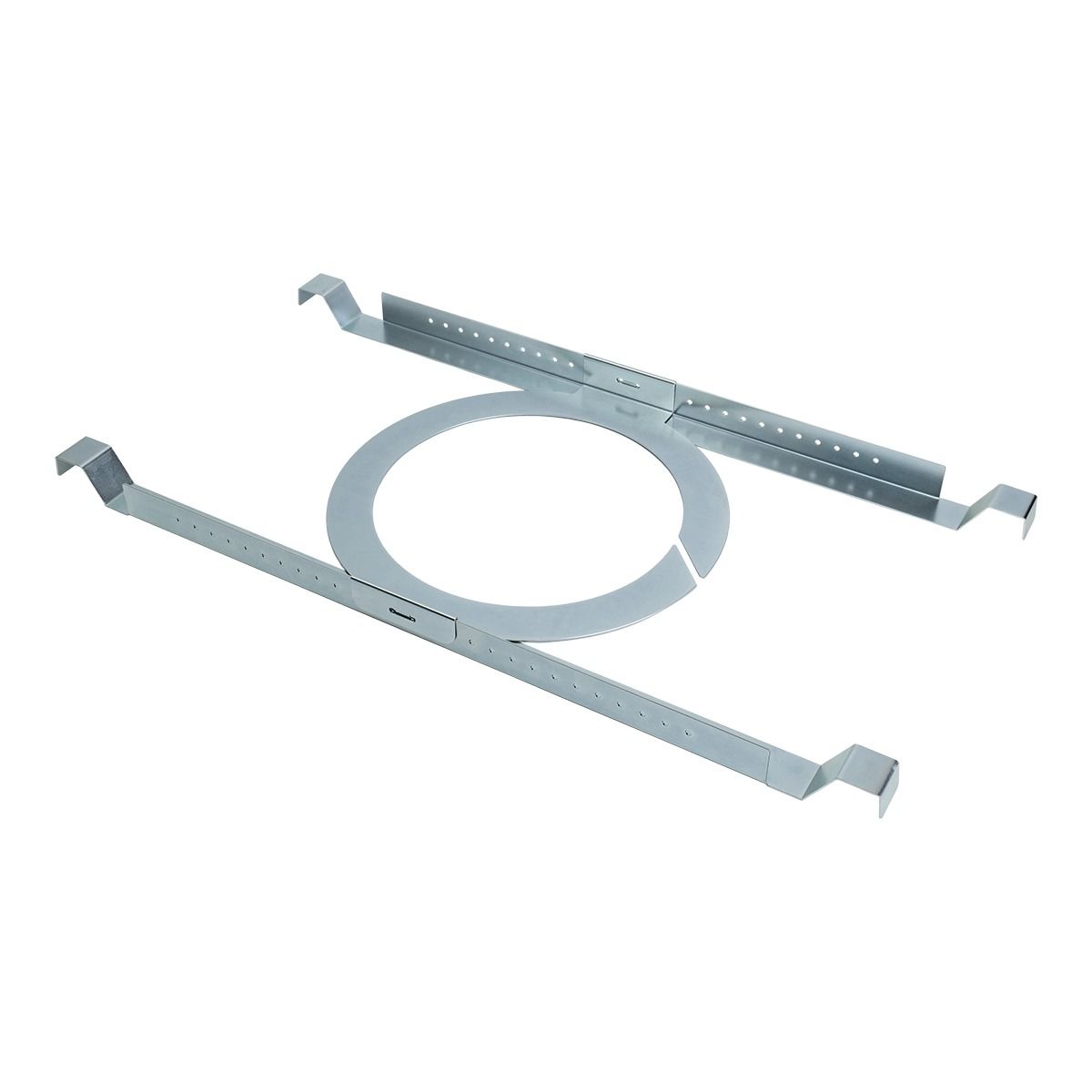

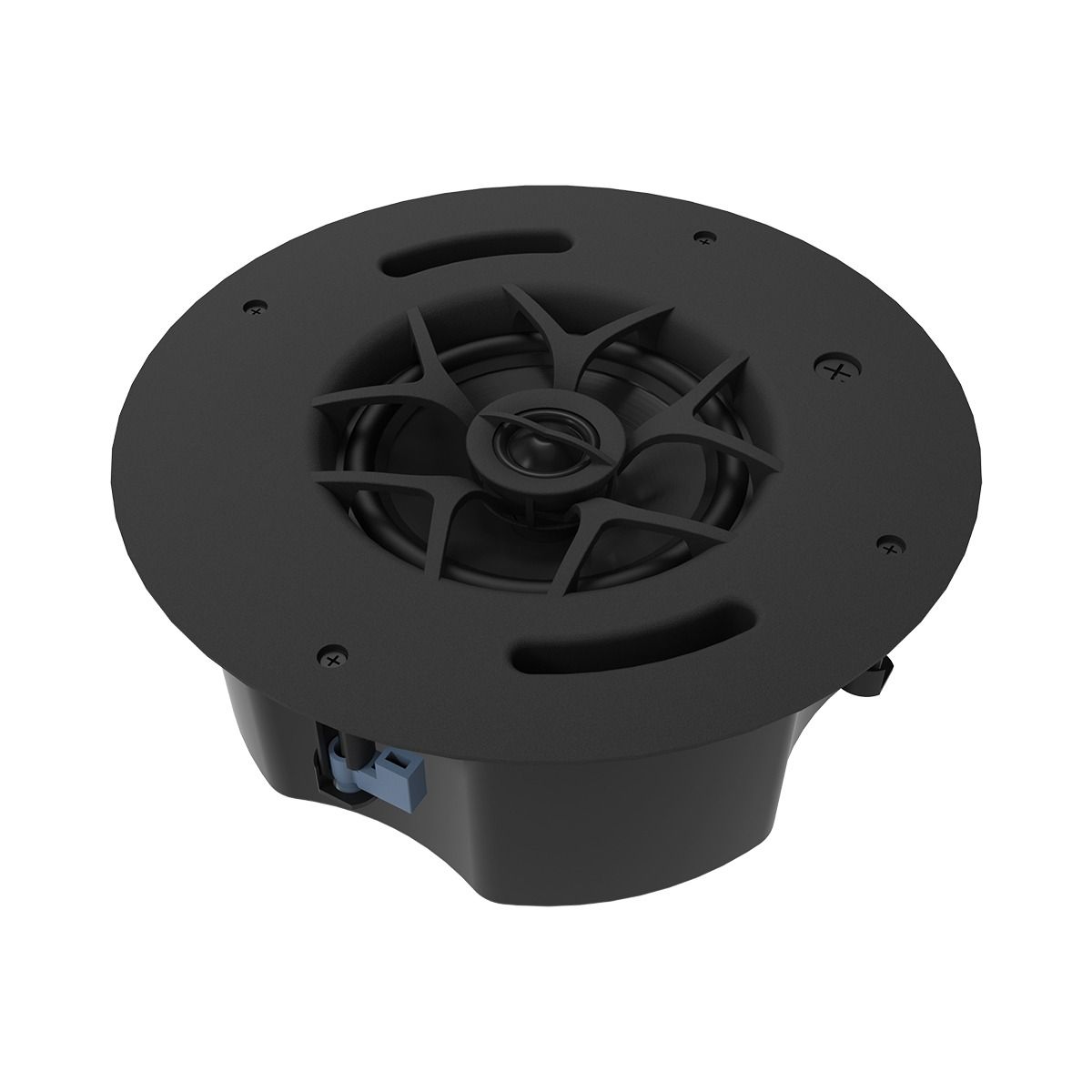

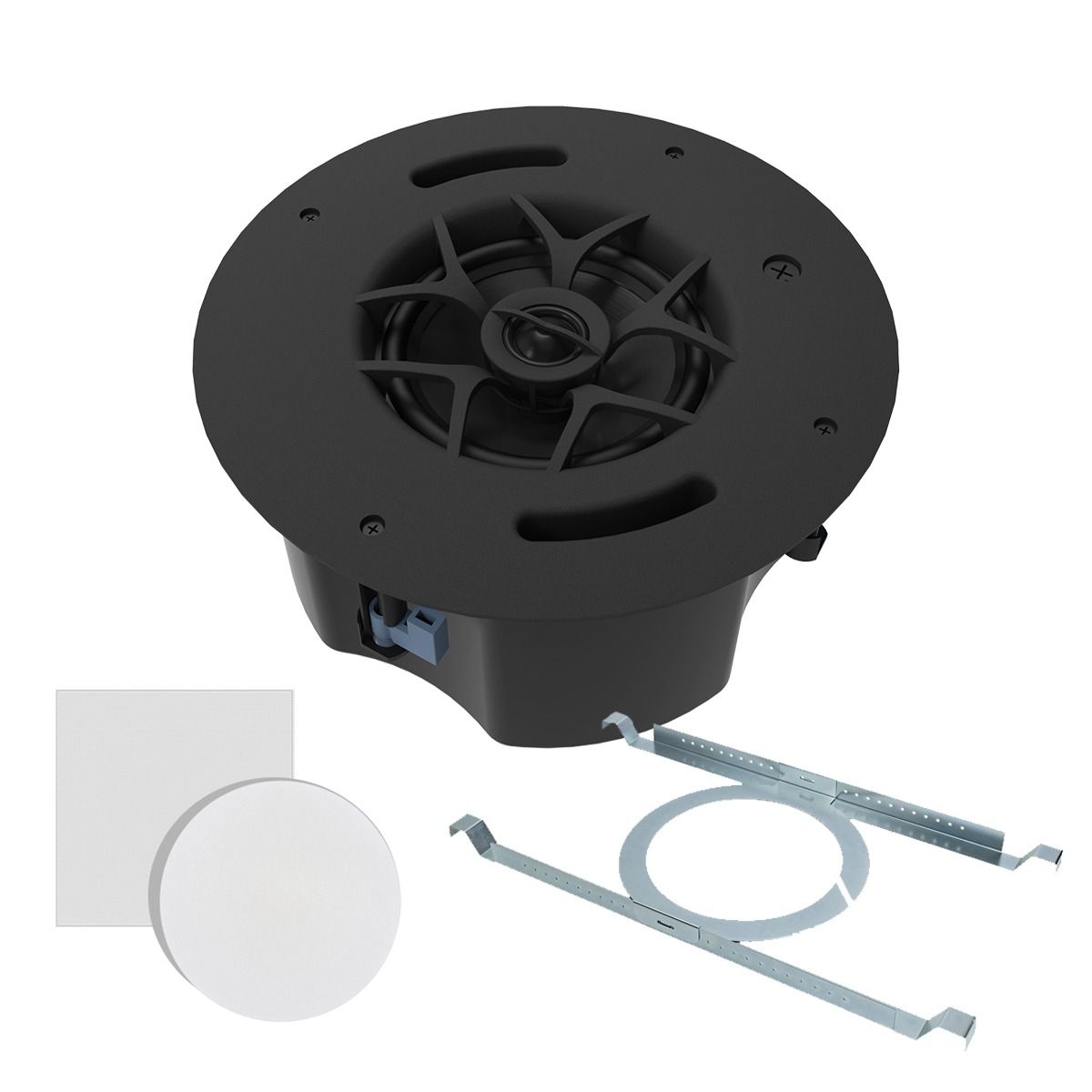

In-Ceiling 6.5" 70v/100v Slim Speaker KIT with IMPP Driver, 80w, 90 Degree Conical Coverage, with both a Square and Round White Grilles and the TB80 Tile Bridge for commercial drop ceiling installations.

Our In-Ceiling Collection goes above and beyond the competition with integrator friendly features and overall musicality. Each model is a 2-way loudspeaker with a pivoting Silk DPSD™ tweeter, utilizing Origin’s patented Multi-Motion Pivot™ for superior aiming and dispersion.

Slim depth format for those tight locations, 4 23/64" (110m) (utitizes an the diameter sizing of an 8" to compensate).

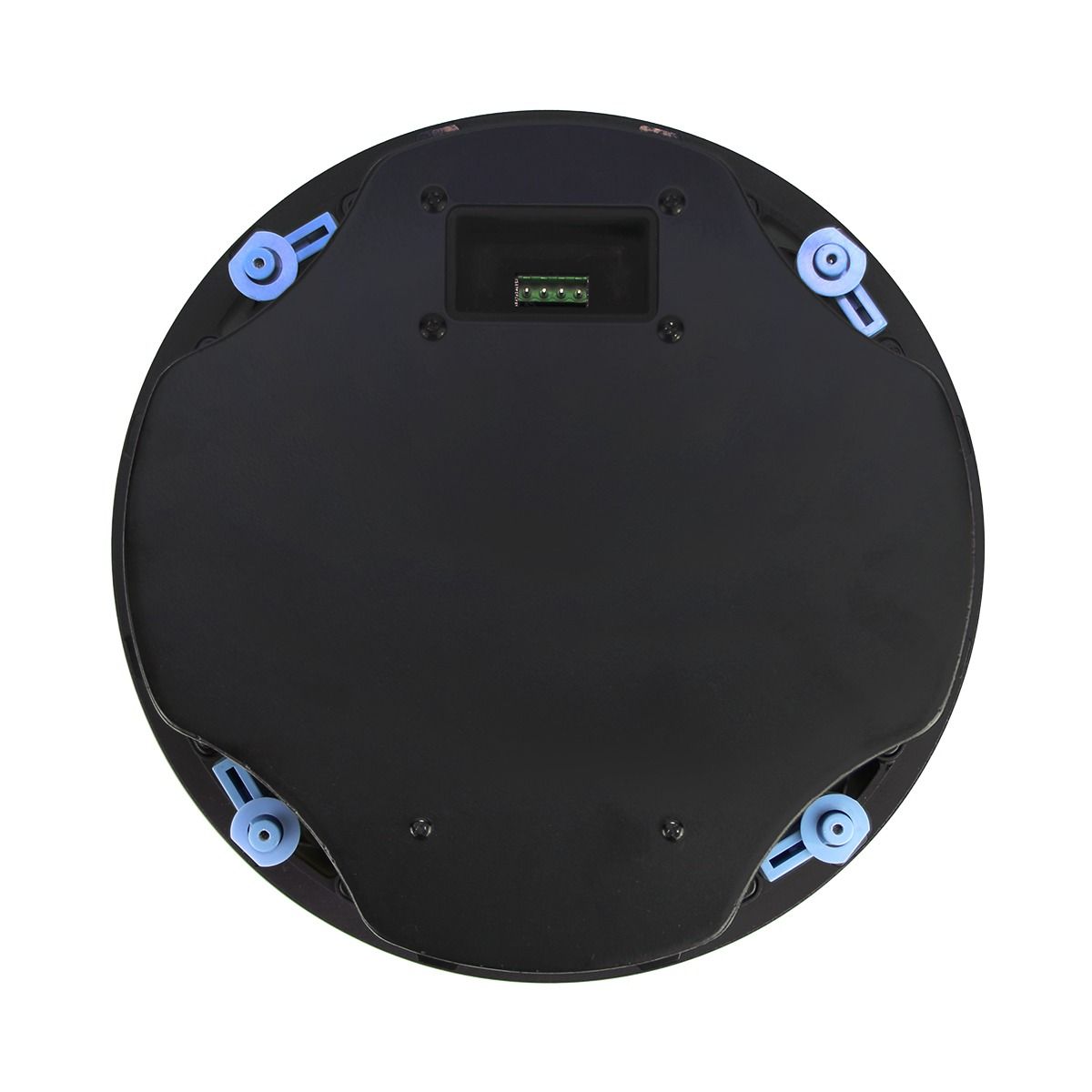

With an integrated conduit lock, heavy-duty dog-ears, and secure euro-block connections, this series is ready for installation into even the most challenging commercial environments. Low-profile paintable grilles are included to reduce ceiling visibility.

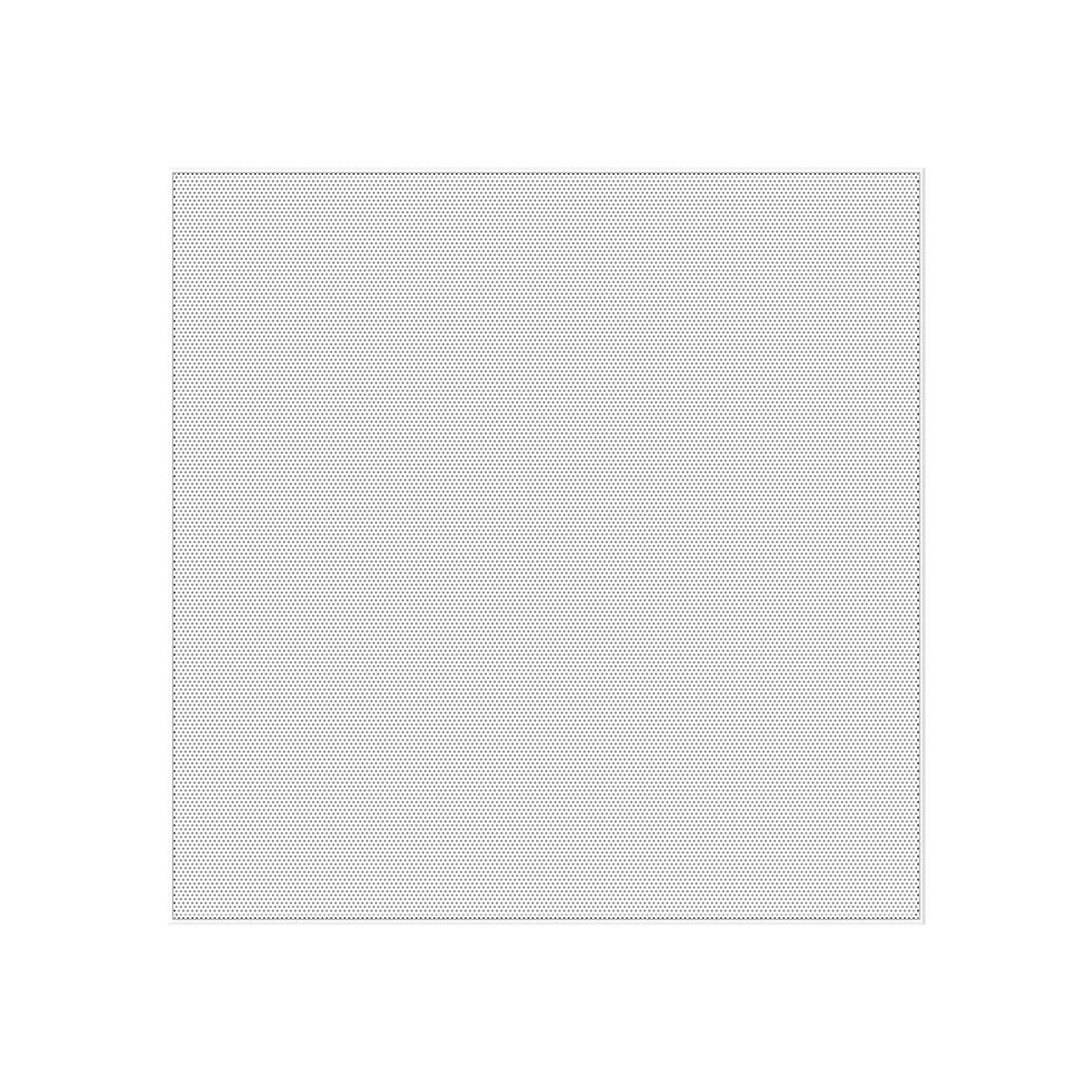

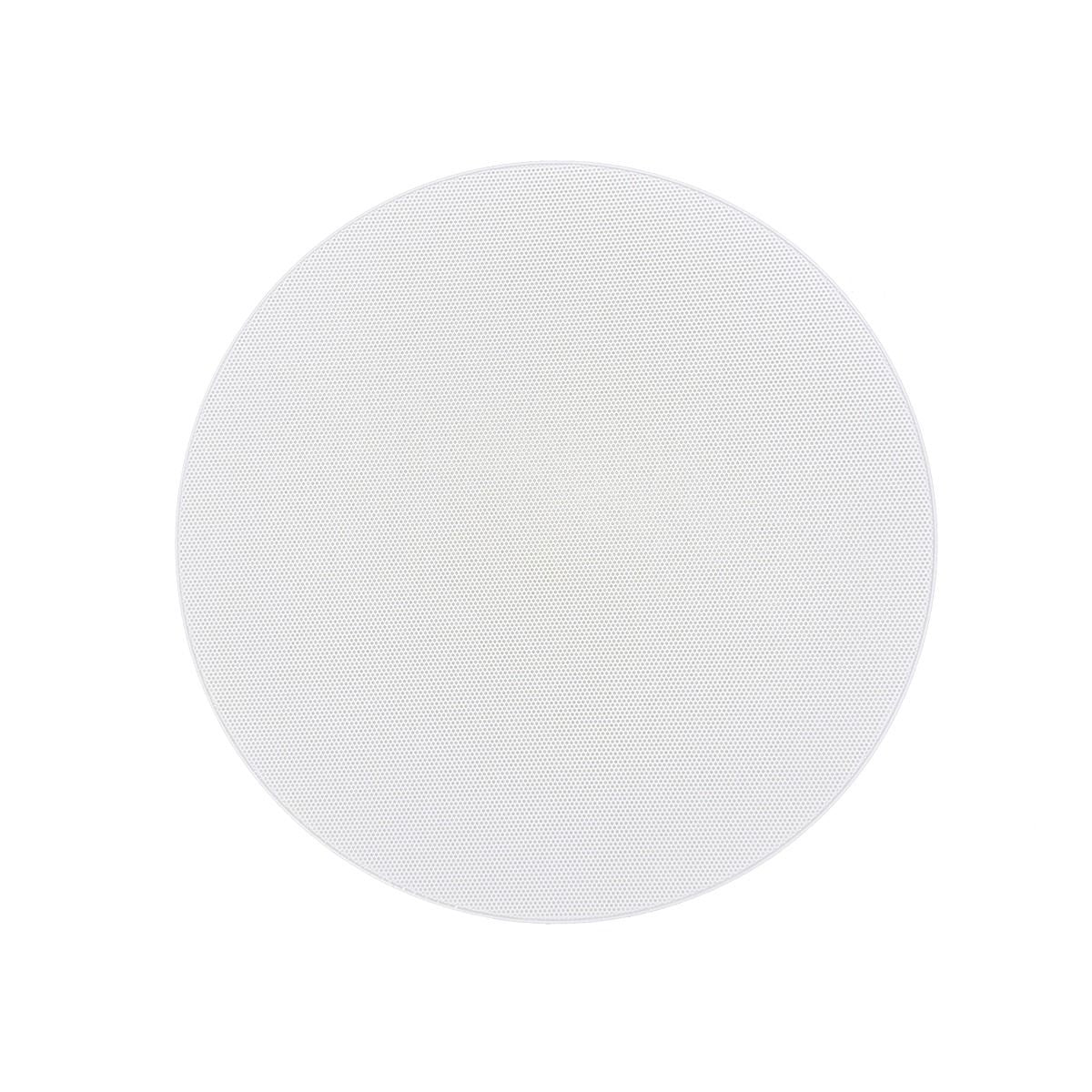

Grilles are also available as black or white, square and round, and with or without a tile bridge option.

• Woofer: 6 1/2” IMPP
• Tweeter: 1” Silk DSPD™ MMP™
• Power Handling (Program Power): 80 Watt
• Power Handling (Cont. Pink Noise): 40 Watt
• Frequency Response:
• (- 10dB): 54Hz-20kHz
• (- 3dB): 64Hz-20kHz
• Nominal Coverage Angle: 90 Degree Conical Coverage
• Sensitivity @1m: 87dB
• Rated Maximum SPL: 106dB
• Impedance: 6 Ohm Nominal
• Transformer Taps:
• 70V - 60W, 30W, 15W, 7.5W
• 100V - 60W, 30W, 15W

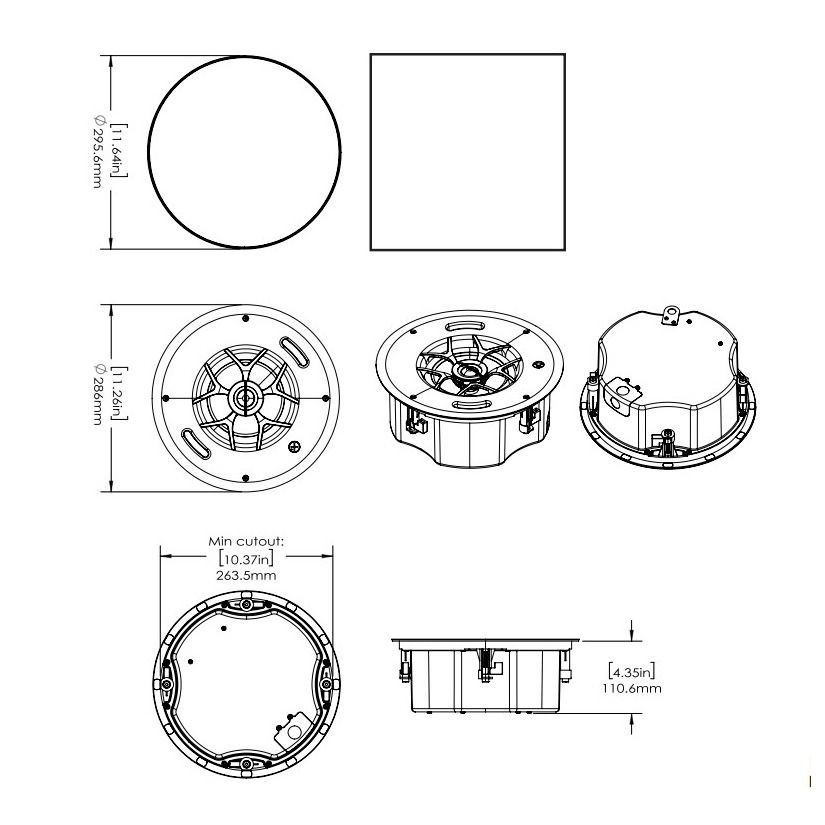

• Diameter: 11 1/4" (286mm)
• Cutout Diameter: 10 1/2" (266mm)
• Grille Diameter: 11 5/8" (296mm)
• Mounting Depth: 4 23/64” (110mm)
• Feature: Metal Can, Zinc Plated
