8×8 Audio Matrix Processor with DSP and ARC

Description

8×8 Audio Matrix Processor with DSP and ARC

An audio matrix processor with Digital Signal Processing (DSP) and Audio Return Channel (ARC) that supports multiple mic analog applications.

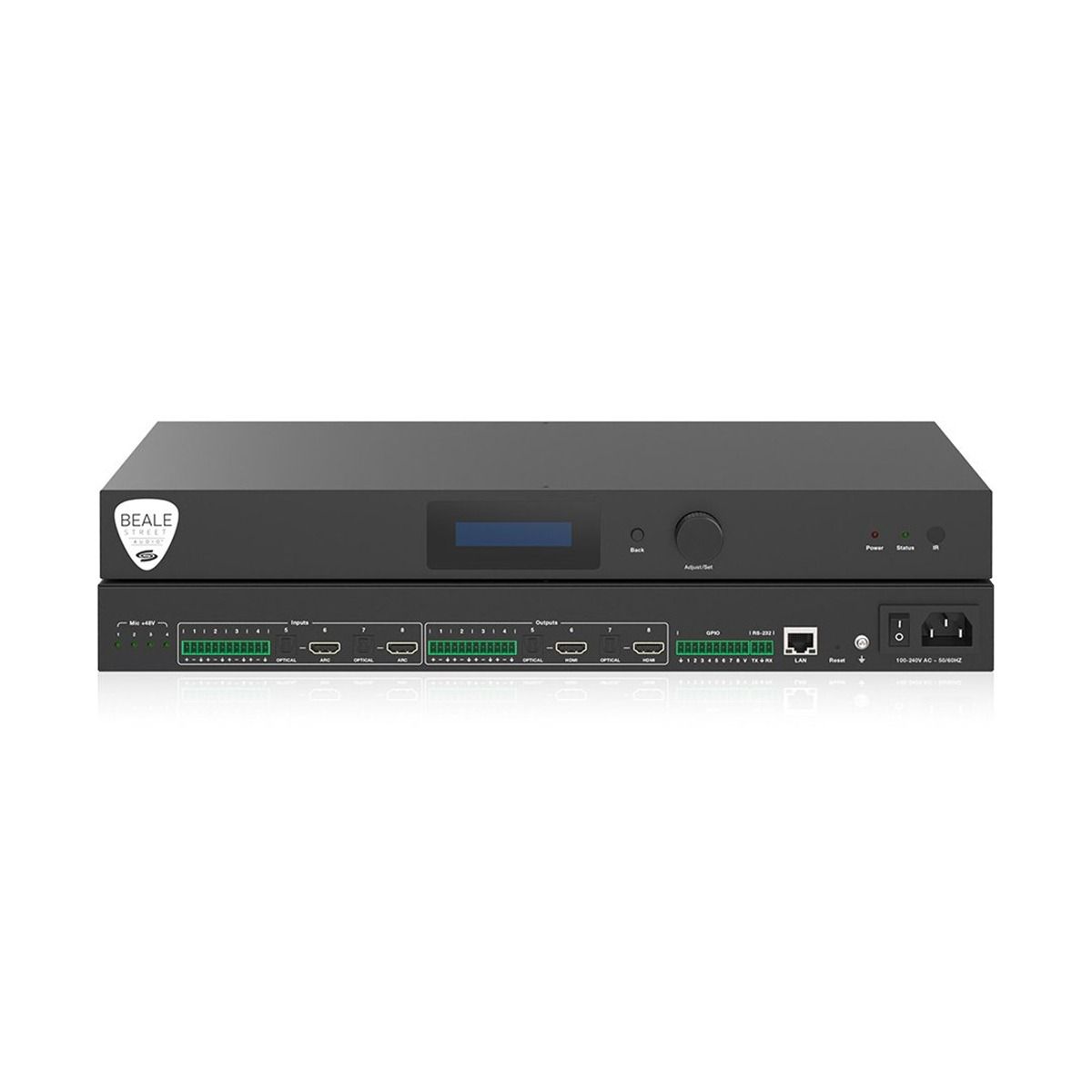

The BAMX88-ARC 8×8 audio matrix processor is a high-performance DSP-enabled solution designed for dynamic audio environments, featuring 4 microphone/line inputs and outputs for flexible signal routing. It also includes 2 digital optical audio and HDMI ARC (Audio Return Channel) inputs and outputs, enabling seamless integration with modern AV systems and displays. Built-in adaptive echo cancellation and adaptive noise suppression ensure crystal-clear voice reproduction, making it ideal for conferencing, education, and commercial installations. Each channel is equipped with an 8-band graphic equalizer, allowing detailed sound shaping for optimal audio performance. With its robust feature set and versatile connectivity, this processor delivers exceptional audio control and integration in any professional setting.

• 4 mic/line balanced or unbalance audio inputs and outputs
• 2 Audio Return Channel (ARC) digital audio inputs and outputs
• 2 optical digital audio inputs and outputs
• 8×8 audio matrix with Digital Signal Processing (DSP)
• 8-band graphic EQ
• Mic Phantom Power options with 48V capabilities
• Volume, bass, treble, and mute controls
• Adaptive Echo Cancellation (AEC)
• Adaptive Noise Suppression (ANS)
• HPF and LPF
• Limit and auto mixer EQ functionality
• IR, RS232, and IP control with browser-based UI
• General Purpose Inputs-Outputs (GPIO)
• Crestron, Control4, and RTI drivers
