8 x 60 watts (20Hz - 20kHz .05 THD) Hi-Res Audio Support Bri

Description

• 8 channels, 4 Zone, 60W per channel
• Dolby Digital with stereo downmixing
• Create 4 separate HEOS zones
• 2 optical / 2 coaxial / 4 analog inputs
• Four 12V trigger outputs
• Hi-Res Audio Support
• Works with popular music services
• Works with Amazon Alexa and Google Assistant

Whole home multi-zone amplifier in a single chassis.
Designed by custom integration specialists for custom integration professionals, HEOS Drive is a unique 4 zone whole home audio distribution system with a Class D, 8 channel amplifier, all in a 2RU single tall chassis that features both Dolby Digital and Dolby Digital+ decoding with stereo downmixing.

Rated at 60 watts per channel into each of the 8 channels (20Hz~20kHz, .05% THD, 8 ohms, All Channels Driven), 1 or 2 stereo amp pairs can be bridged for single channel high power output (130 watts), and the HEOS Drive features low impedance drive capability (4 ohms).

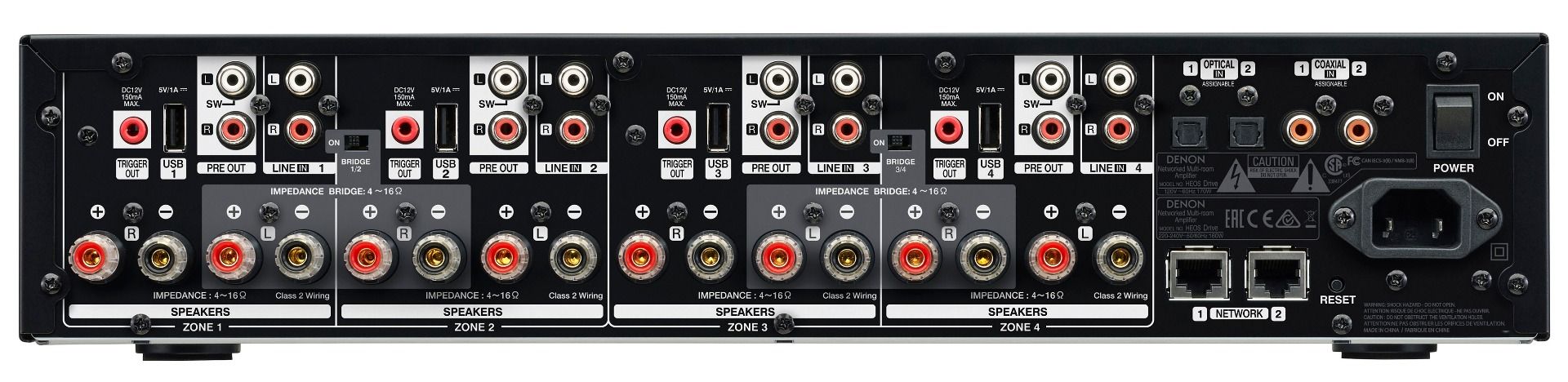

Each zone in this multi-room amplifier features a stereo pair of pre-amp outputs, and each zone can be configured for stereo or mixed mono output. The matrix switching system features 2 optical digital inputs, 2 coaxial digital inputs and 4 analog stereo inputs, any of which can be assigned to any zone, and every zone features a dedicated USB port for connection to an external USB drive.

Equipped to handle virtually any combination of speaker configurations, HEOS Drive features built-in DSP high pass/low pass filters - set any output to full range, subwoofer or satellite speaker modes, with adjustable crossover points.

The speaker outputs feature 4-way binding posts that are compatible with banana plug terminations, and there are 4 12V trigger outputs. The chassis features quiet fan cooling for long term stability and operational reliability.
