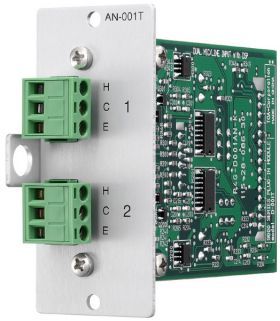

The AN-001T (with B00 Firmware) is a plug-in module of 2-channel ambient noise detector designed for use with the 9000 series amplifiers. It automatically adjusts the output volume in response to the change of ambient noise level. The AN-001T can handle input signals from microphone level (-60 dB) to line level (-10 dB) by controlling the gain in 9 steps. Phantom power (+24 V) can be supplied for condenser microphone use.
| Power Source | +24 V DC, -24 V DC, +6 V DC |
|---|---|
| Current Consumption | 20 mA (at +24 V DC), 20 mA (at -24 V DC), 60 mA (at +6 V DC) |
| Input | Sensor input (Ambient noise sensor microphone input): 2 channels, 3 kΩ (when the phantom power is ON)/10 kΩ (when the phantom power is OFF), electronically-balanced, removable terminal block (3 pins) |
| Input Sensitivity | -60, -54, -48, -42, -36, -30, -24, -18, -10 dB* (selectable) |
| Phantom Power | +24 V DC |
| A/D Converter | 24 bit ADC |
| Sampling Frequency | 48 kHz |
| Ambient Noise Control Function | Sensor input reference level adjustment function Maximum output signal level control: -15 to 0 dB Minimum output signal level control: -18 to -3 dB Sample time setting: 10 s, 15 s, 20 s, 30 s, 1 min, 2 min, 3 min, 5 min Gain ratio setting (Ambient noise: Output signal level): |
| Operating Temperature | -10℃ to +40℃ |
| Finish | Panel: Aluminum, hair-line |
| Dimensions | 35 (W) × 78 (H) × 91.5 (D) mm |
| Weight | 82 g |
| Accessory | Removable terminal plug (3 pins) …2, Module mounting screw …2 |
| Option | Ceiling mount microphone: AN-9001 |
