| NDAA Compliant | Yes |
|---|
| Operating Temperature (T-T) | 32-120°F |
|---|---|
| Storage Temperature (T-T) | -4-158°F |
| ADI Part Number | AX-EFLOW1A8V |
|---|---|
| Brand Name | Altronix |
| Manufacturer | Altronix Corporation |
| Manufacturer Part Number | EFLOW102NA8V |
| Product Line | eFlow |
| Product Model | EFLOW102NA8V |

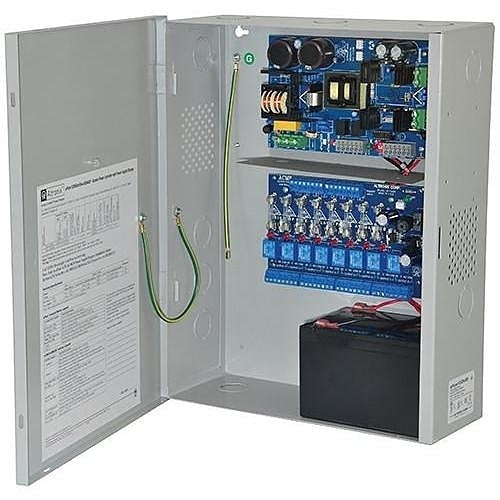

| Product Name | Access Power Controller With Power Supply/Charger, 8 Fused Relay Outputs, 12V DC at 10A, Aux Output, FAI, 220V AC, BC400 Enclosure |
| Product Type | Access Power Controller |
| Sector | Access Control |
| Environmental Certification | RoHS |
|---|---|
| Features | 12V DC outputs at 10A supply current, ACM8 board main fuse is rated at 10A, Alarm output relay indicates that FACP input is triggered (form "C" contact rated at 1A 28V DC not evaluated by UL), Built-in charger for sealed lead acid or gel type batteries, Current is determined by the power supply connected, not to exceed a maximum of 10A total, Eight Access Control System trigger inputs, Eight independently trigger controlled outputs, Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the eight (8) outputs, One common power input for ACM8 and lock power (factory installed), Two isolated power inputs One to power the ACM8 and one for lock accessory power,external power supply is required |
| Indoor/Outdoor | Indoor |
| Depth | 4.50" |
|---|---|
| Height | 15.50" |
| Weight | 8.65lb |
| Width | 12.00" |
| Input Voltage | 220V AC |
|---|
| Output Voltage | 12V DC |
|---|
| Limited Warranty | Lifetime |
|---|
