| NDAA Compliant | Yes |
|---|
| Operating Temperature (T-T) | 32-120°F |
|---|---|
| Storage Temperature (T-T) | -4-158°F |
| ADI Part Number | AX-MAXIAL3V |
|---|---|
| Brand Name | Altronix |
| Manufacturer | Altronix Corporation |
| Manufacturer Part Number | MAXIMAL3V |
| Product Line | Maximal |
| Product Model | MAXIMAL3V |

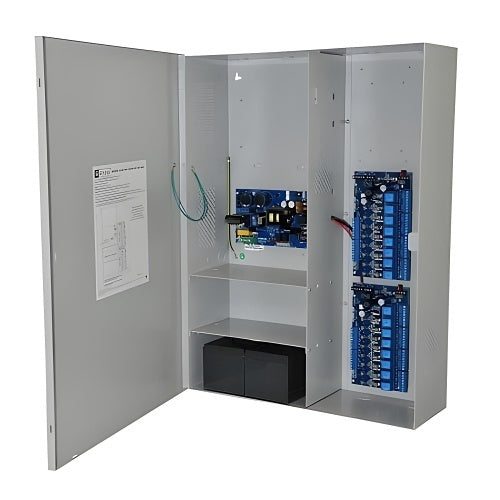

| Product Name | Access Power Controller With Power Supply/Charger, 16 Fused Relay Outputs, 12/24VDC at 6A, 220VAC, BC800 Enclosure |
| Product Series | MAXIMAL |
| Product Type | Access Power Controller |
| Sector | Access Control |
| Environmental Certification | RoHS |
|---|---|
| Features | AC fail supervision (form "C" contacts), Alarm output relay indicates that FACP input is triggered (form "C" contact rated @ 1A 28VDC), Capacity 12AH/12VDC (4 within enclosure); 40AH/65AH (requires separate enclosure), Failover: Upon AC loss, instantaneous., Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the sixteen (16) outputs, Low battery and battery presence supervision (form "C" contact), Normally open (NO) or normally closed (NC) dry contact input, Notification trigger is selectable for 30 seconds (factory set) or 6 hours, Polarity reversal input from FACP signaling circuit, Type Sealed lead acid or gel type |
| Indoor/Outdoor | Indoor |
| Depth | 6.25" |
|---|---|
| Height | 26.00" |
| Weight | 42.30lb |
| Width | 19.00" |
| Input Voltage | 220V AC |
|---|
| Number of Doors | 16 |
|---|---|
| Output Voltage | 12V DC, 24V DC |
| Limited Warranty | Lifetime |
|---|
