Araknis Networks® 920 Series L3 Managed 10G PoE++ Switch | 24 Front Ports

Araknis Networks® 920 Series L3 Managed 10G PoE++ Switch

Step into the future of networking with the flagship Araknis 920 series switch. Equipped with 10G PoE++ Type 4 ports to provide up to 90W of power per port, this switch can take on high-performance networking installs and power-intensive applications. With Layer 3 multicast routing, the 920 delivers an efficient network, especially for demanding AV over IP applications. The optional 100G expansion module extends performance for more expansive network applications, while an optional second power supply provides power redundancy and an increased PoE budget. Plus, the 920 is supported by Snap One’s OvrC remote management platform. OvrC saves you time on every deployment and enables remote management for improved service, post-install.

Fully Managed - Layer 3

This switch supports Layer 3 and Layer 2 functionality for more complex network deployments. Layer 3 makes the network more efficient by leveraging static, inter-VLAN, and multicast routing to route traffic locally rather than fully relying on the router.

10G Throughput

With 10G available on every port, this switch is perfectly suited for high-speed applications like AV over IP, Binary MoIP, Wi-Fi 6, and >1G ISP services.

Full PoE++ Up to 90W

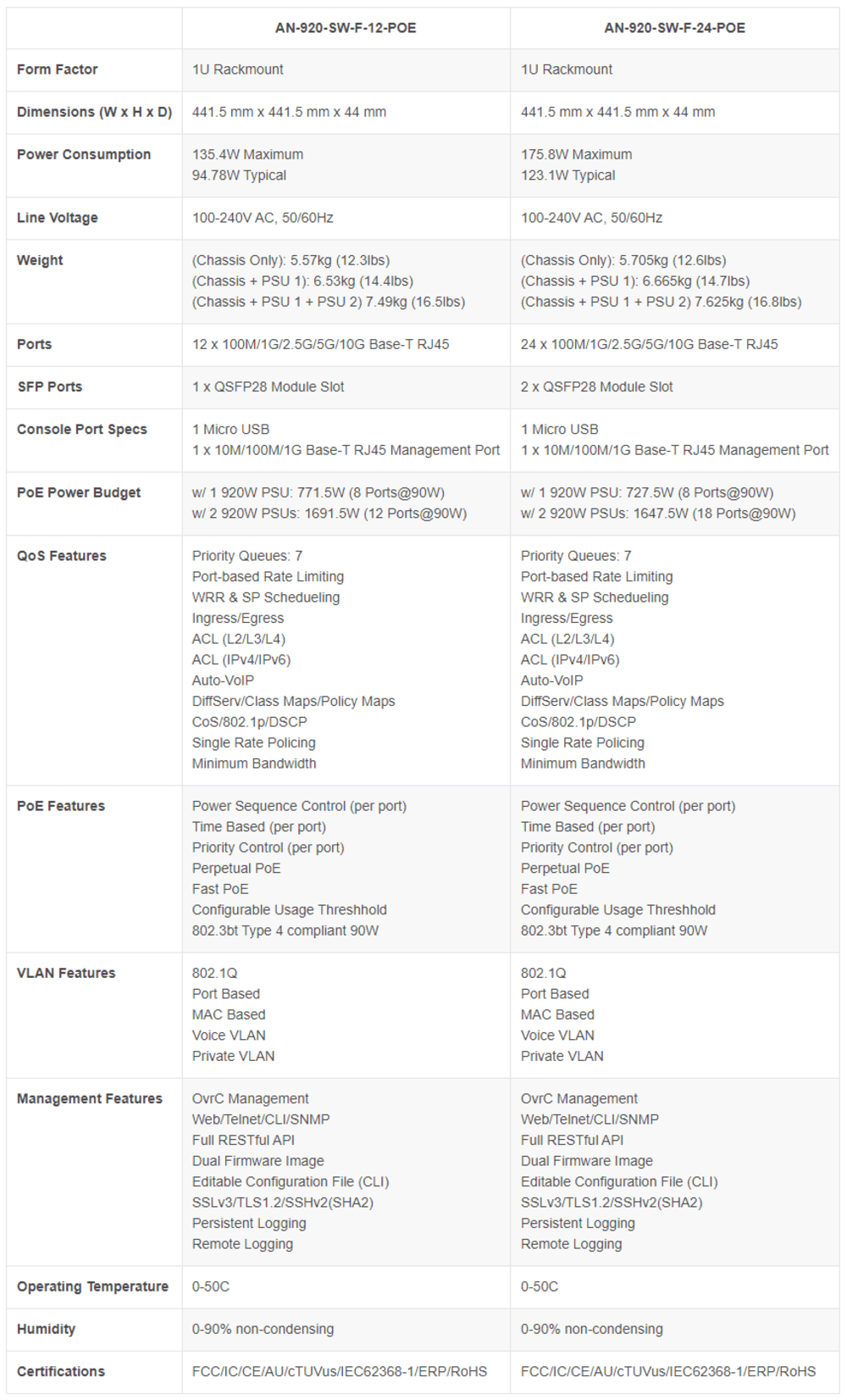

Fully PoE++ Type 4 capable ports support up to 90W each. Simultaneous PoE budget varies by model and configuration (ex. if using an optional second power supply). Please refer to the specifications for details.

Optional Uplink Module

Includes an available slot for an uplink expansion module (sold separately) to add 100G QSFP28 ports, allowing for a more expansive network.

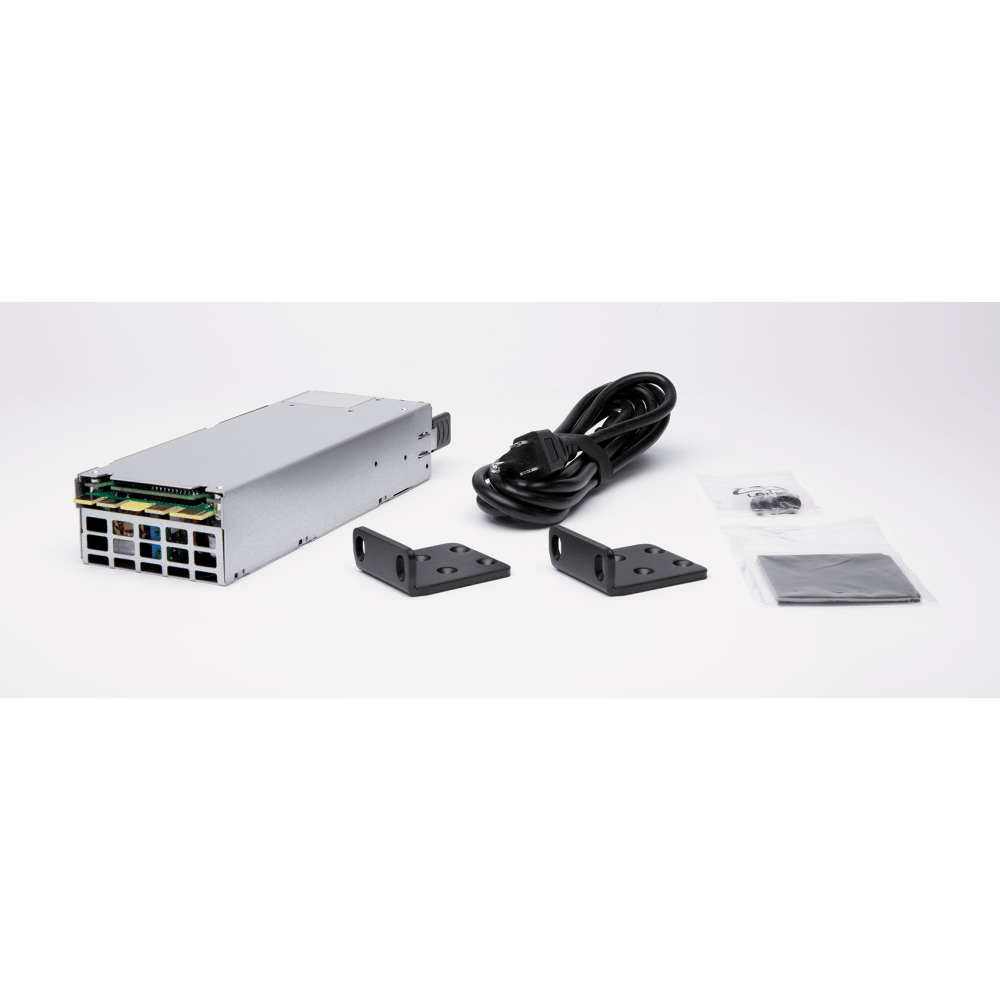

Modular Power Supply

With 2 power supply slots, adding a second PSU (sold separately) increases the available PoE budget and provides redundancy.

Better With OvrC

OvrC is a free remote management platform created by Snap One that allows professionals to remotely manage, configure, and troubleshoot devices on the network. Araknis works with OvrC to extend the switch configuration and management to the cloud. Pairing Araknis with OvrC enables faster deployments and remote troubleshooting without rolling a truck.

Control4 Driver for More Customization

Experience greater control and customization with the ability to reboot or power on/off the PoE ports or schedule power cycling for PoE-connected devices. The Control4 “Custom Experience” buttons allow your clients to turn off Wi-Fi, power down IP cameras, and more.

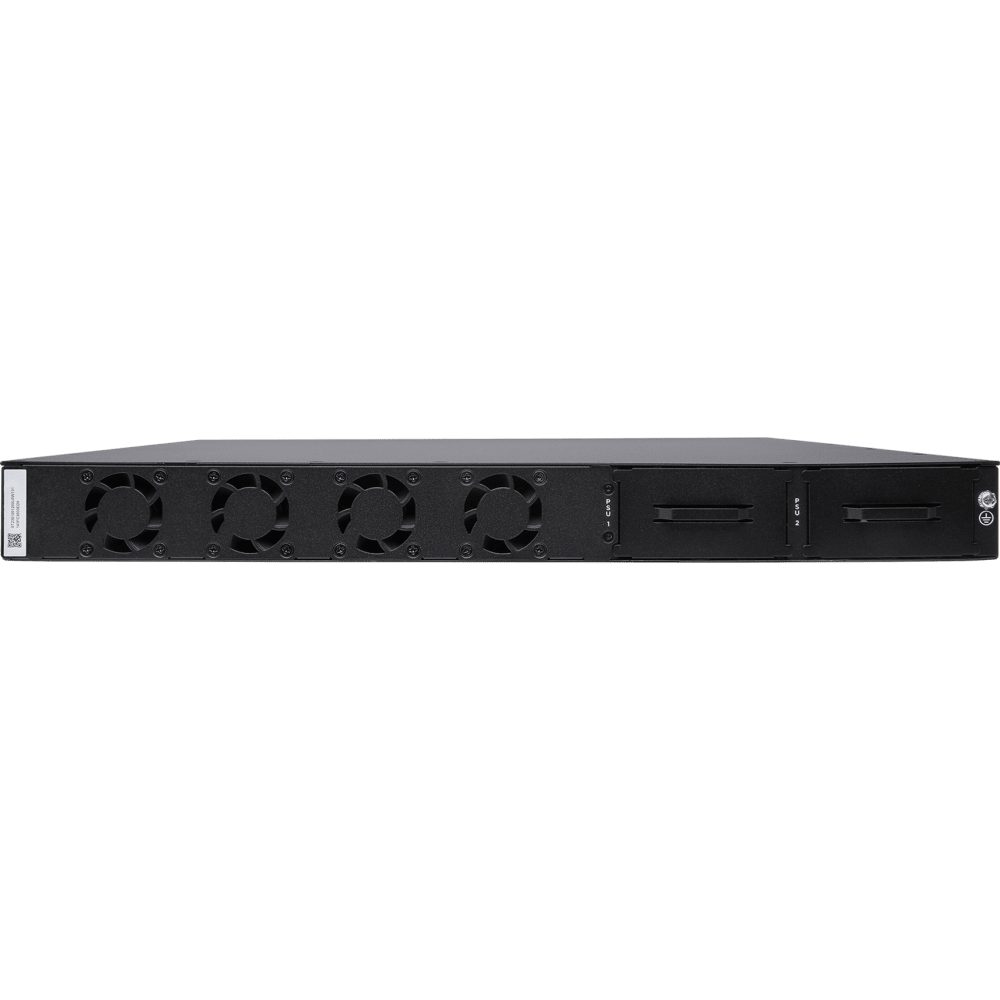

Multi-Speed Fans

The honeycomb venting solution and temperature sensor ensure efficient temperature controls. The sensor drives the speed of the fans based on load and environment, reducing fan noise for quieter operation.

Rack Mountable

Rack ears and 1U design make mounting the switch convenient and simple.

5-Year Limited Warranty

We stand behind our products. Araknis^® Networks X20 Series Switches come with a 5-Year Limited Warranty covering parts and labor for repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty does not apply to products that have been abused, modified, or disassembled. Products to be repaired under this warranty must be returned to Snap One® or a designated service center with prior notification and an assigned return authorization number (RA).

Security Updates

Until at least March 1st, 2031. For more information on our End of Life Policy and support see here.
