Araknis AN-520 Outdoor Wireless Access Point
Give your clients reliable signal and fast internet speed anywhere outdoors. The Araknis AN-520 Outdoor Wireless Access Point brings the latest in Wi-Fi technology to the Araknis lineup! Wi-Fi 6 offers support for OFDMA, MU-MIMO, 1024 QAM, 160MHz Channel Bandwidth, and BSS Coloring to help support higher network capacity and enhanced reliability. The AN-520 features a 2x2 antenna design supporting peak data rates of up to 3,000Mbps at 160MHz Channel bandwidth and a 2.5Gbps LAN port-in to offer support for multi-gig jobs.
In addition, this access point supports a Gigabit PoE-out port when powered by 60W (802.3bt) to offer more flexibility in your installs.
Installation Note: This unit should be installed vertically, with the ports downward. Be sure to follow the installation instructions as highlighted in the manual and quick installation guide.
Power Note: This access point does NOT include a DC power input and must be powered by a PoE+ switch or injector. The PoE Out functionality is only available when the Access Point is powered by 802.3bt 60W Switch or PoE Injector.
A Fast & Efficient Network
Wi-Fi 6 is the new standard for increased speed, coverage, and capacity. Installing a Wi-Fi 6 access point in your networks can also extend the battery life of Wi-Fi 6-connected devices.
The AN-520's 2x2 antenna provides a more powerful connection for more devices, making sure your network won't sacrifice speed for size.
Easy Setup with OvrC Wi-Fi Management
The lightning-fast speeds of Wi-Fi 6 combined with the unmatched control provided by OvrC Wi-Fi management delivers enhanced performance and convenience to your networking portfolio. With cloud configuration for projects with multiple access points, you can easily configure, manage, monitor, and troubleshoot the network from the OvrC mobile or web app, eliminating hours of manual setup time.
For added efficiency, the new OvrC Connect app empowers your clients to resolve common issues on their own.
Powerful & Reliable Performance
We’re placing greater demand on the network than ever before. Wi-Fi 6 utilizes OFDMA (orthogonal frequency-division multiple access) to tackle high-density environments by allowing simultaneous communication between multiple devices. This technology helps optimize bandwidth, thereby reducing congestion and improving speeds.
Multi-Gig Port
The 2.5GbE Ethernet ensures the backhaul will not be a bottleneck for full use of available Wi-Fi capacity and helps futureproof your networks for applications such as VR/AR.
*Note: The 2.5GbE port is backward compatible with 100/1000Mbps Ethernet.

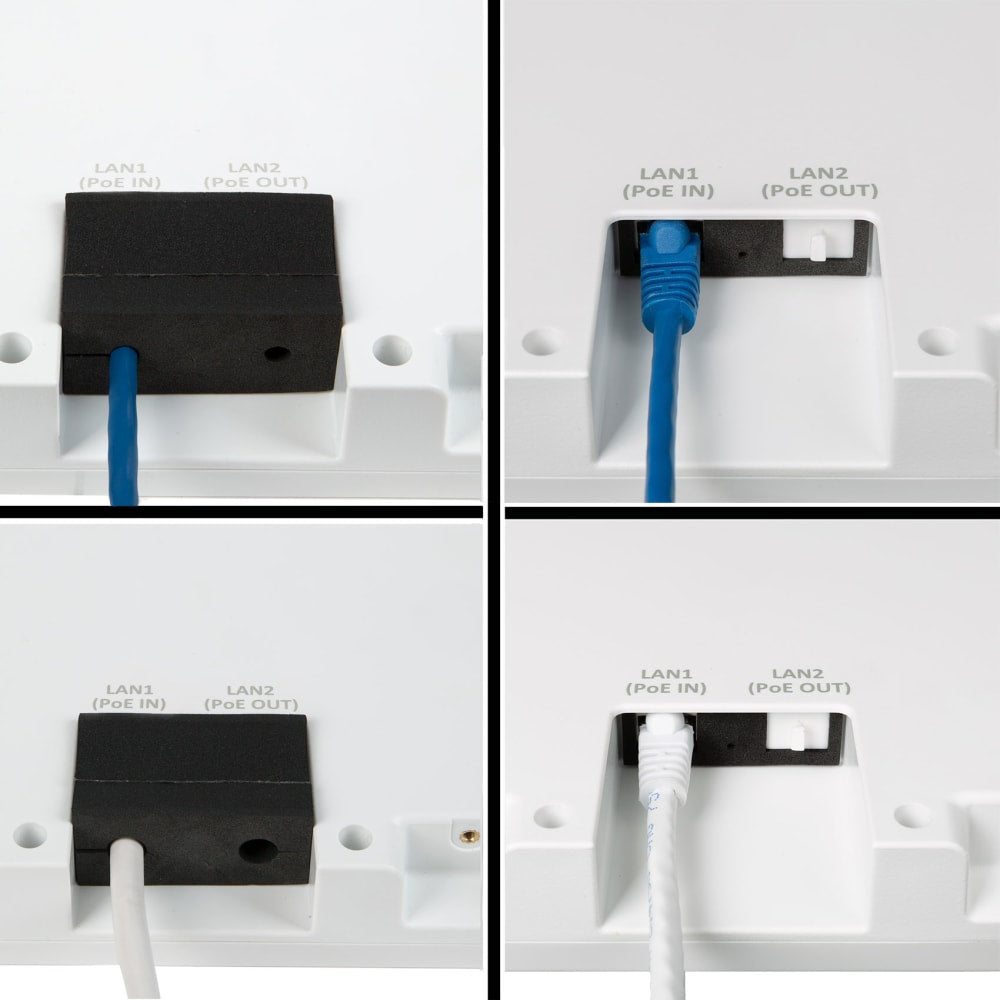

Built-in Switch with PoE Out Option
A built-in, two-port Switch on the WAP with an option to provide PoE-out (15W) when powered by 802.3bt (60W) for quick and easy connectivity to an adjacent device, such as IP Camera or IoT device.

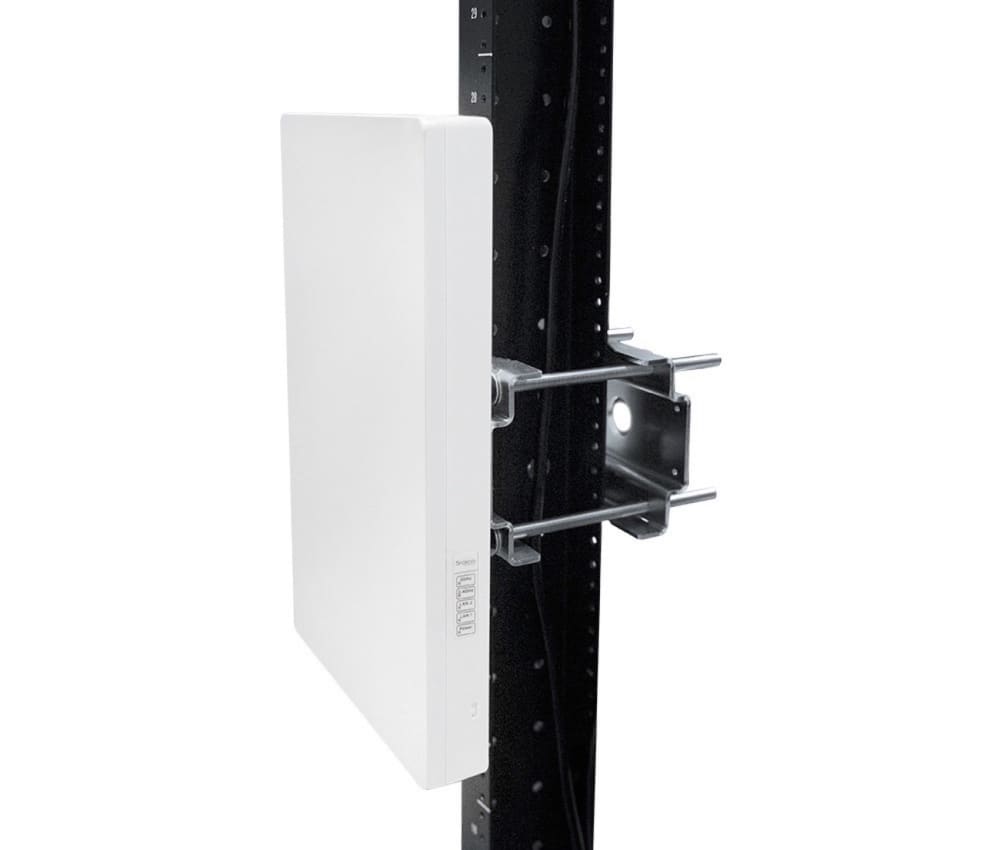

Multiple Mounting Options
A versatile pole and tilt mount means you can place this WAP anywhere you need a signal.
Pro-Friendly Features
Create multiple SSIDs and customize each to meet specific network requirements such as enabling/disabling Fast Roaming, Band Steering, or Wi-Fi 6 compatibility per SSID. This ensures the best Wi-Fi experience and provides tools necessary to support older IoT devices without impacting the main network.
This AP also offers DFS (Dynamic Frequency Selection) channel support to increase the number of Wi-Fi channels when available and WPA3 mode to offer the latest security.
Weather Resistant
This WAP is IP55 weather resistant, so you can confidently deploy Wi-Fi outdoors without worrying about the elements.
Security Updates
Until at least March 1st, 2031. For more information on our End of Life Policy and support see here.
