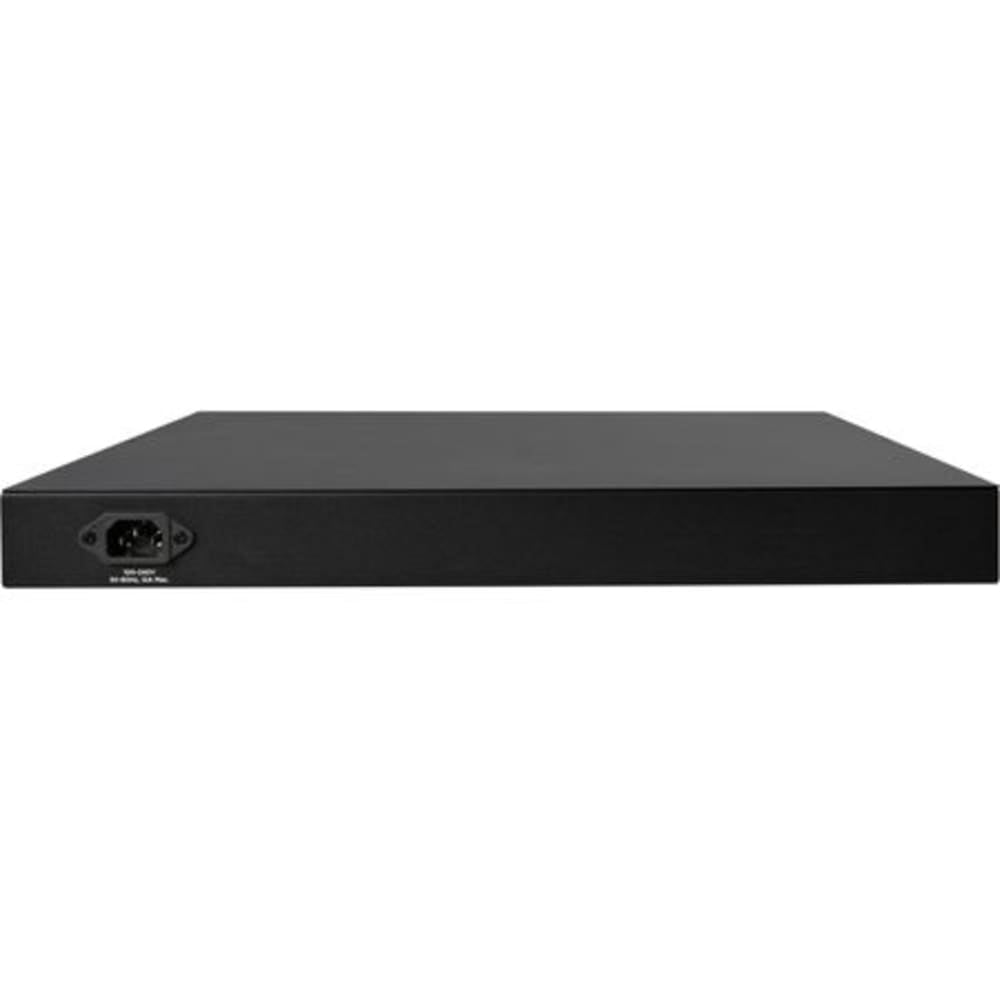

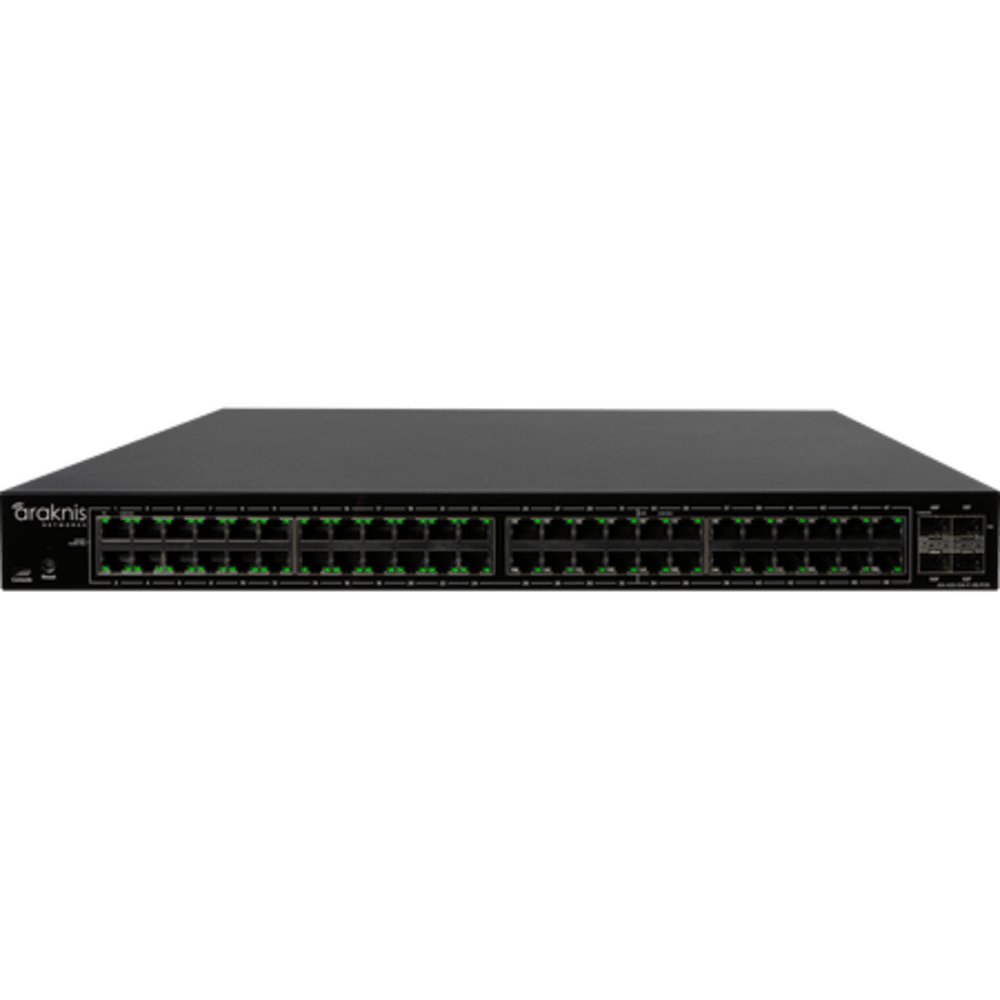

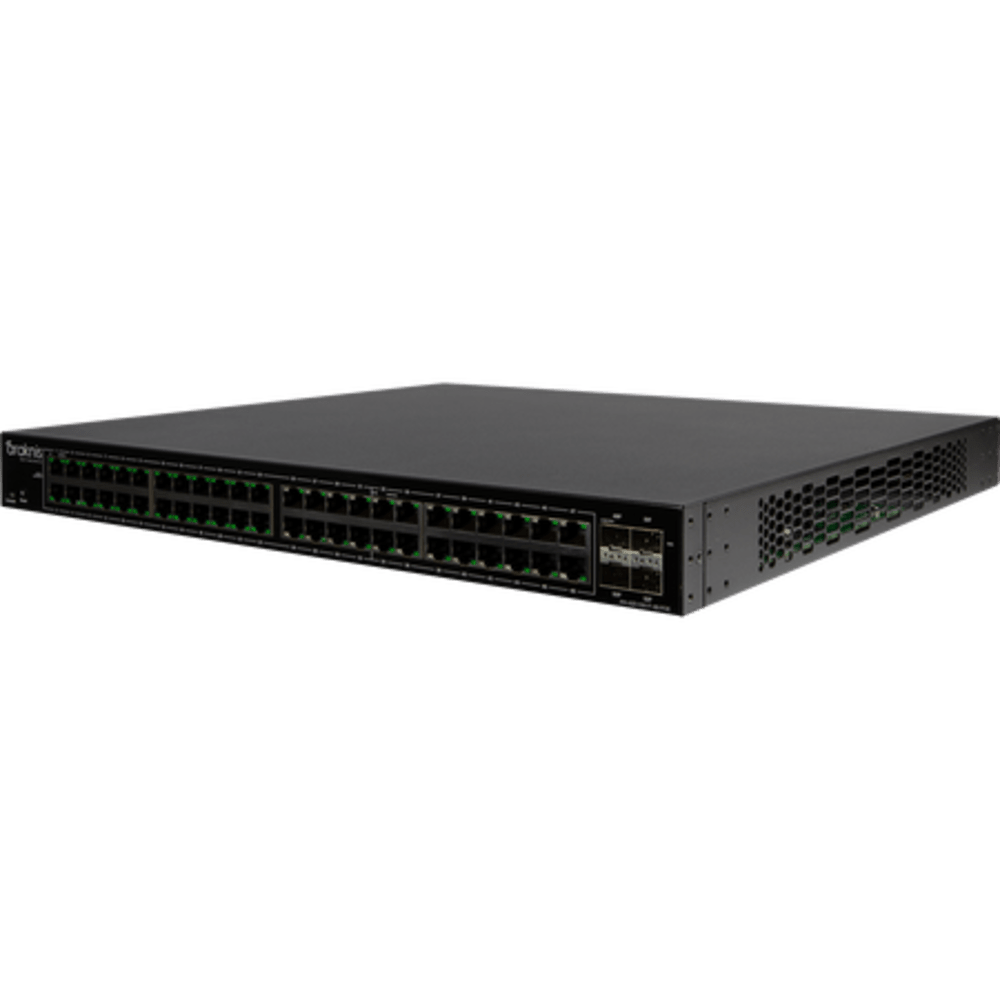

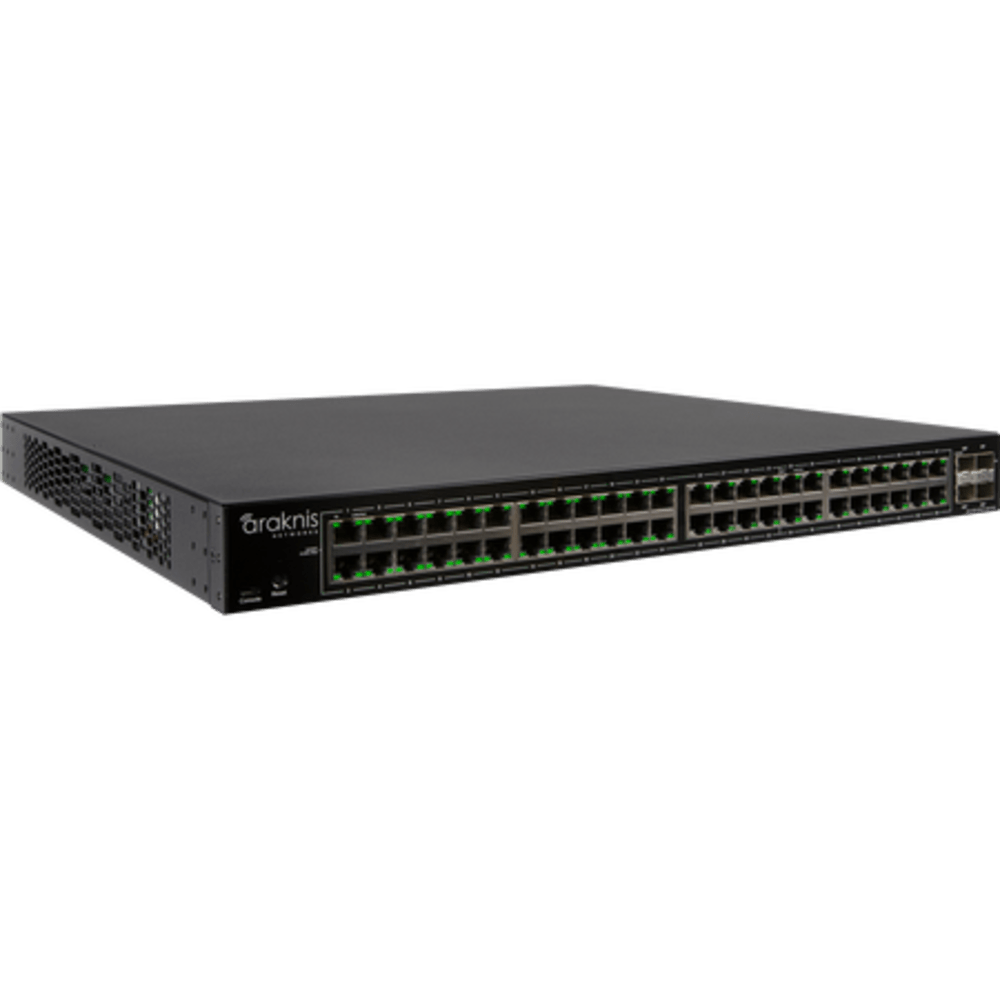

Araknis 420 Series PoE+ Network Switch
Araknis Networks 420 Series switches offer entry-level multi-gig functionality with flexible and reliable professional-grade hardware. Featuring advanced capabilities such as Layer 2 and Lite Layer 3 network management, networking professionals can better tailor the network experience to meet customer needs. Available with front- or rear-facing RJ-45 ports, each offers 2.5Gbps speeds, making these switches an excellent choice for any project, large or small.
The switches offer the same familiar user experience and interface you've come to expect from Araknis and include built-in OvrC support, providing easy and intuitive remote access to manage network settings and troubleshooting capabilities.
Additionally, these switches feature redesigned cooling fans that provide more efficient cooling while significantly reducing fan noise, even under load.
Configurations Available:
Fully Managed Layer 2 and Lite Layer 3 Management
This switch supports Lite Layer 3 and Layer 2 functionality for more complex network deployments. Layer 3 increases network efficiency by leveraging static, inter-VLAN routing to route traffic locally rather than relying entirely on the router.
2.5Gbps Multi-gig Throughput
With blazing fast 2.5Gbps available on every port, this switch is suited for high-speed applications like Audio/Video over IP, Binary MOIP, Wi-Fi 6, and ISP services up to 2.5Gbps.
Quad SFP+ Transceiver Ports for Fiber
Take your network to the next level with SFP+ 10G uplinking. These switches offer 4 SFP+ transceiver ports, allowing for connectivity via additional cables such as fiber for uplinking and data transfer over greater distances.
5-Year Limited Warranty
Our confidence in our hardware doesn’t falter. For this reason, Araknis Networks X20 Series Switches feature a 5-year limited warranty on parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products which have been abused, modified, or disassembled. Products to be repaired under this warranty must be returned to Snap One or a designated service center with prior notification and an assigned return authorization number (RA).
Right Power for the Job

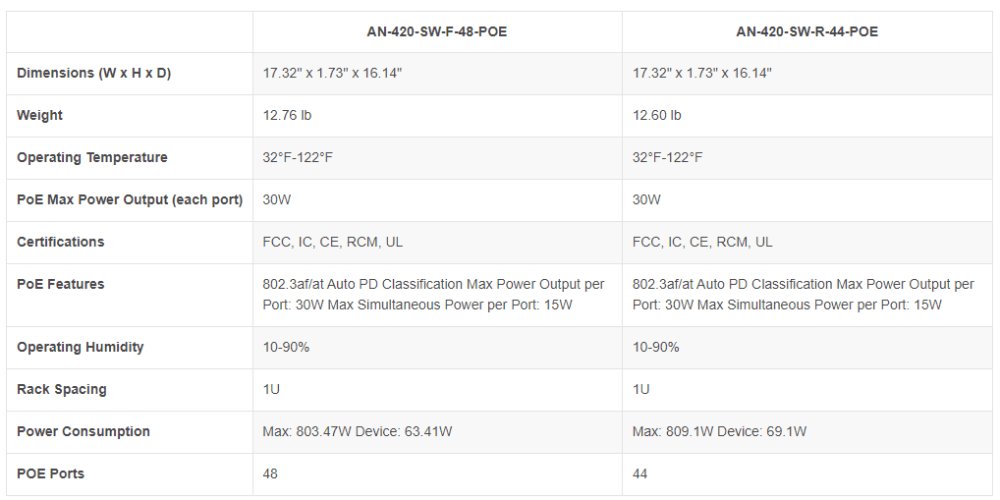

These switches feature PoE++ Type 4 capable ports. The simultaneous PoE budget varies by model and configuration (ex. if using an optional second power supply). Please refer to the specifications for details.
Better With OvrC
OvrC is a free remote management platform created by Snap One that allows professionals to remotely manage, configure, and troubleshoot devices on the network. Araknis works with OvrC to extend the switch configuration and management to the cloud. Pairing Araknis with OvrC enables faster deployments and remote troubleshooting without rolling a truck.
Redesigned Fans
Redesigned from the ground up, these new fans offer more efficient cooling while reducing fan noise, even under full data load.
Rack Mountable
Rack ears and 1U design make mounting the switch convenient and simple.
Security Updates
Until at least March 1st, 2031. For more information on our End of Life Policy and support see here.
