| Ingress Protection Rating | IP67 |
|---|
| Operating Temperature (T-T) | -40-65°C |
|---|
| ADI Part Number | Z4-01944001 |
|---|---|
| Brand Name | AXIS Communications |
| Manufacturer | AXIS Communications |
| Manufacturer Part Number | 01944-001 |
| Product Model | 01944-001 |

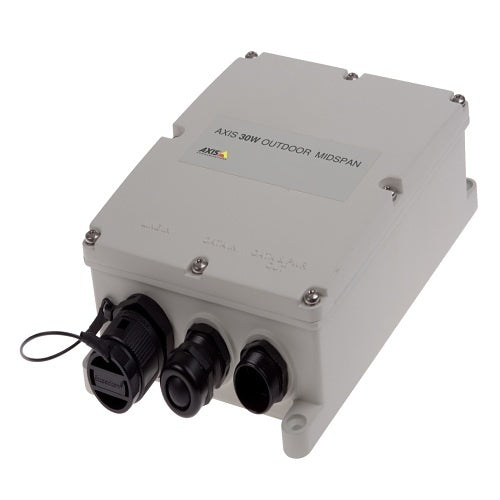

| Product Name | AXIS 30W OUTDOOR MIDSPAN |
| Product Type | Power over Ethernet |
| Input Ports | 10/100/1000Base-T |
|---|---|
| Output Ports | PoE |
| Security Features | GS-Mark, IEC/EN 60950-1, IEC/EN 60950-22, IEC/EN 62368-1, UL 60950-1, UL 60950-22 |
|---|
| Certifications | EAC, EN 55024, EN 55032 Class B, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B, ICES-3(B)/NMB-3(B), RCM AS/NZS CISPR 32 Class B, VCCI Class B |
|---|---|
| Compatibility | AXIS Door Controllers:, A1001, A1601AXIS Fixed Cameras:, A9161, A9188-VEAXIS Illuminators:, C1310-E, C1410AXIS Thermal Cameras:, D2110-VE Security RadarAXIS Speakers:, F34 Main Unit, F34 Surveillance system, F41 Main Unit, F44 Dual Audio InputAXIS PTZ Cameras:, I8016-LVEAXIS Modular Cameras:, Long Range PoE Extender KitAXIS Power Over Ethernet:, M1065-L, M1134, M1135, M1135-E, M1137, M1137-E, M1145-L, M2025-LE, M2026-LE Mk II, M3015, M3016, M3037-PVE, M3057-PLVE, M3057-PLVE Mk II, M3058-PLVE, M3064-V, M3065-V, M3066-V, M3067-P, M3068-P, M3075-V, M3077-PLVE, M3115-LVE, M3116-LVE, M3205-LVE, M3206-LVE, M4206-LV, M4206-V, M5054, M5055, M5065, M5525-E, M7104, P1214, P1214-E, P1224-E, P1244, P1245, P1254, P1264, P1265, P1275, P1280-E, P1290-E, P1375, P1375-E, P1377, P1377-LE, P1378, P1378-LE, P1435-LE, P1445-LE-3, P1447-LE, P1448-LE, P1455-LE, P3227-LV, P3227-LVE, P3228-LV, P3228-LVE, P3245-LV, P3245-LVE, P3245-V, P3245-VE, P3247-LV, P3247-LVE, P3248-LV, P3248-LVE, P3255-LVE, P3367-V, P3367-VE, P3374-LV, P3374-V, P3375-LV, P3375-LVE, P3375-V, P3375-VE, P3715-PLVE, P3717-PLE, P3719-PLE, P3807-PVE, P5414-E, P5415-E, P5654-E, P5655-E, P7304, P8815-2AXIS PoE Extenders:, P9106-V, PoE Splitter 5 VAXIS Security Radars:, Q1615 Mk III, Q1615-LE Mk III, Q1645, Q1645-LE, Q1647, Q1647-LEAXIS Fixed Dome Cameras:, Q1941-E, Q1941-E PT Mount, Q1942-E, Q1942-E PT Mount, Q2901-E, Q2901-E PT MountAXIS Video Encoders:, Q3515-LV, Q3515-LVE, Q3517-LV, Q3517-LVE, Q3517-SLVE, Q3518-LVE, Q3527-LVE, Q3615-VE, Q3617-VE, Q3708-PVE, Q3709-PVE, Q6074, Q6074-E, Q6075, Q6075-E, Q6128-E, Q6154-E, Q6155-EAXIS People Counters:, Q7411, Q7424-R Mk II, Q9216-SLVAXIS Housings:, T90C20 Fixed Dome IR-LED, T90D20 PoE IR-LED, T90D25 PoE W-LEDAXIS Intercoms:, T92E20 Outdoor Housing, T92G20 Outdoor Housing, T93F20 Outdoor HousingAXIS I/O Relay Modules: |
| Country of Origin | CN |
| Environmental Certification | IEC/EN 60529 IP67, NEMA 250 Type 4X |
| Package Contents | 30W Outdoor Midspan Installation Guide |
| ADI Part Number Replaces | Z4-5030231, Z4-5030234 |
|---|---|
| Model Number Replaces | 5030-231, 5030-234 |
| Depth | 5.5" |
|---|---|
| Height | 2.4" |
| Weight | 3.09lb |
| Width | 6.7" |
| Input Voltage | 120V AC, 230V AC |
|---|---|
| Maximum Frequency | 60 Hz |
| Maximum Output Power | 30W |
| Maximum Output Voltage | 54 V DC |
| Minimum Frequency | 50Hz |
| PoE Budget | 30W |
| Power over Ethernet (PoE) | Yes |
| Mount Type | Pole Mount, Wall Mount |
|---|---|
| Protection Type | Surge Protection |
| Limited Warranty | 3-Year |
|---|
