| Operating Temperature (T-T) | -20-40°C |
|---|
| ADI Part Number | Z4-02172004 |
|---|---|
| Brand Name | AXIS Communications |
| Manufacturer | AXIS Communications |
| Manufacturer Part Number | 02172-004 |
| Product Model | 02172-004 |

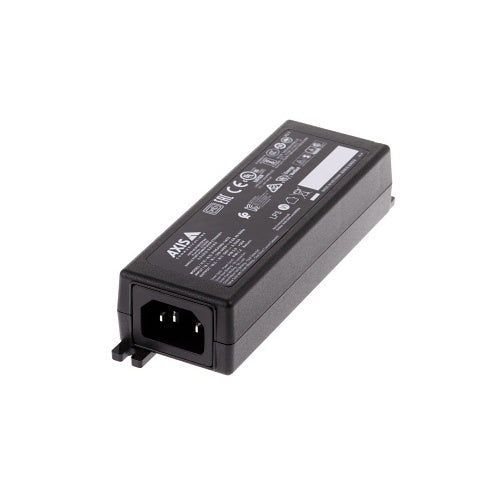

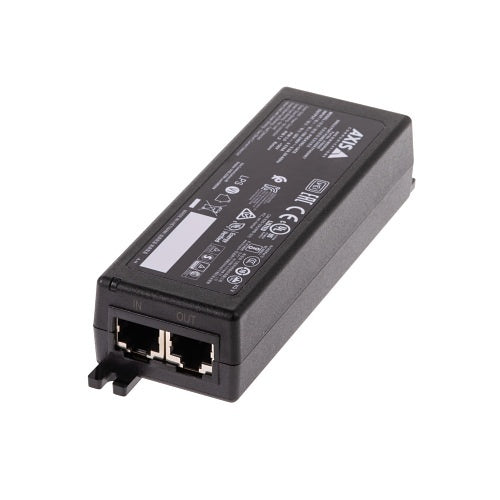

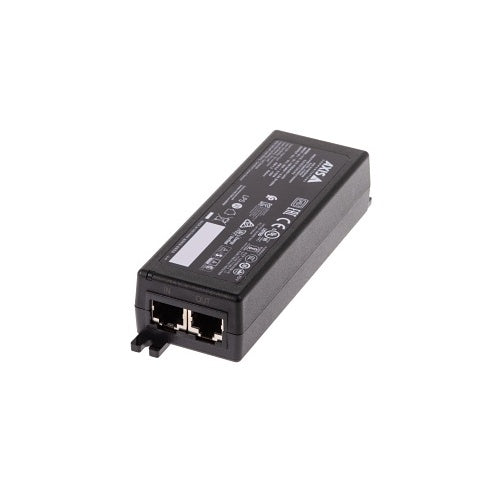

| Product Name | AXIS 30 W MIDSPAN US |
| Product Type | Power over Ethernet |
| Input Ports | 10/100/1000Base-T |
|---|---|
| Output Ports | PoE |
| Security Features | IS 13252, S-Mark, UL 60950-1, UL 62368-1 |
|---|
| Certifications | CISPR 24, EAC, EN 55024, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A |
|---|---|
| Compatibility | Axis Fixed Cameras:M1065-L, A9161, A9188, A9188-VEAxis Illuminators:T90C20 Fixed Dome IR-LED, Axis I/O Relay Modules:, Axis PTZ Cameras:, C1410Axis Thermal Cameras:P1280-E, D2110-VEAxis Speakers:C1310-E, F34 Surveillance system, F41 Main Unit, F44 Dual Audio InputAxis Mounts:T91G61 Wall Mount, M1134, M1135, M1135-E, M1137, M1137-E, M1145-L, M2025-LE, M2026-LE Mk II, M3016, M3037-PVE, M3057-PLVE, M3058-PLVE, M3064-V, M3065-V, M3066-V, M3067-P, M3068-P, M3075-V, M3115-LVE, M3116-LVE, M3205-LVE, M3206-LVE, M4206-LV, M4206-V, M5054, M5055, M5065, M5525-E, P1214, P1214-E, P1224-E, P1244, P1245, P1254, P1264, P1265, P1275, P1290-E, P1375, P1375-E, P1377, P1377-LE, P1378, P1378-LE, P1445-LE, P1445-LE-3, P1447-LE, P1448-LE, P1455-LE, P3227-LV, P3227-LVE, P3228-LV, P3228-LVE, P3245-LV, P3245-LVE, P3245-V, P3245-VE, P3247-LV, P3247-LVE, P3248-LV, P3248-LVE, P3255-LVE, P3367-V, P3367-VE, P3374-LV, P3374-V, P3375-LV, P3375-LVE, P3375-V, P3375-VE, P3715-PLVE, P3717-PLE, P3719-PLE, P3904-R Mk II, P3905-R Mk II, P3915-R Mk II, P3925-R, P3935-LR, P5414-E, P5415-E, P5654-E, P5655-E, P7304, P9106-V, Q1615 Mk II, Q1615 Mk III, Q1615-E Mk II, Q1615-LE Mk III, Q1645, Q1645-LE, Q1647, Q1647-LE, Q1659, Q1700-LE, Q1785-LE, Q1786-LE, Q1798-LEAxis Fixed Dome Cameras:M3015, Q1941-E, Q1941-E PT Mount, Q1942-E, Q1942-E PT Mount, Q2901-E, Q2901-E PT MountAxis Video Encoders:M7104, Q3515-LV, Q3515-LVE, Q3517-LV, Q3517-LVE, Q3517-SLVE, Q3518-LVE, Q3527-LVE, Q3615-VE, Q3617-VE, Q3708-PVE, Q3709-PVE, Q6074, Q6074-E, Q6075, Q6075-E, Q6128-E, Q6154-E, Q6155-EAxis PoE Extenders:Long Range PoE Extender Kit (01857-001)Axis Power Over Ethernet:PoE Splitter 5 V (02044-001)Axis Security Radars:D2050-VE, Q7411, Q7424-R Mk II, Q9216-SLVAxis Housings:T92E20 Outdoor Housing, T90D20 PoE IR-LED, T90D25 PoE W-LEDAxis Intercoms:A8207-VE Mk IIAxis Modular Cameras:F34 Main Unit, T91H61 Wall Mount, T92G20 Outdoor Housing, T93F20 Outdoor Housing |
| Country of Origin | VN |
| Environmental Certification | China RoHS, WEEE |
| Environmentally Friendly | Yes |
| Package Contents | 30 W Midspan Installation Guide Cable Mains IEC-C13 |
| ADI Part Number Replaces | Z4-5900294 |
|---|---|
| Model Number Replaces | 5900-294 |
| Color | Black |
|---|---|
| Depth | 5.5" |
| Height | 1.2" |
| Weight | 5.11oz |
| Width | 1.8" |
| Input Voltage | 120V AC, 230V AC |
|---|---|
| Maximum Frequency | 60 Hz |
| Maximum Output Power | 30W |
| Minimum Frequency | 50Hz |
| Mount Type | DIN Rail Mount, Shelf Mount, Wall Mount |
|---|
| Limited Warranty | 3-Year |
|---|
