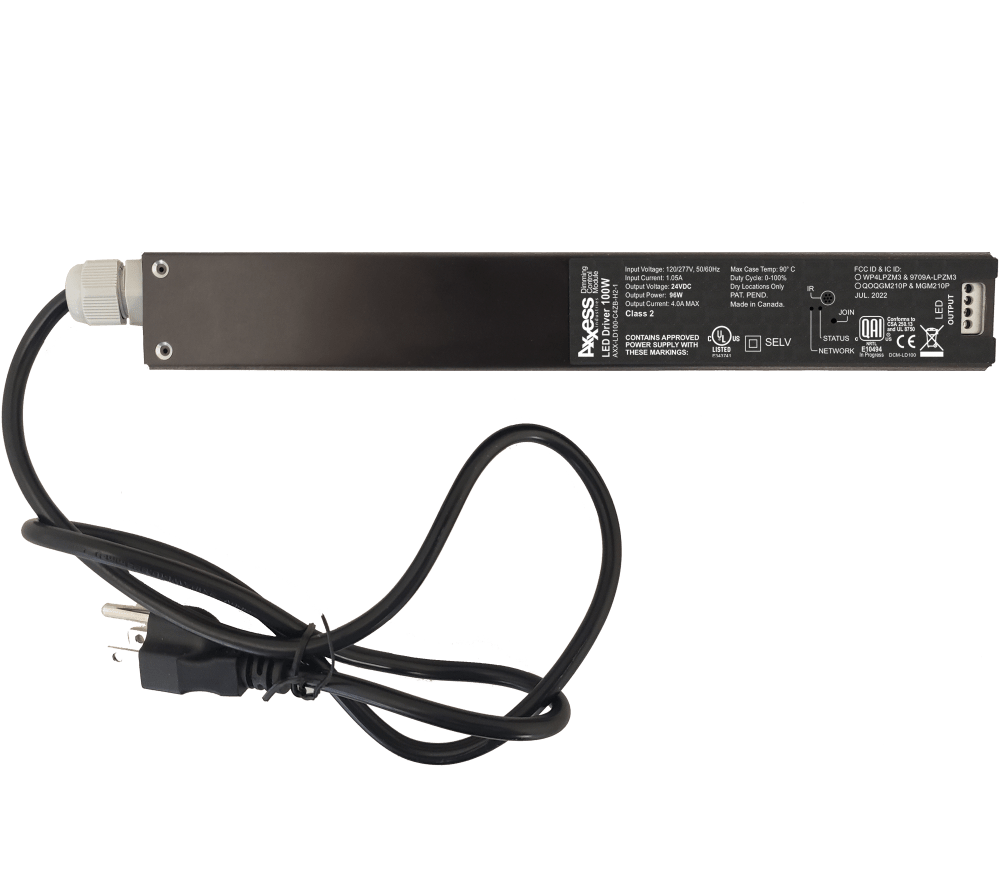

Axxess 100 Watt LED Driver

LED Driver LD100

The LED Driver LD100 combines a 100-watt LED power supply with the Zigbee control features of the DCM3-S. This LED load can be included in Control4 Advanced Lighting Scenes via the Axxess LD100 (OS 3.3.0+) Light_v2 driver. This powered module is a go-to for RGB control, CCT white tuning, or single-channel dimming for three independent loads. It mounts anywhere with its Class 2 rating.

Convenient Integration

After adding the Control4 driver for the Axxess LD100, the LED load can be included in lighting scenes and custom programming. The module communicates with the Control4 system wirelessly through certified Zigbee Pro Wireless radio modules, allowing customers to use their phones, touchscreens, remote controls, or voice commands to set specific colors and CCT temperature settings. The subtle changes in daylight’s color temperature can even be automated to mimic natural light for the benefit of our circadian health.

Flexible Tuning and Mounting

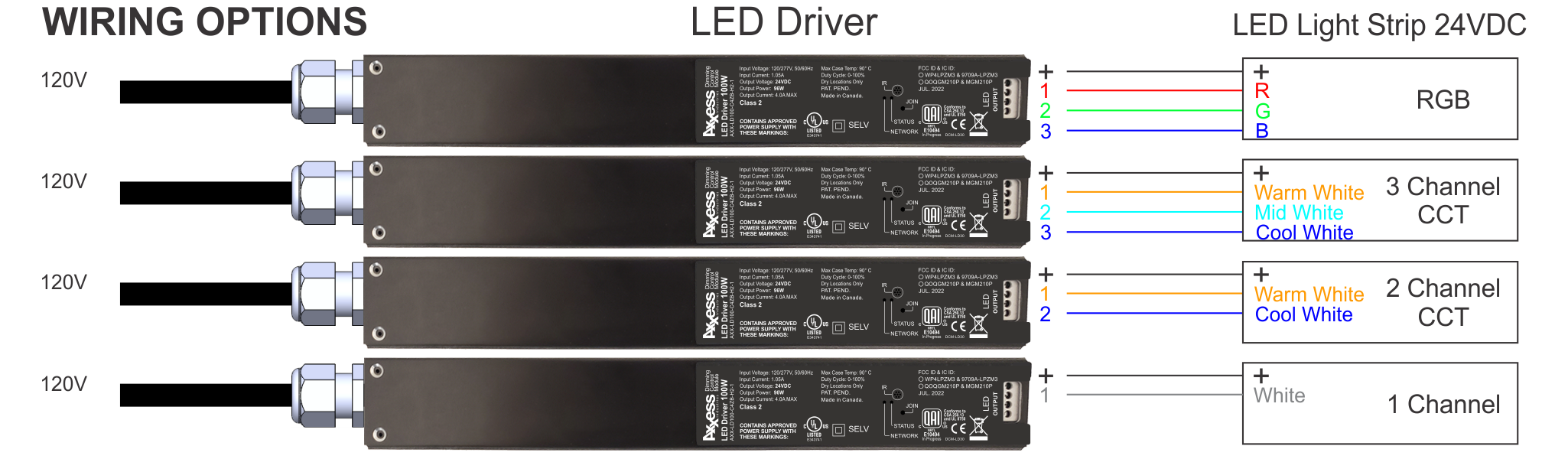

The LED Driver LD100 supports CCT White Tuning with 2- or 3-channels, with the white tuning range dependent on the particular LED strip selected. The LD100 can be surface mounted anywhere with its built-in 100-watt Class 2 LED power supply.

RGB Color Selection

The LED Driver LD100 supports RGB color selection with optional dim-to-warm lighting via 1-channel dimming.

Plug-and-Play

The LED Driver LD100 offers plug-and-play integration. Plug the supply cord into the outlet, connect the LED strip to the output, and voila! The standard power supply is 24V DC.
