Axxess Low Voltage 3-Channel Dimming Control Module

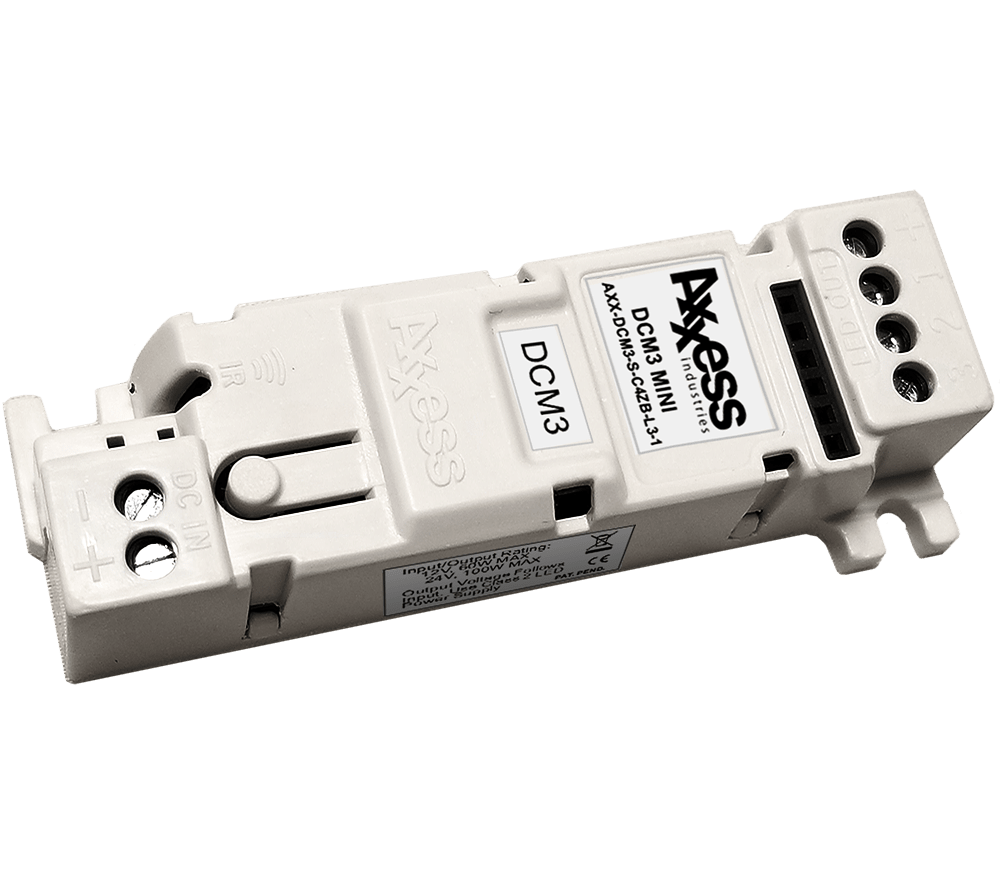

DCM3-S Dimming Control Module 3-Channel

The DCM3-S provides ultra-compact 3-channel LED control through Zigbee communication. Supply 12V DC or 24V DC Constant Voltage (CV) power and connect the LED strip to the output. This LED load can be included in Control4 Advanced Lighting Scenes via the Axxess DCM3 (OS 3.3.0+) Light_v2 driver. This module is a go-to for RGB control, CCT white tuning, or dimming for a single load. It mounts anywhere and is small enough to easily hide out of sight.

Custom Scenes

After adding the Control4 driver for the Axxess DCM3-S, the LED load can be included in lighting scenes and custom programming. The module communicates with the Control4 system wirelessly through certified Zigbee Pro Wireless radio modules.

Ultra-Compact Design

The DCM3-S features an ultra-compact design for added convenience. It can be surface mounted anywhere if driven by a Class 2 LED power supply.

CCT White Tuning

The DCM3-S offers CCT White Tuning with 2- or 3-channels. The range of the white tuning is dependent on the LED strip selected.

Easy Ambiance

The DCM3-S can be used to control a single run of RGB LED tape light, a single run of CCT (2- or 3-channel) LED tape light, or a single channel of LED dimming for one independent fixed-color or warm-dimming load.

Power Requirements

The DCM3-S requires power from a Class 2-rated 12VDC or 24VDC Constant Voltage (CV) LED power supply. You must install the DCM3-S in a listed enclosure if requiring higher wattage than the Class 2 limit.

Control4 recommends the use of the Creative Lighting 24V Power Supplies that are available in 30, 60, 96, 200, and 300W.
