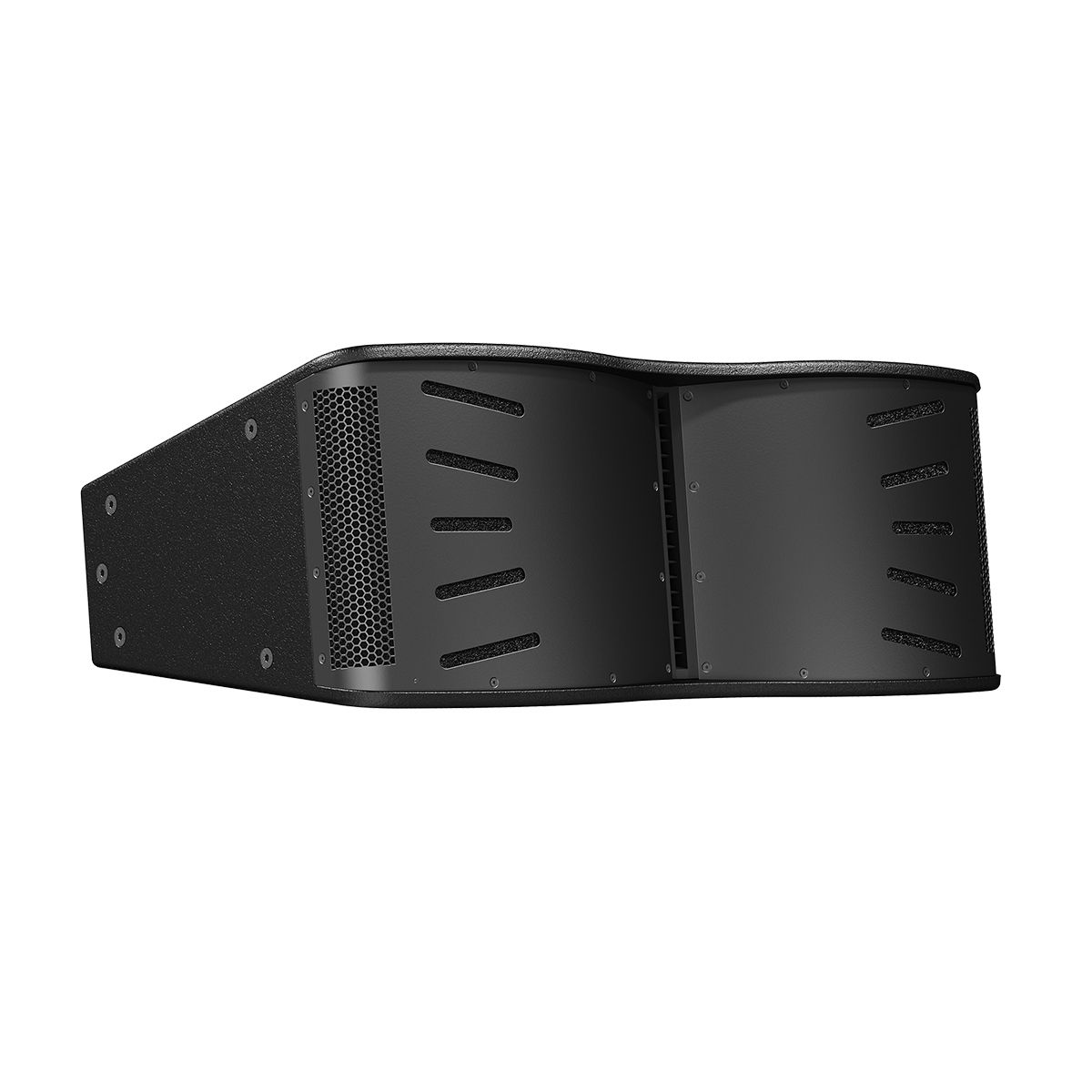

Constant Curvature Array, Scalable 20° Vertical, Black

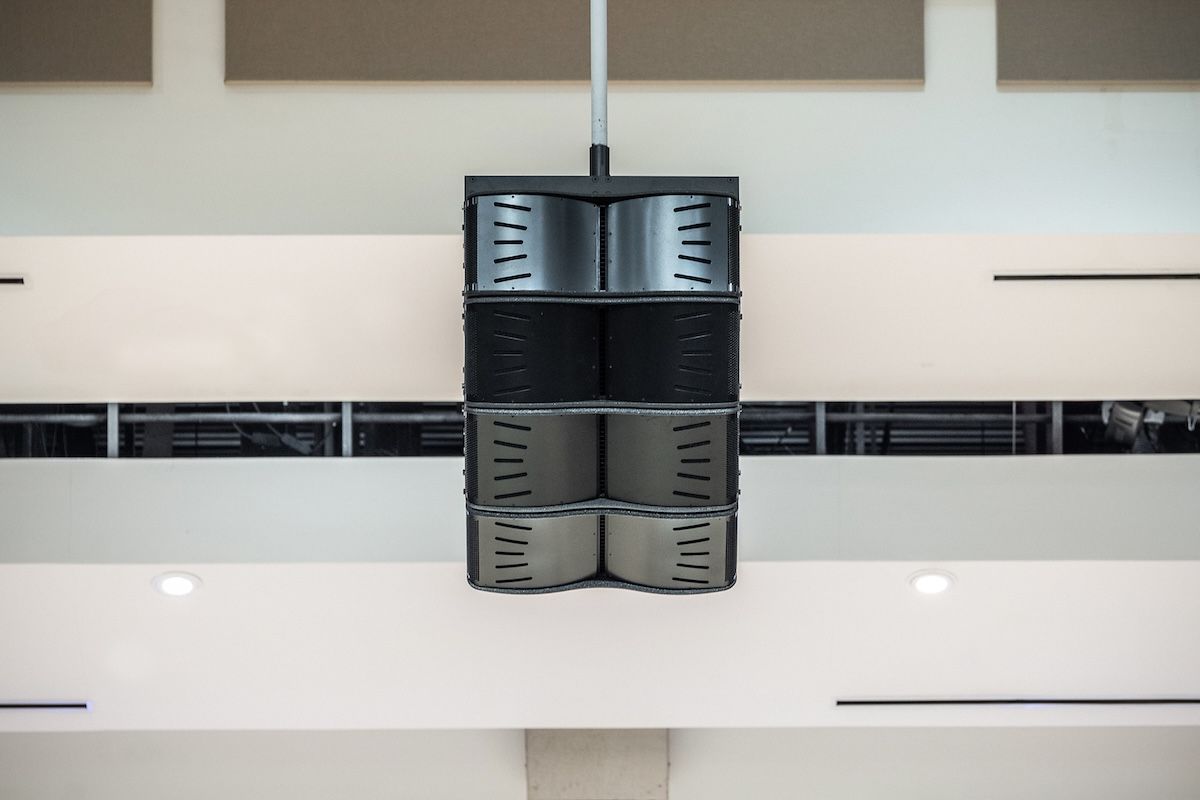

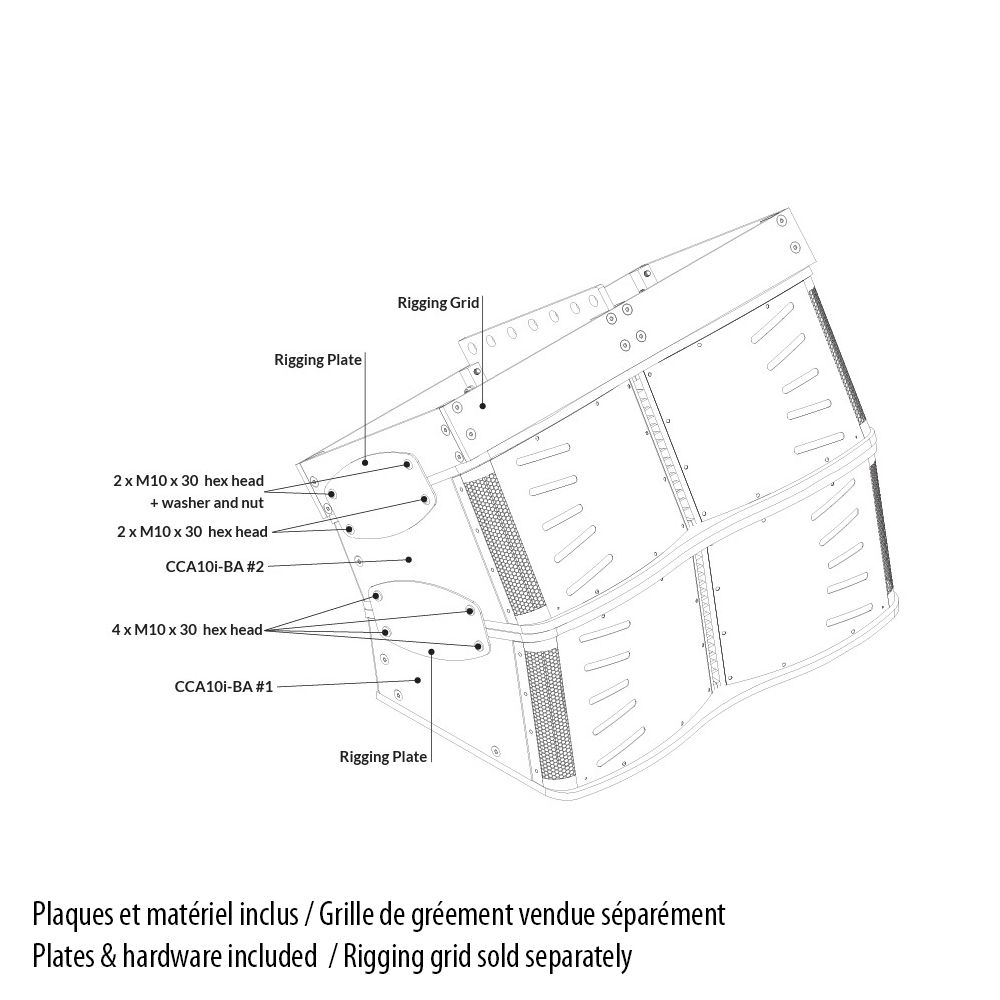

The CCA10i is a compact arrayable point source loudspeaker, designed for medium-sized venues to large distributed systems that need a flexible, scalable speaker solution. Mounted horizontally with tight acoustic centers to minimize comb filtering, each CCA10i enclosure provides a fixed 20° vertical coverage and can be flown with additional enclosures in vertical arrays.
Featuring a coaxial compression driver that uses separate midrange and high-frequency polymer ring-shaped diaphragms, the compression driver delivers an extremely wide response from 420 Hz – 18,000 Hz. Two 10” high-excursion ultra-low distortion drivers offer reduced power compression, providing efficient and accurate bass reproduction down to 52 Hz.
| Frequency Response (-3dB)* | 52 Hz - 18 kHz |
| Frequency Range (-10 dB) | 45 Hz - 18 kHz |
| Horizontal Nominal Dispersion (-6dB) | 160° |
| Vertical Nominal Dispersion (-6 dB) | 20° |
| Max SPL @ 1W/1m (2.83v) | 131 dB SPL (140 dB SPL peak) |

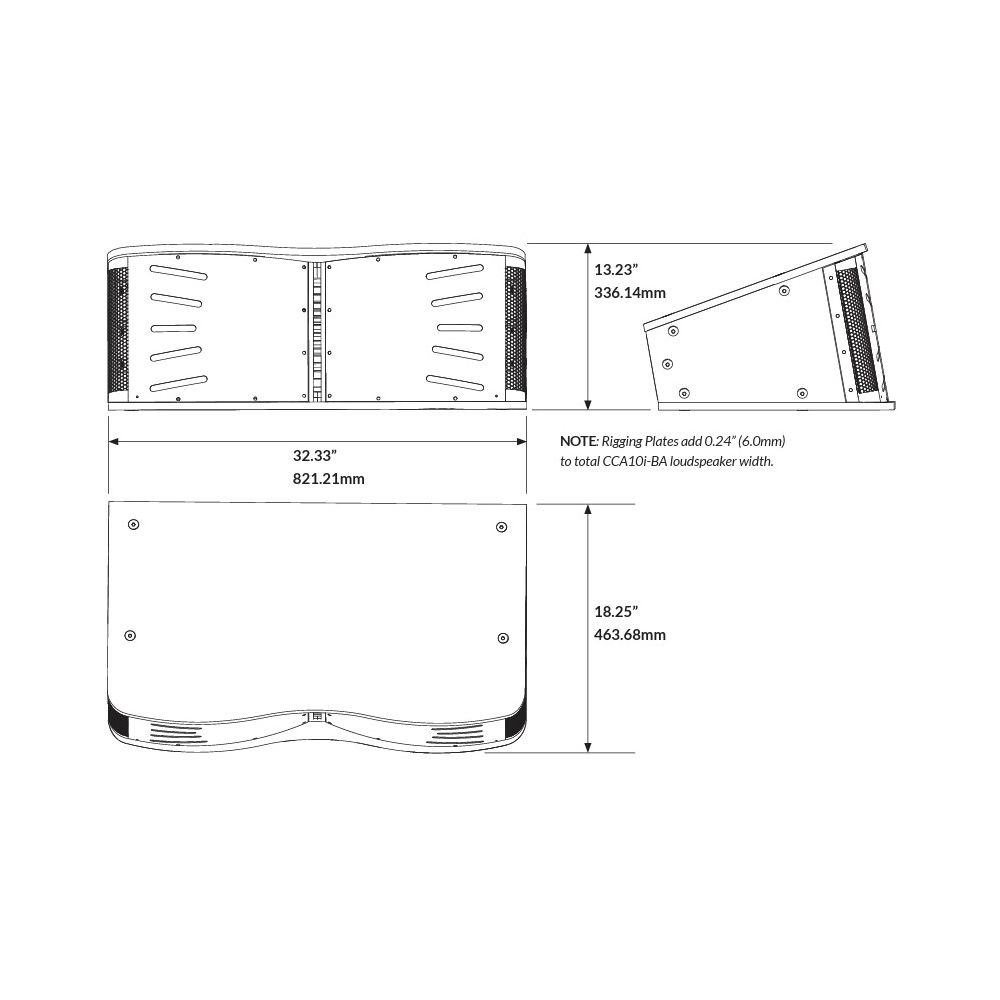

| Dimensions (HxWxD) | 13.23” x 32.33” x 18.25” 336.14 x 821.21 x 463.68mm |
| Weight | 83lbs | 37.65kg |
