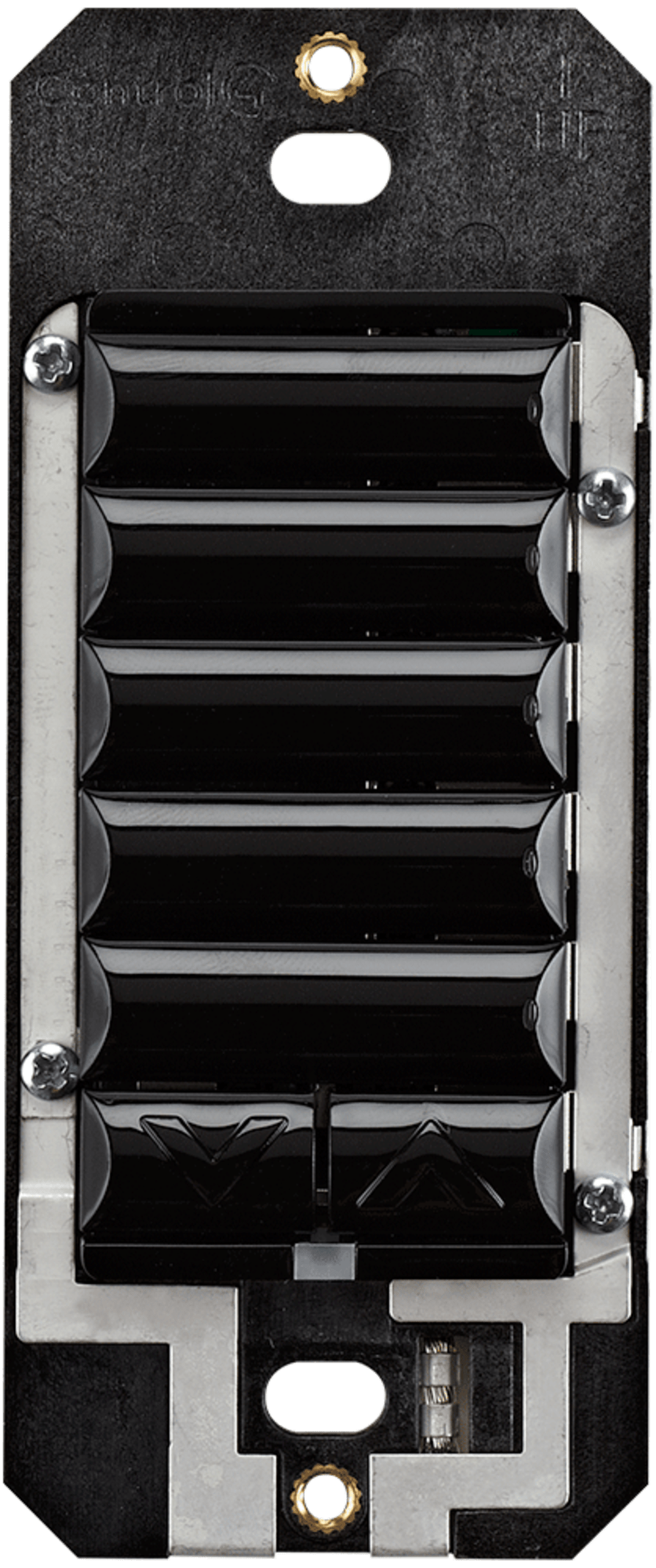

The Control4® Wireless Configurable Keypad is an elegant and customizable user interface that unlocks the power of one-touch automation. The keypad can be configured to control almost anything from your music, garage doors, security systems, lights, and more. The keypad can be configured with two to seven buttons using four different button sizes for a total of 37 possible configurations. Personalize the keypads based on how your system is set up using custom backlit engraving on each button. Available in 9 fashionable colors and finishes.
Important Note: If you are ordering a light almond product to match existing products and installations ordered prior to October 1, 2016, please order this product in the Legacy Light Almond color (C4-KC120277-LL). If you are placing an order for a new light almond installation and do not need to color match an existing product, order this product in Light Almond (C4-KC120277-LA).
Faceplates are not included. Don’t forget to order faceplates separately.
- Includes a button kit with every button necessary to make any of the 37 possible button configurations
- Elegant, sophisticated design makes a beautiful addition to any home or business
- Custom engraving available to clearly identify each button
- Backlit button engraving with programmable color control for easy readability regardless of time of day or light level
- Programmable RGB LEDs provide status feedback for lighting and other devices in the system
- Ambient light sensor automatically adjusts backlight and status LED brightness depending on the light level in the room
- Available in a wide array of gloss and satin colors (See Available Colors)
- Control4® screw-less faceplates, sold separately, provide a sleek profile (See Available Accessories)
- Power via line (mains) voltage or via the Control4 36VDC Keypad Power Supply
- Includes a button kit with every button necessary to make any of the 37 possible button configurations
- Elegant, sophisticated design makes a beautiful addition to any home or business
- Custom engraving available to clearly identify each button
- Backlit button engraving with programmable color control for easy readability regardless of time of day or light level
- Programmable RGB LEDs provide status feedback for lighting and other devices in the system
- Ambient light sensor automatically adjusts backlight and status LED brightness depending on the light level in the room
- Available in a wide array of gloss and satin colors (See Available Colors)
- Control4® screw-less faceplates, sold separately, provide a sleek profile (See Available Accessories)
- Power via line (mains) voltage or via the Control4 36VDC Keypad Power Supply
