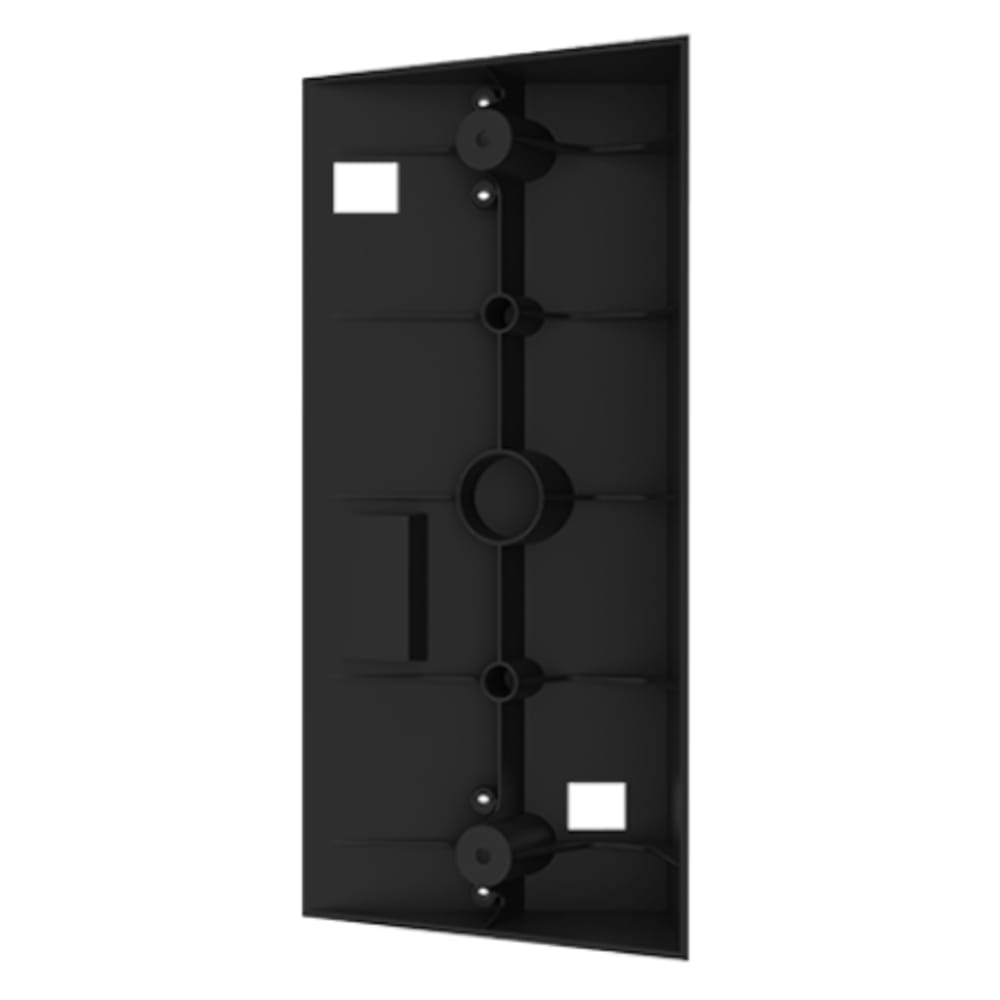

Control4® Wedge Backplate | 2 Modules

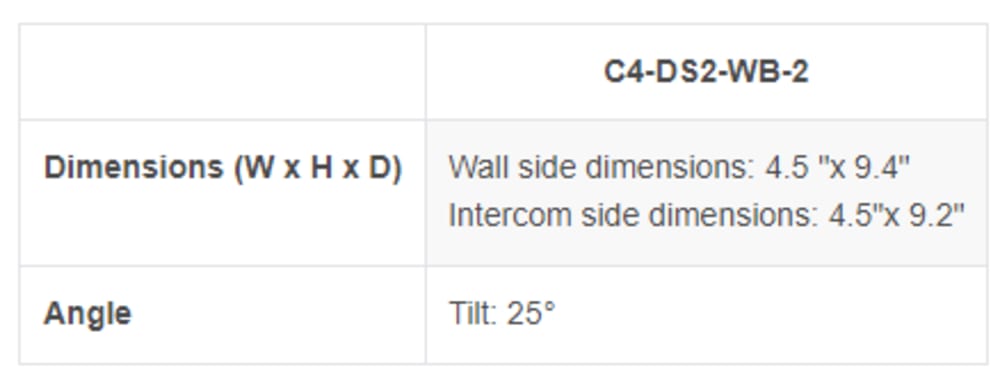

This wall-mounted backplate features a 25° angle to offer better visual coverage of the entry area, especially in deployments with oversized or double doors. This unit is only compatible with the DS2 2 Module intercom. The dimensions for the side mounted to the wall are 4.5 x 9.4 inches. The dimensions of the side the intercom mounts to are 4.1 x 9.2 inches.
Better Visual Coverage
The backplate is wall-mounted, and its angle (25°) offers better visual coverage of the area in front of an entry door.
Universally Reversible
This wedge backplate can be used to tilt the intercom left and right.
Cabling for Cavity
Thanks to its depth, it also serves as a cavity for hiding and terminating all cabling connected to the DS2 intercom.
Modular Configuration
Thanks to its unparalleled modularity, DS2 can be whatever you need it to be. Combine the Camera module with any additional modules, choose the right frames, and build the intercom you need!y.
Versatile Mounting Options
Flush or surface mounting: there are no limits with DS2. Just choose the correct frame and box that suit your needs. Mounting frames, backplates, and wall-boxes sold separately.
Resistant to Any Environment
Be sure the keypad will work whenever it’s needed thanks to IP54 and IK08 certifications. The DS2 is ready to withstand any weather challenges - and can even survive vandal attacks! True reliability
