The 2022 CoolMasterPro is your universal connectivity and integration device for controlling and managing VRF (Variable Refrigerant Flow) HVAC systems in medium commercial and high-end residential buildings.
CoolMasterPro gives automation integrators, facilities managers, service providers, and HVAC professionals the ability to control, monitor, service, and manage any VRF system, by enabling a bi-directional universal communication channel between the VRF HVAC and automation systems. CoolMasterPro is a Plug & Play device, simply unbox it and connect it to your VRF HVAC System.
Versatility
- Automatic Driver Detection
- Native SDDP communication for Control4 Integration
- Connect multiple lines and brands on a single device, for sites with physically separated systems
- Local access to VRF/VRV systems’ service data points, over standard protocols, for advanced performance monitoring
Included
- Communication protocols include MODBUS RTU, MODBUS IP, BACNET MSTP, BACNET IP, ASCII, and REST API
- Access to all of CoolAutomation’s Professional Apps and Multi-Site Dashboard for the Management of multiple buildings and projects from a central location
- Native SDDP Support for Control4
- Native drivers for easier integration into other HomeAutomation systems (Crestron, Savant, RTI, Lutron HomeWorks, and others)
Interfaces Available
- Flexible connection options for all Major Home Automation systems
- Interfaces included: RS232, RS485, Ethernet, Optional KNX*
*Contact CoolAutomation for KNX version

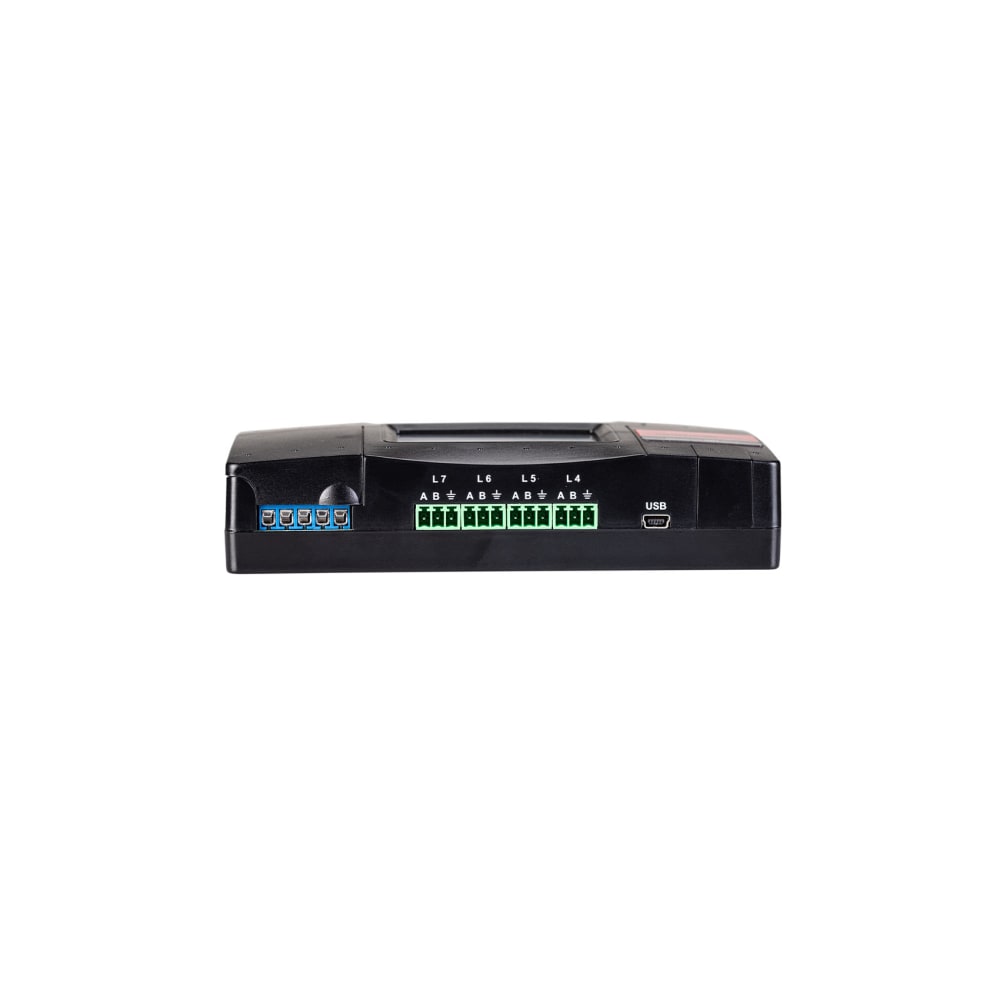

Multiple HVAC Communication Ports
- Multiple HVAC Communication lines are available, for connecting multiple systems at the same time
- Multi-brand HVAC support
Simple to Use

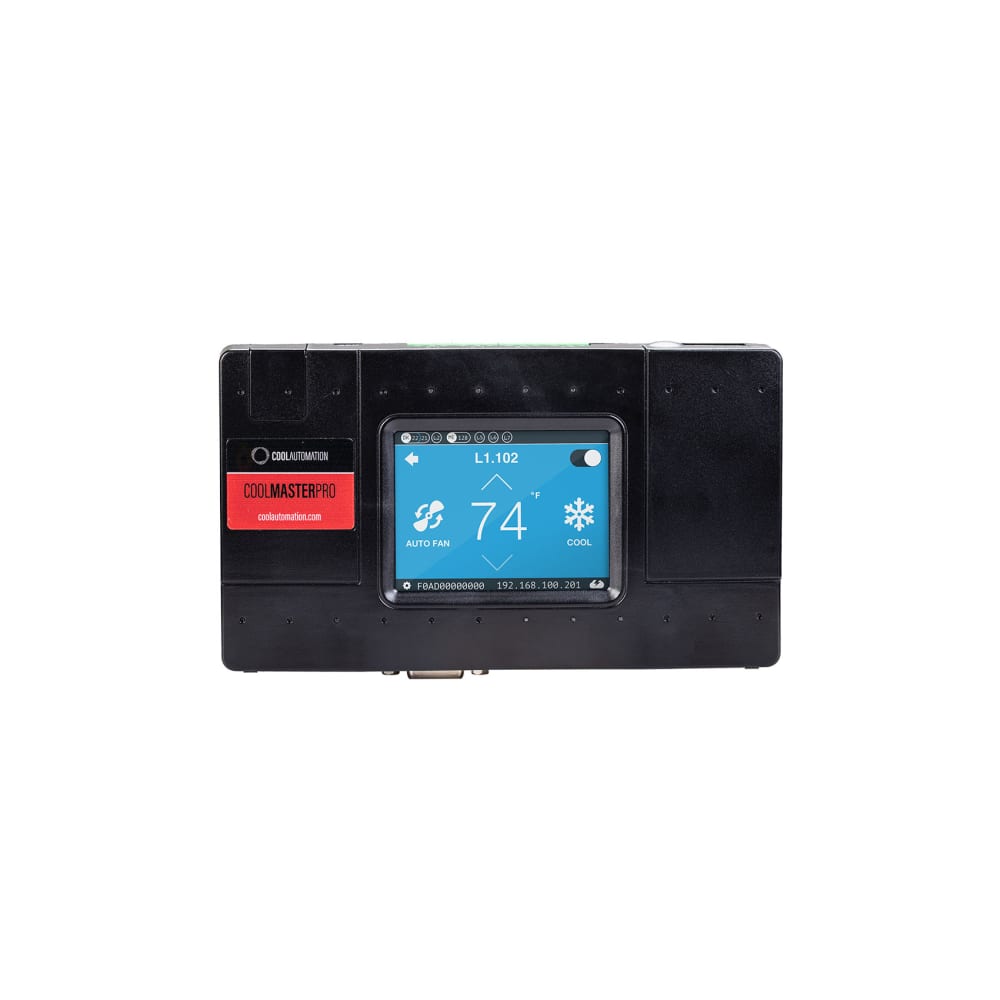

Touch screen display for local & simple device configuration, including centralized control of the VRF HVAC system

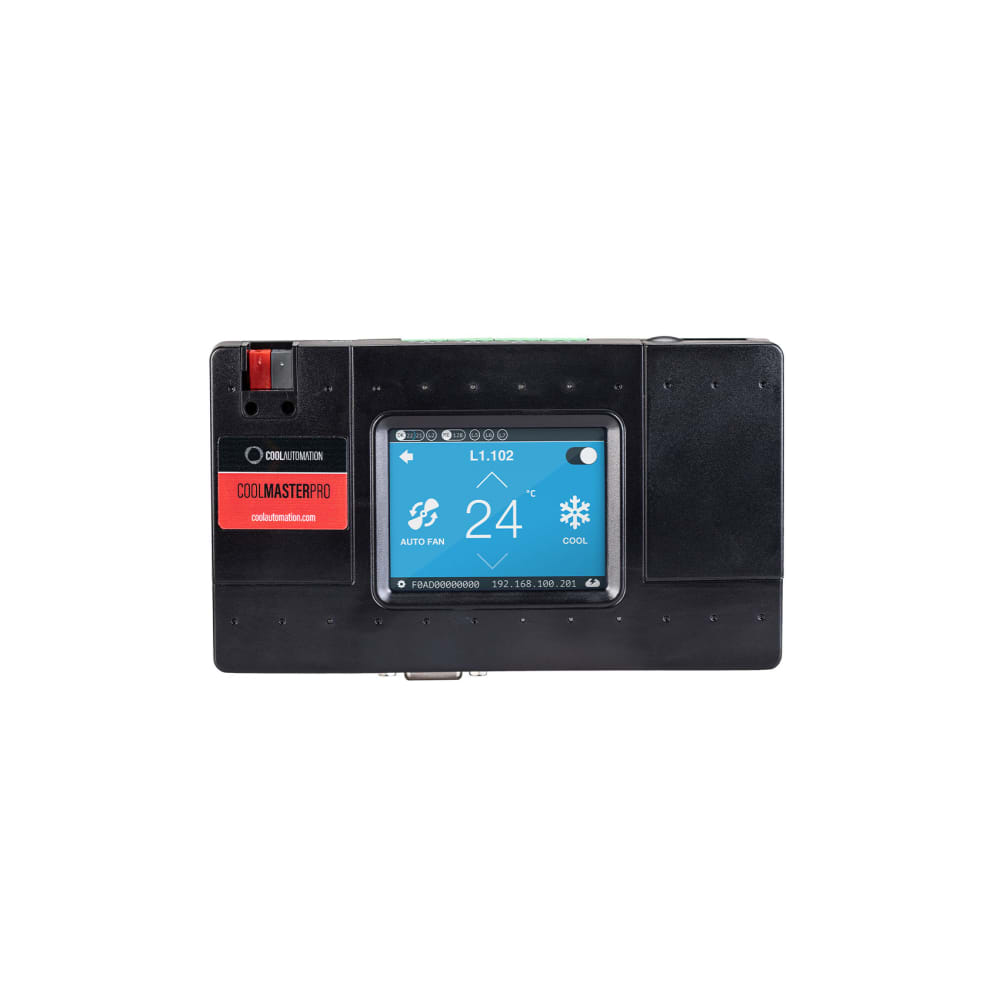

Universal
Supports multiple languages, temperature scales, and multiple power supply options
Easy to set up and re-configure for communication with different HVAC manufacturers

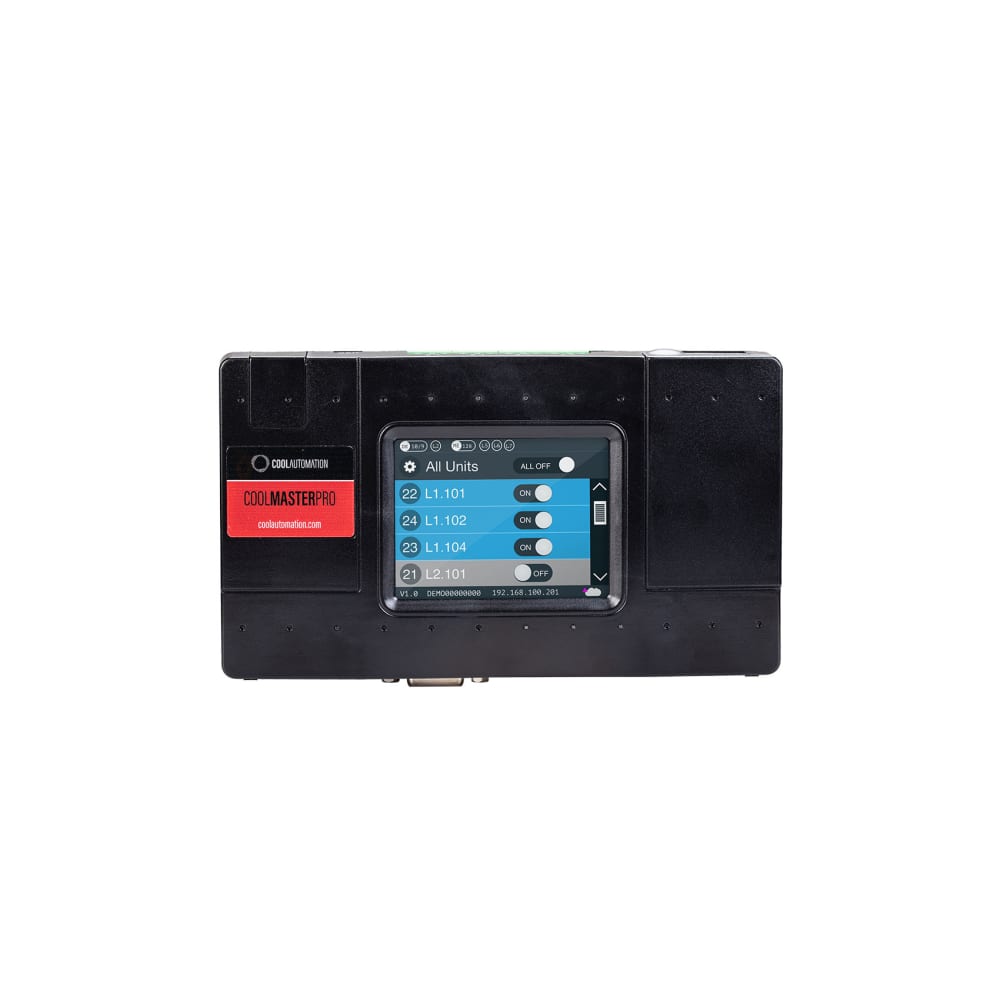

- Multi-zone and multiple units support for individual zone control from a single centralized device
- Up to 32 indoor units per CoolMaster device
Line-up of Cool devices and HVAC Control options from CoolAutomation - to cover any Climate control integration project, residential and commercial
Line-up of Cool devices and HVAC Control options from CoolAutomation - to cover any Climate control integration project, residential and commercial
CoolMasterPro can connect with multiple VRF systems, multiple brands, over multiple physical lines. It enables access to systems’ valuable service data, for integrating locally with Building Management Systems, allowing advanced performance monitoring.
VRF HVAC systems are designed with a closed communication system, and as such, are extremely challenging to connect to any external automation system. The CoolMasterPro device enables any manufacturer of VRF HVAC (Daikin, Mitsubishi, Samsung, LG, Toshiba, etc.) to be accessible and fully controllable through your control system’s main controller, thermostats, control panels, and mobile app, providing bi-directional communication with real-time feedback.
CoolMasterPro is connected directly to the internal communication bus on the outdoor VRF unit’s central communication line.
Each CoolMasterPro can be configured on-site to communicate with any VRF manufacturer and comes with simple instructions for these settings. You are welcome to check your HVAC brand and model compatibility on our CoolMaster webpage (the list is at the bottom of the page).
If you do not see your equipment on the website list, be sure to contact us for a brief consultation with our engineering team. You can also check out our CoolMaster Resources here for access to installation guides, how to use and configure, short setup videos, and more.
