Description
5.25" + Passive Radiator Corner Speaker. 70v/8Ohm, IP65, Black
Sold as Each, but MUST BUY 2

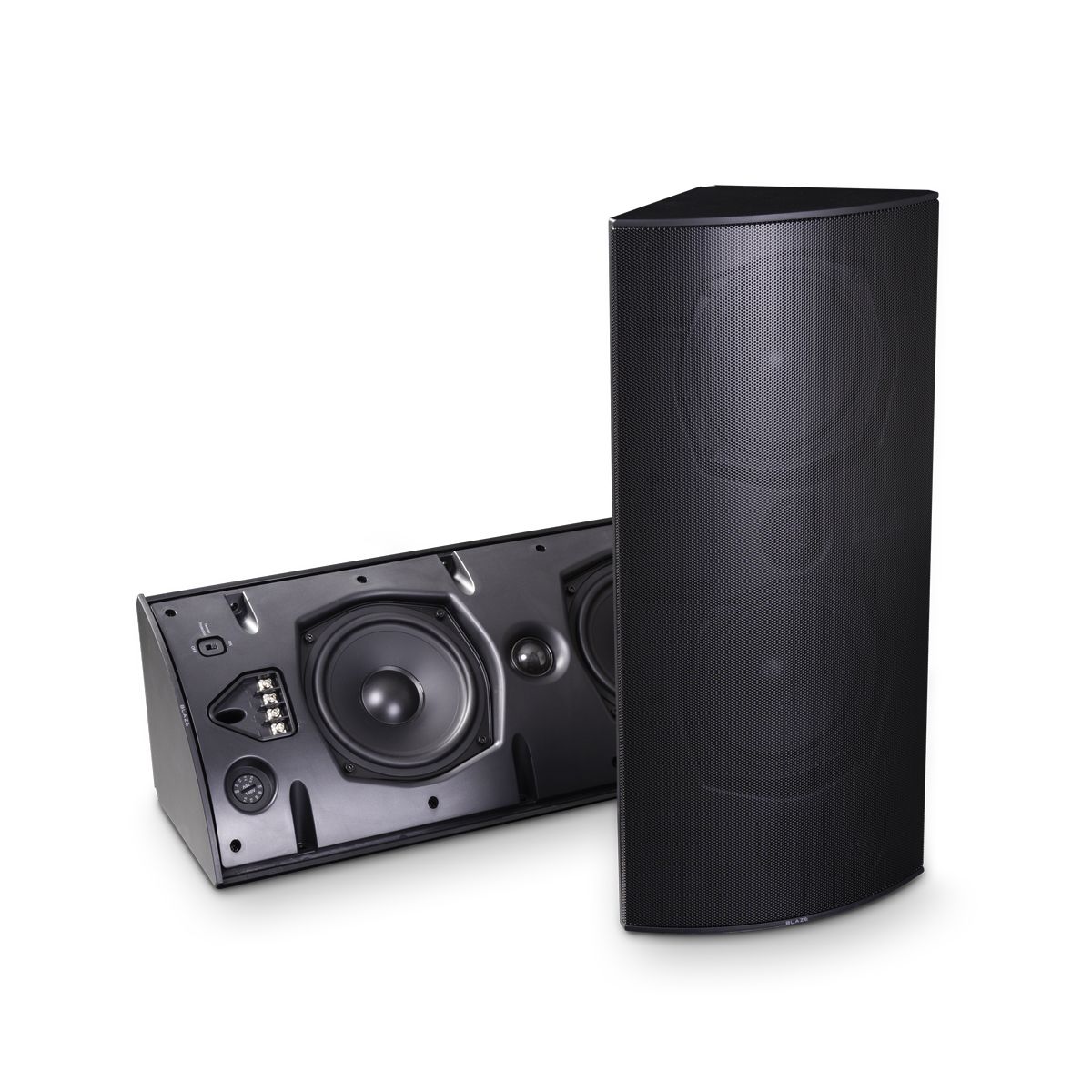

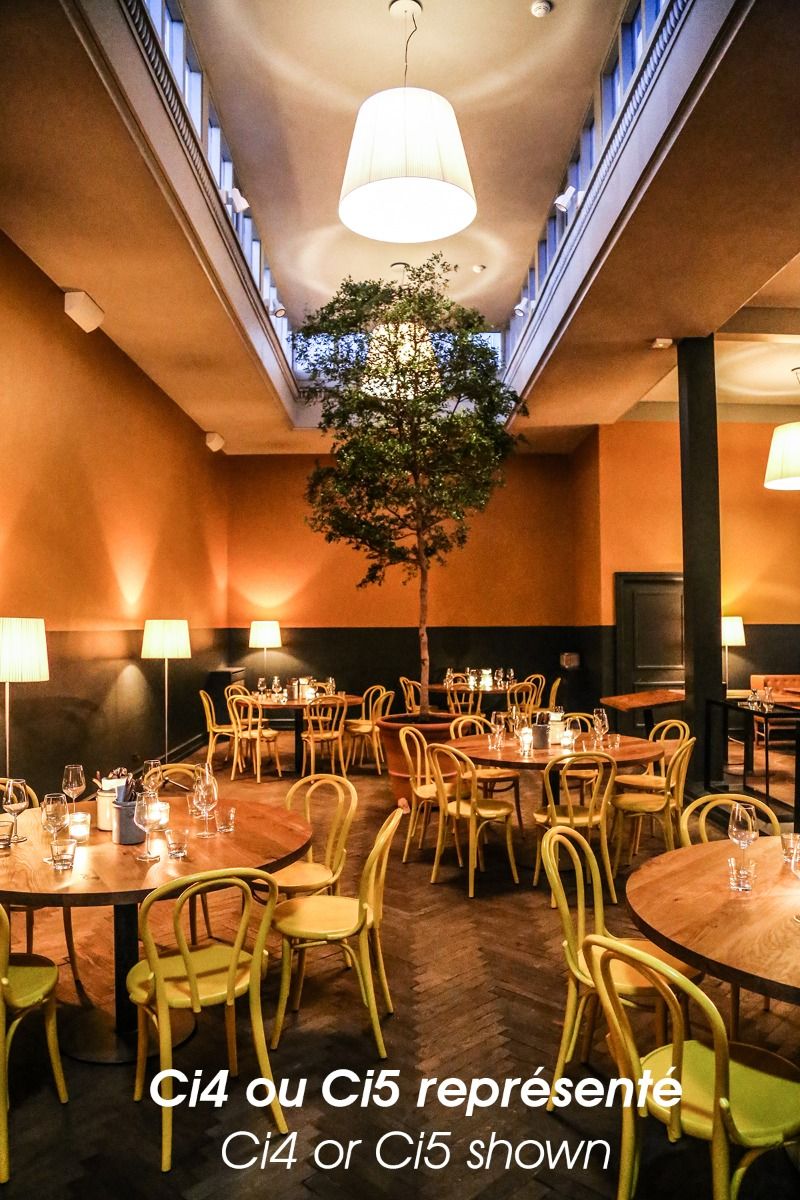

Ci5-V is a very versatile and compact 2-way full-range loudspeaker with strong output and solid bass performance. With a wide and uniform dispersion, full coverage can be achieved by installing relatively few loudspeakers, which makes the Ci5-V especially suited for in-door and outdoor commercial installations. The patented triangular design and sliders ensures fast and easy installation, flush in corners or onto walls and ceilings without brackets. Cabinets can be coupled together to increase coverage to 180° or 270° degree.
The cable terminal is hidden making the cable connection invisible both in vertical and horizontal applications. The tweeter features a switchable protection circuit for added safety and the Ci5-V model can be run in either 8 ohm or 70/100 volt. In high-impedance mode, tap settings for 3,5 – 7,5 – 15 or 30 watt output is conveniently located on the front baffle.

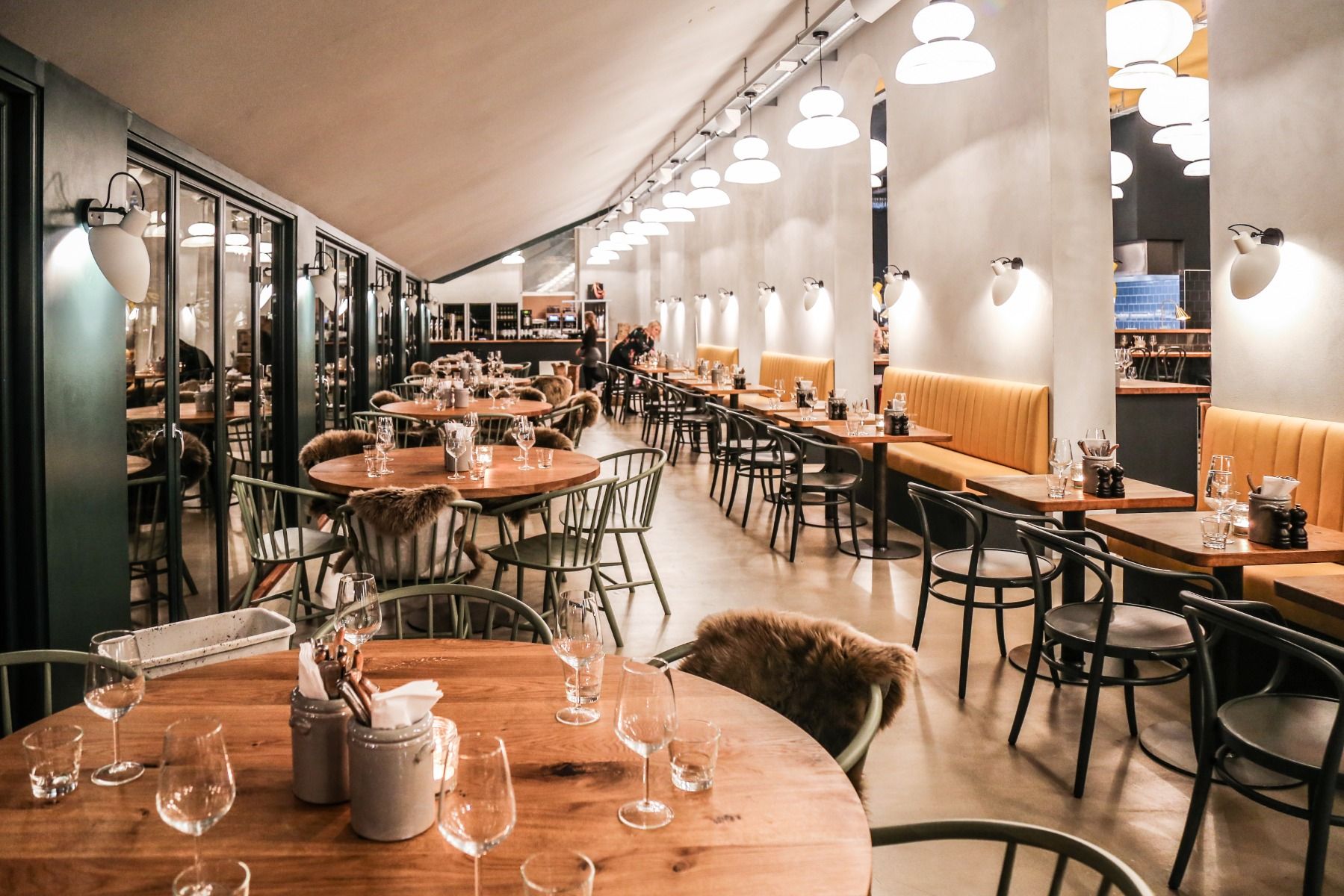

Ci5-V is the perfect elegant loudspeaker solution for commercial installations in entertainment venues, shopping malls, hotels and meeting rooms.

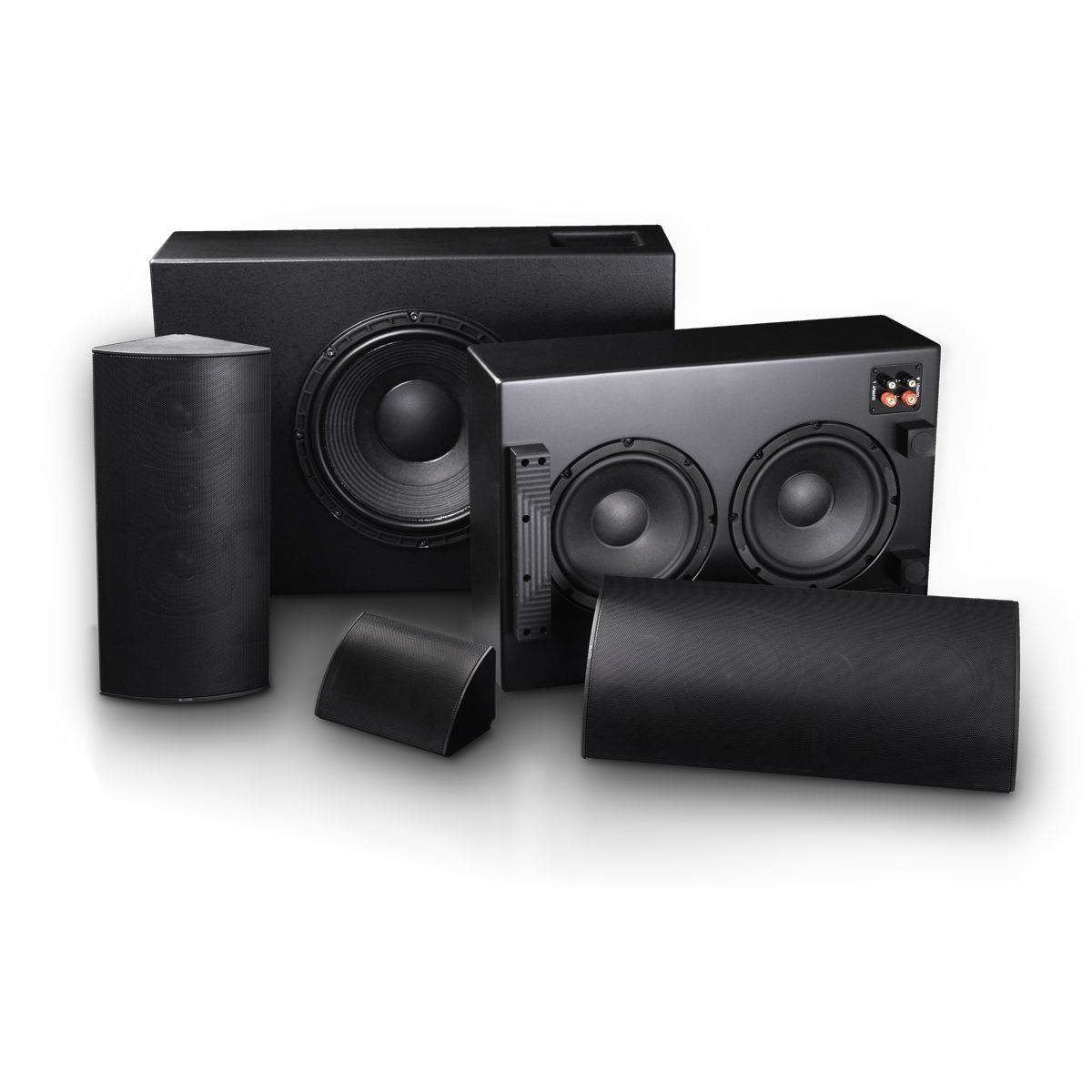

For enhanced bass performance, the Ci4 can be teamed indoors with our C8S and C12S subwoofers.

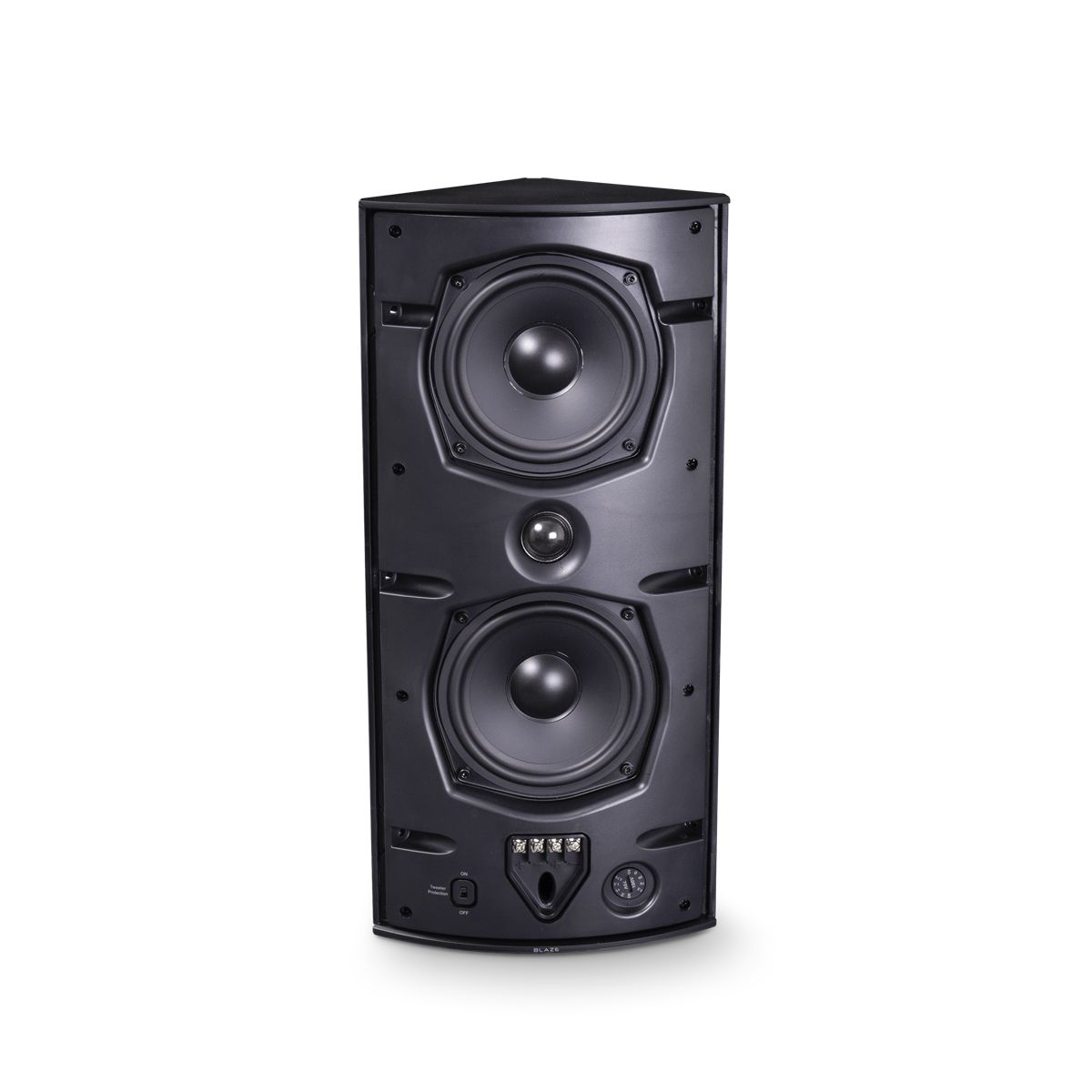

- 5.25″ woofer + 5.25” passive radiator.
- 1″ silk dome tweeter.
- Switchable 100/70V mode/8 Ω mode

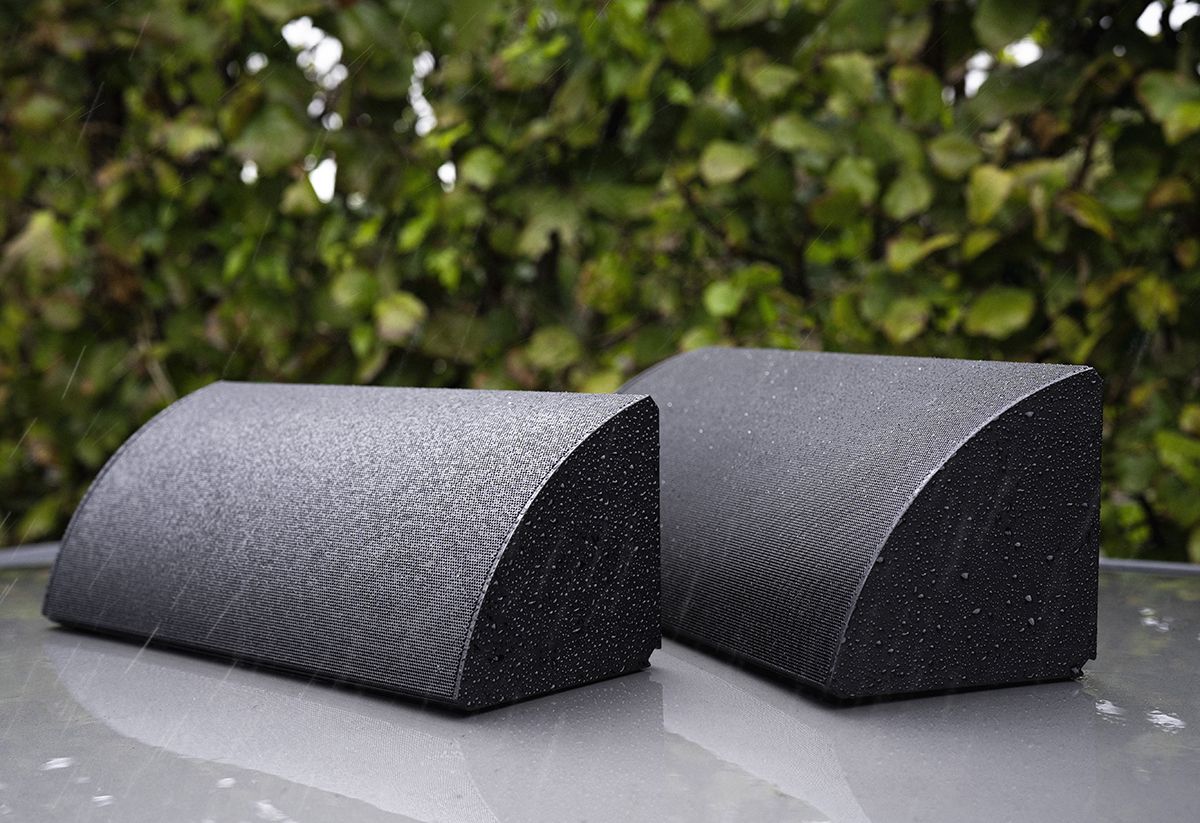

- IP65 rated.
- Switchable limiting circuit for tweeter.
- Triangular ABS cabinet.
- Metal grille.
- Mounts without brackets or with hidden sliders.
- Hidden cable connection.
- Screw terminals.

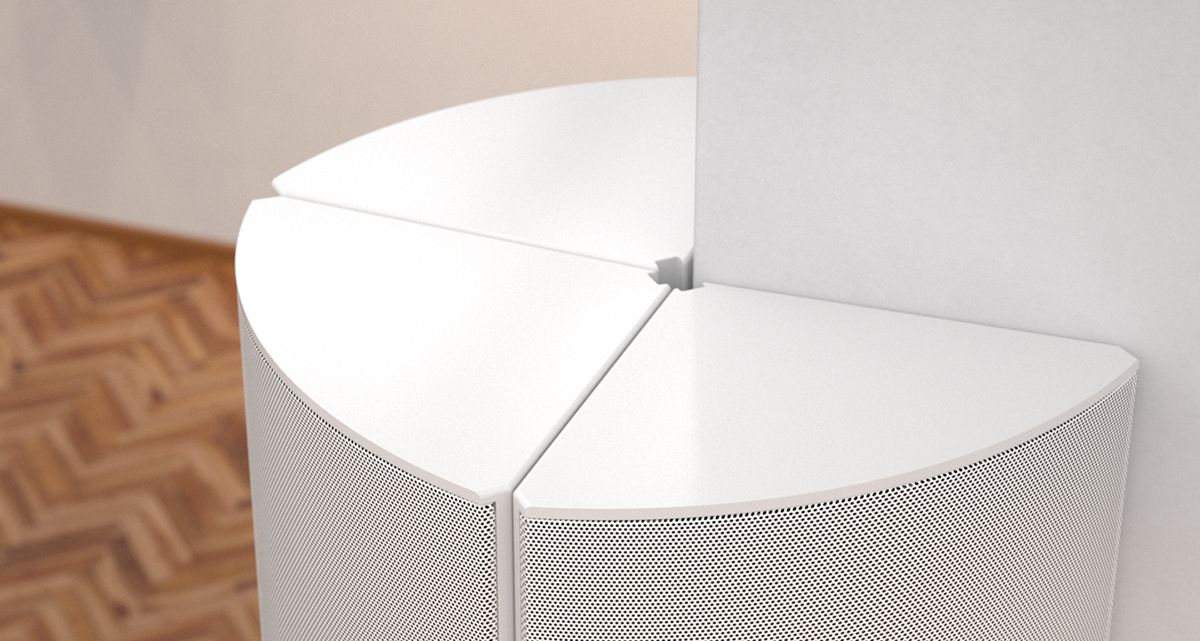

- Couples together for 180° or 270° coverage.

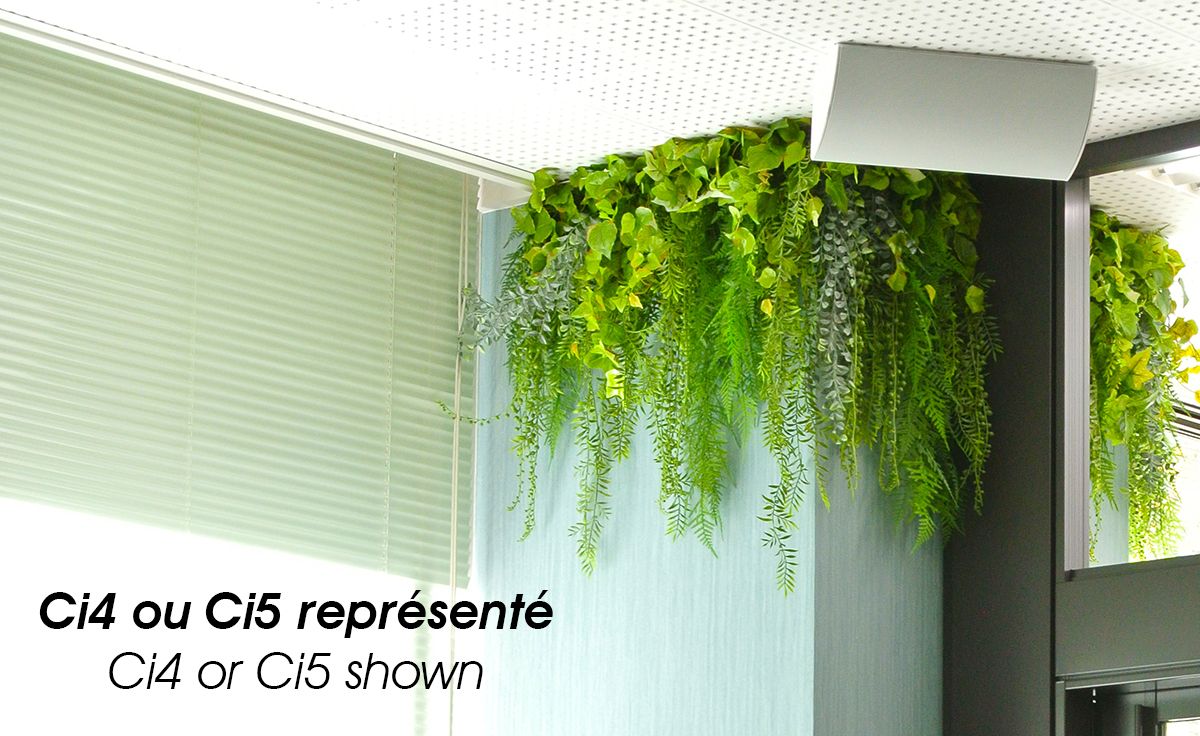

- Placement: Indoors or outdoors, walls/ceilings incl. corners or hanging from ceiling.
- Compatible with Blaze Audio’s C8S and C12S subwoofers.
- Accessories: Ceiling suspension bracket / Half moon bracket / Slider mounting bracket (Slider mountingbracket incl. w. loudspeaker)
- Designed in Denmark.
- Available in black or white.
Specifications
-
Sensitivity SPL / 1W @ 1m: 88 dB
-
Maximum SPL, Long Term: 107 dB
-
Maximum SPL, Peak: 113 dB
-
Frequency response: 55-20kHz
-
Nominal impedance: 8 Ω
-
Dispersion: 100° vertical / 100° horizontal
-
Ingress Protection: IP65
-
Recommended amplifier: 45-90W
- Ci5-V transformer taps:
- 70 V: 3,75, 7,5, 15 W, 30 W
- 100 V: 7,5, 15 W, 30 W
- Measurements:
- 450 x 209 x 150 mm
- 17.72 x 8.23 x 5.91 in
- Weight:
