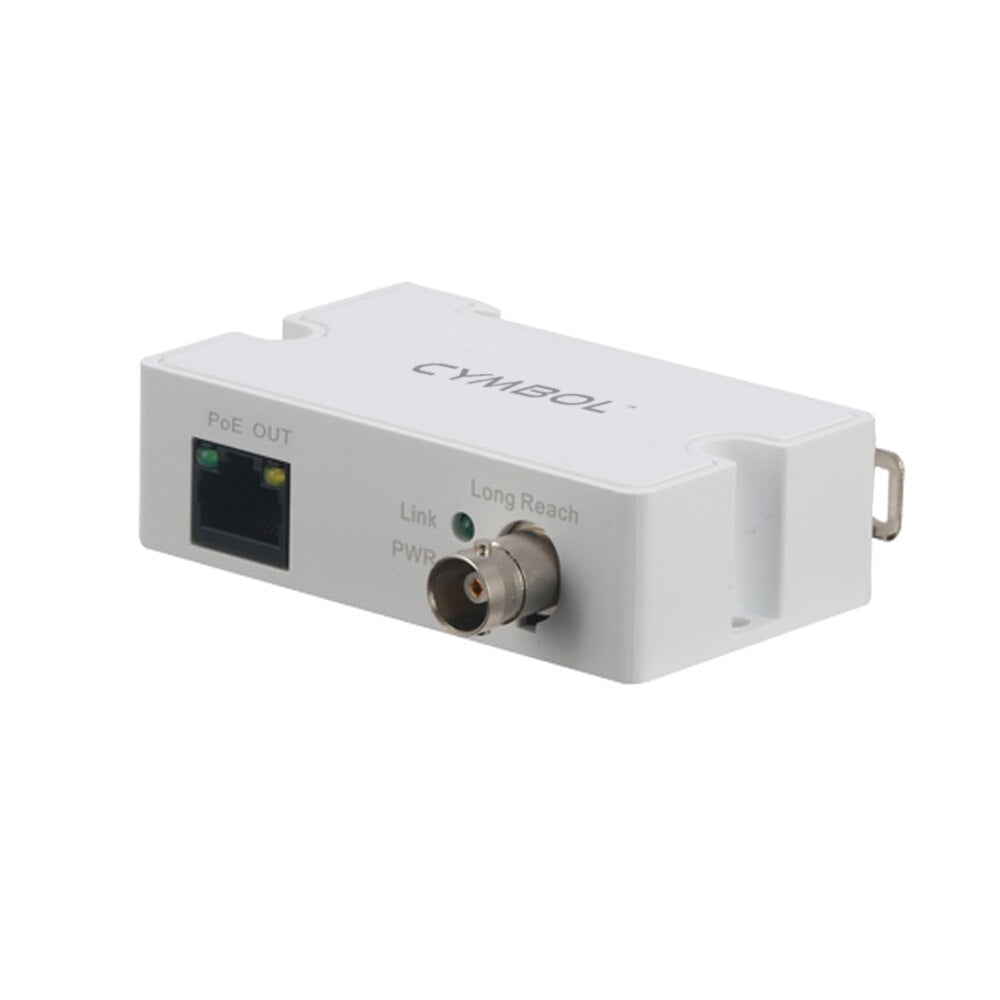

Cymbol Ethernet over Coax Extender – Transmitter
Regular price
$103.95
Hurry up! Only 2 item(s) items left in stock
Couldn't load pickup availability
Hurry up! Only 2 item(s) items left in stock
Couldn't load pickup availability
Innovative enhanced Power over Ethernet (ePoE) technology offers a plug-and-play solution to transmit power and data over long distances via ethernet or coaxial cables, reducing installation time and saving money. ePoE technology is a viable, cost-effective solution for extending transmission distances and for converting existing, coax-based analog systems into IP systems.
For video security and surveillance installers, ePoE technology reduces overall cabling requirements, allowing for existing coax cable to be used, and minimizing the number of peripheral devices needed.
Transmit power and data up to 1000m (3281ft) over RG59 coaxial cable. ePoE technology seamlessly integrates the latest high-definition IP cameras with a coaxial infrastructure using the Ethernet over Coaxial (EoC) protocol to convert between analog and IP power and data transmissions.
| Specifications for: CY-EOC01-TR: Cymbol Ethernet over Coax Extender – Transmitter | |||
|---|---|---|---|
| Hardware | |||
| Function Port | 1x 10/100 Mbps Bas-TX 1x BNC |
||
| Power Consumption | <2W | ||
| Transmission Bandwidth | RG59 coaxial cable: 400 m/100Mbps, 1000 m/10Mbps |
||
| PoE Protocol | 48V Passive PoE (Pairs 1, 2+; 3, 6 Return) | ||
| Network Standard | IEEE802.3, IEEE802.3u, IEEE802.3x | ||
| Lightning Protection | Common Mode 4KV Differential Mode 2KV |
||
| Operating Temperature | -30° to 65° C (-22° to 149° F) | ||
| Operating Humidity | 5% – 95% | ||
| Weight | 61 g (0.13 lb) | ||
| Dimension (WxDxH) | 79 mm x 52 mm x 23 mm | ||
| Transmission Performance | |||
| Take RG59 as an example (Max. DC resistance < 5.0Ω/100m) | |||
| Supports with 48V | Supports with 53V | ||
| 100 m | Bandwidth (Mbps) | 100 | 100 |
| Load Capacity (W) | 21 | 25 | |
| 200 m | Bandwidth (Mbps) | 100 | 100 |
| Load Capacity (W) | 15 | 24 | |
| 300 m | Bandwidth (Mbps) | 100 | 100 |
| Load Capacity (W) | 11 | 19 | |
| 400 m | Bandwidth (Mbps) | 100 | 100 |
| Load Capacity (W) | 9 | 16 | |
| 500 m | Bandwidth (Mbps) | 10 | 10 |
| Load Capacity (W) | 7 | 13 | |
| 800 m | Bandwidth (Mbps) | 10 | 10 |
| Load Capacity (W) | 5 | 8 | |
| 1000 m | Bandwidth (Mbps) | 10 | 10 |
| Load Capacity (W) | 4 | 6 | |
Download CY-EOC01-TR Spec Sheet
