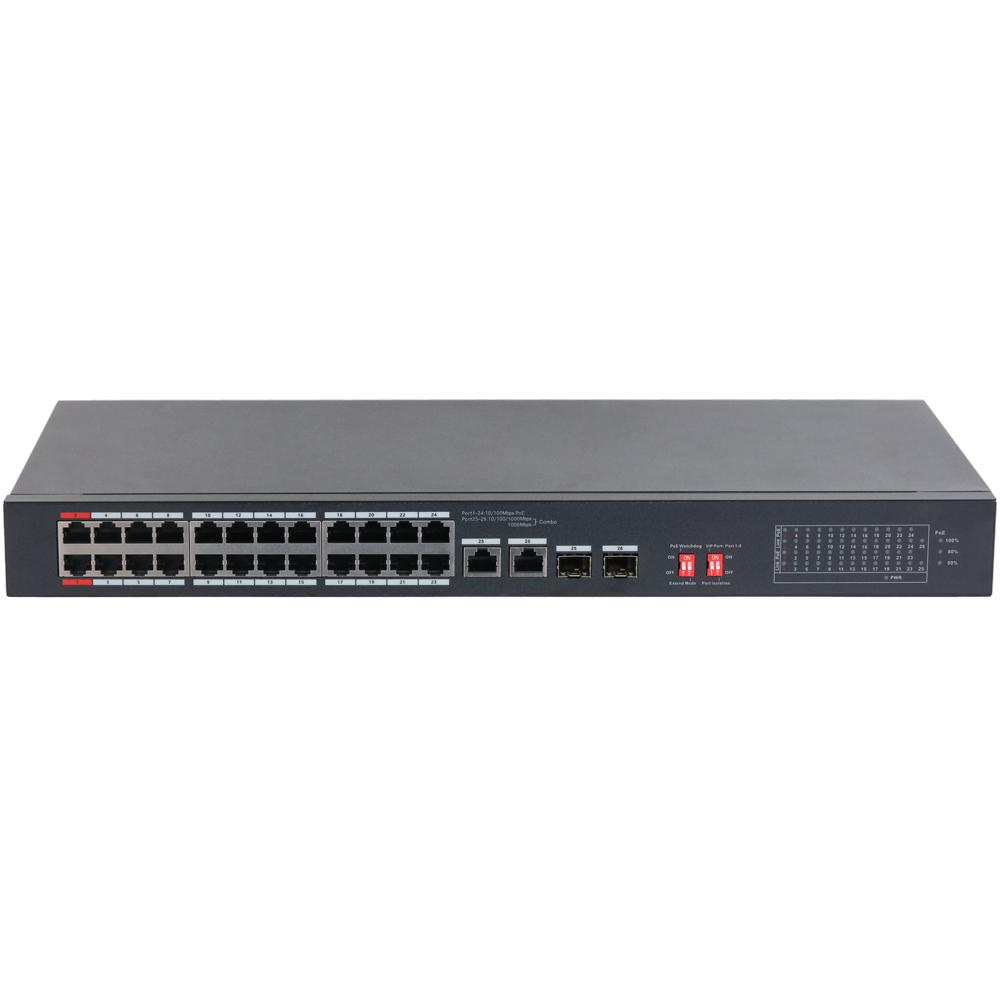

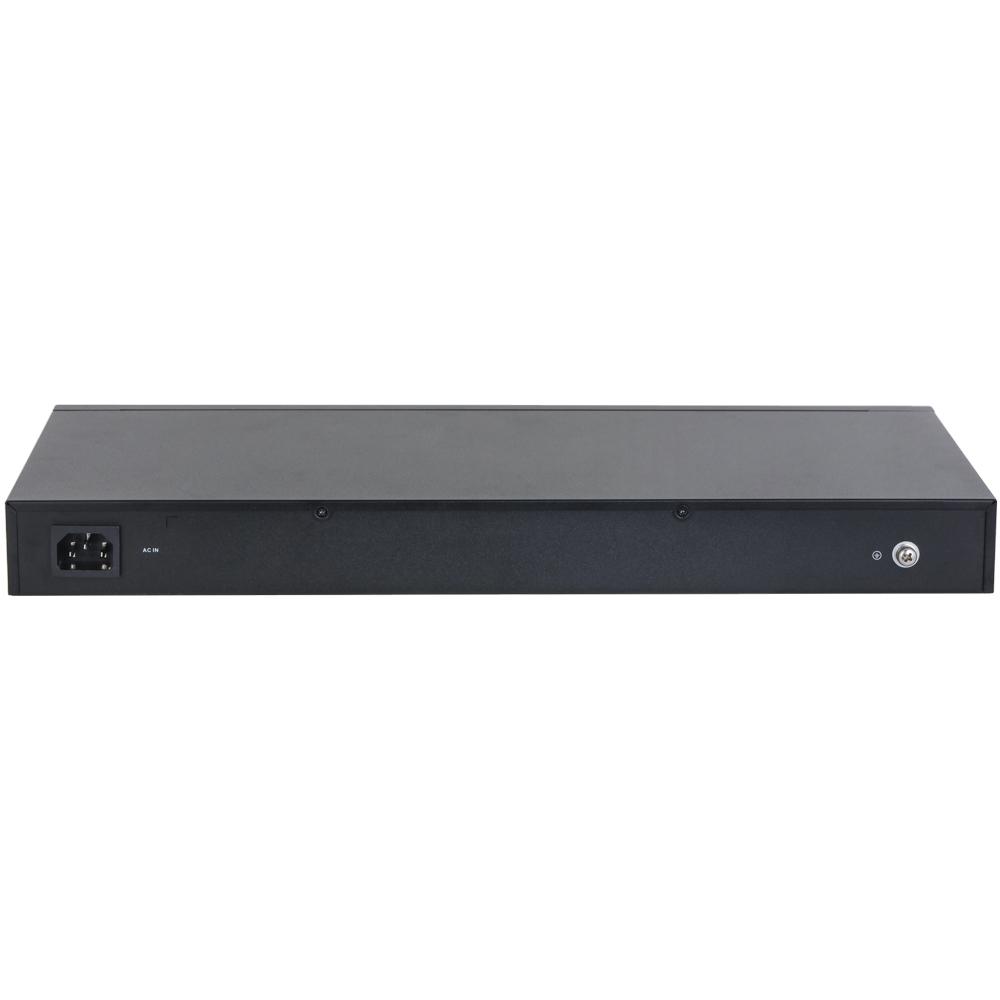

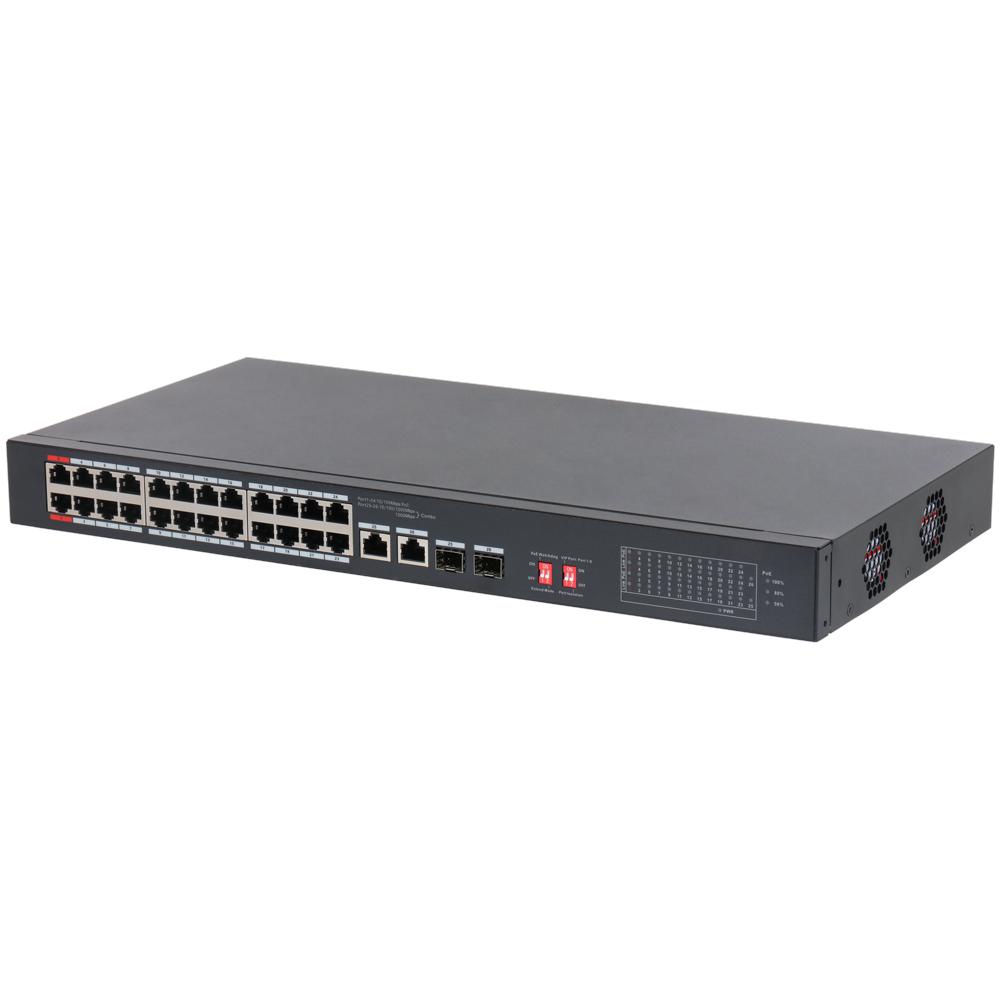

| Specifications for: CY-MS24POE-22-V2: Cymbol 26-Port Unmanaged Desktop Switch with 24-Port PoE | |
|---|---|
| Performance | |
| Management Type | No |
| Switching Capacity | 8.8 Gbps |
| Packet Forwarding Rate | 6.55 Mpps |
| Packet Buffer Size | 4 Mbit |
| Jumbo Frame | 15K Byte |
| MAC Table Size | 8K |
| Communication Standard | IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab; IEEE802.3z |
| Hardware Feature | |
| Included Power Adapter | Yes |
| PoE | Yes |
| Ethernet Port | 24 |
| Ethernet Port Speed | 10/100 Mbps |
| Ethernet Port Uplink Speed | 10/100/1000 Mbps |
| Optical Port Uplink Speed | 1 Gbps |
| Description of Function Slots | Port 1–24: 24 × RJ-45 10/100 Mbps; Port 25–26: 2 × RJ-45 10/100/1000 Mbps (Combo); Port 25–26: 2 × SFP 1000 Mbps (Combo) |
| Power Supply | Built-in power supply: 100–240 VAC, 50/60 Hz, 4 A |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 5%–95% (RH), non-condensing |
| Storage Temperature | –40 °C to +75 °C (–40 °F to +167 °F) |
| Storage Humidity | 5%–95% (RH), non-condensing |
| Power Consumption | Idling: ≤8.5 W; Full load: 265 W |
| Feature | |
| PoE Protocol | IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt |
| PoE Power | Port 1–2 ≤ 90 W, Port 3–24 ≤ 30 W, total ≤ 240 W |
| PoE Pin Assignment | 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) |
| Long Distance PoE Transmission | Yes (up to 250 m) |
| General | |
| Statics Protection | Air discharge: 8 kV; Contact discharge: 6 kV |
| Lighting Protection | Common mode: 4 kV; Differential mode: 2 kV |
| Net Weight | 2.47 kg (5.45 lb) |
| Gross Weight | 3.12 kg (6.88 lb) |
| Product Dimensions | 440 mm × 220 mm × 44 mm (17.32" × 8.66" × 1.73") (L × W × H) |
| Packaging Dimensions | 540 mm × 342 mm × 90 mm (21.26" × 13.46" × 3.54") (L × W × H) |
| Casing Material | Sheet metal |
| Installation | Desktop mount; DIN-Rail mount |
| Certifications | CE |
