Dante 4-Channel Audio DSP - v2

Description

Dante 4-Channel Audio DSP - v2

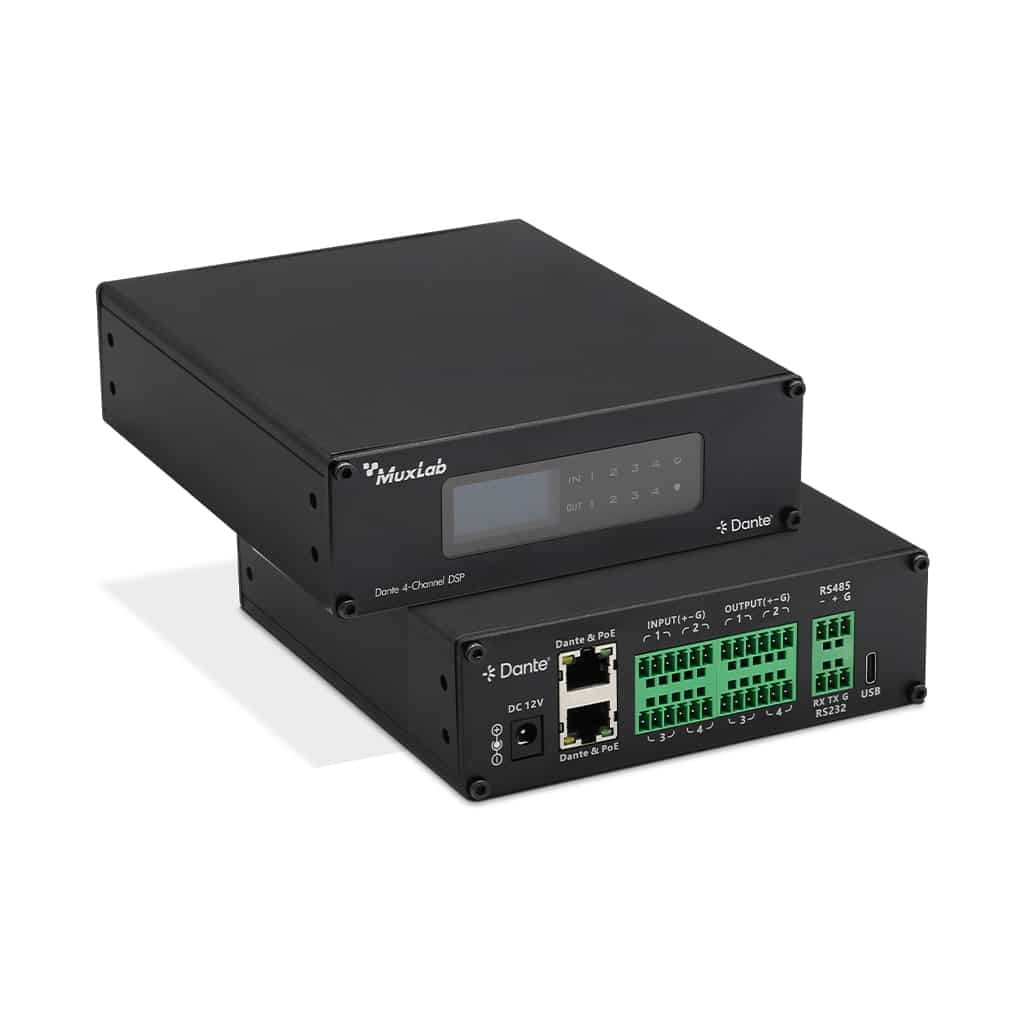

The Dante 4-Channel Audio DSP (Model 500556-V2) is a product developed for the transmission, routing, and processing of audio signals in Dante networks. It can perform high-quality, low-delay audio transmission, supports 4-way input and output balanced analog channels, and can be powered via PoE from any PoE network switch or via a 12V DC power supply. This processor supports 4-way analog audio signal balance input and output, 4-way Dante digital audio signal input, and the 4-way Dante digital audio signal output. It also features a USB audio card that supports one channel of audio input and one channel of audio output. The device has one of the best DSP algorithms in the industry that includes options such as AEC, AFC, ANC, Ducker, Compressor, Limiter, Mixer and Graphic Equalization among others; In addition, the product provides PC version control software to monitor and operate all the functions on the DSP in an easy and intuitive way.

• Built-in Dante module
• Supports PoE power from PoE network switches or via a 12V DC power supply Features 4 balanced inputs and 4 balanced outputs
• Features a USB sound card
• The input supports 48VDC phantom power supply
• DSP processing functions include gain adjustment, stage parameter equalization, compressor, ducker, mixer,
• graphic equalization, limiter, setting, etc
• Provides software for the Windows platform to manage all audio operations API provided for RS232, RS485 and TCP/IP control
• Supports AES67 RTP audio transport
