Digital Audio Standards Converter

Description

Digital Audio Standards Converter

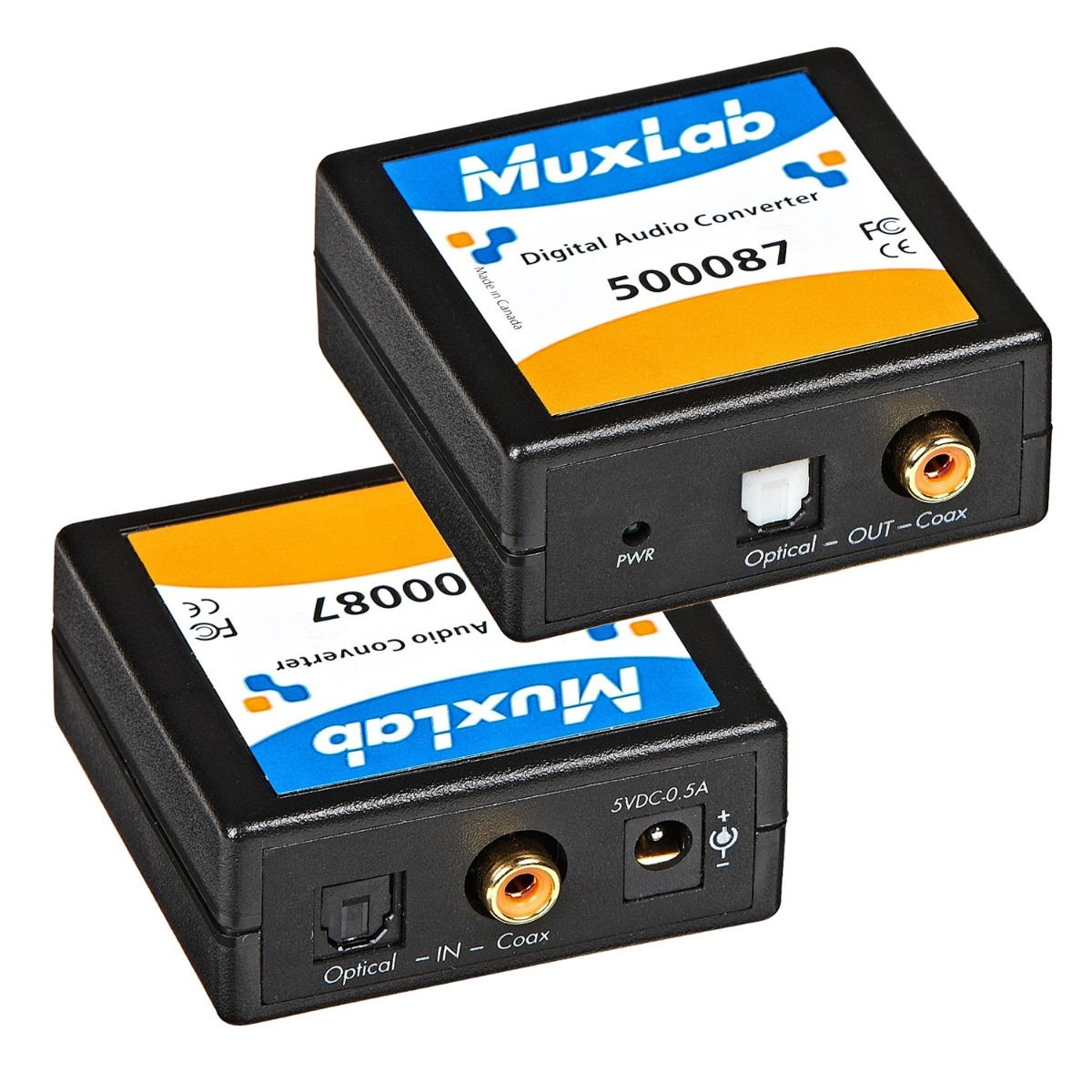

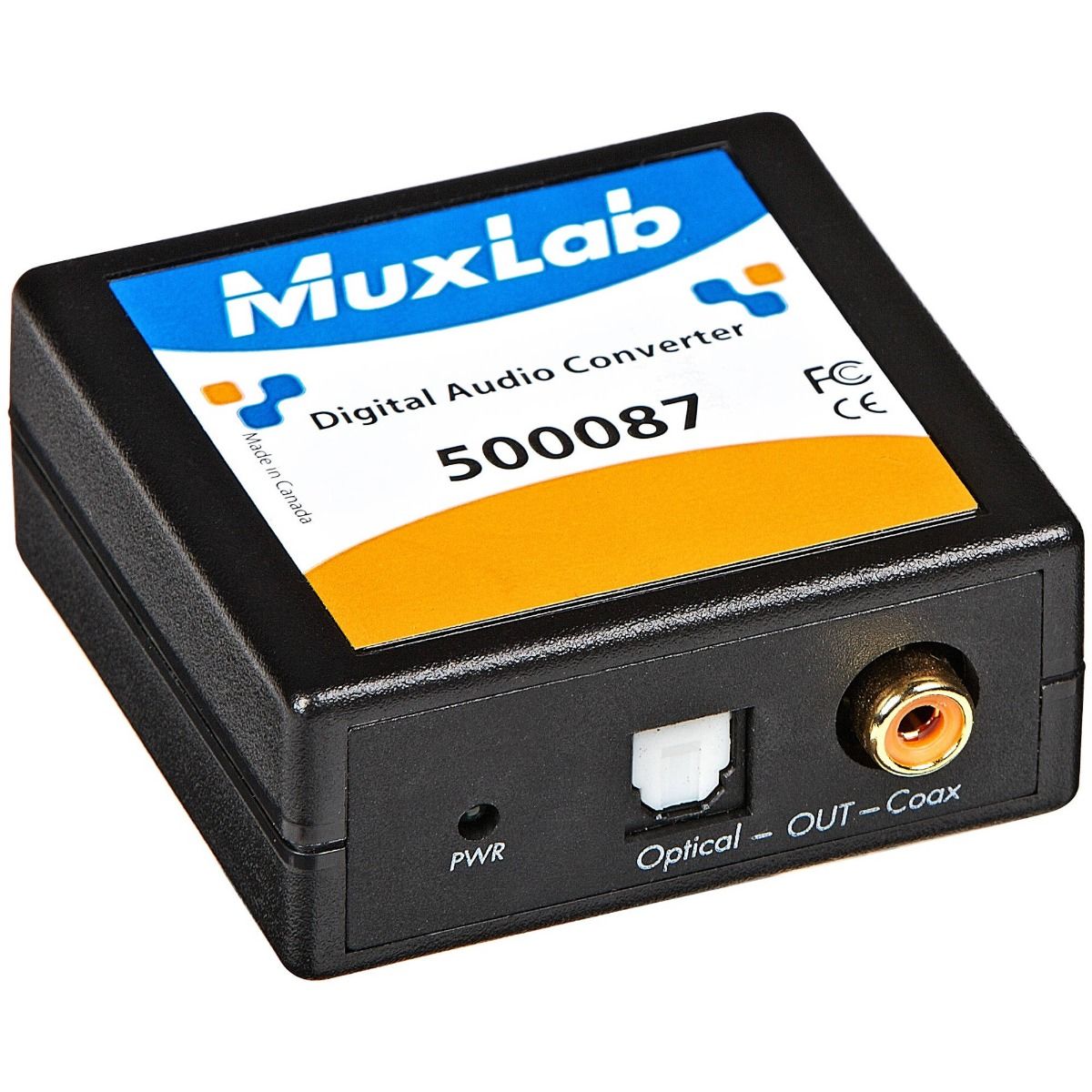

The MuxLab Digital Audio Converter (500087) is a versatile digital audio standards converter*.

The product allows one (1) Digital Coax (S/PDIF), or Digital Optical (TOSLINK) source to be connected to a Digital Audio Receiver supporting either Digital Coax (S/PDIF), or Digital Optical (TOSLINK) inputs.

The converter supports most standards to transmit two channels of uncompressed lossless PCM audio or compressed 5.1/7.1 surround sound, such as Dolbyr Digital Plus or DTS-HD High Resolution Audio (multichannel digital audio Dolby Digitalr 5.1, DTS, and Dolbyr True HD).

For a Digital Audio Standards Extender and Converter over Cat5e/6 to a distance of up to 500ft / 150m, please see part number: 500086

• Converts Digital Optical (TOSlink) to Digital Coax (S/PDIF)
• Converts Digital Coax (S/PDIF) to Digital Optical (TOSlink)
• Outputs simultaneous regardless of input signal type
• Sample rate: up to 96kHz
• Bit rate: 24bit S/PDIF compressed and uncompressed bit stream
• Input: one (1) Digital Coax RCA (S/PDIF), one (1) Digital Optical (TOSlink)
• Output: one (1) Digital Coax RCA (S/PDIF), one (1) Digital Optical (TOSlink) – simultaneous
• Switch for selecting between S/PDIF and TOSlink inputs
• 1m Digital Optical (TOSlink) cable included
• Dimensions: 2.4″ x 2.25″ x 1″ (61 x 57 x 25mm)
• Weight: 1lb / 0.45kg
• Manufacturers warranty: 2 years
• Power supply: 110-240V / 5V DC 0.5A with interchageable blades
• Order information: 500087
•
