Description

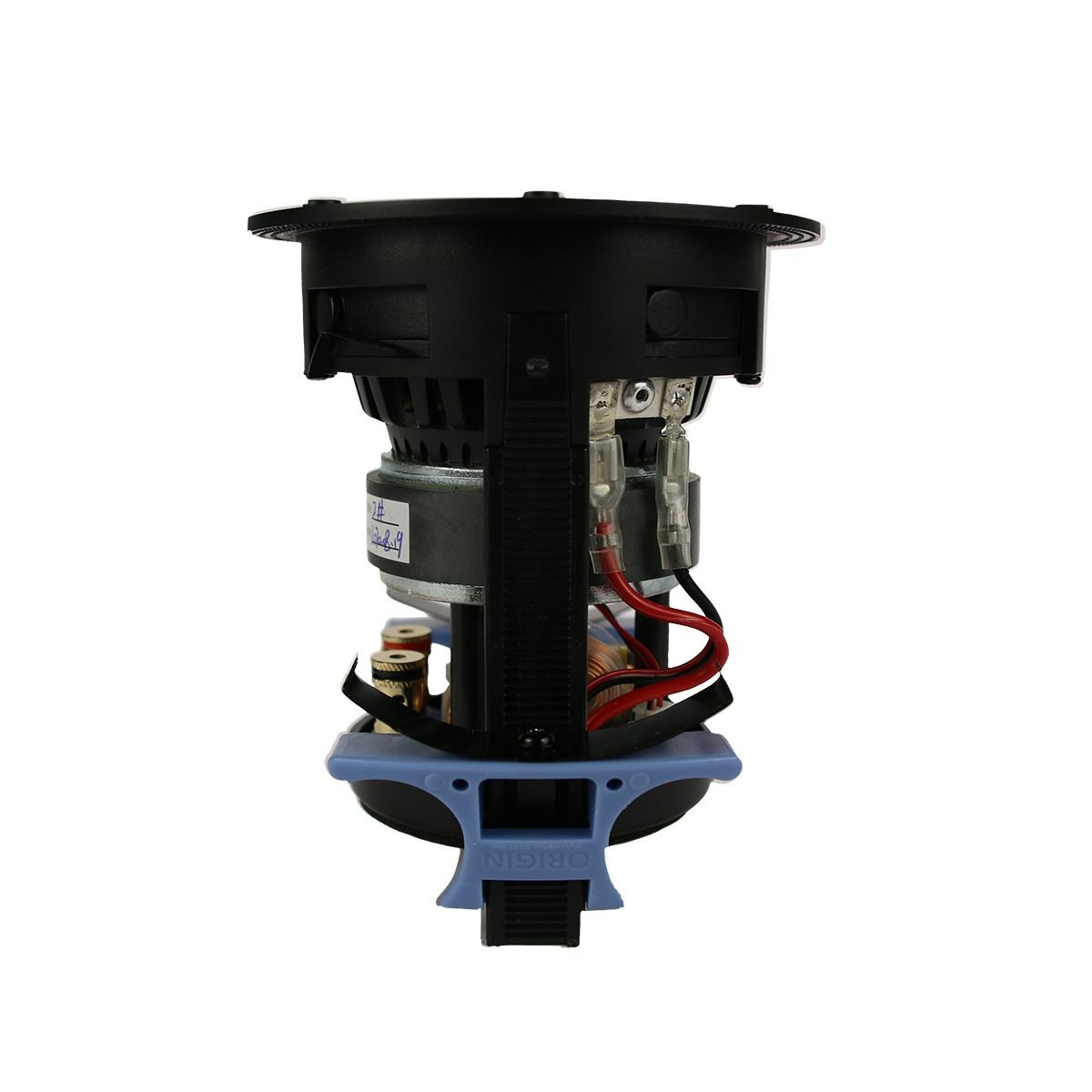

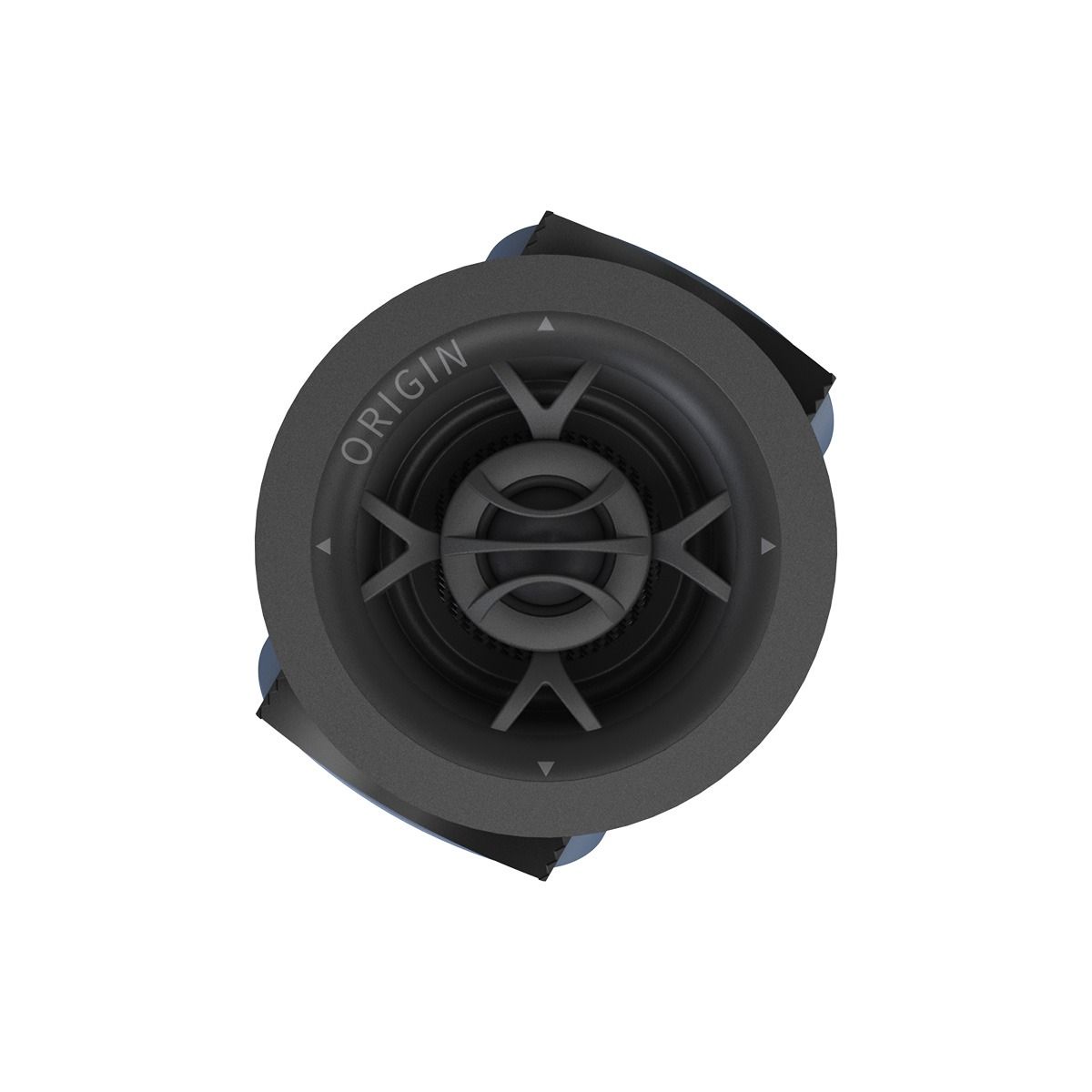

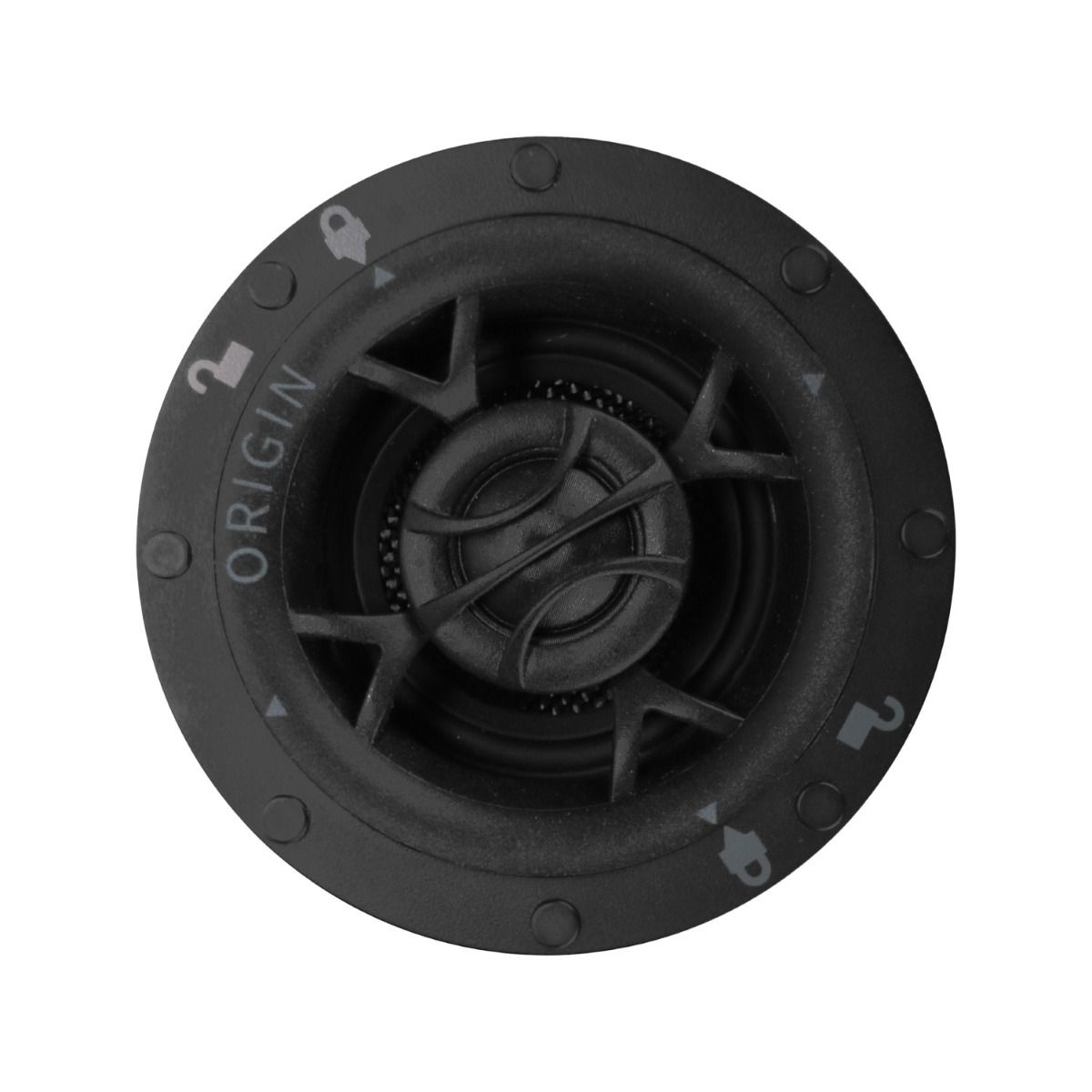

Director 3″ Minimal Opening In-Ceiling Speaker with Kevlar® 3″ Woofer, silk DPSD tweeter, and Tool-Less Installation System. Includes both Square and Round 4 ¼” Magnetic Grilles.
- 3" Kevlar Woofer
- 3/4" (20mm) Silk DPSD Tweeter
- Tool-less Installation
- Magnetic Grille
- Frequency Response: 100Hz-20kHz ± 3dB
- Power handing: 30-100 Watts
- Nominal Impedance: 10Ω

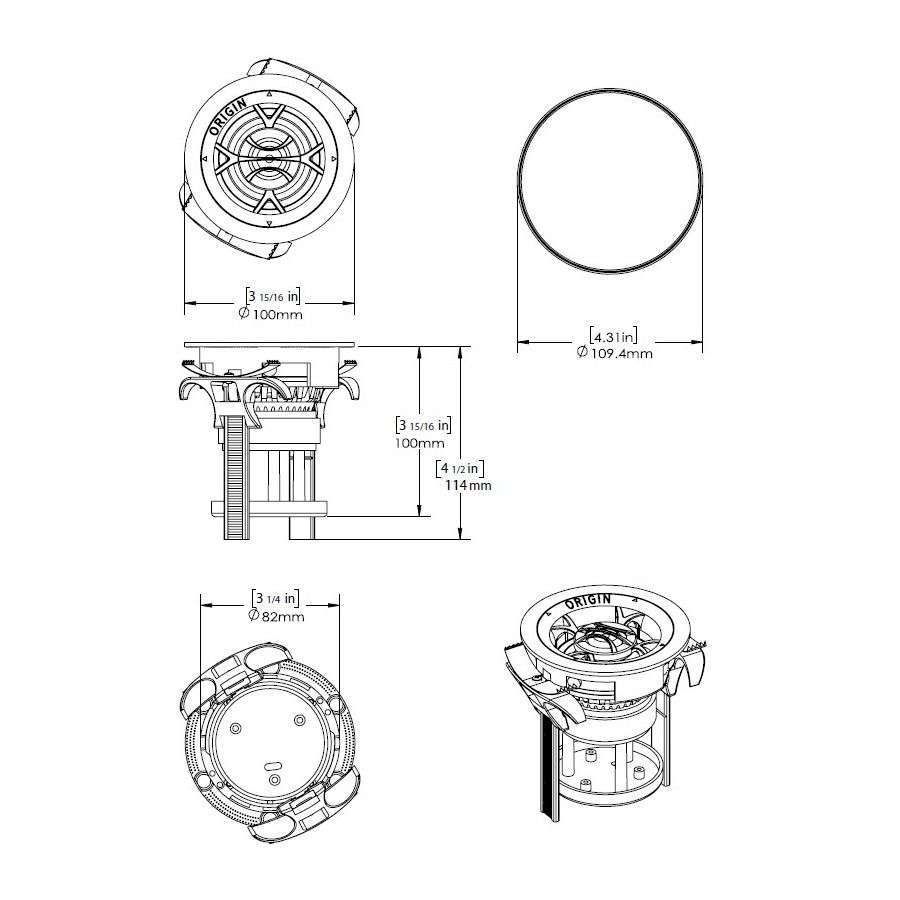

- Mounting Depth: 3 ¹⁵⁄₁₆” (100mm)
- Cutout Diameter: 3 ¼” (83mm)
- Grille Diameter 4 1/4" (108mm)
-
Accessories:
- Rough-In Ring:
- Replacement Bayonet/ Grille :
Minimal Opening
The increasing popularity of smaller recessed light openings has created a huge demand for speakers that “line up” with ceiling lighting.
Designed with architects and interior designers in mind, the Minimal Opening 3'' Series aesthetically matches highend 4'' can lights. Delivering even under the meticulous constraints of the interior design community, they leave the smallest visible imprint, whether the lights are square or round, without compromising sound quality.

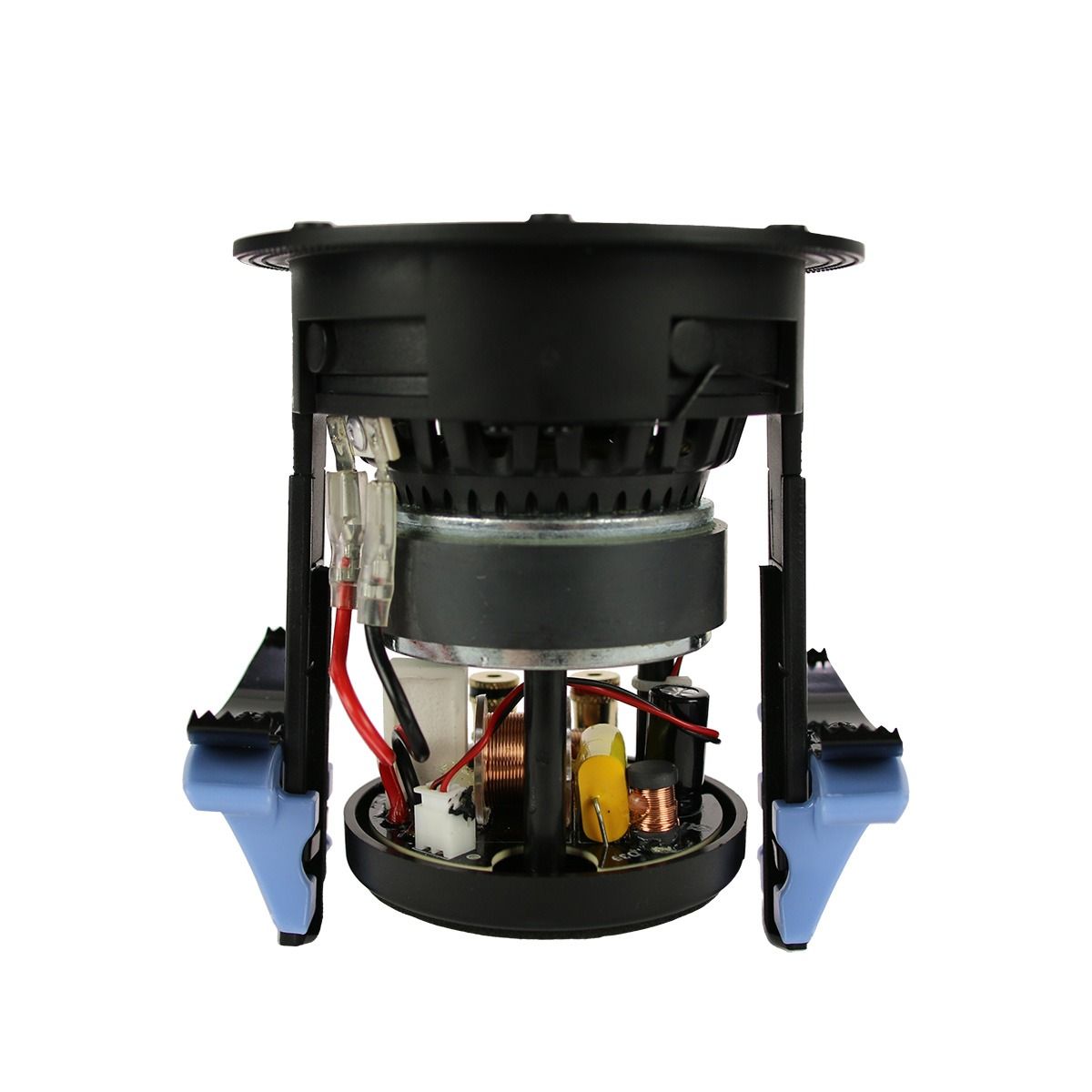

Tool-Less Installation
Interchangeable, secure, elegant. This is the way in-ceiling loudspeakers are meant to be installed. The Director Collection utilizes our tool-less mounting system to provide secure installation in any ceiling. The spring-loaded clips with multiple points of contact ensure the weight is distributed more evenly than traditional dog-legs which protects your ceiling and decreases unwanted vibration transfer.
Dual Plane Stabilized Diaphragm (DPSD™)
A patented tweeter design that improves high-frequency performance, the DPSD™ radiator uses a unique suspension design that prevents distortion and increases loudness. The suspension is attached at both the voice-coil and the peak of the dome allowing the driver to be crossed over at a much lower frequency. This results in improved dispersion and decreased distortion.
X-Wave Woofer Surround
When a speaker cone reaches its limit of movement and comes to a hard stop, unwanted waves ripple up and down the cone. This is much like a wave hitting the edge of a pool and reflecting back in the center of the water. Our X-Wave Woofer Surround progressively absorbs that impact, preventing unwanted sonic distortion and improving the overall fidelity of the loudspeaker.
Compression Molded Woofer Baskets
Using time tested and true technique of compression molding, we are able to design and produce woofer baskets that are both highly stable and acoustically neutral. The end result is a reduction in distortion without coloration from the basket itself.
