Double Dali Bus Kit with Dali Power Supply

Control4® Double DALI Bus Kit with DALI Power Supplies

If you're new to DALI lighting projects or just want an easy way to order, this kit has got you covered. This kit includes everything you need to run two DALI Busses with 64 fixtures/channels for each bus for 128 fixtures/channels. Snap One has handled all the calculations and bundled the gear for you so you can focus on other important tasks. The use of Control4's eDIDIO driver for Composer is as fast and efficient as using this software bundle.

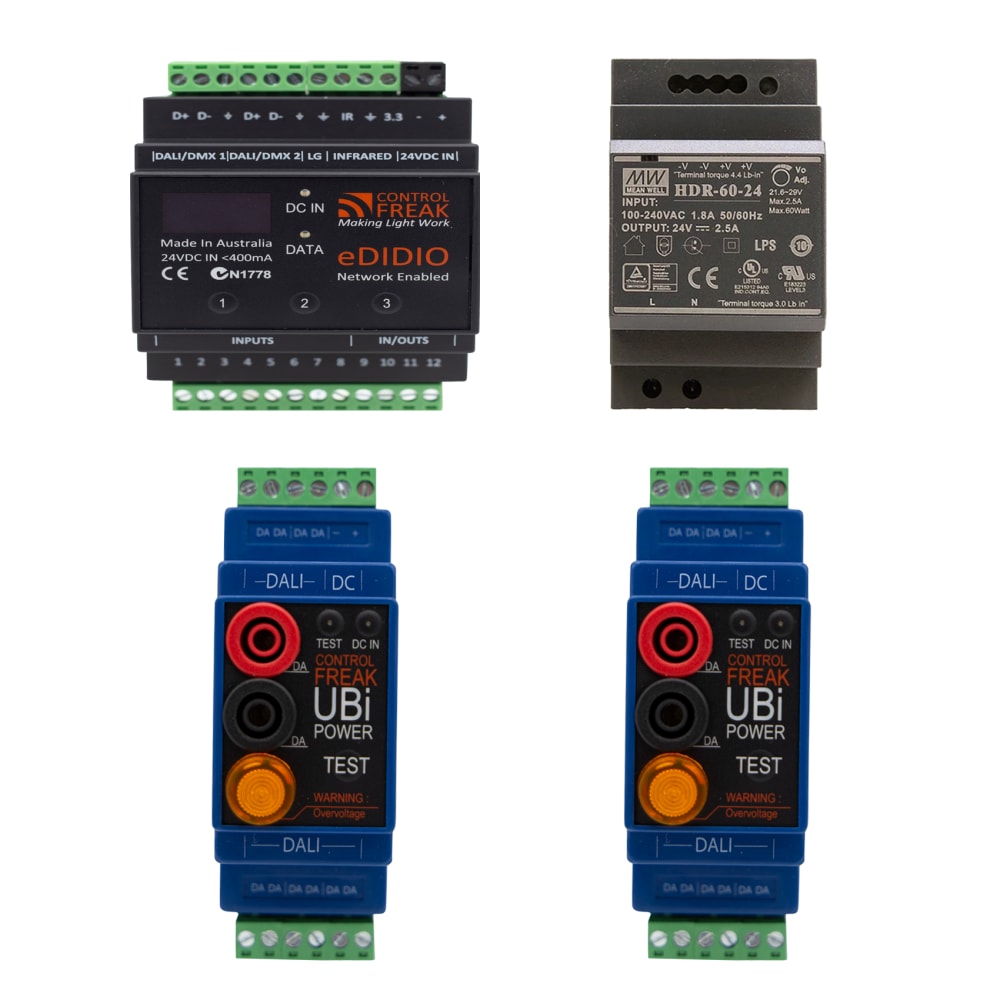

Each kit includes:

• 1 CRE-eDIDIO-10-2D Creative Lighting DALI Universe Digital Lighting Gateway
• 1 HDR-60-24 Mean Well DIN Rail 60W 24V Power Supply
• 2 CRE-UBI-V2-PWR Creative Lighting DALI Power 21V DC

Creative Lighting DALI Digital Lighting Gateway

The eDIDIO S10 1D modular DALI Gateway is an intelligent lighting controller that supports one line/bus of DALI control. The gateway is compliant with DALI-2 and thus also works with DALI version 1 devices.

Mean Well DIN Rail 60W 24V Power Supply

The HDR-60-24 is a 60W 24V power supply for use with the Creative Lighting eDIDIO Ethernet Gateways. The power supply is ultra slim and adaptable to for installs on DIN Rails (TS-35/7.5IN or TS-35/15 mounting rails).

Creative Lighting UBi Power - DALI Power Supply & Line Breakout

Fed up with twisted DALI cables? Want a fast way to disconnect the controller and line parts during commissioning? Need a safer, quicker way to connect to the DALI line? Every UBi Power can create up to 5 branches of a DALI line. Put a DALI line into one of the 2-way pluggable terminals, and then use any combination of the 4 remaining terminal pairs to route your cable. Or, power a UBi Power with 24VDC, and it will power your DALI line with 21.9VDC 245mA and still give you 5 DALI connections – one for your DALI controller and four to branch however you like.
