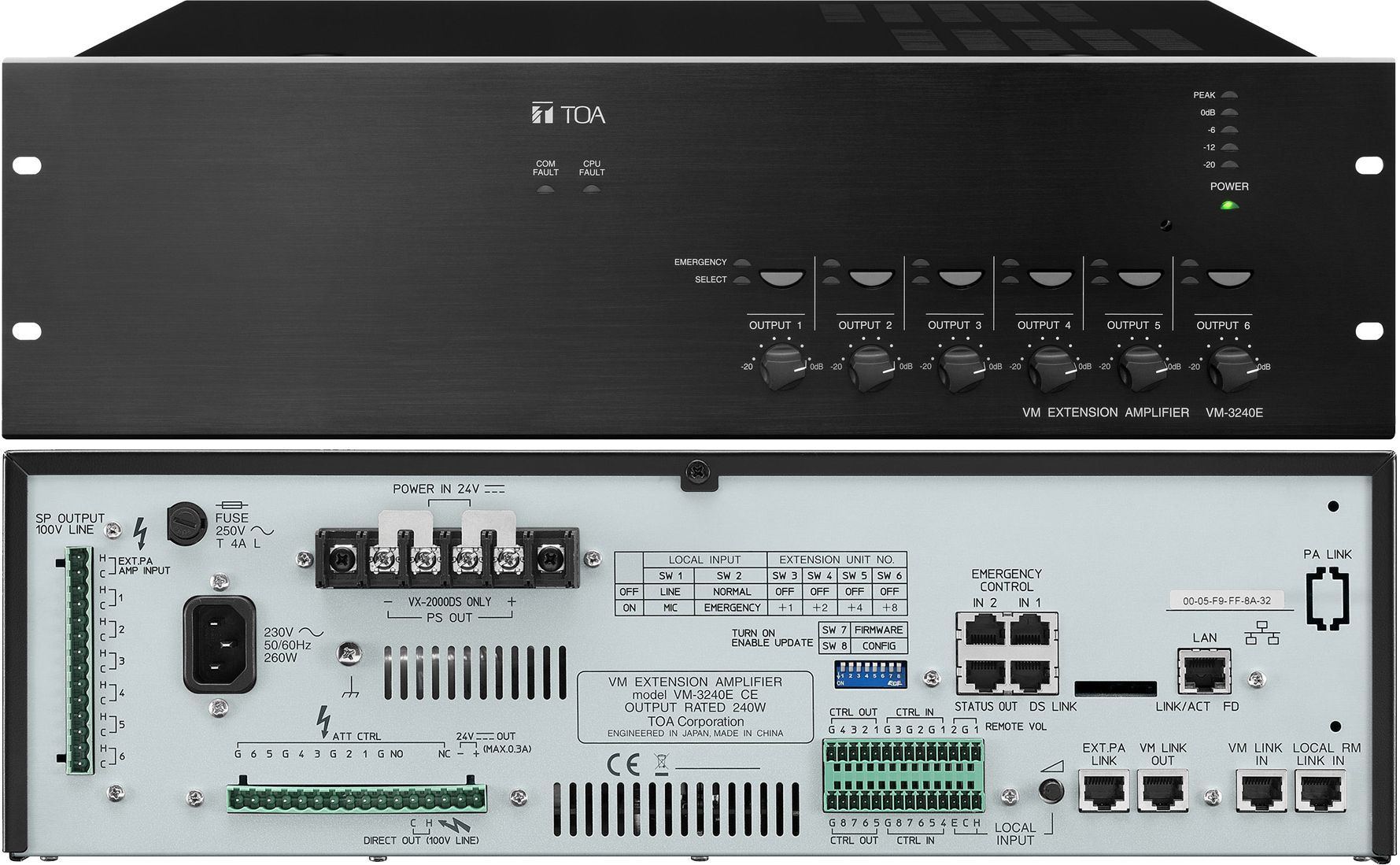

| Power Source |
120 V AC, 60 Hz |
| Power Consumption |
690 VA (at rated output), 260 W (According to UL60065), 63 W (at no signal) |
| Rated Output |
240 W, 21 Ω (according to UL60065)
200 W, 25 Ω (according to UL2572)
200 W, 25 Ω (according to CAN/ULC-S576 with separate UPS)
100 W, 50 Ω (according to CAN/ULC-S576)
(All total of Speaker output 1 – 6 and Direct Output)
|
| Frequency Response |
50 Hz – 20 kHz, ±3 dB (at 1/3 rated output), 800 Hz – 2.8 kHz (according to UL2572); 400 Hz – 4 kHz (according to CAN/ULC-S576) |
| Distortion |
Under 0.7% (at rated output, 1 kHz) |
| S/N Ratio |
Over 85 dB |
| Input |
External amplifier Input: 70 V line, removable terminal block (14 pins)
Local Input: –50 dB* (MIC) / –10 dB* (LINE) (changeable), 600 Ω, electronically balanced, removable terminal block (14 pins) |
| Output |
Speaker output 1 – 2: Max. (240 W) per output
Speaker output 3 – 6: Max. (100 W) per output
Speaker output 2 – 6: Total within rated output, removable terminal block (14 pins)
Allowable minimum load: 245 Ω (20 W) at 70 V line for speaker line failure detection
Direct output: Direct output from internal or external amplifier, removable terminal block (16 pins) |
| VM Link |
Input: Connecting the VM-3240VA AMQ; RJ45 female connector
Output: Connecting the VM-3240E AMQ; RJ45 female connector
Link cable: Category 5 Shielded Twisted-Pair straight cable (CAT5-STP) |
| General Control |
Input 1 – 8: No-Voltage make contact input, open voltage: 24 V DC, short-circuit current: 2 mA or less, removable terminal block (14 pins)
Output 1 – 8: Isolated open collector output, withstand voltage: 30 V DC,operating current: 10 mA or less, removable terminal block (14 pins) |
| Emergency Control |
Input 1 – 5: No-Voltage make contact input, open voltage: 24 V DC, short-circuit current: 2 mA or less, RJ45 female connector
Input 6: Isolated voltage input, Inactive: –24 V±20%, Active: +24 V±20%, RJ45 female connector
Status out: Relay contact output, withstand voltage: 40 V DC, operating current: 2 – 300 mA, RJ45 female connector |
| Power Input/Output |
Power in: Connecting the VX-2000DS AMQ only (operating range: 20 – 40 V DC);
PS out: 28 V DC / 18 A;
M4 screw terminal, distance between barriers: 11 mm |
| 22 V DC Output |
22 V DC Special Applicaiton, Maximum feeding current 0.3 A (for RM-200M only) |
| DS Link |
Connecting the VX-2000DS, RJ45 female connector;
Link cable: Category 5 Shielded Twisted-Pair straight cable (CAT5-STP) |
| Finish |
Panel: Aluminum, hair-line, black; Case: Surface-treated steel plate, black, paint |
| Operating Temperature |
0 to 49°C (32 to 120°F) |
| Operating Humidity |
5% to 95% RH (no condensation) |
| Dimensions |
482 (W) × 132.6 (H) × 407 (D)mm (18.98” x 5.22” x 16.02”) |
| Weight |
16.5kg (36.38 lbs) |
| Accessories |
AC power cord (2m) × 1, Link cable (3m) × 2, Plastic foot × 4, Plastic foot mounting screw × 4, Removable terminal plug (14 pins) × 3, Removable terminal plug (16 pins) × 1 |
| UL Certified |
UL 2572 and CAN/ULC-S576 |
