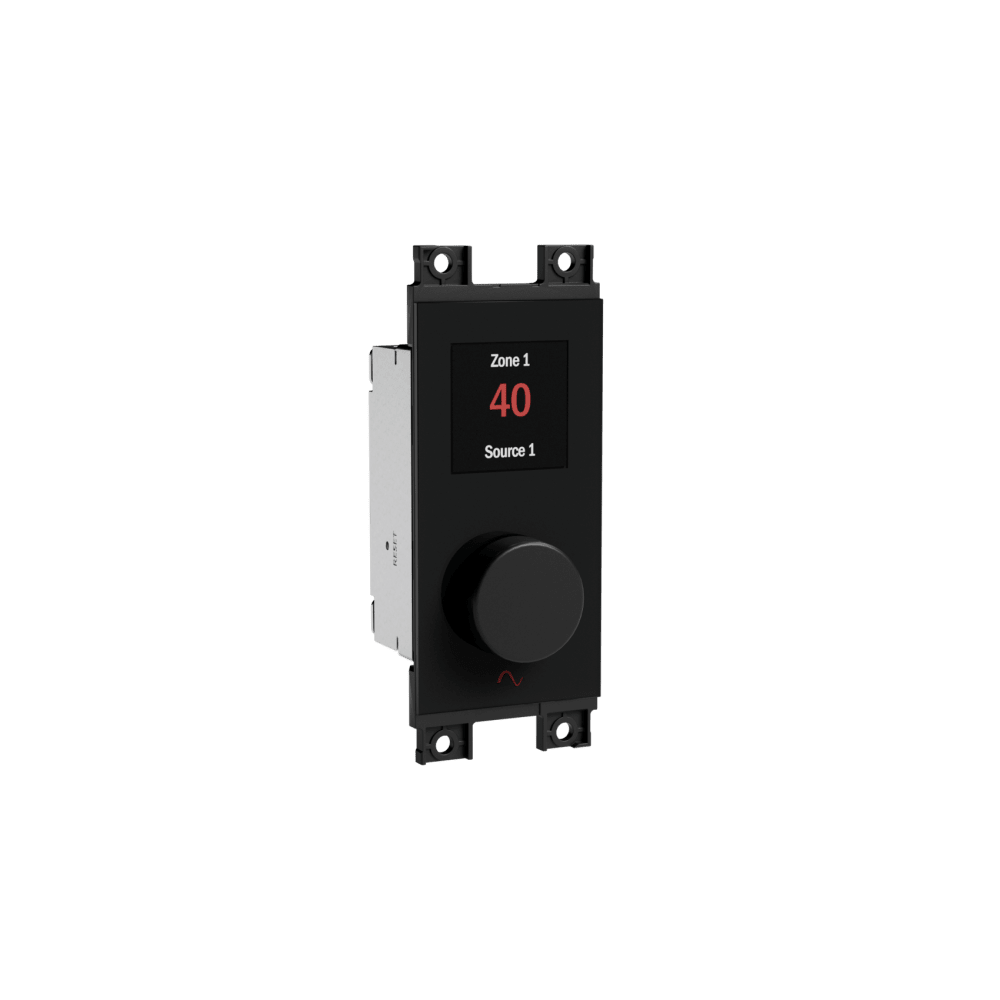

Zone/Source Controller Wall Plate for Episode Business Music DSPs
Episode Business Music Solution (EBMS) brings the Episode sound trusted by professionals worldwide to even more projects, with an extensive catalog of enterprise-level audio solutions for restaurants, gyms, retail spaces, and beyond. The fully configurable zone controller wall plate is IP54-rated to withstand any environment, features a high-resolution color display, and is PoE-powered for ultimate control flexibility.
Important Note: EA-COM-WP-ZONE-BL/WH is compatible with the Episode Business Music Digital Signal Processors. MixAmp compatibility is not currently available.
Intuitive Control for the Episode Business Music DSPs
The fully configurable zone controller wall plate enables source and zone control at any level throughout the space from a single controller, offering intuitive navigation with an easy-to-read, high-resolution color screen. It even works with Control4 systems for easy upgrades later.

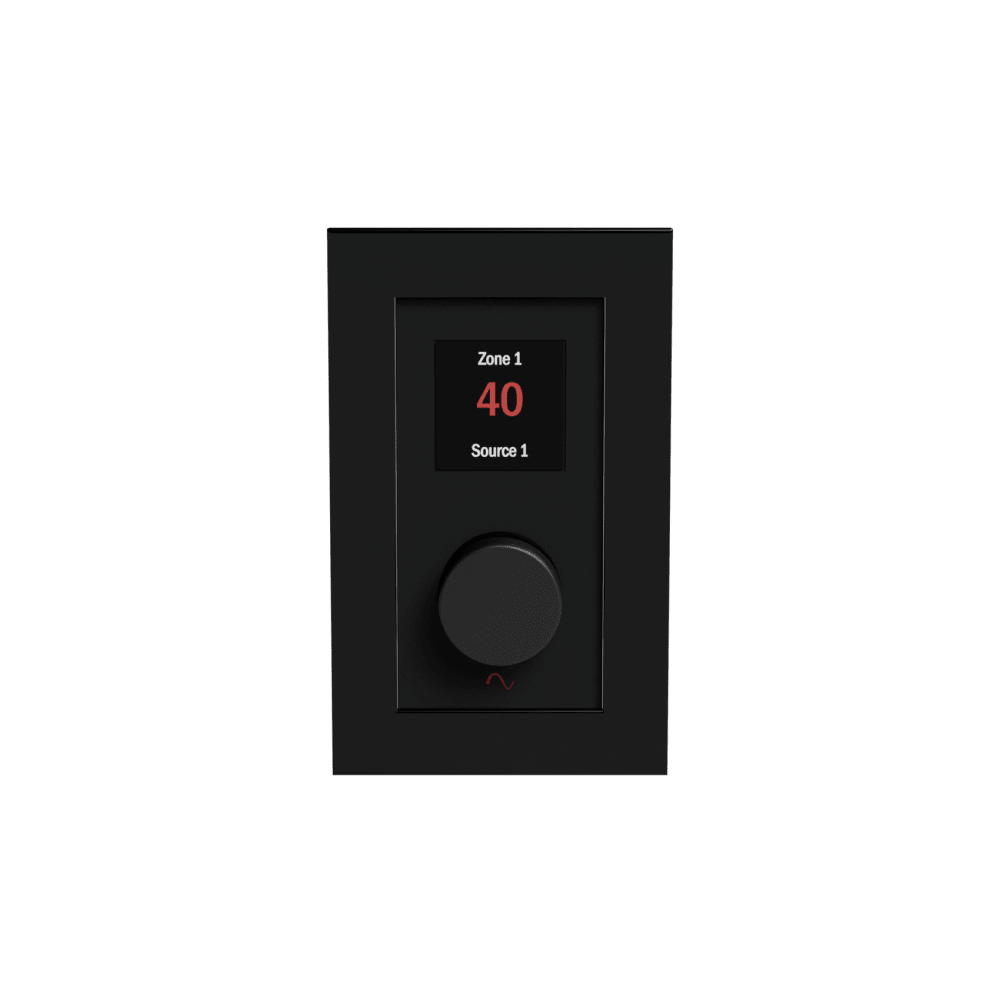

High-Resolution Color Display
The easy-to-read, high-contrast color display allows for easy navigation for any client, while light and dark modes enable it to blend in with any space.
Fully Installer Configurable for Best Client Experience
Don't want your client to access a specific source? No problem. Do you want to prevent them from controlling the volume in a particular zone? Done. While the Zone Controller allows for maximum control and flexibility, it also provides the installer with complete control, ensuring that even the least tech-savvy clients can have an intuitive and easy experience.

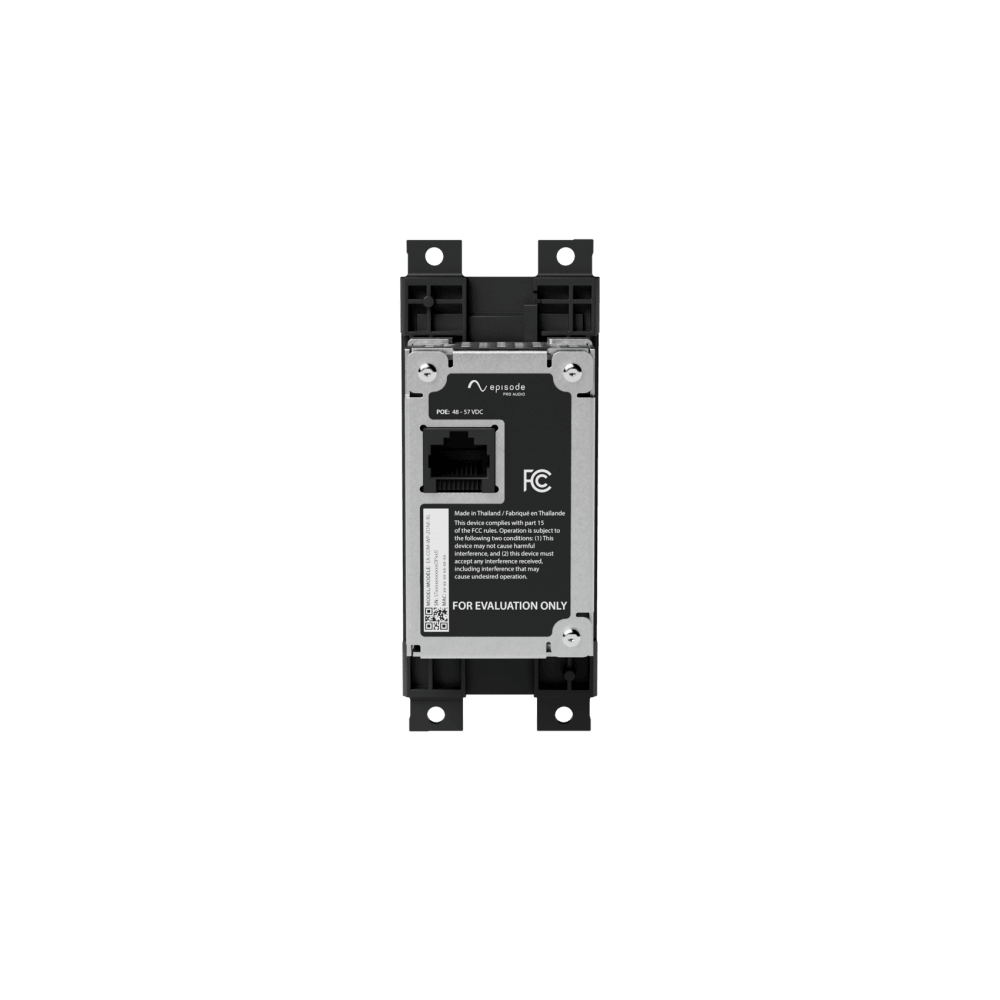

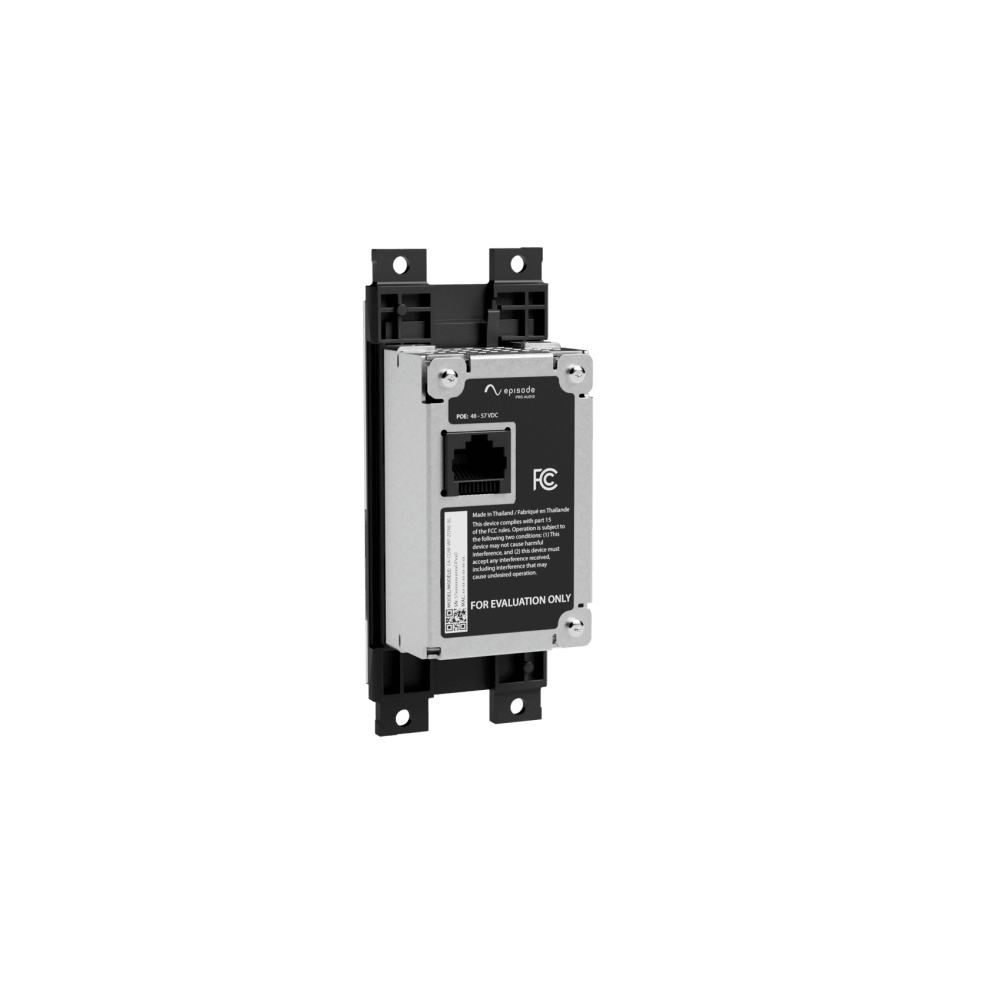

PoE Powered and Network Connected
Powered and controlled via a single CAT5e/6 cable connected to the network, this system offers easy installation and maximum control flexibility — you aren't limited to controlling one DSP in a space. Control any zone or source regardless of which zone controller you are at.
Maximum Durability in Any Environment
Being IP54 rated means this wall plate can withstand any indoor commercial space, from a busy kitchen to an indoor pool, and everything in between.
Patented Installation System
The exclusive, patented installation system is precisely engineered to provide a maximum working area and perfect alignment in a junction box or when installed straight into a wall. Side-by-side installation of multiple units provides a seamless, premium look. (Compatible with Control4 Lux 2-gang and 3-gang faceplates, sold separately)
Available in Gloss White and Gloss Black
Its premium, scratch-resistant finish provides a professional, clean look for years to come in any environment. Single-gang faceplate included.
OvrC-Enabled
Utilize OvrC to simplify the complexity of setting up an audio system, allowing you to remotely monitor, configure, and troubleshoot without rolling a truck. Set up and tweak zones for the entire project, adjust the volume up or down, change EQ settings for zones, switch sources, and more, all in one easy-to-use platform.
Security Updates
Until at least March 1st, 2031. For more information on our End of Life Policy and support see here.
