aton RCCPL108 Outdoor Main Lug Load Center – Web Description
The Eaton RCCPL108 is a 125 Amp, single-phase main lug load center designed to provide reliable power distribution for residential and light commercial electrical systems. Featuring 8 spaces and up to 16 circuits, this load center operates on 120/240VAC, 1-phase, 3-wire systems and is housed in a NEMA 3R weatherproof enclosure, making it suitable for both indoor and outdoor installations.
Designed for use with Eaton Type BR plug-on circuit breakers, the RCCPL108 incorporates a plug-on neutral design that simplifies installation of AFCI and GFCI breakers by reducing wiring and improving panel organization. Its compact enclosure makes it an excellent choice for subpanels, detached garages, workshops, outdoor service equipment, and other branch circuit distribution applications.
Key Features
- 125 Amp main lug load center
- Single-phase, 120/240VAC, 3-wire system
- 8 spaces with capacity for up to 16 circuits
- NEMA 3R rainproof enclosure for indoor or outdoor use

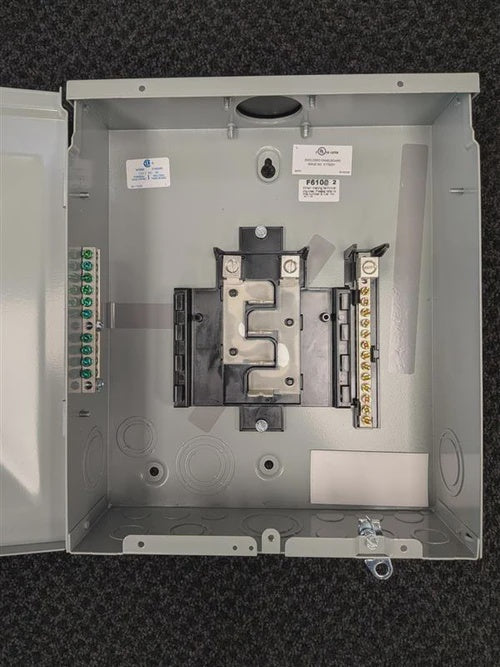

- Plug-on neutral design for faster, cleaner installation
- Compatible with Eaton Type BR plug-on circuit breakers
- Supports plug-on neutral AFCI and GFCI breakers
- Compact, corrosion-resistant enclosure
- Ideal for subpanel and outdoor power distribution applications
Applications
- Residential subpanels
- Detached garages
- Workshops
- Outdoor electrical distribution
- Utility buildings
- Service entrance equipment (where permitted)
- Home additions and renovations
- Light commercial electrical systems

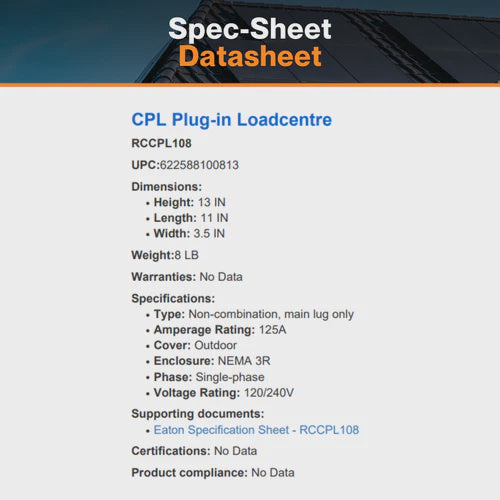

Technical Specifications
| Specification |
Details |
| Brand |
Eaton |
| Model |
RCCPL108 |
| Product Type |
Main Lug Load Center |
| Main Rating |
125A |
| Electrical System |
Single-Phase, 3-Wire |
| Voltage Rating |
120/240VAC |
| Spaces |
8 |
| Maximum Circuits |
16 |
| Enclosure Type |
NEMA 3R (Outdoor/Rainproof) |
| Breaker Compatibility |
Eaton Type BR Plug-On Breakers |
| Neutral Design |
Plug-On Neutral |
| Dimensions |
13.0 in. (H) × 11.0 in. (W) × 3.5 in. (D) |
| Mounting |
Surface Mount |
| Installation |
Indoor or Outdoor |
Compatible Accessories
- Eaton Type BR single-pole and two-pole circuit breakers
- Plug-on Neutral AFCI circuit breakers
- Plug-on Neutral GFCI circuit breakers
- BR tandem circuit breakers (where permitted by panel labeling)
- Ground bar kits and panel accessories
The Eaton RCCPL108 offers a compact, durable, and efficient solution for branch circuit distribution. Its weather-resistant NEMA 3R enclosure, 125 Amp capacity, and plug-on neutral technology make it an excellent choice for outdoor subpanels, detached structures, workshops, and residential or light commercial electrical installations requiring dependable performance and simplified wiring.
