Fusion 5X 2.0 Yagi- Ultra Slim Dome Kit

Description

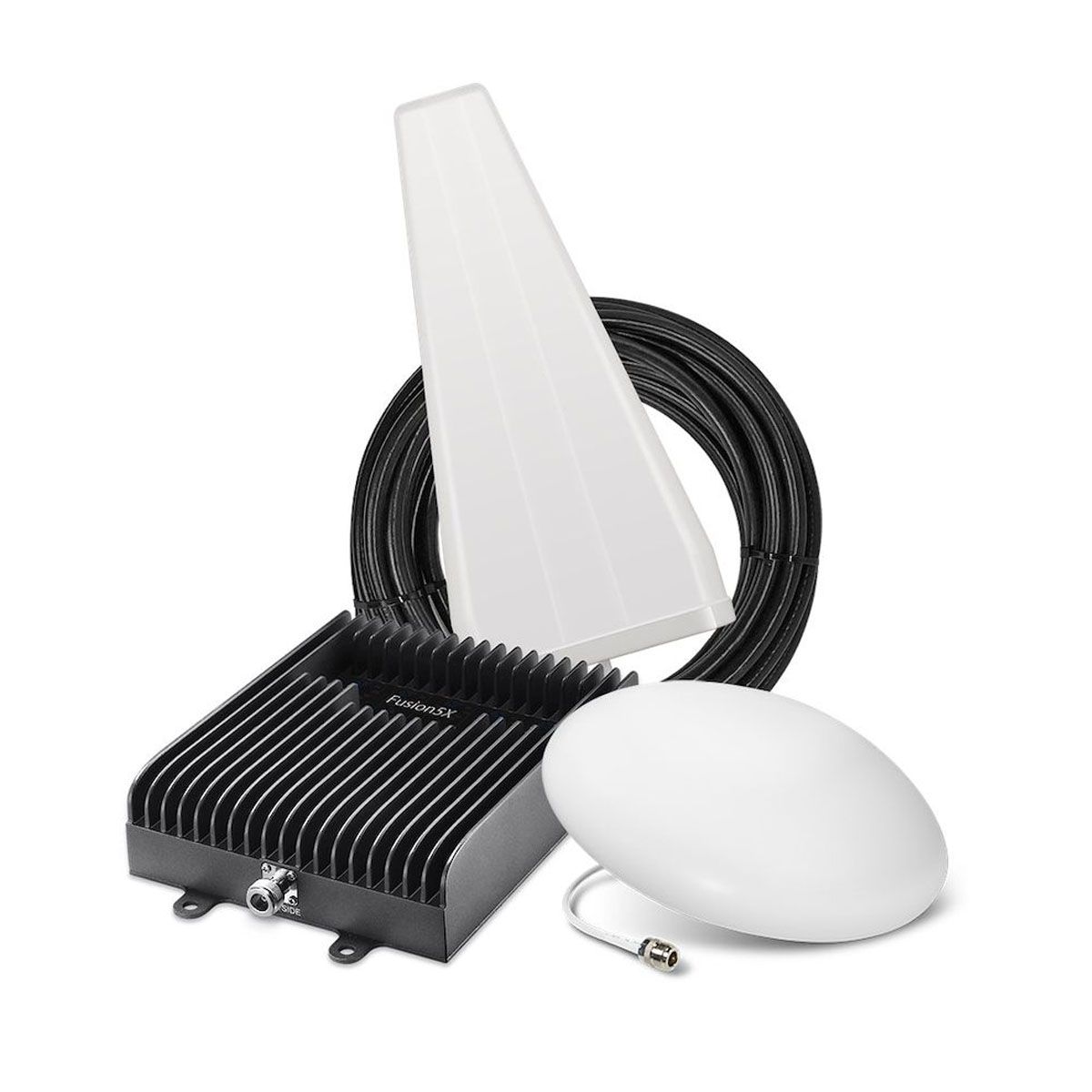

SureCall Fusion5X 2.0 Yagi/Ultra Thin Dome Signal Booster Kit

The SureCall Fusion5X 2.0 signal booster kit is designed to handle any type of signal environment and provide maximum coverage inside with +16 dBm of downlink power.

It features the new SureIQ technology, which allows the amplifier to adjust it's boosting power all of the way down to 0, so it can handle any strength of outside signal without overloading. It will boost all of the networks from the major carriers in North America, so it's the perfect solution for any large home or business.

Outside Antenna
Yagi Outside Antenna: This antenna has 10 dB of gain and must be aimed and can cover about 75 degrees of the horizon in one direction. Since a directional antenna can only cover a portion of the horizon, you may only be able to cover the carrier(s) with towers in the direction that the yagi antenna is pointing. The advantage is that because they are aimed, they're much more powerful so you'll get more coverage area inside of the building with a directional antenna.

Inside Antenna
Ultra Thin Dome Inside Antenna: This antenna has up to 7.5 dB of gain and a very low profile when mounted to a ceiling compared to the standard dome antenna. You must have access to the backside of the ceiling in order to run a cable to it, so it is an ideal antenna for a drop ceiling panel. Dome antennas typically will only cover a single floor but can possibly cover multiple floors depending on the floor construction in between.

Kit Includes

• Fusion5X 2.0 Signal Amplifier
• Power Supply for Fusion5X 2.0 Amplifier
• 75 ft of 400 Series Cable
• 100 ft of 400 Series Cable
• Yagi Directional Outside Antenna (50 ohm)
• Low Profile Dome Inside Antenna (50 ohm)
• Instruction Manual
