Description
25 years after pioneering the first readily available radio mics, Trantec's foresight and imagination has again taken wireless to a whole new level with their groundbreaking S5 Series. Based upon the award winning S6000, widely used in Theater and broadcast, the S5 Series promises a powerful set of features combined with an exceptional performance/cost ratio. For venues of any size, we suggest you check out the specifications of this remarkable system.

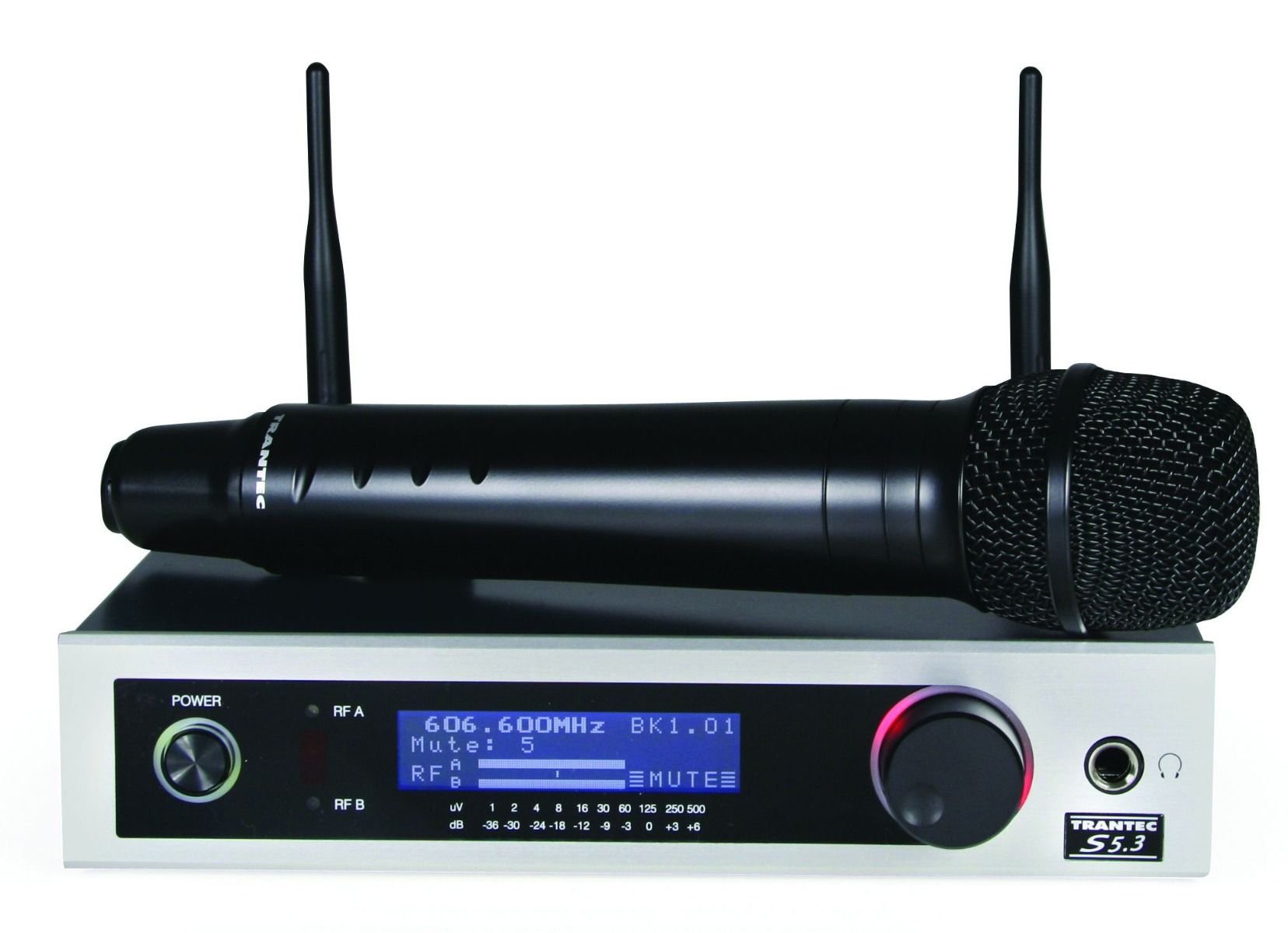

The S5.3, one of our latest multi-channel UHF products, is the little brother of the successful S5.5 system. It will enable you to run up to 12 channels simultaneously at a price you will find hard to match.
Frequency Band Selection: H: 576-607 MHz, UHF
Specifications
S5.3-RX - Receiver
| Power Consumption |
300 mA (13 V DC) |
| Diversity System |
Space diversity (true diversity) |
| Audio Output |
Line: -22 dB*/ Mic: -62 dB* Line/Mic selectable, 600 Ω, balanced, XLR-3-32 type connector Headphone: max. 100 mW 16 Ω, unbalanced, phone jack -28 dB*, 600 Ω, unbalanced, phone jack |
| Antenna Phantom Power |
9 V DC, 30 mA (max) (Available to turn off phantom power) |
| Receiving Sensitivity |
0 dB μV or less (12 dB SINAD) |
| Squelch Sensitivity |
6 - 36 dB μV variable |
| Squelch System |
Using together of noise SQ, carrier SQ and tone SQ |
| Indicator |
LCD, Power lamp, Mute lamp, ANT A/B lamp |
| S/N Ratio |
110 dB or more (A-weight) |
| Harmonic Distortion |
1% or less (typical) |
| Frequency Response |
50 Hz - 20 kHz, ±3 dB |
| Function |
Battery indicator (7 steps), Headphone output, Infra-Red link port, Channel scan, Monitoring software with USB connectivity |
| Dimensions |
210 (W) x 46 (H) x 210 (D) mm (8.27" x 1.81" x 8.27") (excluding antenna) |
| Weight |
1.3kg (2.87lb)
|
S5.3-HCX - Handheld Microphone (Dynamic)
| RF Carrier Power |
Less than 50mW(Factory preset 10mW ERP) |
| Maximum Input Level |
142dB SPL
(microphone sensitivity: Gain "0") |
| Audio Frequency Response |
90 Hz - 20 kHz |
| Dynamic Range |
110 dB or more (with S5.5-RX) |
| Battery |
LR6 (Single AA) |
| Battery Life |
10 hours (Alkaline) |
| Indicator |
LCD display, Power lamp |
| Function |
Mute switch, Infra-Red link port, Battery life indicator (4 steps), Microphone sensitivity adjustment (Gain 0-2; 12dB) |
| Dimensions |
Ø50 x 232.9 mm (Ø1.97" x 9.76") |
| Weight |
300g (0.84lb) (with battery) |
Note: Rack mounting kit not included.
MB-15B-BK – for mounting a single receiver; MB-15B-J - for mounting 2 receivers side by side
